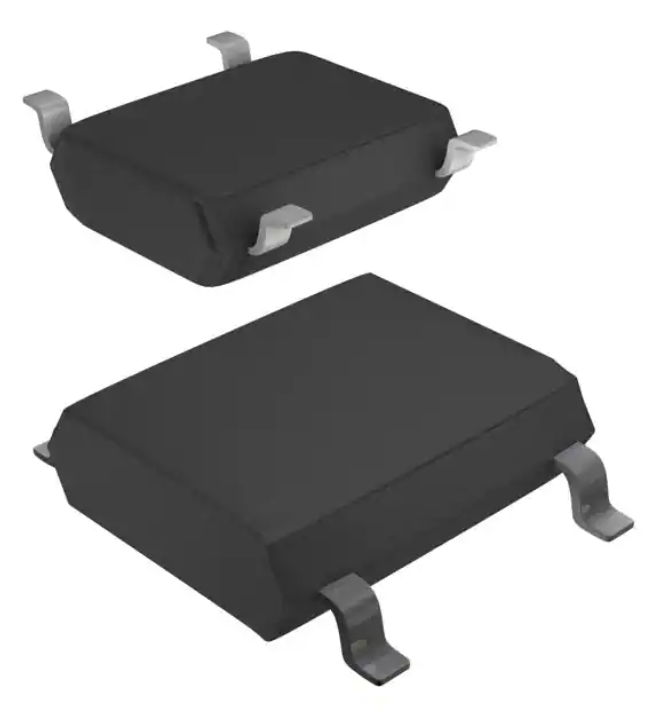

KMB14F

KMB14F THRU KMB120F Voltage Range - 40 to 200 V olts Forward Current - 1.0 Ampere Schottky Surface Mount Flat Bridge Rectifier Features MBF  Surge overload rating: 30 amperes peak  Ideal for printed circuit board  Plastic material has Underwriters Laboratory Flammability Classification 94V-0 +  Low leakage  Reliable low cost construction utilizing molded Mechanical Data MAX Case : JEDEC MBF Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.0026 ounce, 0.075 grams （2） - ~ （3） Maximum Ratings And Electrical Characteristics （1） + ~ （4） Dimensions in inches and (millimeters) Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage per at 1A Maximum DC reverse current at rated DC blocking voltage TA=25°C TA=100°C Typical thermal resistance（NOTE1） Typical junction capacitance Operating temperature range storage temperature range VRRM VRMS VDC IF(AV) MDD MDD MDD MDD MDD MDD KMB14F KMB16F KMB18F KMB110F KMB115F KMB120F UNITS 40 28 40 60 42 60 IFSM VF 0.55 IR RθJA RθJL Cj TJ TSTG 0.70 0.3 10 1.0 V V V A 30 A 80 56 80 100 70 100 150 105 150 200 140 200 0.85 0.90 V 0.2 5 0.1 2 mA 100 20 110 80 -55 to +125 -55 to +150 °C/W pF °C °C Note：1.Thermal resistance from junction to ambient and from junction to lead P.C.B.mounted on 0.2×0.2"(5.0×5.0mm)copper pad areas. http://www.microdiode.com Rev:2024A1 Page :1 KMB14F THRU KMB120F Voltage Range - 40 to 200 V olts Forward Current - 1.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics 1.2 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 75 50 100 125 150 Instaneous Reverse Current ( μA) Average Forward Current (A) Fig.1 Forward Current Derating Curve 10 4 10 3 T J =100°C 10 2 T J =75°C 10 1 T J =25°C 10 0 Case Temperature (°C) 0 1.0 KM B14F KM B16F/KMB18F KMB110F KM B115F/KMB120F 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Junction Capacitance (pF) 10 1.8 80 100 T J =25°C 200 100 50 KMB14F 20 10 KMB16F-KMB120F 10 1 0.1 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surge Current Fig.6- Typical Transient Thermal Impedance 50 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 10 1 Number of Cycles at 60Hz 100 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) Peak Forward Surge Current (A) 60 500 20 00 40 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.1 20 Percent of Rated Peak Reverse Voltage（%） 1000 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 KMB14F THRU KMB120F Voltage Range - 40 to 200 V olts Forward Current - 1.0 Ampere Suggested Pad Layout P2 P1 Dim Min P1 6.00 P2 2.40 Q1 1.84 Q2 1.20 Q1 Q2 Dimensions in millimeters http://www.microdiode.com Rev:2024A1 Page :3
