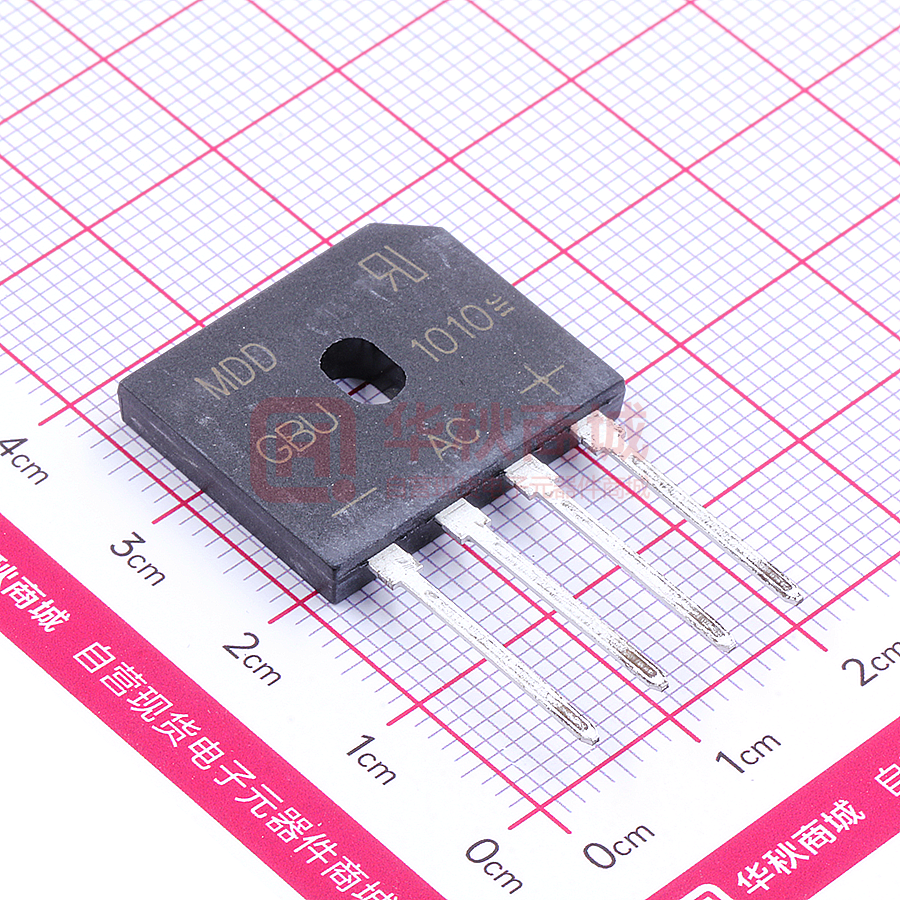

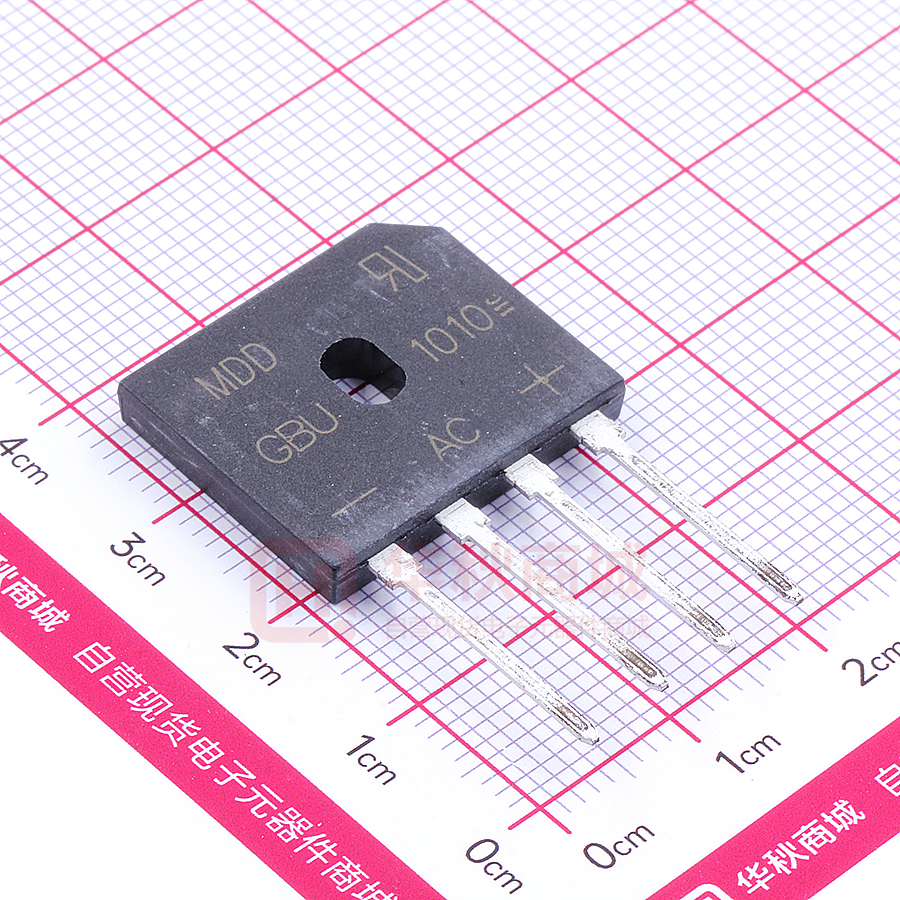

GBU1010

GBU10005 THRU GBU1010 Reverse Voltage - 50 to 1000 Volts Forward Current - 10.0 Amperes GLASS PASSIVATED BRIDGE RECTIFIERS Features GBU  Surge overload rating - 220 amperes peak .437(11.1) .430(10.9)  Ideal for printed circuit board  Reliable low cost construction utilizing molded plastic technique  Plastic material has U/L lammability classification 94V-0 .154(3.9) .146(3.7) .752(19.1) .720(18.3) .232(5.9) .224(5.7) .401(10.2) .392(9.80) .073(1.85) .057(1.45) Mechanical Data .100(2.54) .085(2.16) .720(18.29) .680(17.27) .047(1.2) .035(0.9) Case : JEDEC GBU Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any .080(2.03) .065(1.65) .210 .210 .190 .190 (5.3) (5.3) (4.8) (4.8) Maximum Ratings And Electrical Characteristics .139(3.53) .133(3.37) .126(3.2)*45° CHAMFER .874(22.2) .860(21.8) .106(2.7) .091(2.3) .022(.56) .018(.46) .210 .190 (5.3) (4.8) Dimensions in inches and (millimeters) Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward(with heatsink NOTE 2) Rectified current @T c =100°C(without heatsink) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
