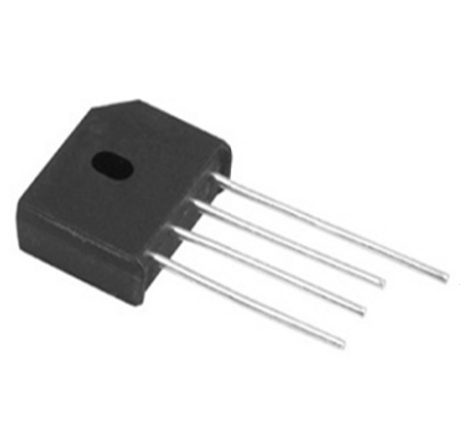

KBU1510

KBU15005 THRU KBU1510 Reverse Voltage - 50 to 1000 Volts Forward Current - 15.0 Amperes SILICON BRIDGE RECTIFIERS Features KBU  Ideal for printed circuit board  Reliable low cost construction utilizing molded plastic technique .157(4.0)*45° 0.935(23.7) 0.895(22.7)  Plastic material has U/L lammability classification 94V-0 0.15 x0.23L (3.8 x5.7L) HOLE THRU 0.300 (7.5)  High temperature soldering guaranteed: 0.700(17.8) 0.600(16.8) 260°C/10 seconds,0.375”(9.5mm) lead length, 0.780(19.8) 0.740(18.8) AC 5 lbs. (2.3kg) tension 0.669 MIN. (17.0) 0.866 MIN. (22.0) 0.052(1.3) DIA. 0.048(1.2) Mechanical Data 0.220(5.6) 0.180(4.6) 0.087(2.2) 0.071(1.8) Case : JEDEC KBU Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.27ounce，7.59grams 0.280(7.1) 0.236(6.0) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TC=50 C(Note 1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per birdge element at 6.0A Maximum DC reverse current TA=25°C TA=125°C at rated DC blocking voltage Operating junction temperature range storage temperature range SYMBOLS VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 KBU15005 KBU1501 KBU1502 KBU1504 KBU1506 KBU1508 KBU1510 UNITS V V V I(AV) 15 A IFSM 300 A VF 1.0 V IR 10 0.5 μA mA TJ -55 to +150 °C TSTG -55 to +150 °C NOTES: 1.Device mounted on 100mm*100mm*1.6mm Cu plate heatsink http://www.microdiode.com Rev:2024A2 Page :1 KBU15005 THRU KBU1510 Reverse Voltage - 50 to 1000 Volts Forward Current - 15.0 Amperes Ratings And Characteristic Curves FIG.1-MAXIMUM FORWARD SURGE CURRENT FIG. 2 – DERATING CURVE OUTPUT RECTIFIED CURRENT AVERAGE FORWARD OUTPUT CURRENT AMPERES PEAK FORWARD SURGE CURRENT AMPERES 400 350 300 250 200 TJ=25°C 150 100 50 0 10 1 20 15 10 5 0 100 50 100 150 CASE TEMPERATURE (℃) NUMBER OF CYCLETS AT 60Hz FIG.3– TYPICAL FORWARD CHARACTERISTICS FIG.4– TYPICAL REVERSE CHARACTERISTICS 10 INSTANTANEOUS REVERSE CURRENT MICROAMPERES INSTANTANEOUS FORWARD CURRENT (AMPERES) 100 10 1.0 0.1 1.0 TJ = 25°C 0.1 0.01 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2
