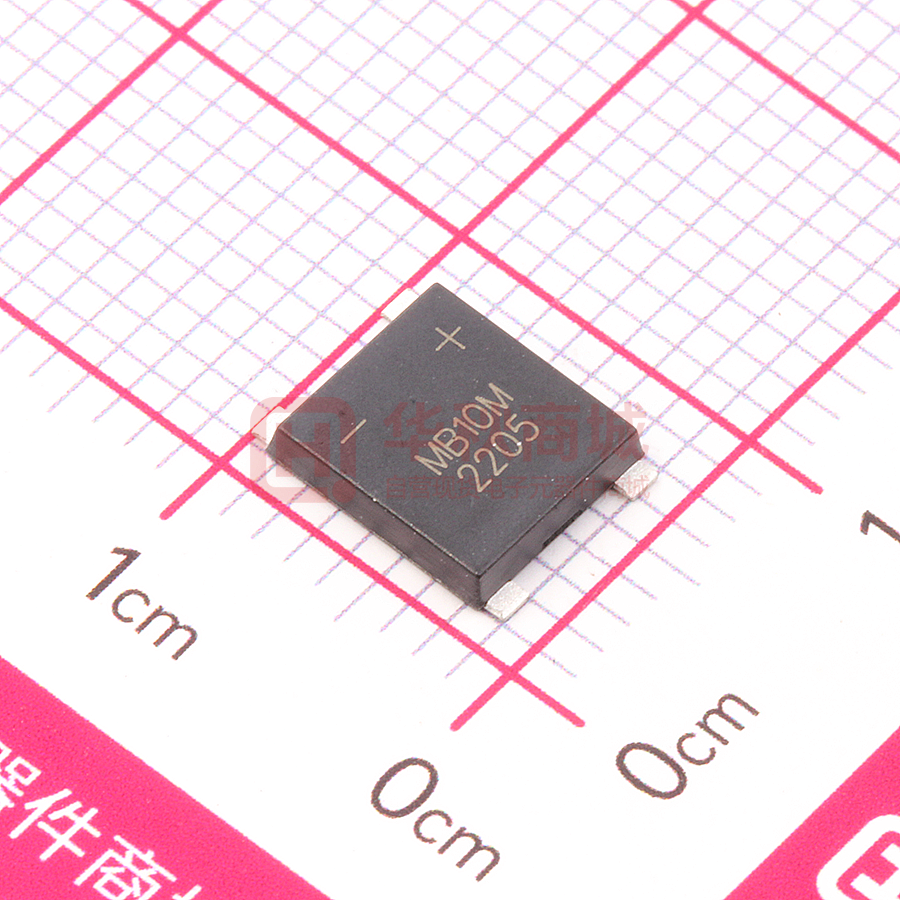

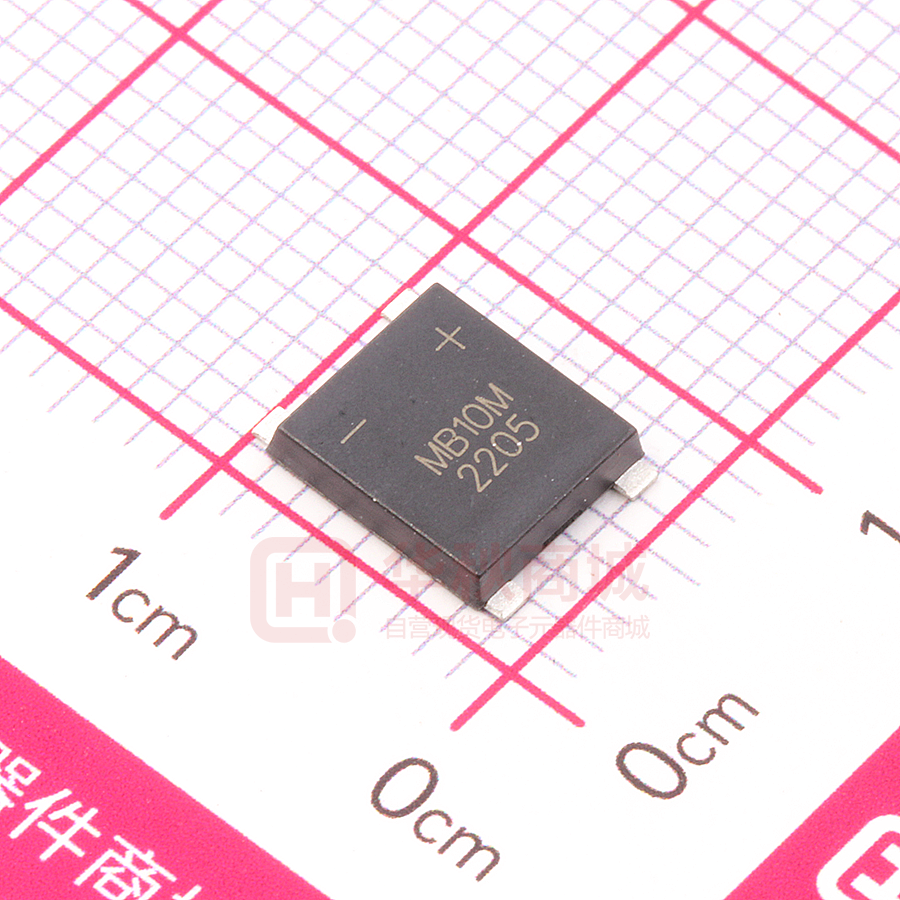

MSB10M

MSB10B THRU MSB10M 1A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: PINNING • Glass Passivated Chip Junction PIN • Reverse Voltage - 100 to 1000 V DESCRIPTION 1 Output Anode（+） 2 Output Cathode（-） • High Surge Current Capability 3 Input Pin（~） • Designed for Surface Mount Application 4 Input Pin（~） • Forward Current - 1.0 A 1 （1） （2） - MECHANICAL DATA • Case: UMSB • Terminals: Solderable per MIL-STD-750, Method 2026 + 2 4 • A pprox. Weight: 0.234g / 0.00825oz ~ ~ （4） （3） 3 UMSB Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols MSB10B Parameter MSB10D MSB10G MSB10J MSB10K MSB10M Units Maximum Repetitive Peak Reverse Voltage V RRM 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 100 200 400 600 800 1000 V Average Rectified Output Current IO 1.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 35 A Maximum Forward Voltage at 1.0 A VF 1.1 V IR 5 100 μA Cj 18 pF RθJA RθJC RθJL 70 15 40 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current at Rated DC Blocking Voltage @ T A =25 °C @ T A =125 °C Typical Junction Capacitance（Note1） Typical Thermal Resistance（Note2） Operating and Storage Temperature Range Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with 4×1.5"×1.5"（3.81×3.81 cm）copper pad. 2018.01 UMSB-A-MSB10B~MSB10M-1A1KV Page 1 of 3 MSB10B THRU MSB10M Fig.2 Typical Reverse Characteristics 1.25 1.00 0.75 0.50 0.25 Resistive or Inductive Load 0.00 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 120 140 T J =25°C 0.1 49 42 35 28 21 14 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 1.0 10 100 Reverse Voltage (V) 100 Transient Thermal Impedance（ °C /W） Peak Forward Surage Current (A) 100 10 Fig.6- Typical Transient Thermal Impedance 100 10 Number of Cycles 2018.01 80 1 0.5 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 60 100 Instaneous Forward Voltage (V) 07 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 MSB10B THRU MSB10M PACKAGE OUTLINE Plastic surface mounted package; 4 leads UMSB E C A e D b L ∠ALL ROUND E1 VM A UMSB mechanical data A C D E E1 L e b max 1.5 0.29 7.0 7.6 8.9 1.6 5.3 1.15 min 1.3 0.17 6.2 7.1 8.4 1.0 4.9 0.95 max 59 12 276 299 350 55 209 45 min 51 7 244 280 331 31.5 193 37 UNIT ∠ mm 10° mil The recommended mounting pad size Marking 5.1 201 1.3×1. 8 51×71 Unit： mm (mil) 2018.01 JD802255B0 Type number Marking code MSB10B MB10B MSB10D MB10D MSB10G MB10G MSB10J MB10J MSB10K MB10K MSB10M MB10M Page 3 of 3
