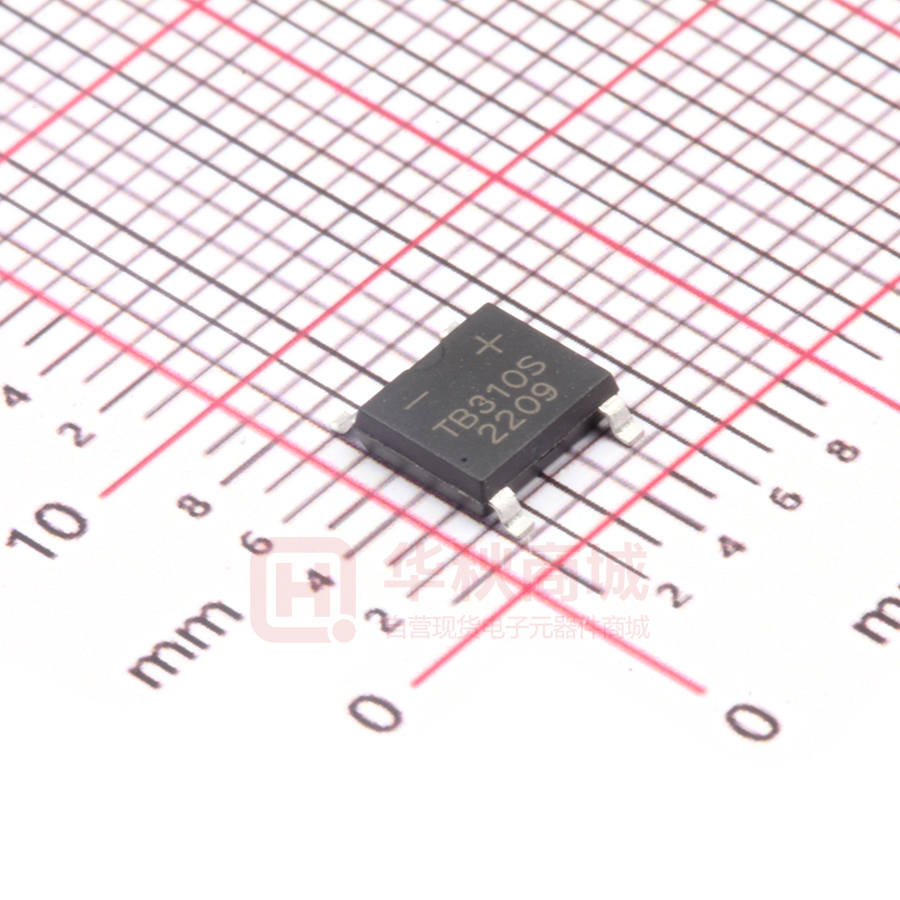

TB310S

山东晶导微电子股份有限公司 TB34S THRU TB320S Jingdao Microelectronics co.LTD 3A SURFACE MOUNT SCHOTTKY BRIDGE FEATURES: PINNING • Reverse Voltage - 40 to 200 V PIN DESCRIPTION • Forward Current - 3 A 1 Input Pin（~） • High Surge Current Capability 2 Input Pin（~） • Designed for Surface Mount Application 3 Output Anode（+） 4 Output Cathode（-） MECHANICAL DATA • Case: ABS/LBF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 88mg 0.0031oz 3 4 2 1 ABS/LBF Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols Parameter TB34S TB36S TB38S TB310S TB320S Units Maximum Repetitive Peak Reverse Voltage V RRM 40 60 80 100 200 V Maximum RMS voltage V RMS 28 42 56 70 140 V Maximum DC Blocking Voltage V DC 40 60 80 100 200 V Average Rectified Output Current at T c = 100 °C I F(AV) Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM Max Instantaneous Forward Voltage at 3 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance 1） Typical Thermal Resistance 2） Operating Junction Temperature Range Storage Temperature Range A 3.0 80 70 A VF 0.55 IR 0.5 10 0.3 5 mA Cj 250 160 pF 0.70 0.85 0.95 V RθJA 60 °C/W Tj -55 ~ +150 °C T stg -55 ~ +150 °C Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with 4×1.5"×1.5"（3.81×3.81 cm）copper pad. 2016.01 ABS-S-TB34S~TB320S-3A200V Page 1 of 3 山东晶导微电子股份有限公司 TB34S THRU TB320S Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics Average Forward Current (A) 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 25 50 75 100 125 150 Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve 10 4 T J =75°C 10 2 TB34S TB36S-TB320S 10 1 T J =25°C 10 0 0 Case Temperature (°C) 40 20 60 80 100 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Fig.4 Typical Junction Capacitance 500 20 Junction Capacitance ( pF) Instaneous Forward Current (A) T J =100°C 10 3 10 1.0 TB34S TB36S/TB38S TB310S TB320S 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 T J =25°C 200 100 50 TB32S/TB34S 20 TB36S-TB320S 10 1.8 0.1 1 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 100 8.3 ms Single Half Sine Wave (JEDEC Method) 80 60 TB34S/TB36S TB38S~TB320S 40 20 00 1 10 100 Number of Cycles at 60Hz 2016.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 TB34S THRU TB320S Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 4 leads ABS/LBF ∠ALL ROUND ∠ALL ROUND C A a L1 d L HE e D e E ABS/LBF mechanical data A C D E HE d e max 1.5 0.22 5.2 4.5 6.4 4.2 0.7 min 1.3 0.15 4.9 4.2 6.0 3.8 0.5 max 59 8.7 205 177 252 165 28 min 51 5.9 193 166 236 150 20 UNIT mm L L1 a 0.95 0.6 0.2 ∠ 7° 37 mil The recommended mounting pad size 24 4 Marking Type number 6.2 244 4.0 157 1.0 39 2.0 79 2016.01 mm Unit ： (mil) XTH512285B0 Marking code TB34S TB34S TB36S TB36S TB38S TB38S TB310S TB310S TB320S TB320S TBxxS Page 3 of 3
