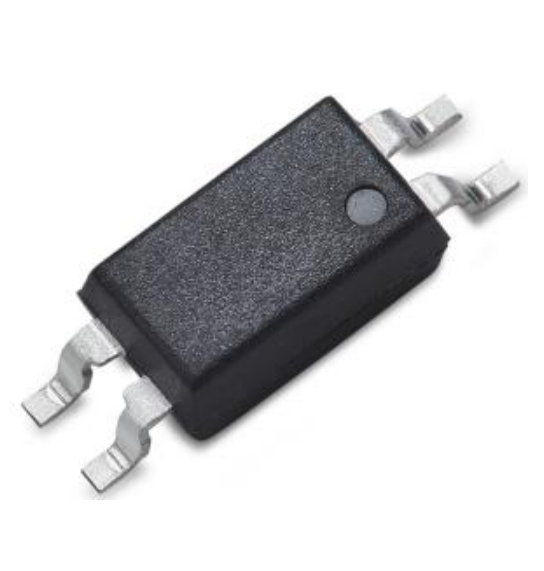

OR-3H4A-TP-G

Shenzhen Orient Components Co ., Ltd OR-3H4 ORIENT Photo coupler Product Data Sheet Part Number: OR-3H4 Customer: Date: SHENZHEN ORIENT COMPONENTS CO.,LTD. Block A 3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL：0755-29681816 FAX：0755-29681200 www.orient-opto.com Copyright© 2020 Orient .All rights Reserved 1 V11 OR-3H4 Shenzhen Orient Components Co ., Ltd 1. Features (1) (2) (3) (4) (5) Current transfer ratio(CTR) : MIN. 20% at IF = ±1mA, VCE = 5V, Ta=25 ℃ High input-output isolation voltage.(VISO=3,750Vrms) BVCEO = 80V(MIN) Operating temperature:-55℃ to 125℃ Safety approval UL approved(No.E323844) VDE approved(No.40029733) CQC approved (No.CQC19001231256) (6) In compliance with RoHS, REACH standards (7) MSL Class Ⅰ 2. Instructions The OR-3H4 series device contains two infrared led and a photo transistor detector.They are encapsulated in a 4-pin SOP, free of halogens and Sb2O3 3. Application Range (1) Hybrid substrates that require high density mounting (2) Programmable controller (3) System apparatus,measuring instruments 4. Max Absolute rated Value (Normal Temperature=25℃) Parameter Symbol Rated Value Unit Forward Current IF 50 mA Peak forward current(t=10us) IFM 1 A Reverse Voltage VR 6 V Power Dissipation P 65 mW Junction Temperature Tj 125 ℃ Collector and emitter Voltage VCEO 80 VECO V Emitter and collector Voltage 7 Collector Current IC 50 mA Power Dissipation PC 150 mW Junction Temperature Tj 125 ℃ Total Power Dissipation Ptot 200 mW *1 Insulation Voltage Viso 3750 Vrms Operating Temperature Topr -55 to +125 Storage Temperature Tstg -55 to +150 *2 Soldering Temperature Tsol 260 Input Output Copyright© 2020 Orient .All rights Reserved 2 ℃ V11 OR-3H4 Shenzhen Orient Components Co ., Ltd *1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2.soldering time is 10 seconds. 5. Opto-electronic Characteristics(Normal Temperature=25℃) Parameter Input Symbol Min Typ.* Max Unit Forward Voltage VF --- 1.2 1.4 V Terminal Capacitance Ct --- 60 --- pF Collector Dark Current ICEO --- --- 100 nA BVCEO 80 --- --- V BVECO 7 --- --- V *1 Current Transfer Ratio CTR 20 --- 400 % Collector Current IC 2 --- 40 mA Collector-Emitter Saturation Voltage VCE(sat) --- --- 0.4 V IF=±8mA IC= 2.4mA Insulation Impedance Riso --- Ω DC500V 40~60%R.H. Floating Capacitance Cf --- 0.8 1 pF V=0, f=1MHz Response Time tr --- 3 18 μs Descend Time tf --- 4 18 μs Collector-Emitter Breakdown Voltage Output Emitter-Collector Breakdown Voltage Transforming Characteristics  5×1010 1×1011 Condition IF=±20mA V=0, f=1KHz VCE=20V,IF=0mA IC=0.1mA IF=0mA IE=0.1mA IF=0mA IF=±1mA VCE=5V VCE=10V IC=2mA RL=100Ω Current Conversion Ratio = IC / IF × 100% Copyright© 2020 Orient .All rights Reserved 3 V11 OR-3H4 Shenzhen Orient Components Co ., Ltd 6. Rank table of current transfer ratio CTR MODEL NO. CTR Rank Min. Max. NO mark 20 400 A 50 250 B 100 400 C 100 200 GR 100 300 OR-3H4 Unit Condition Unit % IF=±1mA, VCE=5V, Ta=25℃ % IF=±5mA, VCE=5V, Ta=25℃ Current Conversion Ratio = IC / IF × 100%  7. Order Information Part Number OR-3H4W-X-Y-Z Note W = CTR Rank (A, B, C, GR or none) X = Tape and reel option (TP or TP1). Y = ‘V’ code for VDE safety (This options is not necessary). Z = ‘G’ code for Halogen free. * VDE Code can be selected. Option Description Packing quantity TP Surface mount lead form (low profile) + TP tape & reel option 3000 units per reel TP1 Surface mount lead form (low profile) + TP1 tape & reel option 3000 units per reel Copyright© 2020 Orient .All rights Reserved 4 V11 Shenzhen Orient Components Co ., Ltd OR-3H4 8. Naming Rule 1. Manufacturer : ORIENT. 2. Part Number : 3H4. 3. Rank Code 4. Year Code 5. Week Code 6. VDE Code 7. HF Code ‘G’: Halogen Free. 8. Anode. ： CTR Rank ： '0' means '2020' and so on. ： 01 means the first week, 02 means the second week and so on. . (Optional) * VDE Code can be selected. Copyright© 2020 Orient .All rights Reserved 5 V11 Shenzhen Orient Components Co ., Ltd OR-3H4 9. Outer Dimension 10. Recommended Foot Print Patterns (Mount Pad) (unit：mm) Copyright© 2020 Orient .All rights Reserved 6 V11 Shenzhen Orient Components Co ., Ltd OR-3H4 11. Taping Dimensions (1)OR-3H4-TP (2)OR-3H4-TP1 type Symbol Dimensions: mm (in.) bandwidth W 12±0.3 (0.47) pitch P0 4±0.1 (0.15) F 5.5±0.1 (0.217) P2 2±0.1 (0.079) P1 8±0.1 (0.315) pitch interval Encapsulation type TP/TP1 Quantity (pieces) 3000 Copyright© 2020 Orient .All rights Reserved 7 V11 Shenzhen Orient Components Co ., Ltd OR-3H4 12. Package Dimension (1) package dimension Packing Information Packing type Reel type Tape Width 12mm Qty per Reel 3,000pcs Small box (inner) Dimension 345*345*45mm Large box (Outer) Dimension 480x360x360mm Max qty per small box 6,000pcs Max qty per large box 60,000pcs (2)Packing Label Sample Note： 1. 2. Material Code :Product ID. P/N :Contents with "Order Information" in the specification. 3. Lot No. :Product data. 4. D/C :Product weeks. 5. Quantity :Packaging quantity. Copyright© 2020 Orient .All rights Reserved 8 V11 OR-3H4 Shenzhen Orient Components Co ., Ltd 13. Reliability Test NO. 1 ITEMS RSH 耐焊接热 Reliability Testing QTY. (Pcs) 22 Condition 260±5℃ Process Device Standard 锡炉 JESD22-A106 高温烤箱 测试仪 JESD22-A103 低温箱 测试仪 JESD22-A119 300 cycle 冷热冲击机 JESD22-A104 300 cycle 冷热冲击机 JESD22-A106 高温烤箱 测试仪、老 化电路板 JESD22-A108 ESD静电测 试仪 JESD22-A114 锡炉 JESD22-B102 高温烤箱 ，测试仪 JESD22-A103 恒温恒湿 机，测试仪 JESD22-A101 压力锅 JESD22-A102 10s/3 次 168 hrs 2 HTSL 高温存储 77 125℃ 500 hrs 1000 hrs 168 hrs 3 LTSL 低温存储 77 -55℃ 500 hrs 1000 hrs TC 4 温度循环 5 温度冲击 6 7 8 9 10 11 TS HTOL 高温操作 ESD-HBM 人体模式 SD 可焊性 HTRB 高温反向偏压 H3TRB 温湿度反向偏 压，寿命试验 Autoclave 压力锅 77 77 77 H:125℃ 15min ∫5min L:-55℃ 15min H:100℃ 5min ∫15s L:-40℃ 5min 110°C IF=10mA Vce=5V 168 hrs 500 hrs 1000 hrs 22 ≥8KV 1Cycle 1次 22 Pb-free 245±5℃ 5S/1次 77 HTRB ＠125℃ Vce=80v 77 77 H3TRB 85℃,85%RH Vce=80v Ta=121 ℃,100%RH,2atm Copyright© 2020 Orient .All rights Reserved 168 hrs 500 hrs 1000 hrs 168 hrs 500 hrs 1000 hrs 96hrs 9 V11 OR-3H4 Shenzhen Orient Components Co ., Ltd 14. Temperature Profile Of Soldering （1）IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (T Smin ) 150˚C - Temperature Max (T Smax ) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Peak Temperature time 20 sec Ramp-up rate 3˚C / sec max. Ramp-down rate from peak temperature 3~6˚C / sec Reflow times ≤3 Copyright© 2020 Orient .All rights Reserved 10 V11 Shenzhen Orient Components Co ., Ltd OR-3H4 （2）Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 25 to 140˚C Preheat time 30 to 80 sec （3）Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature 380+0/-5˚C Time 3 sec max Copyright© 2020 Orient .All rights Reserved 11 V11 Shenzhen Orient Components Co ., Ltd OR-3H4 15. Characteristics Curve Copyright© 2020 Orient .All rights Reserved 12 V11 Shenzhen Orient Components Co ., Ltd Copyright© 2020 Orient .All rights Reserved 13 OR-3H4 V11 Shenzhen Orient Components Co ., Ltd Copyright© 2020 Orient .All rights Reserved 14 OR-3H4 V11
