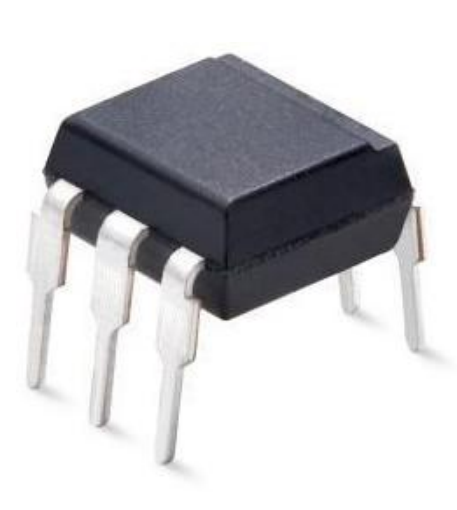

OR-MOC3021S-TA1

Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X ORIENT Photo coupler Product Data Sheet Part Number: OR-MOC302X/305X/307X Customer: Date: SHENZHEN ORIENT COMPONENTS CO ., LTD Block A 3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL：0755-29681816 FAX：0755-29681200 www.orient-opto.com Copyright© 2020 Orient .All rights Reserved 1 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 1. Features (1) (2) (3) (4) (5) (6) (7) (8) High isolation voltage between input and output (Viso:5000 V rms ) 6pin non-zero-cross optoisolators triac driver output High repetitive peak off-state voltage VDRM : OR-MOC302X: Min. 400V;OR-MOC305X: Min. 600V;OR-MOC307X: Min. 800V High critical rate of rise of off-state voltage( dV/dt : TYP. 800V /s ) Have Dual-in-line package;Wide lead spacing package and Surface mounting package . Operating temperature -40 ℃ to +110 ℃ Safety approval UL approved(No.E323844) VDE approved(No.40029733) CQC approved (No.CQC19001231480 ) (9) In compliance with RoHS, REACH standards (10) MSL Level 1 2. Description The OR-MOC302X/OR-MOC305X/OR-MOC307X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon non zero voltage crossing photo triac.They are designed for use with a discrete power triac in the interface of logic systems , such as solid-state relays, industrial controls, motors, solenoids and consumer appliances. 3. Application Range • AC Motor Drives • Lighting Controls • Temperature Controls •AC Motor Starters •Solenoid/Valve Controls •Static power switch •Solid State Relays 4. Absolute Maximum Ratings (Ta=25℃) Parameter Input Output Forward Current Junction Temperature Reverse Voltage Power Dissipation Off-State Output Terminal Voltage Symbol Rateing Unit IF TJ VR 50 125 6 120 mA ℃ V mW P OR-MOC302X OR-MOC305X OR-MOC307X On-State RMS Current Peak Repetitive Surge Current (PW=1ms，120 pps) Junction Temperature Collector Power Dissipation Total Power Dissipation *Insulation Voltage Working Temperature Deposit Temperature *2 Soldering Temperature 400 V DRM 600 V IT(RMS) 800 100 mA I TSM 1 A TJ PC Ptot Viso Topr Tstg Tsol 125 150 250 5000 -40 ~ + 110 -55 ~ + 125 260 ℃ mW mW Vrms ℃ *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2&3 are shorted together, and pins 4, 6 are shorted together. * 2 For 10 second Copyright© 2020 Orient .All rights Reserved 2 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 5. Electrical Optical Characteristics at Ta=25°C Symbol Min Typ. Max Unit Condition Forward Voltage VF --- 1.2 1.6 V IF=20mA Reverse Current IR --- --- 5 μA VR=6V IDRM --- --- 500 nA VTM --- --- 3.0 V ITM=100mA Peak dv/dt --- 800 --- V/μs Vin=240Vrms --- --- 30 --- --- 15 mA Main Terminal Voltage = 3V Parameter Input 1.Peak Blocking Current, Either Direction Output Peak On-State Voltage, Either Direction 2.Critical rate of Rise of Off-State Voltage V DRM = Rated VDRM OR-MOC3020 OR-MOC3050 OR-MOC3070 OR-MOC3021 Couple 3.Led Trigger Current,Current Required to Latch Output, Either Direction OR-MOC3051 OR-MOC3071 OR-MOC3022 IFT OR-MOC3052 --- --- 10 --- --- 5 --- --- 3 --- 200 --- --- 540 --- OR-MOC3072 OR-MOC3023 OR-MOC3053 OR-MOC3073 OR-MOC3024 OR-MOC3054 OR-MOC3074 Holding Current, Either Direction OR-MOC302X IH OR-MOC305X OR-MOC307X μA *1.Test voltage must be applied within dv/dt rating. *2. This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. *3. All devices are guaranteed to trigger at an IF value less than or equal to max IFT . Therefore,recommended operating IF lies between max IFT , 30 mA for OR-MOC3020, OR-MOC3050 and OR-MOC3070,15 mA for ORMOC3021, OR-MOC3051 and OR-MOC3071,10 mA for OR-MOC3022, OR-MOC3052 and OR-MOC3072,5 mA for OR-MOC3023, OR-MOC3053 and OR-MOC3073,3 mA for OR-MOC3024, OR-MOC3054 and ORMOC3074, and absolute max IF (50mA). Copyright© 2020 Orient .All rights Reserved 3 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 6. Order Information Part Number OR-MOC302XV-W-Y OR-MOC305XV-W-Y OR-MOC307XV-W-Y or Note X = IFT Rank ( 0,1, 2, 3,or 4). V = Lead form option (S, M or None). W = Tape and reel option (TA,TA1 or none). Y = ‘V’ code for VDE safety (This options is not necessary). * VDE Code can be selected. Option Description None Standard DIP-6 66 units per tube M Wide lead bend (0.4 inch spacing) 66 units per tube S(TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel S(TA1) Surface mount lead form (low profile) + TA1 tape & reel option 1000 units per reel Copyright© 2020 Orient .All rights Reserved 4 Packing quantity V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 7. Naming Rule 1. Manufacturer : ORIENT. 2. Part Number : MOC30 3. Shape Code 4. Year Code 5. Week Code 6. VDE Code 7. Anode. . . ： '21' means '2021' and so on. ： 01 means the first week, 02 means the second week and so on. . (Optional) * VDE Code can be selected. Copyright© 2020 Orient .All rights Reserved 5 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 8. Package Dimension (1).MOC30XX (2).MOC30XX M Copyright© 2020 Orient .All rights Reserved 6 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X (3).MOC30XX S 9. RRECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD) Copyright© 2020 Orient .All rights Reserved 7 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 10. Taping Dimensions (1)OR-MOC30XXS-TA (2)OR-MOC30XXS-TA1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment Package Type TA/TA1 Quantities(pcs) 1000 Copyright© 2020 Orient .All rights Reserved 8 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 11. Package Dimension (1) package dimension DIP Type Packing Information Packing type Tube Qty per Tube 66pcs Small box (Inner) Dimension 525*128*60mm Large box (Outer) Dimension 545*290*335mm The Amount per Inner Box 3,300pcs The Amount per Outer Box 33,000pcs SOP Type Packing Information Packing type Reel type Tape Width 16mm Qty per Reel 1,000pcs Small box (inner) Dimension 345*345*58.5mm Large box (Outer) Dimension 620x360x360mm Max qty per small box 2,000pcs Max qty per large box 20,000pcs (2)Packing Label Sample Note： 1. 2. Material Code :Product ID. P/N :Contents with "Order Information" in the specification. 3. Lot No. :Product data. 4. D/C :Product weeks. 5. Quantity :Packaging quantity. Copyright© 2020 Orient .All rights Reserved 9 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 12. Temperature Profile Of Soldering (1).IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat 150˚C - Temperature Min (T Smin ) 200˚C - Temperature Max (T Smax ) 90±30 sec - Time (min to max) (ts) Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Peak Temperature time 20 sec Ramp-up rate 3˚C / sec max. Ramp-down rate from peak temperature 3~6˚C / sec Reflow times ≤3 Copyright© 2020 Orient .All rights Reserved 10 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X (3) .Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 5 to 140˚C Preheat time 30 to 80 sec (3).Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Copyright© 2020 Orient .All rights Reserved Temperature 380+0/-5˚C Time 3 sec max 11 V6 Shenzhen Orient Components Co ., Ltd OR-MOC302X/305X/307X 13. CHARACTERISTICS CURVES (TYPICAL PERFORMANCE) Copyright© 2020 Orient .All rights Reserved 12 V6 Shenzhen Orient Components Co ., Ltd Copyright© 2020 Orient .All rights Reserved 13 OR-MOC302X/305X/307X V6
