OR-M3054-P-TP-G-(CFT)

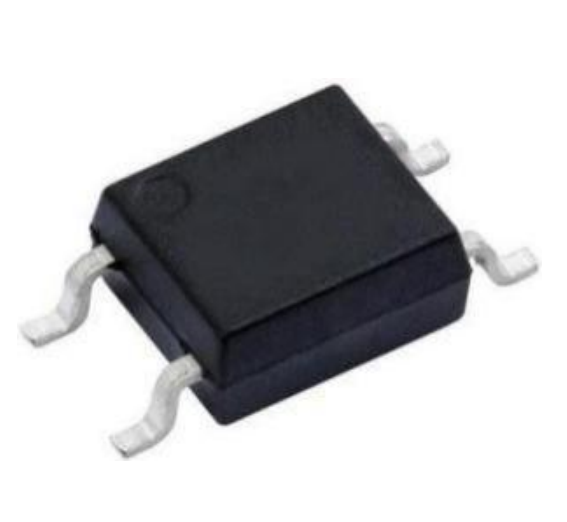

Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) ORIENT Photo coupler Product Data Sheet Part Number: OR-M3054-P-TP-G-(CFT) Customer: Date: SHENZHEN ORIENT COMPONENTS CO ., LTD Block A 3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL：0755-29681816 FAX：0755-29681200 www.orient-opto.com Copyright© 2020 Orient .All rights Reserved 1 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 1. Features (1) High isolation voltage between input and output (Viso:3750 V rms ) (2) 4pin non zero-cross optoisolators triac driver output (3) High repetitive peak off-state voltage VDRM : 3054: Max. 600V (4) High critical rate of rise of off-state voltage dv/dt : 3054:MIN. 1000V / s (5) Tape and reel packaging. (6) Operating temperature -40 ℃to +110 ℃ (7) Safety approval UL approved(No.E323844) VDE approved(No.40029733) CQC approved (No.CQC19001231256 ) (8) In compliance with RoHS, REACH standards (9) MSL Class Ⅰ 2. Description The OR-M3054-P-TP-G-(CFT) consists of a non zero crossing photo triac, optically coupled to a gallium arsenide infrared emitting diode. They are housed in the SOP-4 package and guarantees insulation thickness.Therefore,they meets the reinforced insulation class requirements of international safety standards. 3. Application Range • AC Motor Drives • Lighting Controls •AC Motor Starters •Static power switch •Solenoid/Valve Controls •Solid State Relays • Temperature Controls 4. Functional Diagram Copyright© 2020 Orient .All rights Reserved 2 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 5. Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rated Value Forward Current IF 50 mA Junction Temperature TJ 125 ℃ Reverse Voltage VR 6 V Power Dissipation P 100 mW Off-State V DRM 600 V On state RMS current I T(RMS) 100 mA(RMS) Peak Repetitive Surge Current (PW=1ms，120 pps) I TSM 1 A Junction Temperature TJ 125 ℃ Collector Power Dissipation PC 300 mW Total Power Dissipation Ptot 330 mW *1 Insulation Voltage Viso 3750 Vrms Topr -40 ~ + 110 Deposit Temperature Tstg -55 ~ + 125 *2 Soldering Temperature Tsol 260 Input Output Terminal Voltage Output Working Temperature Unit ℃ Notes: *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2&3 are shorted together, and pins 4, 6 are shorted together. * 2 For 10 seconds Copyright© 2020 Orient .All rights Reserved 3 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 6. Electrical Optical Characteristics at Ta=25°C Parameter Input Output Transfer Characteri stics Symbol Min Typ.* Max Unit Condition Forward Voltage VF --- 1.2 1.6 V IF=10mA Reverse Current IR --- --- 5 μA VR=6V *1.Peak Blocking Current, Either Direction IDRM --- 10 100 nA V DRM = Peak On-State Voltage, Either Direction VTM --- --- 2.5 V ITM=100mA Peak *2.Critical rate of Rise of Off-State Voltage dv/dt 1000 --- --- V/μs Vin=240Vrms *3.Led Trigger Current,Current Required to Latch Output, Either Direction IFT --- --- 3 IH --- 3 Ton --- --- Rated VDRM Holding Current, Either Direction Turn-On Time mA 5 mA 100 μs Main Terminal Voltage = 3V VD=6V RL=100Ω IF=20mA *1.Test voltage must be applied within dv/dt rating. *2. This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. *3. All devices are guaranteed to trigger at an IF value less than or equal to max IFT . Therefore,recommended operating IF lies between max IFT , 3 mA for OR-M3054, and absolute max IF (50mA). Copyright© 2020 Orient .All rights Reserved 4 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 7. Order Information Part Number OR-M3054-P-TP-G-(CFT) Note M3054-P = Part Number TP = Tape and reel option. G = ‘G’ code for Halogen free. -(CFT) = Field Code. Option Description Packing quantity TP Surface mount lead form (low profile) + TP tape & reel option 3000 units per reel TP1 Surface mount lead form (low profile) + TP1 tape & reel option 3000 units per reel Copyright© 2020 Orient .All rights Reserved 5 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 8. Naming Rule 1. Manufacturer : ORIENT. 2. Part Number : M3054. 3. Year Code 4. Week Code 5. P Code. 6. HF Code ‘G’: Halogen Free. 7. Anode. ： '21' means '2021' and so on. ： 01 means the first week, 02 means the second week and so on. Copyright© 2020 Orient .All rights Reserved 6 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 9. Package Dimension OR-M30XX 10. Recommended Foot Print Patterns (Mount Pad) unit：mm Copyright© 2020 Orient .All rights Reserved 7 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 11. Taping Dimensions (1)OR-M30XX-TP (2)OR-M30XX-TP1 Description Symbol Dimension in mm (inch) Tape wide W 12±0.3（0.472） Pitch of sprocket holes P0 4±0.1（0.157） F 5.5±0.1（0.217） P2 2±0.1（0.079） P1 8±0.1（0.315） Distance of compartment Distance of compartment to compartment Package Type TP/TP1 Quantities(pcs) 3000 Copyright© 2020 Orient .All rights Reserved 8 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 12. Package Dimension (1) package dimension Packing Information Packing type Reel type Tape Width 12mm Qty per Reel 3,000pcs Small box (inner) Dimension 345*345*45mm Large box (Outer) Dimension 480x360x360mm Max qty per small box 6,000pcs Max qty per large box 60,000pcs (2)Packing Label Sample Note： 1. 2. Material Code :Product ID. P/N :Contents with "Order Information" in the specification. 3. Lot No. :Product data. 4. D/C :Product weeks. 5. Quantity :Packaging quantity. Copyright© 2020 Orient .All rights Reserved 9 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 13. Temperature Profile Of Soldering （1）IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (T Smin ) 150˚C - Temperature Max (T Smax ) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Peak Temperature time 20 sec Ramp-up rate 3˚C / sec max. Ramp-down rate from peak temperature 3~6˚C / sec Reflow times ≤3 Copyright© 2020 Orient .All rights Reserved 10 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) （2）Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 5 to 140˚C Preheat time 30 to 80 sec （3）Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature 380+0/-5˚C Time 3 sec max Copyright© 2020 Orient .All rights Reserved 11 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) 14. CHARACTERISTICS CURVES (TYPICAL PERFORMANCE) Copyright© 2020 Orient .All rights Reserved 12 V0 Shenzhen Orient Components Co ., Ltd OR-M3054-P-TP-G-(CFT) Fig9. Basic Operation Circuit Medium/High Power Triac Drive Circuit Fig10.Static dv/dt Test Circuit & Waveform Copyright© 2020 Orient .All rights Reserved 13 V0 Shenzhen Orient Components Co ., Ltd Copyright© 2020 Orient .All rights Reserved 14 OR-M3054-P-TP-G-(CFT) V0
