S1206-FA-30.0A

S1206-FA-30.0A

  • 厂商:

    SART(萨特)

  • 封装:

    1206

  • 描述:

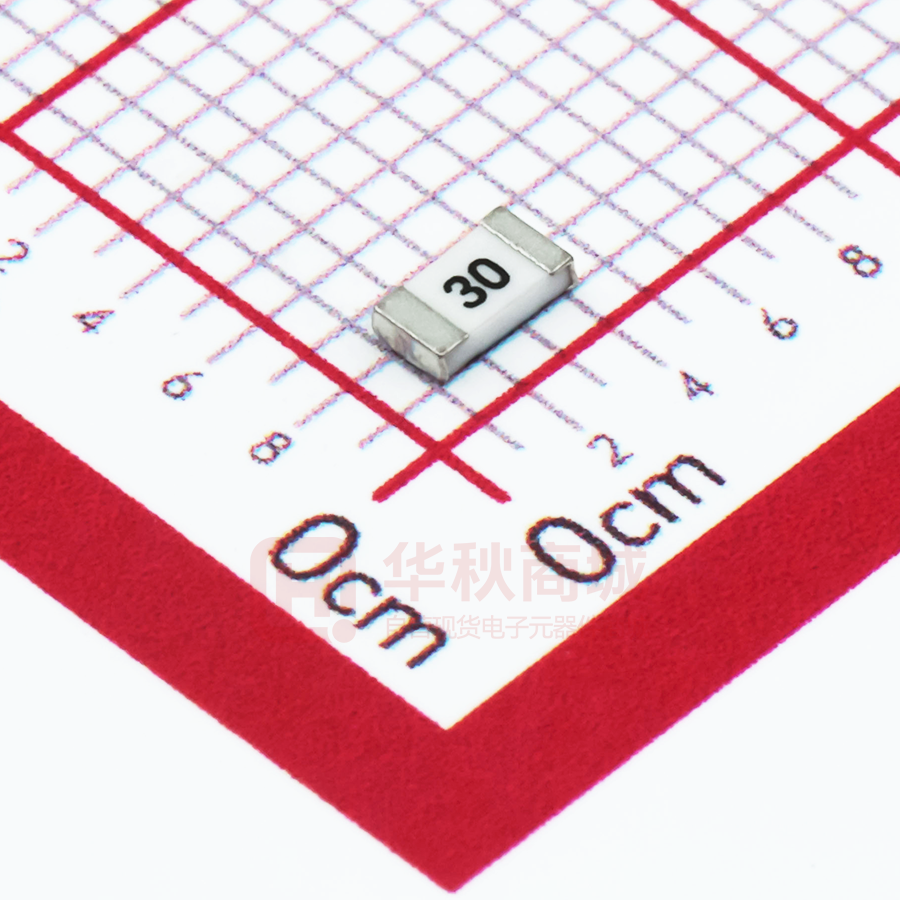

    贴片式陶瓷保险丝 1206 快速熔断 30A 48V

  • 数据手册
  • 价格&库存
S1206-FA-30.0A 数据手册
Surface Mount Fuses File No.: JS-S1206-FA02-00 Revision: J Page: 1/ 6 1206 Size >Fast Acting>S1206-FA-20A~30A General • Fast acting • 3.1mm× 1.6mm physical size • Thick film manufacturing method, ceramic substrate, silver fusing element • -55℃~125℃ operating temperature • Excellent environmental integrity • RoHS compliant • Halogen-free • Lead free Agency / Certificate Information Application Agency • Battery pack • PC related equipment and peripherals (Hard driver, Printer, etc.) • Digital camera (Digital still camera) • Game equipment • LCD monitor, LCD modules • Wireless base station • Power supply • Medical device File Number Ampere Range E319512 20A~30A Electrical Specifications * ** Part Number Marking Current Rating (A) Voltage Rating (V) S1206-FA-20.0A 20 20.0 48 S1206-FA-25.0A 25 25.0 48 S1206-FA-30.0A 30 30.0 48 Interrupting Rating (V) 300A 32V DC 200A 48V DC Typical Cold DCR* (mΩ) Typical I2T** (A2s) 1.7 48 1.3 70 1.0 90 Measured at≤10% rated current and 25℃ 2 Melting I T at 10 times of rated current Nanjing SART Science &Technology Development Co., ltd or ANT Technology Company Limited.(A Wholly Owned Subsidiary) ADD.:Maqun Science & Technology Park, Qingma Road 6#, Nanjing, China TEL.:086-25-84354852-8015 FAX.:086-25-83241791 Web.: www.sartfuse.com Surface Mount Fuses 1206 Size >Fast Acting>S1206-FA-20A~30A File No.: JS-S1206-FA02-00 Revision: J Page: 2/ 6 Catalo Part Number Information S 1206—FA—30.0A “30.0A” Ampere Rating: 30A “ FA” Electrical Characteristic: FA = Fast acting “1206” Size Number “ S” Symbol of SART Shape & Dimensions: (mm) Dimensions Type L (mm) W (mm) T (mm) B (mm) S1206-FA 3.10±0.20 1.60±0.20 0.80±0.20 0.60±0.20 Recommended Land Patterns D Materials A C Components Material Body Ceramic Terminations Silver over plated with tin (100%) Element Silver or Silver/Palladium B Dimensions A(mm) B(mm) C(mm) D(mm) Spec 2.00±0.30 4.40±0.50 2.40±0.30 1.20±0.30 Dimensions of Standard Test Board Type Ampere Rating Board Thickness (mm) Copper Layer Thickness (mm) Copper Trace Width (mm) S1206-FA 20.0A~30.0A 1.6 0.175 10.0 Nanjing SART Science &Technology Development Co., ltd or ANT Technology Company Limited.(A Wholly Owned Subsidiary) ADD.:Maqun Science & Technology Park, Qingma Road 6#, Nanjing, China TEL.:086-25-84354852-8015 FAX.:086-25-83241791 Web.: www.sartfuse.com Surface Mount Fuses 1206 Size >Fast Acting>S1206-FA-20A~30A I2T VS Time Curve 25A 30A 20A Time Current Current Curve Time Curve: 100 File No.: JS-S1206-FA02-00 Revision: J Page: 3/ 6 1E7 1000000 30A 25A 20A 10 1 10000 2 I T (A S) Time (s) 100000 1000 2 0.1 100 0.01 10 1E-3 10 100 Current (A) 1 1E-3 0.01 0.1 1 10 Time(s) Electrical Characteristics Type Ampere Rating % of Current Rating Opening Time 20.0A~30.0A 100 >4hours 20.0A~30.0A 350 ≤5sec S1206-FA Temperature Derating Curve Nanjing SART Science &Technology Development Co., ltd or ANT Technology Company Limited.(A Wholly Owned Subsidiary) ADD.:Maqun Science & Technology Park, Qingma Road 6#, Nanjing, China TEL.:086-25-84354852-8015 FAX.:086-25-83241791 Web.: www.sartfuse.com 100 Surface Mount Fuses 1206 Size >Fast Acting>S1206-FA-20A~30A File No.: JS-S1206-FA02-00 Revision: J Page: 4/ 6 Product Characteristics Item Test condition/ Methods Performance Standard 100% of current rating No Fusing, 4hours Min. UL248-14 350% of current rating ≤5sec SART SPEC. Voltage Drop 100% of current rating Deviation between the mean value: <15% IEC-60127-4 Temperature Rise 100% of current rating △T<95℃ IEC-60127-4 Interrupting Ability 300A 32V DC 200A 48V DC without permanent arcing, ignition and bursting of fuse link UL248-14 IEC60127-4 Time/Current Solderability 240℃±5℃, 3sec±0.5sec 95% coverage Min. IEC60127-4 MIL-STD-202 Method 208 Resistance to Soldering 260℃±5℃, 10sec±0.5sec |△R|:<10% Legible appearance MIL-STD-202 Method 210 Bending Test Distance between holding points: 90mm Bending: 1mm, time: 10s |△R|:<10% No mechanical damages IEC60127-4 High Temperature Operating Life T=70℃±2℃, 60%In, 96hours |△R|: <10%; No fusing MIL-STD-202 Method 108 Humidity (Steady State) T=40℃±2℃, 90%~95%RH, 1000hours |△R|: <10% MIL-STD-202 Method 103 Low Temperature Storage T=-55℃±3℃,96hours |△R|: <10% IEC60068-2-1 High Temperature Storage T=125℃±2℃,96hours |△R|: <10% IEC60068-2-2 Salt Spray 5% salt solution,48hours |△R|: <10% Legible appearance MIL-STD-202 Method 101 Thermal Shock 100 cycles between -65℃/+125℃ 60 minutes, each extreme |△R|: <10% No mechanical damages MIL-STD-202 Method 107 Nanjing SART Science &Technology Development Co., ltd or ANT Technology Company Limited.(A Wholly Owned Subsidiary) ADD.:Maqun Science & Technology Park, Qingma Road 6#, Nanjing, China TEL.:086-25-84354852-8015 FAX.:086-25-83241791 Web.: www.sartfuse.com Surface Mount Fuses 1206 Size >Fast Acting>S1206-FA-20A~30A File No.: JS-S1206-FA02-00 Revision: J Page: 5/ 6 Recommended Solder Curve 1. Infrared Reflow: • Temperature: 260℃ • Time: 5sec Max. • Recommend Reflow profile Profile Feature Average Ramp-up Rate(Tsmax to Tp) Preheat Temperature Min.(Tsmin) Temperature Max.(Tsmax) Time(Tsmin to Tsmax) Peak Temperature(Tp) Time within 5℃ of actual Peak Temperature(Tp) 2. Wave soldering • Reservoir Temperature: 260℃ • Time in Reservoir: 10secMax. Pb-Free Assembly 3℃/sec Max. 150℃ 200℃ 60sec~120sec 260℃ 5sec Melting tin time(TL) 20sec~30sec Ramp-down Rate 6℃/sec Max. Time 25℃ to peak Temperature 8minutes Max. 3.Hand Soldering • Temperature: 350℃ • Time: 5secMax. Packaging • 5000 pieces of fuses in emboss taper and reeled on a 178mm(7 inch) reel. Type A(mm) B(mm) W(mm) E(mm) F(mm) Spec 3.50±0.20 1.90±0.20 8.00±0.20 1.75±0.10 3.50±0.05 Type P(mm) P0(mm) P1(mm) D0(mm) T(mm) Spec 4.00±0.10 4.00±0.10 2.00±0.05 1.50±0.10 0.91±0.10 Nanjing SART Science &Technology Development Co., ltd or ANT Technology Company Limited.(A Wholly Owned Subsidiary) ADD.:Maqun Science & Technology Park, Qingma Road 6#, Nanjing, China TEL.:086-25-84354852-8015 FAX.:086-25-83241791 Web.: www.sartfuse.com Surface Mount Fuses 1206 Size >Fast Acting>S1206-FA-20A~30A File No.: JS-S1206-FA02-00 Revision: J Page: 6/ 6 Type M(mm) W(mm) T(mm) A(mm) B(mm) C(mm) D(mm) Spec 178.00±2.00 9.50±1.00 12.50±1.50 2.00±0.50 13.00±0.50 21.00±0.50 58.00±2.00 Storage Storage: • The ambient temperature recommended for storage shall be between 5℃~30℃ • The relative humidity recommended for storage shall be between 25%RH~60%RH • Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use • The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present Nanjing SART Science &Technology Development Co., ltd or ANT Technology Company Limited.(A Wholly Owned Subsidiary) ADD.:Maqun Science & Technology Park, Qingma Road 6#, Nanjing, China TEL.:086-25-84354852-8015 FAX.:086-25-83241791 Web.: www.sartfuse.com
