SS-12D16L5R

SS-12D16L5R

  • 厂商:

    XKB(中国星坤)

  • 封装:

    SW3_12.9X6.8MM_TM

  • 描述:

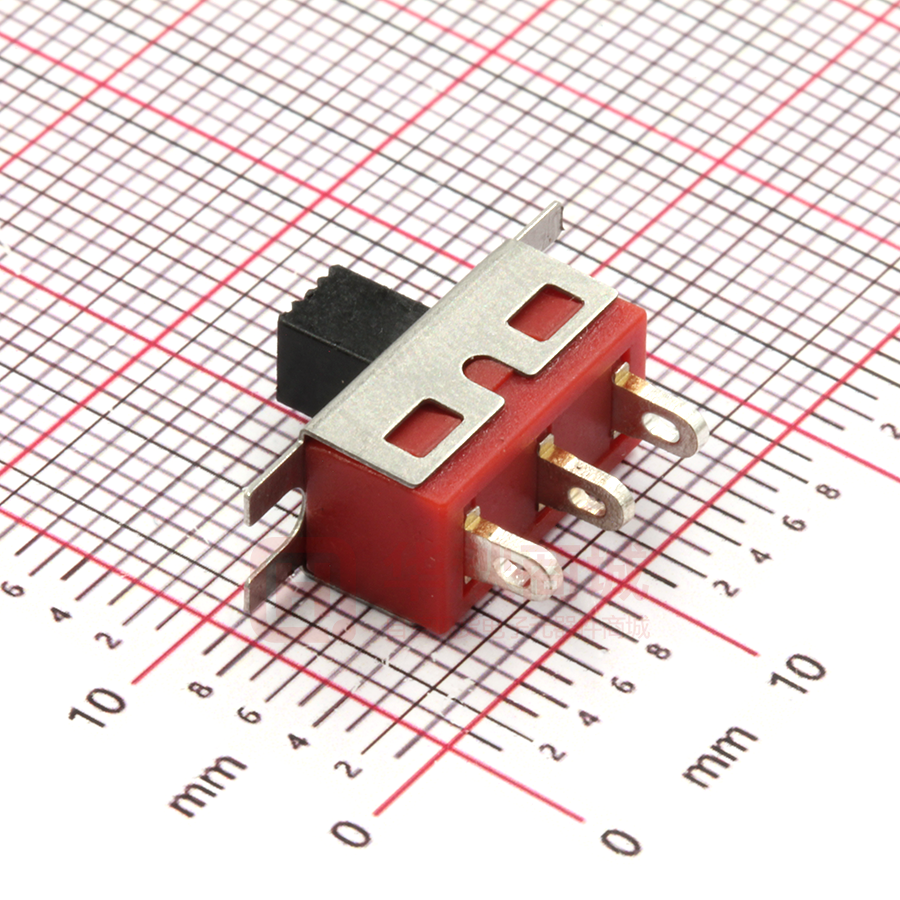

    拨动开关 ,立式焊线带耳两档,单排耐高温盐雾24小时,12.9x6.8x6.4平形红柄5mm

  • 数据手册
  • 价格&库存
SS-12D16L5R 数据手册
XKB Connectivity Doc. No. SS-A0162-41 Page No. 1/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Product Specification Title:SLIDE SWITCH 拨动开关 1.1. SCOPE(适用范围) This specification covers the performance, tests and quality requirements for the SLIDE SWITCH. 本规范涵盖了盖拨动开关的性能、测试和质量要求。 XKB Connectivity ) 2. PRODUCT DESCRIPTION( 产品描述) DESCRIPTION(描述) Part Number(料 号) 拨动开关 ,立式焊线带耳两档,单排耐高温盐雾24小时,12.9x6.8x6.4平形红柄5mm SS-12D16L5R 3. APPLICABLE DOCUMENT ( XKB CONNECTIVITY 适用文件) The following documents form a part of this specification to the extent specified herein. In the event of conflict between the requirements of this specification and the product drawing, the product drawing shall take precedence. In the event of conflict between the requirements of this specification and the referenced documents, this specification shall take precedence.(下 列文件构成本规范的一部分,在此规定的范围内。本规范要求与产品图纸有冲突时,以产品图 纸为准。如果本规范的要求与参考文件发生冲突,应以本规范为准。) 4. REQUIREMENTS (要求) 4.1. Design and Structure (设计和结构) Product shall be of the design, structure and physical dimensions specified on the applicable product drawing.( XKB Connectivity 产品的设计、结构和物理尺寸参考所适用的产品图纸) 4.2. Materials/ Finish (材料/表面处理) XKB Connectivity Doc. No. SS-A0162-41 Page No. 2/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Product Specification Title:SLIDE SWITCH 拨动开关 Materials used in the structure of product shall be as specified on the applicable product drawing. (产品结构中 使用的材料参考所适用的产品图纸) 4.3. Ratings (额定功率) XKB Connectivity Item(项目) Standard(标准) Rated Voltage (Maximum)额定电压 125V DC Rated Current (Maximum)额定电流 3A Operating temperature range工作温度范围 Storage Temperature Range储存温度范围 -40℃~+85℃ From -40 to +85degree centigrade -40℃~+85℃ From -40 to +85 degree centigrade 5. TEST STANDARD (测试条件) 5.1 Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests are as follows (除另有说明外,用以进行测量和测试的标准 环境条件范围如下) Ambient temperature(环境温度): 5℃ to 35℃ Normal humidity (正常湿度): 45% to 85% Air pressure (气压): 86Kpa to 106Kpa 5.2 However if doubt arises on the decision based on the measured Values under the above-mentioned Conditions.The following conditions shall be employed: (但是在对 判定产生疑问时,按下述状态实施) Temperature (温度):20±2℃ Relative humidity (相对湿度):65±5% Air pressure (气压): 86Kpa to 106Kpa 6. FUNCTION (接触型式): 1P2T 7. TIMING (切换类型):SHORTING XKB Connectivity Product Specification Doc. No. SS-A0162-41 Page No. 3/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Title:SLIDE SWITCH 拨动开关 8. PERFORMANCE AND TEST DESCRIPTION ( XKB Connectivity 性能和测试类型) 8.1 APPEARANCE (外观) ITEM DESCRIPTION(类型) TEST CONDITION(测试条件) REQUIREMENT(要求) Should not have any flaw 1 Appearance (外观) Visual.(目视) Scratch discoloration and crushed(无任何裂痕、刮 伤、污染和变形) 8.2 ELECTRICAL (电气) ITEM DESCRIPTION(类型) TEST CONDITION (测试条件) 2 Contact Resistance 接触电阻 3 Insulation Resistance 绝缘电阻 4 Dielectric strength 耐电压 1000Hz Measuerd at small current (100mA or less)1000Hz 在小电流(100 毫安或以下)1000 赫兹测试 After 500 VDC for 1 minute, measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies. (使用500 V交流電 測試1分鐘,测量相邻两端的绝缘电阻) AC250V(50-60HZ,0.5mA current) being applied between all the adjacent terminals and between the terminal and frame for 1 minute(在接触端子或排 脚之间输入 250VAC(50-60 赫兹)电压 1 分 钟,感应电流为 0.5mA REQUIREMENT(要求) 130mΩ Max. ≥100MΩ MIN. There shall be no breakdown. (无击穿、闪烁现象) 8.3 MECHANICAL (机械) ITEM DESCRIPTION(类型) TEST CONDITION (测试条件) REQUIREMENT(要求) XKB Connectivity Product Specification Doc. No. SS-A0162-41 Page No. 4/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Title:SLIDE SWITCH 拨动开关 5 6 Operating force 作动力 Terminal strength 端子强度 Place the switch such that the direction of switch operation is vertical and then gradually increase the load applied to the center of the stem, the maximum load required for the stem to come to a stop shall be measured. (开关的动作方向为垂直放置 开关向推柄中心逐渐地增加负荷直到推柄停 止时所测量的最大负荷) 250gf±100gf A static load of 300gf shall be applied To the terminal for 15 sec in any direction.(在排脚前端任意一个方向加 300gf 力度测试,时间为 15 秒) Electrical characteristics shall be satisfied without damage or excessive looseness of terminals. (在排脚中没有裂开.松动等 异常, 满足于机械、电器性 能) Fixed switch so that the switch is Displacement of 7 actuator (knob) 推柄强度 perpendicular to the direction of The handle is not seriously operation and exerts 1 kgf force in the deformed and can work opposite direction of the push handle normally.(柄部无严重变形, action.(固定开关,使开关与操作方向垂 可以正常工作) 直,以推柄动作方向反方向施加 1Kgf 力) (1) Contact Resistance ( 接触电阻): 130mΩMAX. (2) Insulation resistance ( Endurance without loading: A switch XKB Connectivity 8 绝缘电阻):100M Ω MIN. shall be subjected to 10,000 cycles at a (3) Dielectric strength( 耐 电压): AC 250V,1 minute. speed of 15 to 18 cycles per minute LIFE TEST without loading. (无负荷: 在无负荷的条件 (4) Operating force(作动 寿命试验 下以每分钟 15~18 回的速度进行 10,000 次的 力): 180gf±50gf 测试) (5) Without damage to parts arcing or breakdown etc. ( 测试后外表无损伤,并 且满足机械性能) XKB Connectivity Product Specification Doc. No. SS-A0162-41 Page No. 5/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Title:SLIDE SWITCH 拨动开关 8.4 ENVIRONMENTAL (环境) ITEM DESCRIPTION(类型) Resistance to 9 soldering heat 耐焊性 试验 Low Temperature 10 test 低温试验 11 TEST CONDITION(测试条件) Solder bath method: solder temperature 260±10 ℃ immersion time 2±0.5 sec immersion depth up to the supface of the board thickness of prince ted wiring board 1.6mm dim sions of component holes in the printed wiring board shall being accordance with those specified in this specification 焊炉焊接的时候温度控制在 260±10℃,过 炉时间 2±0.5 秒,于(基板)厚度 1.6mm REQUIREMENT(要求) No deformation of the housing. To meet the mechanical and electrical properties 本体无变形,能满足于机械、电 器性能 Following the test set forth below the sample shall be left in normal temperature and humidity conditions No deformation of the for one hour before measurements housing. To meet the are made: 样品按下列条件进行耐低温试 mechanical and 验,试验后在正常温度和湿度条件下放置 1 electrical properties 小时后测定 本体无变形,能满足于机械、电 器性能 (1)Temperature 温度:-20±3℃ (2)Time 时间: 96 hours Water drops shall be removed.擦除水珠 Following the test set forth below the sample shall be left in normal temperature and humidity conditions for one hour before measurements Heat Resistance 高温 are made: 样品按下列条件进行耐热试 验,试验后在正常温度和湿度条件下放置 1 小时后测定 (1)Temperature 温度: 85±2℃ (2)Time时间: 96 hours No deformation of the housing. To meet the mechanical and electrical properties 本体无变形,能满足于机械、电 器性能 XKB Connectivity Product Specification Doc. No. SS-A0162-41 Page No. 6/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Title:SLIDE SWITCH 拨动开关 12 Following the test set forth below the sample shall be left in normal temperature and humidity conditions for one hour before measurements are made: 样品按下列条件进行耐潮湿试 Moisture Resistance (耐 验,试验后在正常温度和湿度条件下放置 1 潮湿) 小时后测定 (1)Temperature 温度: 40±2℃ (2)Relative humidity 相对湿度: 90 to 95% (3)Time 时间: 96hours Water drops shall be removed.擦除水珠 No deformation of the housing. To meet the mechanical and electrical properties 本体无变形,能满足于机械、电 器性能 9. SOLDERING AND CLEANING PROCESSES XKB CONNECTIVITY 焊接和清洗: 9.1. Keep all switch contacts in their "OFF" position for all operations. 在所有操作过程中,请确保开关在 OFF 位置 9.2. Wave soldering( 波 峰 焊 ) : DIP Suggestions solder temperature at 260℃(500°F) max.5 seconds . DIP 型推荐焊接焊锡温度为 260℃(500°F) 最多 5 秒 9.3. Hand soldering( 手 焊 ) : Use a soldering iron of 30 watts controlled at 350℃ approximately 5 seconds. while applying solder. 使用 30W 烙铁控制温度在 350℃,焊接时长约 5 秒 9.4. Reflow soldering profile( 回 炉 焊 ) :When the maximum temperature of the reflow furnace is 260 °C and the temperature is 260 °c. 10 seconds MAX. (reference) SMT 型回焊炉最高温度为 260℃,温度为 260℃时,最长时间不超过 10 秒(如图) XKB Connectivity Product Specification Doc. No. SS-A0162-41 Page No. 7/7 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 01 Approved by Mei Chen Title:SLIDE SWITCH 拨动开关 10. PACKAGING 包装 XKB Connectivity Please refer to the packing drawing. 请参考产品包装图纸 Rev. Description Date revised Created/ Revised by 01 New Release 2021/04/30 Josephine Lin
