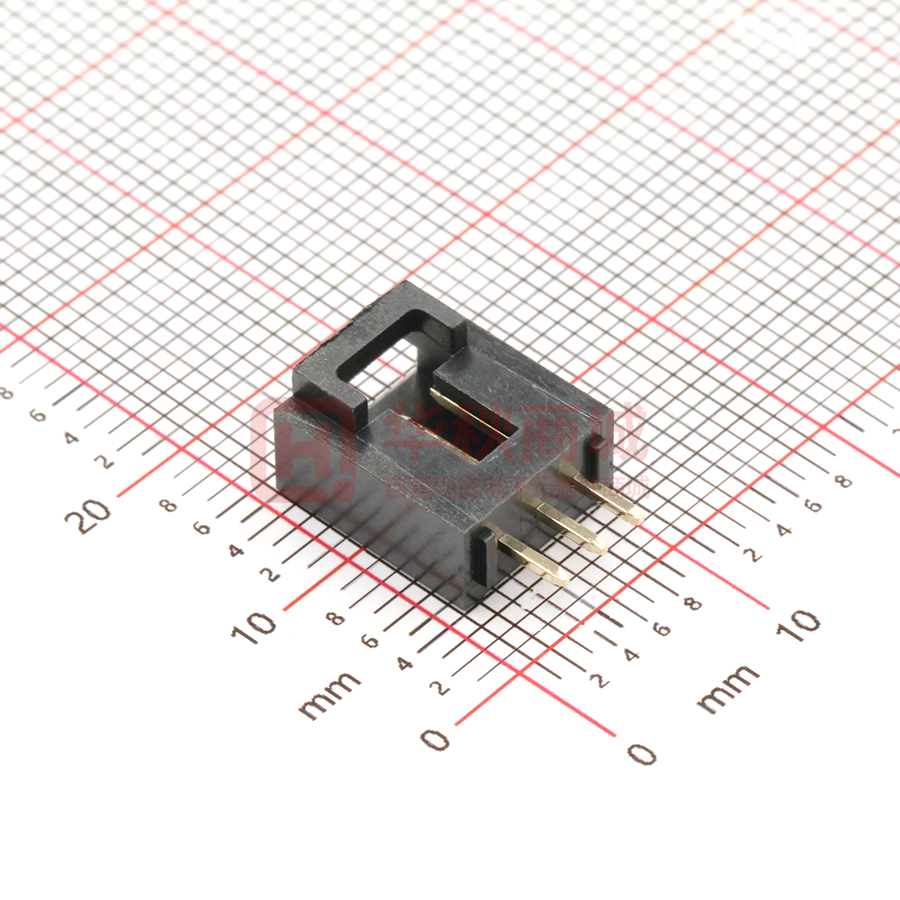

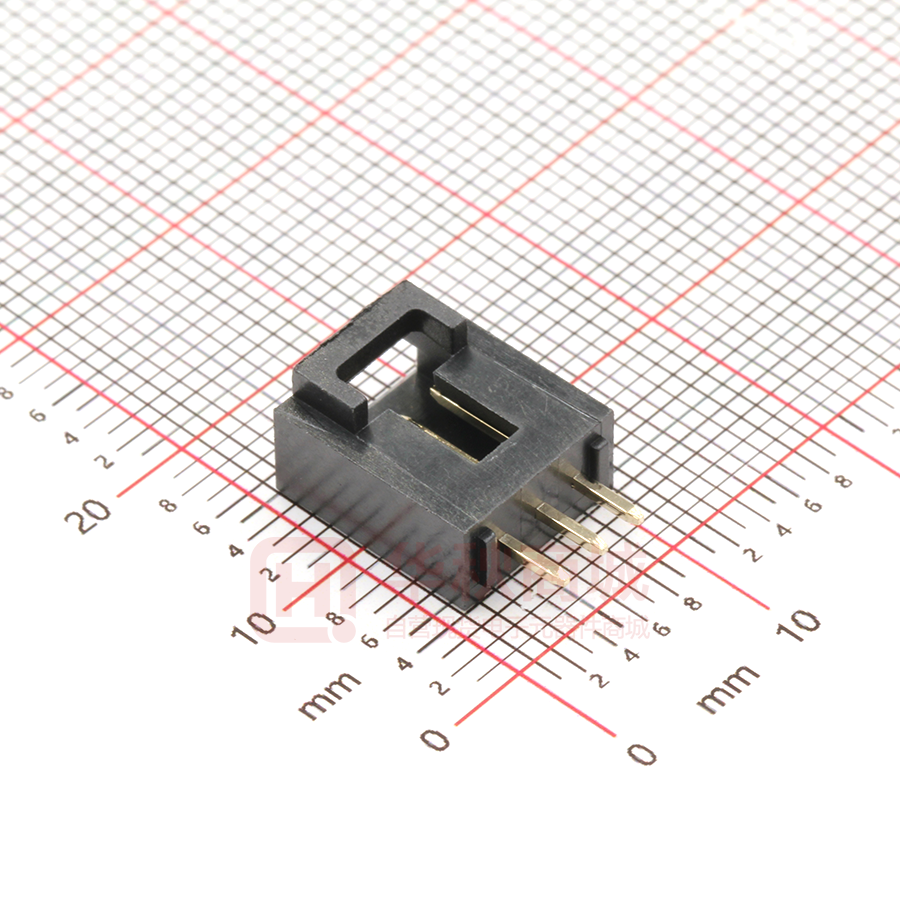

X9556WV-03-N0V01

5.08 Specifications : Voltage rating: 250V AC / DC Current rating: 3A AC / DC Withstanding voltage: 1500V AC/minute Temperature range: -25°C~+85°C Insulation resistance:≥1000MΩ Contact resistance: ≤20mΩ After environmental testing ：≤30mΩ 01 2P B 3P 02 07 6.60±0.25 X9556 W V XX- XX X-N0XX XX 01 01 03 03 3.40±0.20 11.43 02 04 08 05 06 07 circuit1 SQ0.64 05 2.54 04 06 08 2P A 3P 4P-24P 2.54±0.10 09 Ø1 P.C.B LAYOUT .1 0 02 03 04 05 06 07 08 09 Series No. Category ： W-wafer Welding Board Angle: V-180° Welding Way: Blank-DIP Row No.-Pin No. XX-Single row Special NO. Material： N0-PA66 94V-0 Planting Category: V**:All Gold-Plated *01-Gold Flash ; *02-2u" ; *03-3u" ; *05-5u" *10-10u" ;*15-15u" ; *30-30u" ; *50-50u" SN-Bright tin plating 70u" SN1-Bright tin plating 120u"Min. ; SW-Fog Tin plating Color： Blank-natural color ±0 .08 X9556WV-XX-N0V15 Nylon 66 UL 94V-0 Brass X9556WV-XX-N0V01 Nylon 66 UL 94V-0 Brass PART N0 Material Material(Pin) Poles 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Dimensions (mm) A B 7.62 2.54 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 27.94 33.02 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 48.26 53.34 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 Gold-Plated 15u " Gold-Flash Finish(Pin) X9556H Suitable XKB Terminal X9556WV-XX-N0XX 2.54 mm Crimp Style Connectors ＸＫＢ　ＩＮＤＵＳＴＲＩＡＬ　ＰＲＥＣＩＳＩＯＮ　ＣＯ．，ＬＩＭＩＴＥＤ
