UMW
R
78LXX
LINEAR INTEGRATED CIRCUIT
3-TERMINAL 0.1A POSITIVE
VOLTAGE REGULATORS
1
DESCRIPTION
TO-92
1
The 78LXX series of fixed voltage monolithic
integrated circuit voltage regulators are suitable for
applications that required supply up to 100mA.

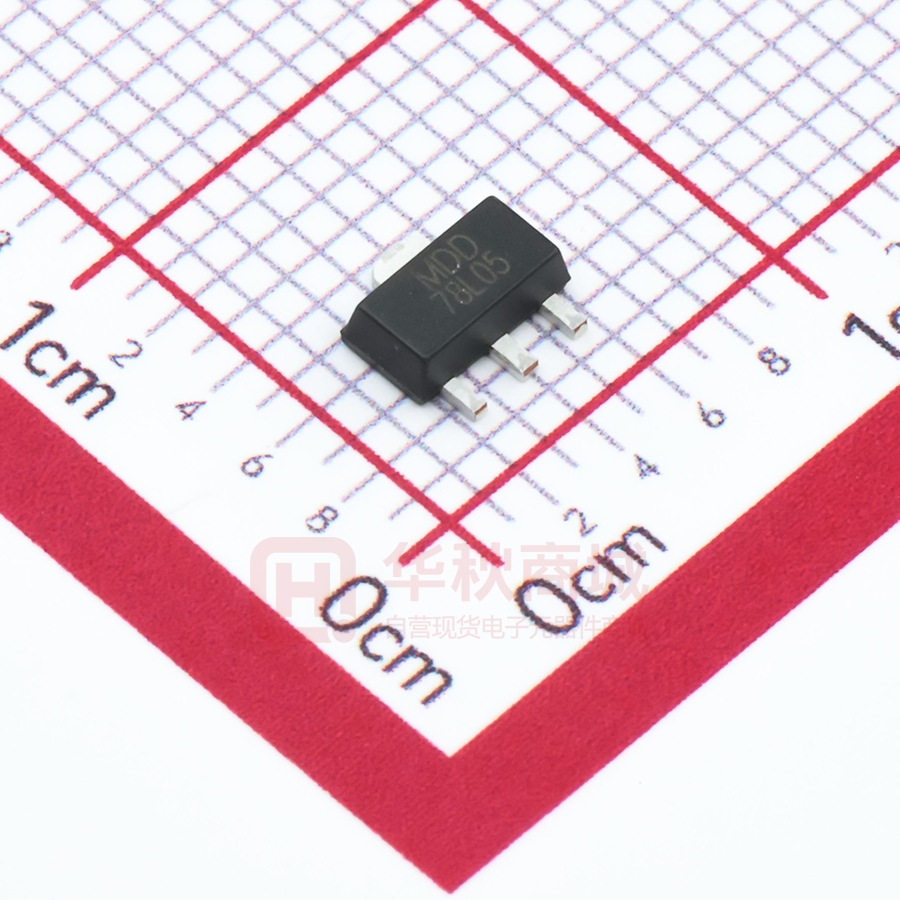

SOT-89-3
FEATURE
*Maximum output current of 100mA
*Output voltage of 5V,6V,8V,9V,10V,12V,15V and 24V
*Thermal overload protection
*Short circuit current limiting
SO-8
GND
Vout
Vin
BLOCK DIAGRAM
INPUT
3
R13
R17
T10
Z2
R9
T8
T14
T9
R14
T12
R19
R18
R12
T13
T11
R11
T5
OUTPUT
R10
1
T6
R8
R15
R5
T4
Z1
T15
R4
R6
T7
R16
R1
C1
R2
R7
T3
T1
T2
GND
R3
2
www.umw-ic.com
1
友台半导体有限公司
UMW
R
78LXX
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified))
CHARACTERISTICS
Input voltage(for Vo=5,8V)
(for Vo=12,15V)
SYMBOL
VI
VI
High power dissipation
VALUE
30
35
Pd
UNITS
V
V
TO-92
700
SOT-23
300
SOT-89
400
SOP-8
400
mW
Operating Junction Temperature Range
TOPR
-20~+120
°C
Storage Temperature Range
TSTG
-55~+150
°C
78L05 ELECTRICAL CHARACTERISTICS
(VI=10V,Io=40mA,0
