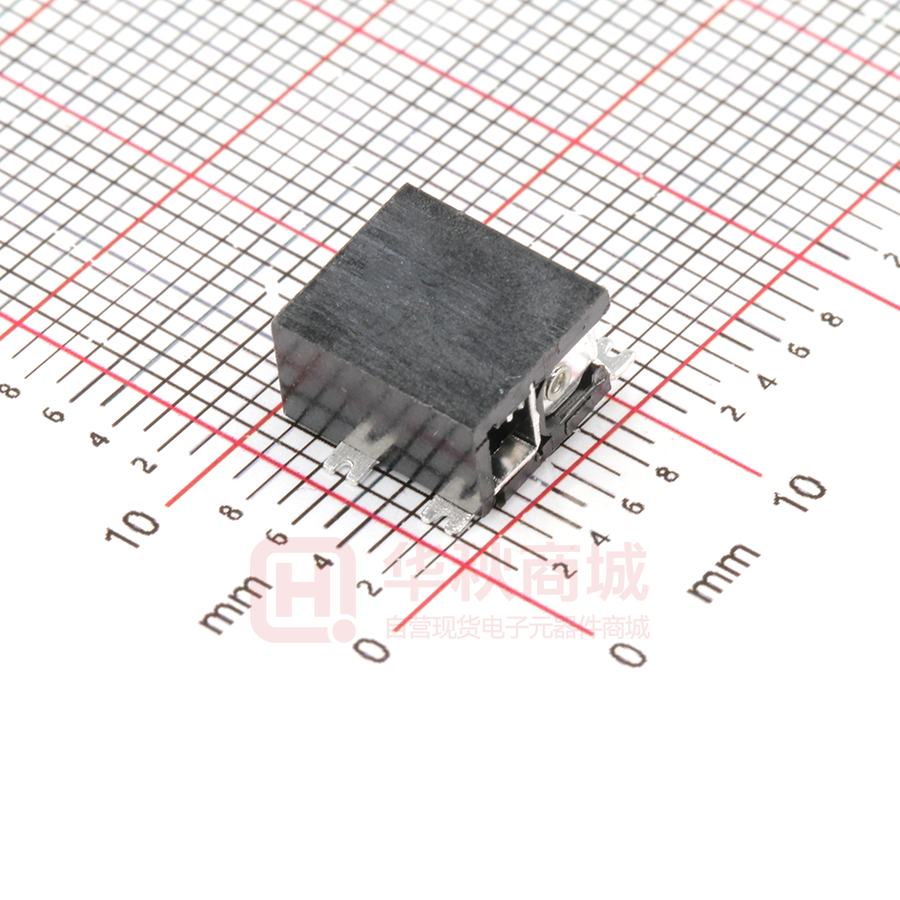

XKB Connectivity Doc. No. DC Socket-122 Page No. 1/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Product Specification Title：DC Socket 1. SCOPE（适用范围） This specification covers the performance, tests and quality requirements for the DC Socket . 本规范涵盖了DC Socket 的性能、测试和质量要求。) 2. PRODUCT DESCRIPTION（ 产品描述） DESCRIPTION（描述） Part Number（料号） DC连接器 贴片W9.3xD8xH5.3 4P ,内芯1.3 DC-0330-1.3-SMT 3. APPLICABLE DOCUMENT （适用文件） The following documents form a part of this specification to the extent specified herein. In the event of conflict between the requirements of this specification and the product drawing, the product drawing shall take precedence. In the event of conflict between the requirements of this specification and the referenced documents, this specification shall take precedence.（下列文件构成本规范的一部分，在此规定的范围内。本规范要求与产品图纸有冲突 时，以产品图纸为准。如果本规范的要求与参考文件发生冲突，应以本规范为准。） 4. REQUIREMENTS （要求） 4.1. Design and Structure （设计和结构） Product shall be of the design, structure and physical dimensions specified on the applicable product drawing.（产品的设计、结构和物理尺寸参考所适用的产品图纸） 4.2. Materials/ Finish (材料/表面处理) Materials used in the structure of product shall be as specified on the applicable product drawing. (产品结构中使用的材料参考所适用的产品图纸) 4.3. Ratings （额定功率） Item（项目） Standard（标准） XKB Connectivity Product Specification Doc. No. DC Socket-122 Page No. 2/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Title：DC Socket Rated Voltage (Maximum)额定电压 50V DC Rated Current (Maximum)额定电流 1A Operating temperature range工作温度范围 Storage Temperature Range储存温度范围 -20℃～+70℃ From -20 to +70 egree centigrade -20℃～+70℃ From -20 to +70 degree centigrade 5.0 TEST STANDARD （测试条件） 5.1 Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests are as follows （除另有说明外，用以进行测量和测试的标准 环境条件范围如下） Ambient temperature（环境温度）: 5℃ to 35℃ Normal humidity （正常湿度）: 45% to 85% Air pressure （气压）: 86Kpa to 106Kpa 5.2 However if doubt arises on the decision based on the measured Values under the above-mentioned Conditions.The following conditions shall be employed: （但是在对判定产生疑问时,按下述状态实施） Temperature （温度）：20±2℃ Relative humidity （相对湿度）：65±5% Air pressure （气压）: 86Kpa to 106Kpa 6. PERFORMANCE AND TEST DESCRIPTION （性能和测试类型） 6.1 APPEARANCE （外观） ITEM DESCRIPTION（类型） TEST CONDITION（测试条件） REQUIREMENT（要求） XKB Connectivity Product Specification Doc. No. DC Socket-122 Page No. 3/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Title：DC Socket 1 Appearance 外观 Visual. 目视 Should not have any flaw Scratch discoloration and crushed.无任何裂痕、刮伤、 污染和变形 6.2 ELECTRICAL （电气） ITEM DESCRIPTION（类型） TEST CONDITION （测试条件） 1 Contact resistance. 接触电阻 Measured at low current (100mA or less).（在低电流（≤100mA）条件下测试. REQUIREMENT（要求） 30 mΩ Max. ） 2 3 Insulation Resistance. 绝缘电阻 Apply a voltage of 100V DC for 1 MIN to following portions after which measurement shall be made输入DC 100V,一分钟，按以下接触方法测试 : (1). Between body and conductor. 插座体与排脚之间 (2). Between conductors not to be contact. 不接触的排脚之间 (3). Between conductors not to be when plug is inserted DC 100V 1 MIN. 插头插入时不接触的排脚之间 Dielectric strength. (耐电压) AC 500V ims(50~60Hz)for 1 MIN trip current: 0.5mA 输入AC 250V(50~60Hz)/min电压一分钟，漏电电流为: 0.5mA (1). Between body and conductor. There shall be no 插座体与排脚之间 breakdown. (2). Between conductors not to be contact. 无击穿、闪烁现象 不接触的排脚之间 (3). Between conductors not to be when plug is inserted DC 500V 1 MIN. 插头插入时不接触的排脚之间 100 M min. 6.3 MECHANICAL （机械） ITEM DESCRIPTION（类型） TEST CONDITION （测试条件） 1 Insertion Force （插入力） REQUIREMENT（要求） Measurement shall be made after connecting and disconnecting using stand plug gauge 3 3~30N times . 依据标准的PLUG GAUGE做第3次插拔后测试 XKB Connectivity Product Specification Doc. No. DC Socket-122 Page No. 4/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Title：DC Socket 2 3 4 Extraction Force （拔出力） Measurement shall be made after connecting and disconnecting using stand plug gauge 3 3~30N times .依据标准的PLUG GAUGE做第3次插拔后测试 Terminal Strength （端子强度） There shall be no damage to the terminal such as A static load of 5N(0.5kgf)/m shall be applied cracks,Looseness or play to the tip of the terminal for 1 MIN in any electrical ,And mechanical direction. characteristics shall be 向排脚先端的任意一个方向施加1分钟5N(0.5k satisfied.在排脚中没有裂开， gf)的力度 松动等异常，满足于机械，电 气性能 Life Test （寿命测试） Without load 无负荷 : Connection and disconnection shall be made with the mating plug and jack for 5ˈ000 cycles at a speed of 10 to 25 cycles/MIN. 将结合了的标准Plug（尽量要近于中心的）在 1分钟以10~25的速度，进行5ˈ000次的插入， 拔出 Load 负荷 : At rating condition ( Non-Inductive Load ) connection and disconnection shall be made 1,000 cycles at a speed 10 to 20 cycles / MIN. 以定格状态（无诱导负荷）在1分钟内以10~20 次的速度进行1,000次插入，拔出 Contact resistance 接触电阻：30 mΩ Max. Extraction Force 拔出力：3~30N Mechanical and electrical characteristics shall be satisfied. 满足于机械和电气性能 6.4 ENVIRONMENTAL (环境) ITEM DESCRIPTION（类型） 1 Solder ability （可焊性 ） TEST CONDITION（测试条件） Immerse the solder pin of the connector in solder bath at 245±5℃ for 3±0.5sec. After dipped the pin in the flux 5sec. 将端子脚浸入助焊剂中5秒，然后将端子脚浸 入245±5℃的锡炉中3±0.5秒 REQUIREMENT（要求） Solder wetting: 95% of immersed area must show voids, Pin holes. 锡附着的面积应超过浸入表面 积的95%以上 The contact of terminal shall be tested 2 Resistance to Soldering Heat （焊锡耐热性） resistance to soldering heat in the following conditions. After Resistance to soldering heat test Contact Resistance. Should not have any flaw 端子应在下列条件下做耐吃锡性试验，焊锡 scratch and crack. 耐热性后试接触阻抗 无任何裂痕、刮伤和破裂 In case of solder iron (2 time) 电烙铁(两次) Temperature温度:350℃+/-5℃ Time 时间: 5s+/-1s XKB Connectivity Product Specification Doc. No. DC Socket-122 Page No. 5/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Title：DC Socket 3 Humidity Test （耐湿测试） 4 Heat Resistance Test （耐热测试） 5 Cold Resistance Test （耐寒测试） The jack shall be stored at a temperature of 40±2℃ and a humidity of 90% to 96% for 96 Hr,Then the jack shall be maintained at stand atmospheric condition for 1 Hr for other procedures. 放置于40±2℃的相应湿度为90~96% Hr环境中96小时后，再将样品放在正常环境 中1小时后进行测试 There shall be no damage on appearance. Mechanical and electrical characteristics shall be The jack shall be stored at a temperature of satisfied. 外观无异常，满足于机械和电 70±2℃ for 96 Hours,And then the jack 气性能 shall be maintained at stand atmospheric condition for 1 Hr for other procedures. 放置于70±2℃ 中96小时后，再将样品放在正常环境中1小时 后进行测试 The jack shall be stored at a temperature of -25±3℃ for 96 hours and then it shall be subjected to the controlled recovery conditions for 1 hour after which. 放置于-25±3℃ 中96小时后，再将样品放在正常环境中1小 时后进行测试 The jack shall be subjected to 5 cycles of the following conditions showed in the figure,And shall returned allowed to remain in room ambient condition for 30 minutes. 将插座以下列条件作10个循环，然后放回 室内环境60分钟 6 Temperature Cycling Test （温度循环测试） There shall be no damage on appearance. Mechanical and electrical characteristics shall be satisfied. 外观无异常，满足于机械和电 气性能 There shall be no deformation or cracks in molded part. 产品不能变形与破裂 Insertion&extraction force : 3 to 30N. Contact resistance接触电阻: 30 mΩ Max. Insulation Resistance 绝缘电阻: 100 M min. Dielectric strength voltage 耐电压:500V AC/MIN （Between terminals端子之间） XKB Connectivity Product Specification Doc. No. DC Socket-122 Page No. 6/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Title：DC Socket 7 Salt Spray Test （盐雾试验） 1. Testing bath 测试容器 : The temperature shall 35±2℃ in the ambient of the specimen during the test. 在测试过程中，产品周围环境温度35±2℃ 2. Spray apparatus喷雾设备 : The apparatus shall capable of producing fine dense mist uniformly.盐雾均匀喷出 3. Salt water盐水 :The concentration of the salt water shall adjusted at 5±1% weight ratio at 35±2℃ . 盐水要在35±2℃温度条件下，调整在5±1% 比例范围内 4. Testing time测试时间 ： 24±0.5 hours. After washed in water . The sample shall left alone for 1 or 2 hours in a room ambient . 清洗后，样品在室内要单独放置1至2个小时 The jack shall be subjected to 6 cycles of the following conditions showed in the figure. And then shall returned and allowed to remain in room ambient for 30 minutes. 将插座以下列条件作5个循环，然后放回室 内环境30分钟。 8 Heat Shock Test （热冲击测试） Appearance shall no extremely rust. And contacting portions should such that they will work without hindrance for practical. 表面不能有严重的腐蚀，接触 部分要不防碍正常使用 There shall be no deformation or cracks in molded part. 产品不能变形与破裂 Insertion&extraction force : 3 to 30N. Contact resistance接触电阻: 30 mΩ Max. Insulation Resistance 绝缘电阻: 100 M min. Dielectric strength voltage 耐电压:500V AC/MIN （Between terminals端子之间） XKB Connectivity Product Specification Doc. No. DC Socket-122 Page No. 7/8 Date Issued 2020-04-06 Prepared by Josephine Date revised 2020-11-23 checked by Jay Rev. No. 122 Approved by Mei Chen Title：DC Socket For the product of SMT , type solder according to the following conditions 对于 SMT 产品，请按以下条件进行焊接 9 Caution: the condition mentioned above is a temperature on the PWB Automatic Flow surface on which parts are mounted. Soldering （自动焊接） There are cases where PWB temperature greatly differs from switch's surface temperature depending on PWB material, size, thickness, etc. The switch's surface temperature shall not allowed to exceed 260℃ 注意：以上提及的条件是零部件上 PWB 表面的温度，由于 PWB 的材料、尺寸、厚度等不同，PWB 从开关表面获得的温度也会有很大产不同 ，因此，千万小心不要让开关表面温度超 Should not have any flaw scratch and crack 无任何裂痕、刮伤和破裂 No visual damage to insulator. 绝缘体不得有严重变形 过 260℃ Rev. Description Date revised Created/ Revised by 01 New Release 2021/04/30 Josephine Lin
