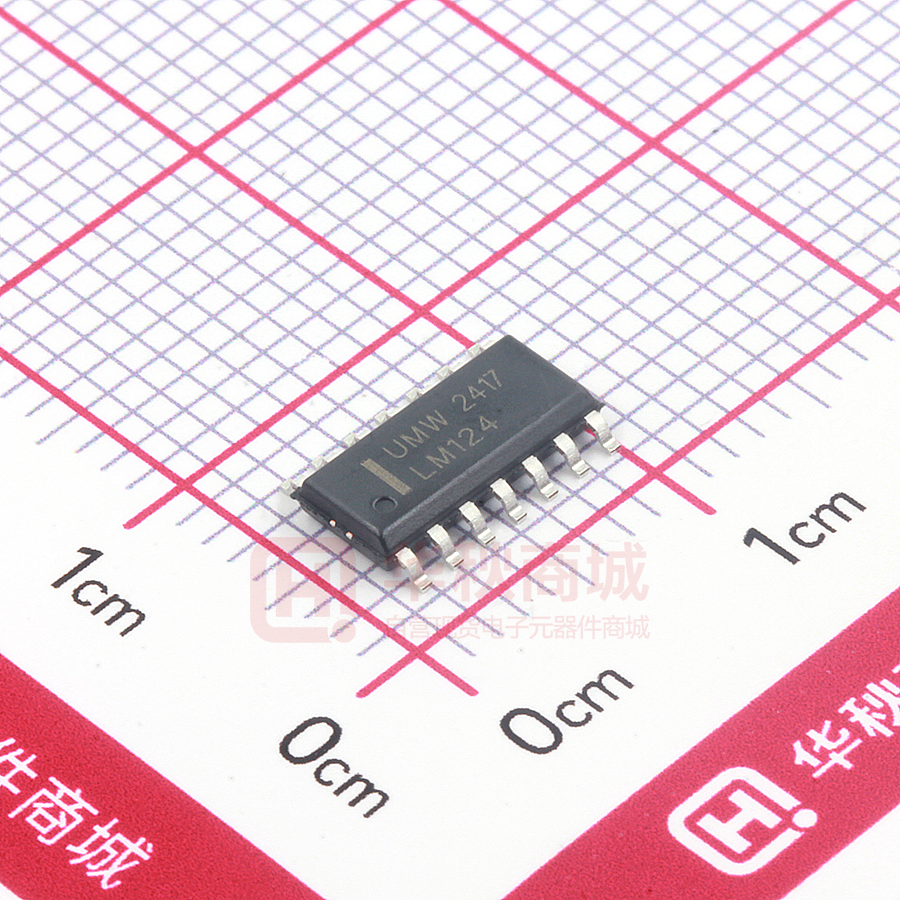

LM124DR

LM124DR

  • 厂商:

    UMW(友台)

  • 封装:

    SOP14_150MIL

  • 描述:

    四运算放大器

  • 数据手册
  • 价格&库存
LM124DR 数据手册
UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 1 Features 2 Applications • Wide Supply Ranges – Single Supply: 3 V to 32 V (26 V for LM2902) – Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2902) • Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typical • Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground • Low Input Bias and Offset Parameters – Input Offset Voltage: 3 mV Typical – Input Offset Current: 2 nA Typical – Input Bias Current: 20 nA Typical • • • • • • • • • • • • • • • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2902) Open-Loop Differential Voltage Amplification: 100 V/mV Typical Internal Frequency Compensation On Products Compliant to MIL-PRF-38535, All Parameters are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters. Blu-ray Players and Home Theaters Chemical and Gas Sensors DVD Recorders and Players Digital Multimeter: Bench and Systems Digital Multimeter: Handhelds Field Transmitter: Temperature Sensors Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor Oscilloscopes TV: LCD and Digital Temperature Sensors or Controllers Using Modbus Weigh Scales 3 Description These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages. Symbol (Each Amplifier) − IN− OUT www.umw-ic.com + IN+ 1 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 4 Pin Configuration and Functions DR 14-Pin SOP, DIP 1OUT 1IN− 1IN+ VCC 2IN+ 2IN− 2OUT 1 14 2 13 3 12 4 11 5 10 6 9 7 8 4OUT 4IN− 4IN+ GND 3IN+ 3IN− 3OUT Pin Functions PIN NAME LCCC NO. SOP, DIP 1IN– 2 1IN+ 1OUT I/O DESCRIPTION I Negative input 3 I Positive input 1 O Output 2IN– 6 I Negative input 2IN+ 5 I Positive input 2OUT 7 O Output 3IN– 9 I Negative input 3IN+ 10 I Positive input 3OUT 8 O Output 4IN– 13 I Negative input 4IN+ 12 I Positive input 4OUT 14 O Output GND 11 — Ground 4 — Power supply VCC 6 www.umw-ic.com 2 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 5 Specifications 5.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) LM2902 MIN Supply voltage, VCC (2) ±13 Differential input voltage, VID (3) –0.3 Duration of output short circuit (one amplifier) to ground at (or below) TA = 25°C, VCC ≤ 15 V (4) MIN 26 ±16 26 32 V ±32 V to 32 V Unlimited 150 Storage temperature, Tstg –65 UNIT MAX –0.3 Unlimited Operating virtual junction temperature, TJ (2) (3) (4) MAX ±26 Input voltage, VI (either input) (1) LM124, LM224 150 –65 150 °C 150 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values (except differential voltages and VCC specified for the measurement of IOS) are with respect to the network GND. Differential voltages are at IN+, with respect to IN−. Short circuits from outputs to VCC can cause excessive heating and eventual destruction. 5.2 ESD LM124, LM224, LM2902 V(ESD) (1) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±500 Charged-device model (CDM), per JEDEC specification JESD22-C101 ±1000 V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. 5.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) UNIT LM124, LM224 LM2902 MIN MAX MIN VCC Supply voltage 3 26 3 30 V VCM Common-mode voltage 0 VCC – 2 0 VCC – 2 V –55 125 –40 105 –20 85 LM124 TA Operating free air temperature www.umw-ic.com LM2902 LM224 3 MAX °C 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 5.4 Thermal Information LM124,LM224, LM2902 THERMAL METRIC (1) RθJA (2) (3) RθJC (4) (1) (2) (3) (SOP) (DIP) 14 PINS 14 PINS Junction-toambient thermal resistance 86 80 Junction-to-case (top) thermal resistance — UNIT °C/W — . Short circuits from outputs to VCC can cause excessive heating and eventual destruction. Maximum power dissipation is a function of TJ(max), RθJA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) – TA)/RθJA. Operating at the absolute maximum TJ of 150°C can affect reliability. Maximum power dissipation is a function of TJ(max), RθJA, and TC. The maximum allowable power dissipation at any allowable case temperature is PD = (TJ(max) – TC)/RθJC. Operating at the absolute maximum TJ of 150°C can affect reliability. 5.5 Electrical Characteristics for LMx24 at specified free-air temperature, VCC = 5 V (unless otherwise noted) PARAMETER VIO Input offset voltage IIO Input offset current IIB Input bias current VICR Common-mode input voltage range TEST CONDITIONS (1) VCC = 5 V to MAX, VIC = VICRmin, VO = 1.4 V TA (2) LM124, LM224 MIN 25°C 3 2 VO = 1.4 V 100 RL = 2 kΩ 25°C RL = 10 kΩ 25°C RL ≥ 10 kΩ Low-level output voltage RL ≤ 10 kΩ AVD Large-signal differential voltage amplification VCC = 15 V, VO = 1 V to 11 V, RL ≥ 2 kΩ CMRR Common-mode rejection ratio VIC = VICRmin kSVR Supply-voltage rejection ratio (ΔVCC /ΔVIO) VO1/ VO2 Crosstalk attenuation IOS Short-circuit output current ICC Supply current (four amplifiers) (1) (2) (3) –300 0 to VCC – 1.5 VCC – 1.5 Full range 26 Full range 27 28 25°C 50 100 Full range 25 25°C 70 80 dB 25°C 65 100 dB Full range 5 20 mV V/mV f = 1 kHz to 20 kHz 25°C VCC = 15 V, VID = 1 V, VO = 0 25°C –20 Full range –10 VCC = 15 V, VID = –1 V, VO = 15 V V 0 to VCC – 2 V RL = 2 kΩ VOL Output current –150 nA Full range IO –20 Full range VCC = 5 V to MAX VCC = MAX 30 nA Full range 25°C High-level output voltage 5 7 25°C VOH UNIT MAX mV Full range 25°C VO = 1.4 V TYP (3) 120 –30 dB –60 Source mA 25°C 10 20 Sink Full range 5 12 μA VID = –1 V, VO = 200 mV 25°C VCC at 5 V, VO = 0, GND at –5 V 30 25°C ±40 ±60 VO = 2.5 V, no load Full range 0.7 1.2 VCC = MAX, VO = 0.5 VCC, no load Full range 1.4 3 mA mA All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for testing purposes is 26 V for LM2902 and 30 V for the others. Full range is –55°C to 125°C for LM124, –20°C to 85°C for LM224 All typical values are at TA = 25°C www.umw-ic.com 4 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 5.6 Operating Conditions VCC = ±15 V, TA = 25°C PARAMETER SR Slew rate at unity gain TYP UNIT RL = 1 MΩ, CL = 30 pF, VI = ±10 V (see Figure 7) TEST CONDITIONS 0.5 V/μs B1 Unity-gain bandwidth RL = 1 MΩ, CL = 20 pF (see Figure 7) 1.2 MHz Vn Equivalent input noise voltage RS = 100 Ω, VI = 0 V, f = 1 kHz (see Figure 8) 35 nV/√Hz www.umw-ic.com 5 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 5.7 Typical Characteristics 10 Output Voltage Referenced to +Vcc (V) 8 Output Voltage (V) 5 3 2 1 0.5 0.3 0.2 0.1 0.05 0.03 0.02 0.01 0.001 VCC = 15 V VCC = 5 V VCC = 30 V 0.01 0.1 0.2 0.5 1 2 3 5 710 20 Output Sink Current (mA) VCC = 15 V 7 6 5 4 3 2 1 0.001 50 100 0.01 D001 Figure 1. Output Sinking Characteristics 0.1 0.2 0.5 1 2 3 5 710 20 Output Source Current (mA) 50 100 D002 Figure 2. Output Sourcing Characteristics 0.09 3.25 3 0.08 2.75 0.07 Output Voltage (V) 2.5 Iout (A) 0.06 0.05 0.04 0.03 2.25 2 1.75 1.5 1.25 1 0.02 Input Output 0.75 0.01 0.5 0 -55 -40 -25 -10 0.25 5 20 35 50 65 Temperature (qC) 80 0 95 110 125 10 15 20 25 30 Time (PS) 35 40 45 50 D004 Figure 4. Voltage Follower Large Signal Response (50 pF) 20 80 17.5 70 Output Swing (Vpp) Common-Mode Rejection Ratio (dB) Figure 3. Source Current Limiting 90 60 50 40 30 15 12.5 10 7.5 5 20 2.5 10 0 100 200 5 D003 500 1000 10000 Frequency (Hz) 100000 1000000 D006 Figure 5. Common-Mode Rejection Ratio www.umw-ic.com 0 1000 2000 100000 5000 10000 Frequency (Hz) 1000000 D007 Figure 6. Maximum Output Swing vs. Frequency (VCC = 15 V) 6 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 6 Parameter Measurement Information 900 Ω VCC+ VCC+ − VI 100 Ω VO + − VI = 0 V RS VCC− CL RL VO + VCC− Figure 7. Unity-Gain Amplifier Figure 8. Noise-Test Circuit 7 Detailed Description 7.1 Overview These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902 device), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, DC amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems. For example, the LM124 device can be operated directly from the standard 5-V supply that is used in digital systems and provides the required interface electronics, without requiring additional ±15-V supplies. www.umw-ic.com 7 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers 7.2 Functional Block Diagram VCC ≈6-µA Current Regulator ≈6-µA Current Regulator ≈100-µA Current Regulator OUT IN− † ≈50-µA Current Regulator IN+ † GND To Other Amplifiers COMPONENT COUNT (total device) Epi-FET Transistors Diodes Resistors Capacitors www.umw-ic.com 8 1 95 4 11 4 友台半导体有限公司 UMW R UMW LM124/LM224/2902 Quadruple Operational Amplifiers PACKAGE SOP14 Q A C1 C B D A1 a 0.25 b UNIT:mm DIM. A A1 B C C1 D MIN 4.520 0.100 8.500 5.800 3.800 0.400 TYP 4.570 8.750 6.100 3.900 - MAX 4.620 0.250 9.000 6.250 4.000 0.950 DIM. a b Q MIN 0.400 1.260 0° TYP 0.420 1.270 - MAX 0.440 1.280 8° DIP14                www.umw-ic.com 9                                                                       友台半导体有限公司
