UMW
R
BC846A, B
BC847A, B, C
BC848A, B, C
UMW BC846
TRANSISTOR (NPN)
SOT-23
1. BASE
2. EMITTER
3. COLLECTOR
FEATURES
Ideally suited for automatic insertion
z
For Switching and AF Amplifier Applications
z
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol
VCBO
Parameter
Value
Collector-Base Voltage
V
BC846
BC847
BC848
VCEO
Unit
80
50
30
Collector-Emitter Voltage
V
BC846
BC847
BC848
65
45
30
VEBO
Emitter-Base Voltage
6
V
IC
Collector Current –Continuous
0.1
A
PC*
Collector Power Dissipation
200
mW
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature
-65-150
℃
DEVICE MARKING

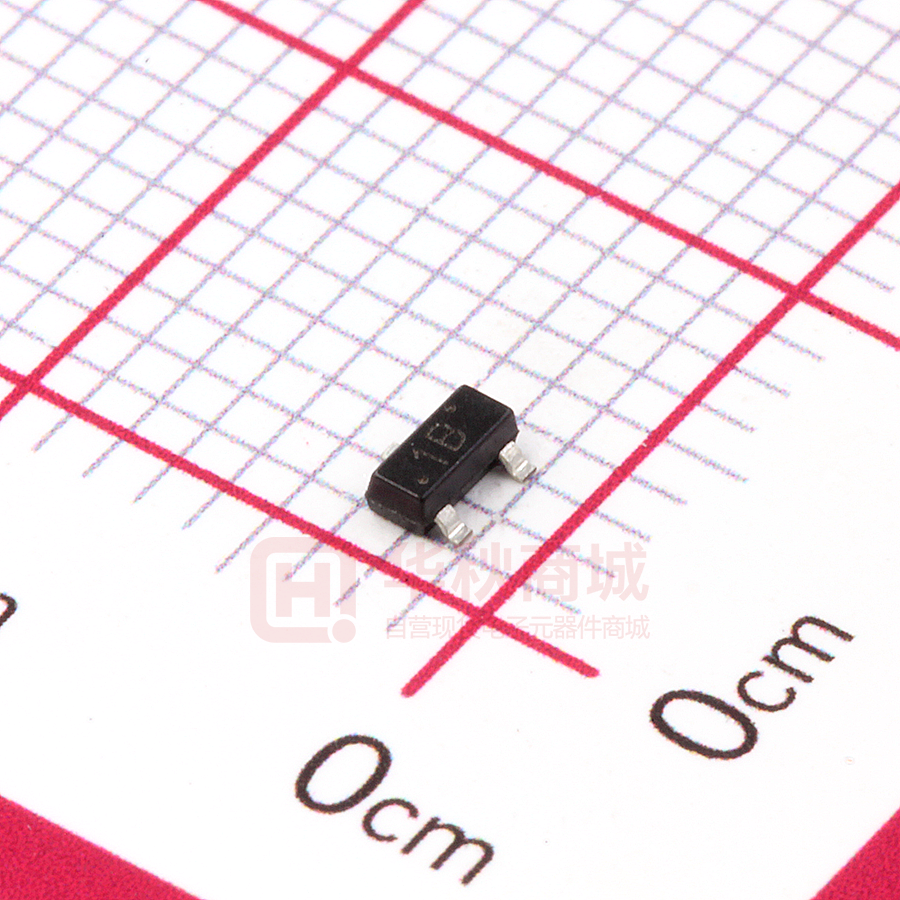

BC846A=1A; BC846B=1B;
BC847A=1E; BC847B=1F; BC847C=1G;
BC848A=1J; BC848B=1K: BC848C=1L
www.umw-ic.com
1
友台半导体有限公司
UMW
R
UMW BC846
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Symbol
Parameter
Collector-base breakdown voltage
Test conditions
VCBO
IC= 10µA, IE=0
VCEO
IC= 10mA, IB=0
VEBO
IE= 10µA, IC=0
Collector cut-off current
Collector cut-off current
ICBO
VCB=30 V , IE=0
BC846
VCE=60 V , IB=0
ICEO
DC current gain
VCE=45 V , IB=0
IEBO
VEB=5 V , IC=0
hFE
VCE= 5V, IC= 2mA
BC846A,847A,848A
BC846B,847B,848B
V
0.1
μA
0.1
μA
0.1
μA
VCE=30 V , IB=0
BC848
Emitter cut-off current
6
VCB=50 V , IE=0
BC848
BC847
V
VCB=70 V , IE=0
BC846
BC847
45
30
BC848
Emitter-base breakdown voltage
V
50
65
BC846
BC847
Max Unit
30
BC848
Collector-emitter breakdown voltage
Typ
80
BC846
BC847
Min
110
220
200
450
420
BC847C,BC848C
800
Collector-emitter saturation voltage
VCE(sat)
IC=100mA, IB= 5mA
0.5
V
Base-emitter saturation voltage
VBE(sat)
IC=100mA, IB= 5mA
1.1
V
fT
Transition frequency
Collector output capacitance
www.umw-ic.com
Cob
2
VCE= 5 V, IC= 10mA
f=100MHz
VCB=10V,f=1MHz
100
MHz
4.5
pF
友台半导体有限公司
UMW
R
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
www.umw-ic.com
UMW BC846
Dimensions In Millimeters
Min.
Max.
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP.
1.800
2.000
0.550 REF.
0.300
0.500
0°
8°
3
Dimensions In Inches
Min.
Max.
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP.
0.071
0.079
0.022 REF.
0.012
0.020
0°
8°
友台半导体有限公司
