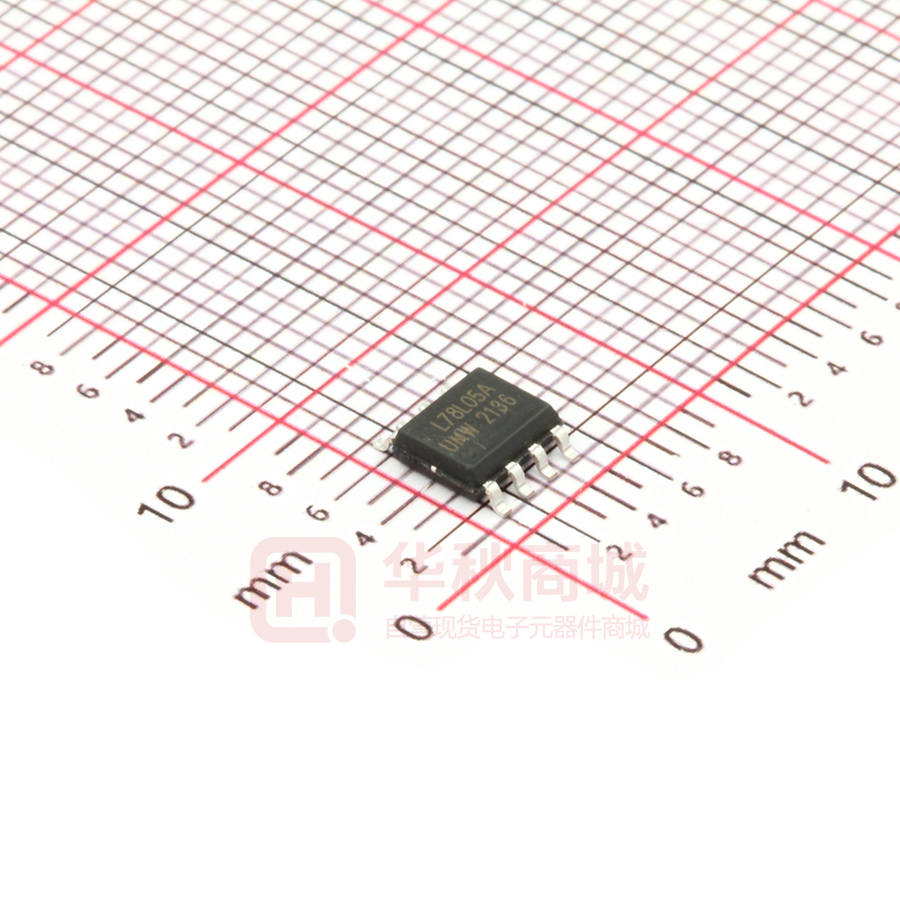

L78L05A

UMW R UMW L78LXXA LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS DESCRIPTION The L78LXXA series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 100mA. FEATURE *Maximum output current of 100mA *Output voltage of 5V,6V,8V,9V,10V,12V,15V and 24V *Thermal overload protection *Short circuit current limiting SO-8 BLOCK DIAGRAM INPUT 3 R13 R17 T10 Z2 R9 T8 R14 T12 T14 T9 R19 R18 R12 T13 T11 R11 T5 OUTPUT R10 1 T6 R8 R15 R5 T4 Z1 T15 R4 R6 T7 R16 R1 C1 R2 R7 T3 T1 T2 GND R3 2 www.umw-ic.com 1 友台半导体有限公司 UMW R UMW L78LXXA LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified)) CHARACTERISTICS SYMBOL VALUE UNITS VI 30 V VI 35 V Pd 700 mW Input voltage(for Vo=5,8V) (for Vo=12,15V) High power dissipation Operating Junction Temperature Range TOPR -20~+120 °C Storage Temperature Range TSTG -55~+150 °C L78L05A ELECTRICAL CHARACTERISTICS (VI=10V,Io=40mA,0
