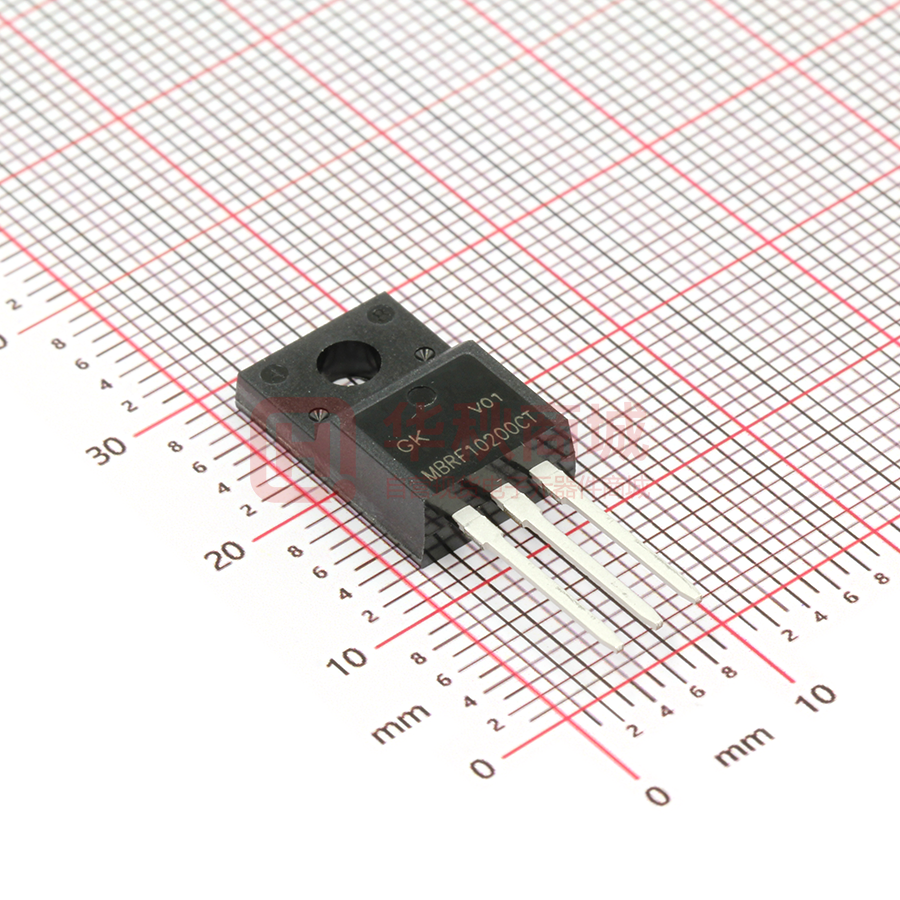

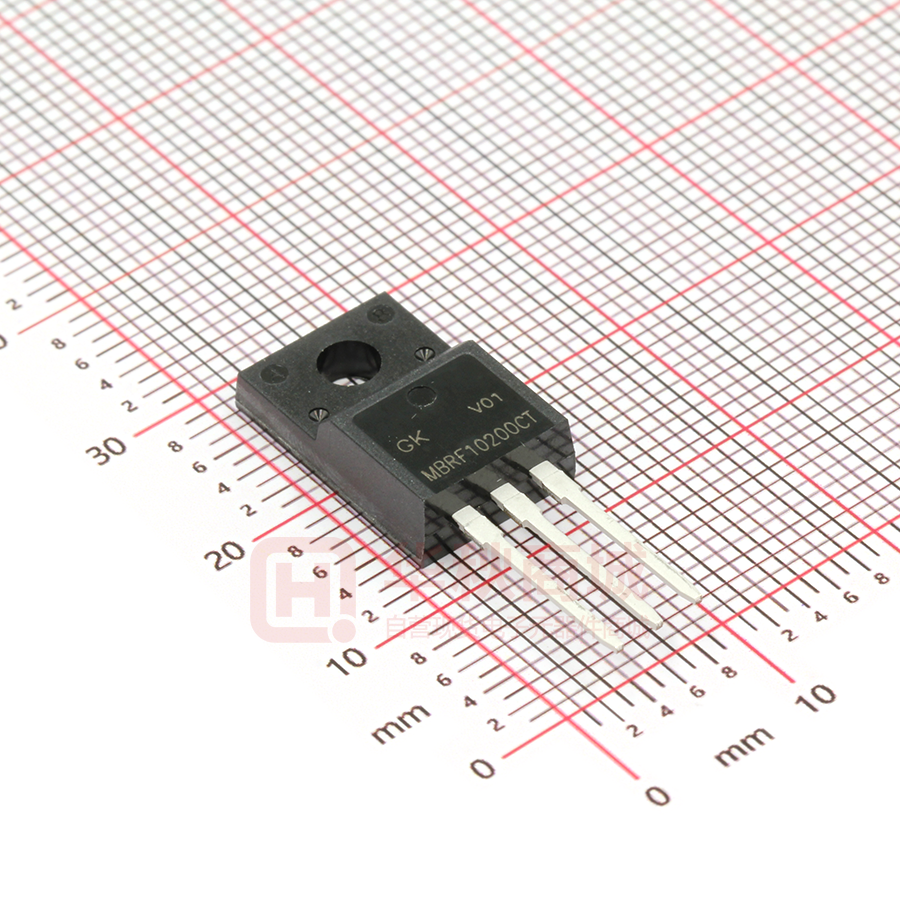

MBRF10200CT

MBRF1045CT THRU MBRF10200CT Reverse Voltage - 45 to 200 Volts Forward Current - 10.0 Amper SCHOTTKY BARRIER RECTIFIER Features ITO-220AB  High surge capacity. For use in low voltage, high frequency inverters,free  wheeling,and polarity protection applications. Metal silicon junction,majority carrier conduction.  High current capability,low forward voltage drop.  Guard ring for over voltage protection. PIN1 PIN2 Mechanical Data Case : JEDEC TO-220AB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.060 ounce, 1.67 grams PIN3 PIN1 PIN2 PIN3 Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ VRRM V RMS V DC MDD MBRF 1045CT MDD MBRF 1060CT MDD MBRF 10100CT MDD MBRF 10150CT MDD MBRF 10200CT UNITS 45 32 60 42 100 70 45 60 100 150 135 150 200 140 200 V V V A 10.0 I(AV) 150 IFSM VF 0.60 IR 15.0 0.85 0.75 1.0 50.0 125 A 0.95 0.1 15.0 1.5 V mA Typical thermal resistance (NOTE 2) R θ JC Operating junction temperature range TJ -55 to +150 ℃ T STG -55 to +150 ℃ storage temperature range 2.0 ℃/W Note:2.Thermal resistance from junction to case. http://www.microdiode.com Rev:2024A2 Page :1 MBRF1045CT THRU MBRF10200CT Forward Current - 10.0 Ampere Reverse Voltage - 45 to 200 Volts Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics 8.0 6.0 ~2 00 V 4.0 2.0 0.0 20 40 60 80 100 120 140 160 180 Instaneous Reverse Current ( mA) 10 45 Average Forward Current (A) Fig.1 Typical Forward Current Derating Curve 100 45~60V 100~200V 10 T J =100°C 1.0 0.1 T J =25°C 0.01 0.001 0 Case Temperature (°C) T J =25°C 10 1 45V 60V 100V 150V 200V 0.1 0 0.3 0.6 0.9 1.2 40 60 80 100 1.5 Instaneous Forward Voltage (V) Fig.4 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) Instaneous Forward Current (A) Fig.3 Typical Forward Characteristic(per leg) 20 20 Percent of Rated Peak Reverse Voltage（%） 1.8 160 140 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 MBRF1045CT THRU MBRF10200CT Reverse Voltage - 45 to 200 Volts Forward Current - 10.0 Ampere Outlitne ITO-220AB Package Outline Dimensions A C E B M N D J L b F L1 b1 H G UNIT max mm mil G A B b b1 C D E F 10.5 2.85 1.4 0.8 4.7 16.0 2.9 2.8 typ 10.0 2.70 1.2 0.6 4.5 15.0 2.7 2.7 min 9.85 2.54 1.1 0.5 4.4 14.7 2.5 2.5 max 413 112 55 31 185 630 114 110 typ 394 106 47 24 177 590 106 106 min 388 100 43 20 173 580 98 98 http://www.microdiode.com G 2.54 TYPICAL 100 TYPICAL H L L1 M 0.70 2.9 14.3 7.0 0.55 2.5 13.5 6.8 0.41 2.3 13.0 6.3 27 114 563 276 22 98 531 267 16 91 512 248 Rev:2024A2 N 3.4 TYPICAL 133 TYPICAL Page :3
