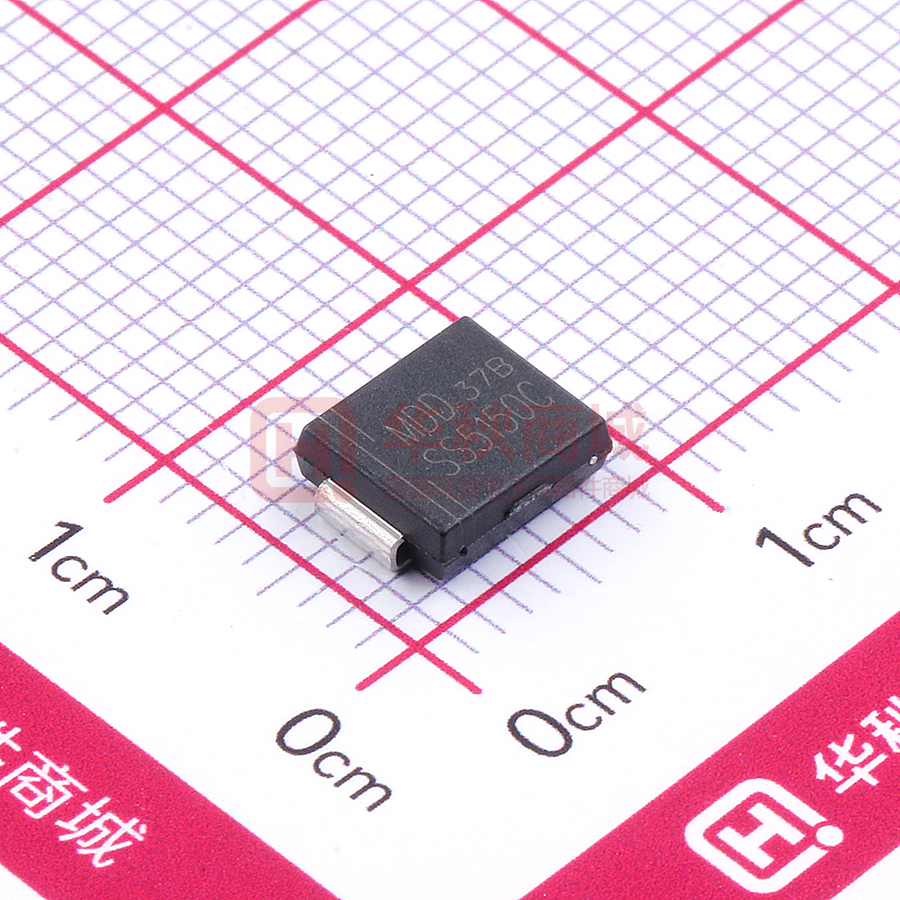

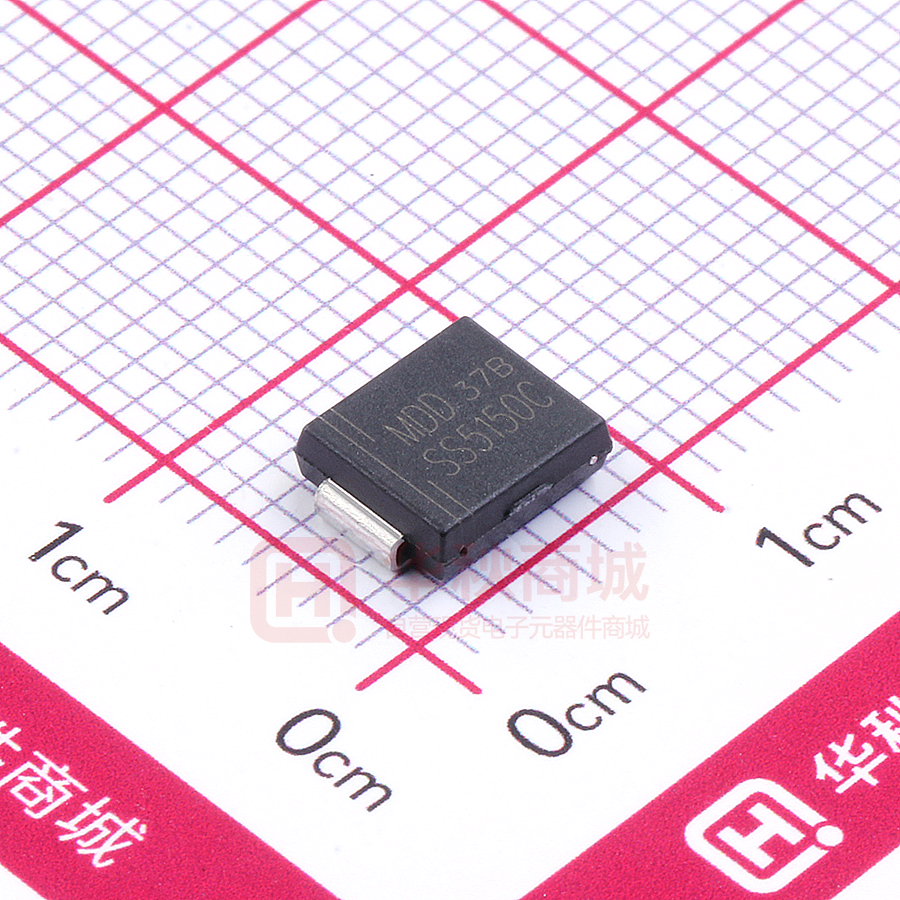

SS5150C

SS52C THRU SS5200C Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90)  Built-in strain relief,ideal for automated placement 0.280(7.11) 0.260(6.60)  High forward surge current capability  High temperature soldering guaranteed: 0.012(0.305) 0.006(0.152) 250 °C/10 seconds at terminals 0.103(2.62) 0.079(2.06) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. Mechanical Data 0.320(8.13) 0.305(7.75) Case: JEDEC DO-214AB/SMC molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight : 0.0077ounce, 0.22 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC Maximum average forward rectified current I(AV) Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM Maximum instantaneous forward voltage at 5.0A VF Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=100℃ Typical junction capacitance (NOTE 1) MDD SS53C MDD SS54C MDD SS55C MDD SS56C MDD SS58C MDD SS510C MDD SS5150C MDD SS5200C UNITS 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 80 56 80 100 70 100 150 105 150 200 140 200 V V V CJ RJA Operating junction temperature range TJ TSTG A 5.0 175 0.55 0.70 150 A 0.85 V 1.0 50 IR Typical thermal resistance (NOTE 2) Storage temperature range MDD SS52C 600 35 mA 400 -55 to +150 -55 to +125 pF ℃/W -55 to +150 ℃ ℃ Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 SS52C THRU SS5200C Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Typical Characterisitics Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current ( μA) 5.0 Average Forward Current (A) 4.0 Single Phase Half Wave 60Hz Resistive or inductive Load 3.0 2.0 SS52C-SS55C 1.0 SS56C-SS5200C 0 0 25 50 75 100 125 150 175 10 4 10 3 10 2 TJ=100°C TJ=75°C 101 TJ=25°C 0 10 0 20 40 60 100 80 Percent of Rated Peak Reverse Voltage（%） Case Temperature (°C) Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic TJ=25°C 20 1000 500 Junction Capacitance (pF) Instaneous Forward Current (A) 10 1 SS52C/SS54C SS56C SS58C/SS5200C 0.1 0 1.0 0.5 1.5 100 SS52C/SS54C SS56C/SS5200C 20 10 2.0 0.1 W） °C / SS52C~SS56C SS58C~SS5200C 150 125 100 75 50 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 Number of Cycles at 60Hz 100 Transient Thermal Impedance（ Peak Forward Surage Current (A) 200 00 100 Fig.6- Typical Transient Thermal Impedance Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 25 10 Reverse Voltage (V) Instaneous Forward Voltage (V) 175 1 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 SS52C THRU SS5200C Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Packing information unit:mm P0 Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 P1 d E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 BOX (pcs) 6000 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 CARTON SIZE (mm) CARTON (pcs) 365*365*340 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Unit (inch) Rev:2024A2 Page :3
