UMW
R
UMW SS12 THRU SS120
20V-200V 1A
FEATURES
Schottky barrier rectifier
Guardring protection
Low forward voltage
Reverse energy tested
High current capability
Extremely low thermal resistance
Mechanical Data

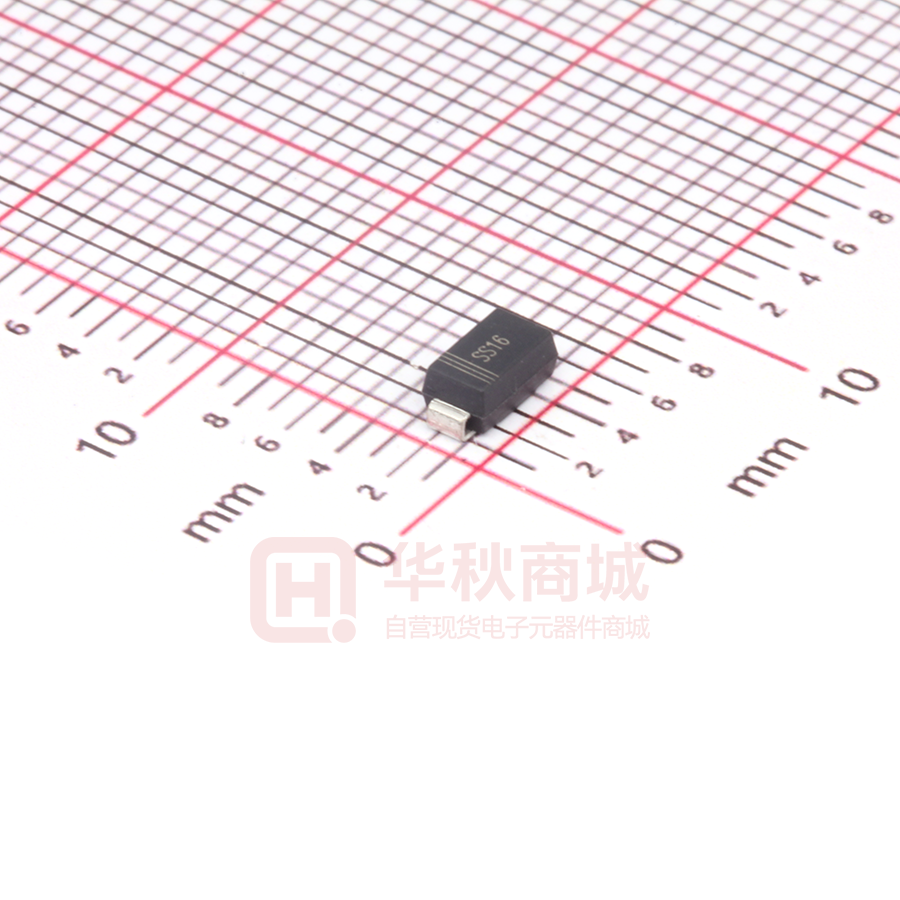

Case: SMA molded plastic body 1111
Polarity: Color band denotes cathode end
Mounting position: ANY
Weight: 0.002 ounces, 0.064 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS SS12 SS13 SS14 SS15 SS16
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at TL(see fig.1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current TA=25 C
TA=100 C
at rated DC blocking voltage
Typical junction capacitance (NOTE 1)
Typical thermal resistance (NOTE 2)
Operating junction temperature range
Storage temperature range
VRRM
VRMS
VDC
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
SS18 SS110 SS115
80
56
80
100
70
100
150
105
150
SS120
UNITS
200
140
200
VOLTS
VOLTS
VOLTS
I(AV)
1.0
Amp
IFSM
30.0
Amps
VF
0.70
0.55
0.45
0.5
10.0
IR
88.0
-50 to +125
-50 to +150
-50 to +150
0.95
0.2
2.0
5.0
90
110
CJ
RθJA
TJ,
TSTG
0.85
Volts
mA
pF
C/W
C
C
Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
www.umw-ic.com
1
友台半导体有限公司
UMW
R
UMW SS12 THRU SS120
20V-200V 1A
1.0
FIG.2-- PEAK FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT,AMPERES
CURRENT,AMPERES
FIG.1 -- FORWARD DERATING CURVE
Resistive or
inductive Load
0.5
0
50
60
70 80
90 100 110 120 130 140 150 160 170
LEAD TEMPERATURE
INSTANTANEOUS REVERSE
CURRENT,MICRO AMPERES
INSTANTANEOUS FORWARD
CURRENT,AMPERES
SS12-SS14
10
SS18-SS110
0 .0 1
0
Pulse Width=300
1%DUTY CYCLE
S
SS15-SS16
0 .2
0 .4
0 .6
0 .8
1 .0
1 .2
1 .4
1 .6
INSTANTANEOUS FORWARD VOLTAGE,VOLTS
www.umw-ic.com
20
0
1
10
10 0
FIG.4 -- TYPICAL REVERSE CHARACTERISTICS
50
0 .1
O
TL=100 C
8 .3 m s S in g le H a lf S in e -W a v e
(J E D E C M e th o d )
NUMBER OF CYCLES AT 60Hz
FIG.3 -- TYPICAL FORWARD CHARACTERISTICS
1
40
100
SS15-SS110
10
TJ=125℃
1
SS12-SS14
SS18-SS110
0.1
T J=25℃
SS12-SS16
0.01
0.001
0
20
40
60
80
1 00
PERCENT OF RATED PEAK REVERSE VOLTAGE,
2
友台半导体有限公司
UMW
R
UMW SS12 THRU SS120
20V-200V 1A
ORDERING INFORMATION
Order Code
Package
Baseqty
Deliverymode
UMW SS12
SMA
2000
Tape and reel
UMW SS13
SMA
2000
Tape and reel
UMW SS14
SMA
2000
Tape and reel
UMW SS15
SMA
2000
Tape and reel
UMW SS16
SMA
2000
Tape and reel
UMW SS18
SMA
2000
Tape and reel
UMW SS110
SMA
2000
Tape and reel
UMW SS115
SMA
2000
Tape and reel
UMW SS120
SMA
2000
Tape and reel
www.umw-ic.com
3
友台半导体有限公司
