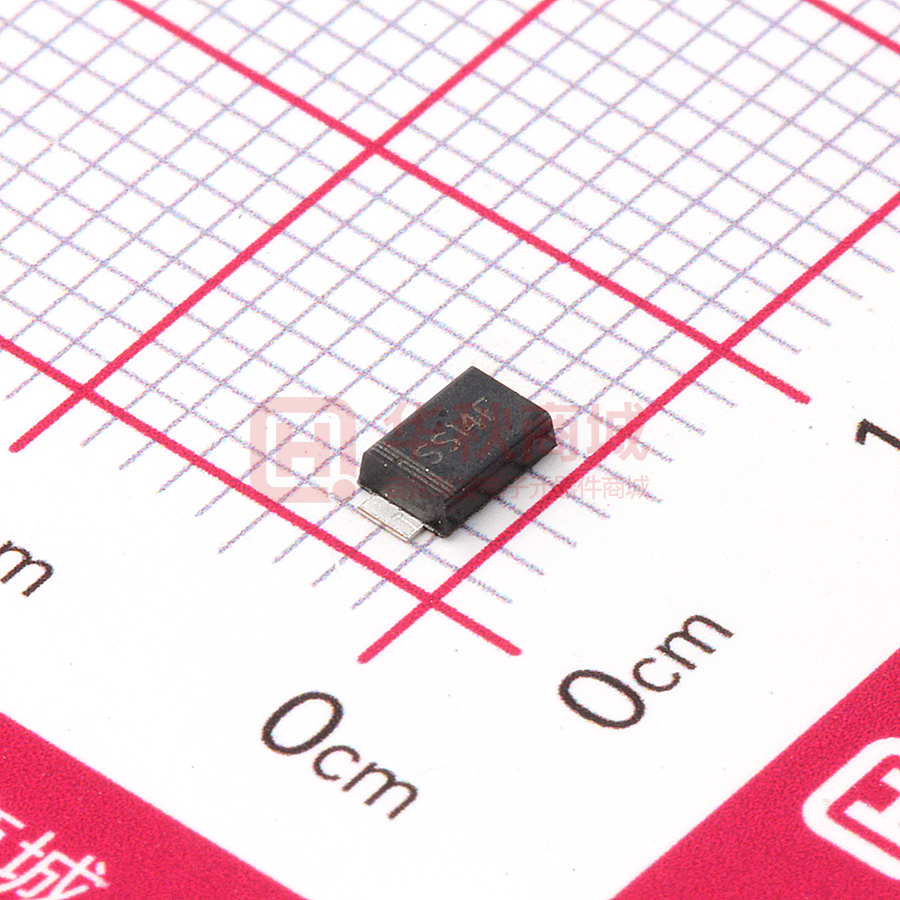

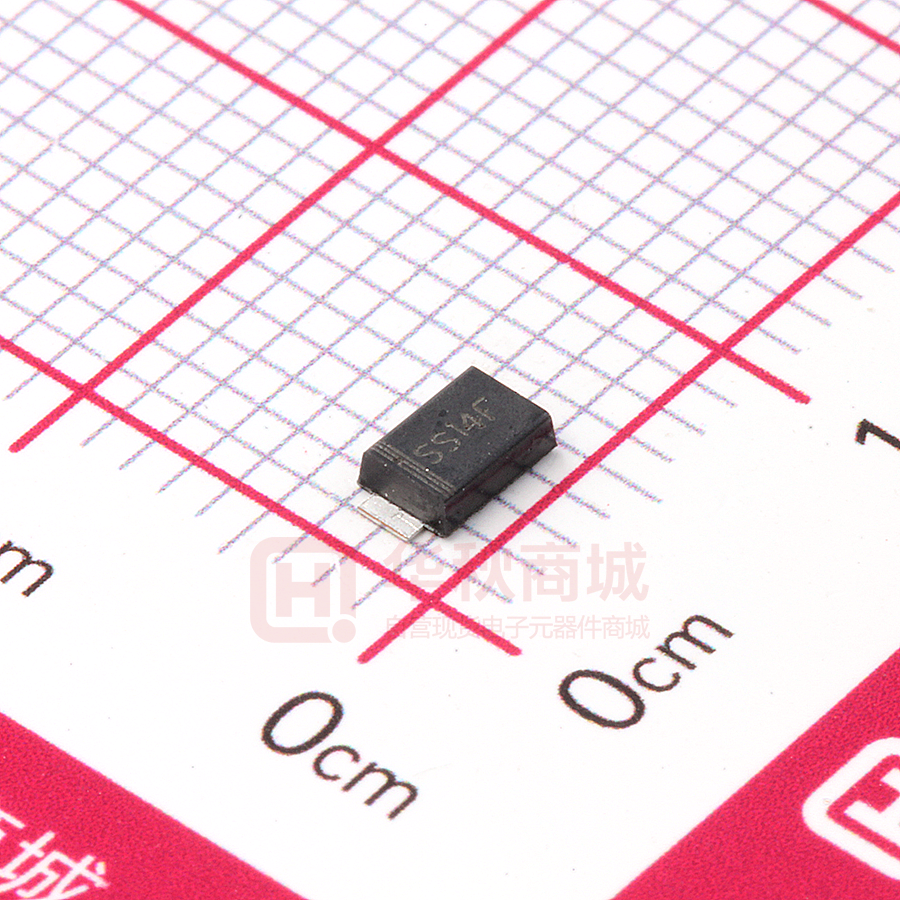

SS14F

UMW R UMW SS12F THRU SS120F 20V-200V 1A FEATURES • • • • • • Metal silicon junction, majority carrier conduction For surface mounted applications Low power loss, high efficiency High forward surge current capability For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case: SMAF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 27mg / 0 . 00095oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Symbols Parameter SS12F SS14F SS16F SS18F SS110F SS112F SS115F SS120F Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM Max Instantaneous Forward Voltage at 1 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range VF 1.0 40 0.55 30 0.70 0.3 10 IR Cj A 0.85 0.90 V 0.2 5 0.1 2 mA 80 110 A pF °C/W RθJA 95 Tj -55 ~ +150 °C T stg -55 ~ +150 °C （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. www.umw-ic.com 1 友台半导体有限公司 UMW R UMW SS12F THRU SS120F 20V-200V 1A Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 10 4 10 3 T J =100°C 10 2 T J =75°C 10 1 T J =25°C 10 0 0 Case Temperature (°C) 60 80 100 Fig.4 Typical Junction Capacitance 500 Junction Capacitance ( pF) 20 10 1.0 SS12F/SS14F SS16F/SS18F SS110F/SS112F SS115F/SS120F 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 T J =25°C 200 100 50 SS12F/SS14F 20 SS16F-SS120F 10 1.8 10 1 0.1 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) 40 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Peak Forward Surage Current (A) 20 50 SS12F-SS18F SS110F-SS120F 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz www.umw-ic.com 1000 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） 2 友台半导体有限公司 UMW R UMW SS12F THRU SS120F 20V-200V 1A ORDERING INFORMATION Order Code Package Baseqty Deliverymode UMW SS12F SMAF 3000 Tape and reel UMW SS14F SMAF 3000 Tape and reel UMW SS16F SMAF 3000 Tape and reel UMW SS18F SMAF 3000 Tape and reel UMW SS110F SMAF 3000 Tape and reel UMW SS112F SMAF 3000 Tape and reel UMW SS115F SMAF 3000 Tape and reel UMW SS120F SMAF 3000 Tape and reel www.umw-ic.com 3 友台半导体有限公司
