PJ-317A-W

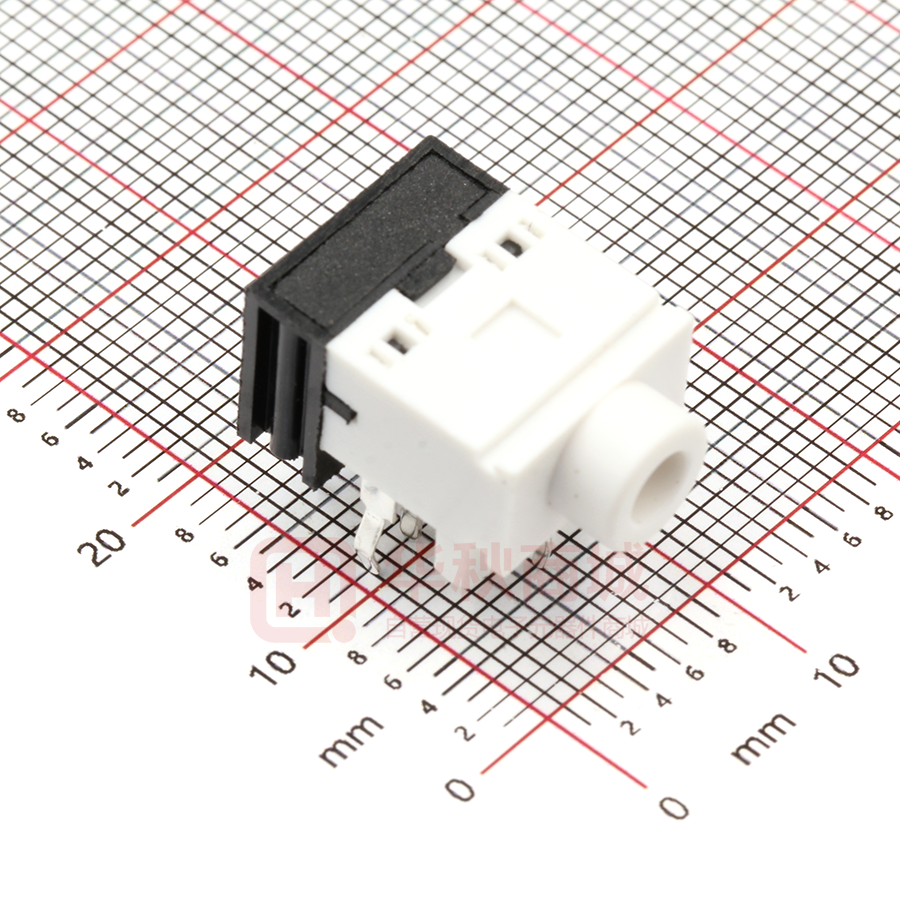

Doc. No. PJ-A0162-46 Page No. 1/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen XKB Connectivity Product Specification Title：Audio Jack Socket Conn 耳机插座 1. SCOPE（适用范围） This specification covers the performance, tests and quality requirements for the Audio jack Socket Connector,(本规范涵盖了Audio jack插座连接器的性能、测试和质量要求。 ) 2. PRODUCT DESCRIPTION（ 产品描述） DESCRIPTION（描述） Part Number（料号） 3.5音频连接器 5脚3级插脚W18.5XD12XH10 白色带单组开关卧式 8P PJ-317A-W 3. APPLICABLE DOCUMENT （适用文件） XKB Connectivity The following documents form a part of this specification to the extent specified herein. In the event of conflict between the requirements of this specification and the product drawing, the product drawing shall take precedence. In the event of conflict between the requirements of this specification and the referenced documents, this specification shall take precedence.（下列文件构成本规范的一部分，在此规定的范围内。本规范要求与产品图纸有冲突 时，以产品图纸为准。如果本规范的要求与参考文件发生冲突，应以本规范为准。）     MIL-STD-202/1344 EIA 364-09 EIAJ RC5325/RC5320A JIS C 6560 4. REQUIREMENTS （要求） 4.1. Design and Structure （设计和结构） Product shall be of the design, structure and physical dimensions specified on the applicable product drawing.（ XKB Connectivity 产品的设计、结构和物理尺寸参考所适用的产品图纸） 4.2. Materials/ Finish (材料/表面处理) Materials used in the structure of product shall be as specified on the applicable product drawing. (产品结构中使用的材料参考所适用的产品图纸) XKB Connectivity Product Specification Doc. No. PJ-A0162-46 Page No. 2/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Title：Audio Jack Socket Conn 耳机插座 4.3. 3 Pole Connector PIN definition description (3段连接器PIN脚定义说明) 4.4. 4 Pole Connector PIN definition description (4段连接器PIN脚定义说明) 4.5. Ratings （额定功率） XKB Connectivity Item（项目） Standard（标准） Rated Voltage (Maximum)额定电压 30 V Rated Current (Maximum)额定电流 0.5A Operating temperature range工作温度范围 Storage Temperature Range储存温度范围 DC -20℃～+70℃ From -20 to +70 degree centigrade -40℃～+85℃ From -40 to +85 degree centigrade 5. TEST STANDARD （测试标准） Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests are as follows （除另有说明外，用以进行测量和测试的标准环境 XKB Connectivity Doc. No. PJ-A0162-46 Page No. 3/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Product Specification Title：Audio Jack Socket Conn 耳机插座 条件范围如下） 5.1 Ambient temperature（环境温度）: 5℃ to 35℃ 5.2 Relative humidity （相对湿度）: 45% to 85% 5.3 Air pressure （气压）: 86Kpa to 106Kpa 6. HOWEVER, IF DOUBTS ARISE CONCERNING JUDGMENTS. PERFORM UNDER THE FOLLOWING STANDARD CONDITIONS.（但是，如果对判决产生疑问，按照下列标准条件执行） Temperature（温度）：23±1℃. Humidity（湿度）：50%±2% RH. Air Pressure（气压）：86~106kPa XKB Connectivity Product Specification Doc. No. PJ-A0162-46 Page No. 4/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Title：Audio Jack Socket Conn 耳机插座 7. PERFORMANCE AND TEST DESCRIPTION （性能和测试类型） 7.1 APPRARANCE （外观） ITEM DESCRIPTION（类型） 1 Appearance （外观） TEST CONDITION（测试条件） Visual.（目视） REQUIREMENT（要求） Should not have any flaw Scratch discoloration and crushed（无任何裂痕、刮伤、 污染和变形） 7.2 ELECTRICAL （电气） ITEM DESCRIPTION（类型） TEST CONDITION （测试条件） Subject mated contacts assembled in housing to 20mV Max open circuit at 10mA Max Test method complies with EIA-364-06C. （依EIA-36406C，开路电压为20mV最大，电流为1mA最大 ） 1 Low level contact resistance. （接触电阻） 2 After 100 VDC for 1 minute, measure the insulation resistance between the adjacent Insulation contacts of mated and unmated connector Resistance. （绝缘电阻） assemblies. (使用100 V交流電測試1分鐘，测量相邻两端的绝缘电 阻） 3 Apply ac 500V for 1minute 0.5mA between adjacent terminal or ground. Test method complies with EIA-36420C（依EIA-364-20C，相邻两端使用500 V交流电测试1分钟，电流0.5mA） Dielectric strength. (耐电压) REQUIREMENT（要求） Contact terminals接触端子: 100 mΩ Max. Change of 40 mΩ Max. after testing.（测试后变化量40 mΩ Max.) 100 M min. Without damage to parts arcing or breakdown etc. (无短路或其他损坏) XKB Connectivity Product Specification Doc. No. PJ-A0162-46 Page No. 5/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Title：Audio Jack Socket Conn 耳机插座 7.3 MECHANICAL （机械） ITEM DESCRIPTION（类型） TEST CONDITION（测试条件） REQUIREMENT（要求） Insertion/Extraction force. （插入/拔出力） Measure the module insertion extraction force at 25±3mm/min. （插入拔出速度为25 ± 3mm/分钟） EIA364-13 2 Durability（耐久） Contact resistance接触电阻:100 mΩ Max. Change of 40 mΩ Max. after testing.（测试后变化量40 Number of test cycle is 5000 minimum and cycles rate is 100 ± 50 cycles per hour. mΩ Max.) (插拔周期次数最少为5000次，周期率为100 ± Insulation Resistance绝缘电阻: 100 50次/小时) EIA 364-B M min. No physical damage to Connector shall occur.（不可对连接器造成物 理损伤） 3 Apply axial pull out force on the Terminal assembled in the housing at Contact retention A rate of 25±3mm min. 4.9N force （保持力） （对组装在胶壳内的端子施加轴向拉出力，速 度至少为25 ± 3毫米） 1 4 5 Mechanical （机械冲击） Vibration (振动) Accelerated Velocity(加速度): 50 G (490 m/s2) Waveform（波形）: Semi Sine（半正弦） Shock Duration（持续时间）: 11 m sec. No of Shocks（冲击频率）: 6/dir., 3 axis,（6个面，3个轴） ( Total of 18 Shocks共18次冲击) EIA364-27 Frequency Range(频率范围): 10-2000 Total Amplitude(总振幅):2m/s2. Duration(时间): 2.5 hours 3 axes IEC 60512-6-4 2.2N~22.2N （1）contact Resistance接触电阻： 100 mΩ Max . （2）contact Resistance绝缘电阻： 500 MΩ MIN . （3）No electrical discontinuity greater than 100nsec. shall occur （电气连续性不超过100秒） （1）contact Resistance接触电阻： 100 mΩ Max . （2）contact Resistance绝缘电阻： 500 MΩ MIN . （3）No electrical discontinuity greater than 100nsec. shall occur （电气连续性不超过100秒） XKB Connectivity Product Specification Doc. No. PJ-A0162-46 Page No. 6/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Title：Audio Jack Socket Conn 耳机插座 7.4 ENVIRONMENTAL (环境) ITEM 1 2 3 DESCRIPTION（类型） High Temperature (高温) Low Temperature (低温) Humidity resistance (高湿) TEST CONDITION（测试条件） REQUIREMENT（要求） （1）contact Resistance接触电阻： 100 mΩ The contact and card is exposed in the Max . heat chamber 90℃ for 96 hours. （2）contact After test stored at room temperature for 1 Resistance绝缘电阻： 500 MΩ hours test CR and IR. （触点和卡片在90 MIN . （2（Shall occur Function and °c 的热室中暴露96小时，测试后放置室温1小时 performance shall be as specified. Not to change for 测试接触电阻与绝缘阻抗） physical IEC 60512-11-3 appearance.（功能各外观须正 常，不得有任何损坏） （1）contact Resistance接触电阻： 100 mΩ The contact and card is exposed in the Max . cold chamber -25℃ for 96 hours. （2）contact After test stored at room temperature for 1 Resistance绝缘电阻： 500 MΩ hours test CR and IR. （触点和卡片在MIN . （3）Shall occur Function 25°c 的冷室中暴露96小时，测试后放置室温1小时 and performance shall be as 测试接触电阻与绝缘阻抗） specified. Not to change for IEC 60512-11-3 physical appearance.（功能各外观须正 常，不得有任何损坏） （1）contact Resistance接触电阻： 100 mΩ Steady state 40°C,90~95%RH for 96H with Max . mate connectors，After test stored at room （2）contact temperature for 1 hours test CR and IR. Resistance绝缘电阻： 500 MΩ （配对连接器在40°C MIN . （3）Shall occur Function 90~95%RH的稳定状态下测试96小时，测试 后放置室温1小时测试接触阻抗与绝缘阻抗 and performance shall be as specified. Not to change for ） physical IEC 60512-11-3 appearance.（功能各外观须正 常，不得有任何损坏） XKB Connectivity Product Specification Doc. No. PJ-A0162-46 Page No. 7/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Title：Audio Jack Socket Conn 耳机插座 4 Mated connectors to 35+/2℃.Humidity:85%(R.H). PH value:6.5~7.2 and 5+/-1% salt condition for 24hours. After test, rinse the sample with water and XKB Connectivity Salt recondition the room temperature for 1 Spray Test （盐雾测试） hour test CR and IR. （配对连接器放置在35±2℃, 温度为85% PH值6.5~7.2和5%浓度的实验箱内测试24小 时，测试后用水清洗样品，放置室温1小时 测试接触阻抗与绝缘阻抗） EIA-364-26B. 5 Solder Temperature （焊接温度）: 245+/3℃ Solder ability （沾锡性） Immersion Duration （浸泡时间）: 3 ±0.5 sec. Flux （助焊剂）: RMA 25% （1）contact Resistance接触电阻： 100 mΩ Max . （2）contact Resistance绝缘电阻： 500 MΩ MIN . （3）Appearance shall no rust, oxidation, corrosion and other undesirable phenomena.（外观须无生锈 、氧化、腐蚀等不良现象) Wet Solder Coverage: 95 % Min. （沾锡面积须95%最小） The contact of terminal shall be tested 6 resistance to soldering heat in the following conditions. After Resistance to soldering heat test Contact Should not have any flaw Resistance.（端子应在下列条件下做耐吃锡 scratch and crack. 性试验，焊锡耐热性后试接触阻抗） （无任何裂痕、刮伤和破裂） In case of solder iron (2 time) 电烙铁(两次) Resistance to soldering heat（焊锡耐热性） Temperature温度:≤350℃ Time 时间: 5s+/-1s 7 MIL-STD-202G method 210F Peak temperature time 260℃ Max,10 sec or more. （峰值温度时间最高260℃，10秒或更长的时 间） Duration：2 cycles （过炉2次） Lead-Free Solder （无铅锡膏）：Sn96.5Ag3Cu0.5 Refer to section 8.0（请参阅第8.0条） IR-reflow （回流焊） Should not have any flaw scratch and crack (无任何裂痕、刮伤和破裂) No visual damage to insulator. (绝缘体不得有严重变形) 8. Product Qualification and TEST GROUP （产品验证和测试分组） XKB Connectivity TEST ITEM （测试项目） TEST GROUP（测试分组） A B C D E F G TEST SEQENCE H I J K Doc. No. PJ-A0162-46 Page No. 8/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen XKB Connectivity Product Specification Title：Audio Jack Socket Conn 耳机插座 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1,4 Appearance （外观） Low Level Contact Resistance （接触电阻） Dielectric withstanding Voltage （耐电压） Insulation Resistance（绝缘电阻） Temperature Rising （升温） 1,7 1,6 3,6 3,7 1,3 1,6 1,7 1,5 1,5 1,5 3,8 3,6 3,6 3,6 4,8 5,9 3,7 4,10 1,4 1,4 2,5 3 5 Durability（耐久） Vibration (振动) 4 Mechanical Shock （机械冲击） 5 Insertion/Extraction force (插入/拔出力) Contact retention force （保持力） 4 2 High Temperature (高温) 5 6 Low Temperature (低温) 4 Humidity resistance (高湿) 4 Salt Spray（盐雾） 3 Solder ability（沾锡性） Reflow Soldering Heat Resistance（焊锡耐热性） 3 2 IR-reflow（回流焊） 2 2 2 Number of Samples Required （所需样本数目） 2 2 5 9. WAVE SOLDERING（波峰焊） DIP Suggestions solder temperature at 235℃±5℃(455°F) max.5 seconds . （ DIP型推荐焊接焊锡温度为235℃±5℃（455°F) 最多5秒） 10. REFLOW PROFILE （ XKB CONNECTIVITY 回流焊炉温图） 260℃ maximum (Peak Temperature) 8 minutes maximum 250℃ maximum 2 2 2 XKB Connectivity Product Specification Doc. No. PJ-A0162-46 Page No. 9/10 Date Issued 2015-04-06 Prepared by Josephine Date revised 2018-11-23 checked by Jay Rev. No. 07 Approved by Mei Chen Title：Audio Jack Socket Conn 耳机插座 20 to 40 seconds 3℃ maximum/second Average Range Up 180sec. 30sec. (Preheat Temperature预热温度: 150~200℃ Maximum.) Temperature Condition Graph.温度状态图 (Temperature on Board Pattern Side.) Requirement要求: No physical damaged or plastic melting.: 无物理损伤或塑料熔化 Rev. Description Date revised Created/ Revised by 01 New Release 2018/11/23 Josephine Lin
