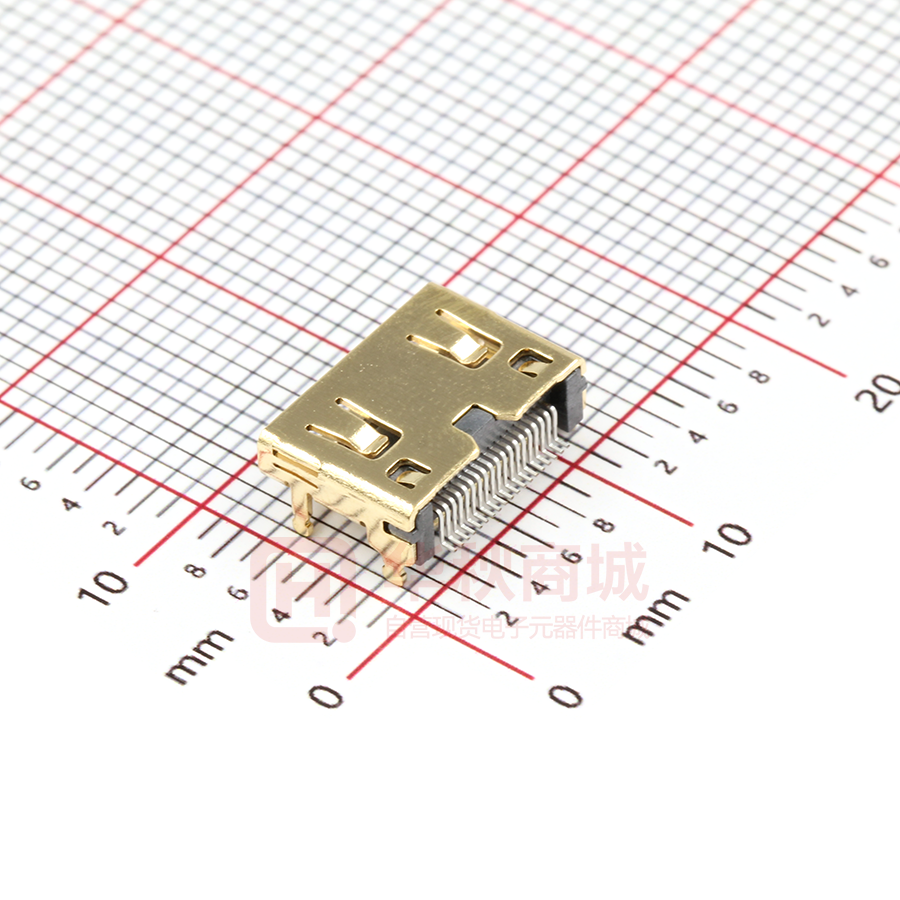

A71-05H4-111N1

0.50 [0.020] XKB CONNECITITY C0.15X0.15 NOTE: 1.MECHANICAL: 1.1 INSERTION FORCE:45Kgf MAX 1.2 WITHDRAW FORCE:0.71Kgf~2.55Kgf 2.ELECTRICAL: 2.1CONTACT CURRENT RATING:0.5A MAX 2.2 VOLTAGE RATING:40V AC(RMS) 2.3 DIELECTRIC WITH STANDING VOLTAGE: 500V AC FOR 1 MINUTE 2.4INSULATION RESISTANCE:100 MEGAOHMS MIN 2.5 CONTACT RESISTANCE:30 MILLIOHMS MAX 3.ENVIRONMENTAL: 3.1 OPERATING TEMPERATURE:-25~+85 7.50 [0.295] 5.00 [0.197] DETAIL E 3.10 [0.122] 2.70 [0.106] STRAIGHT ENG 2.15 [0.085] 6.30 [0.248] 11.20 [0.441] SEC C-C SCALE 1:1 STRAIGHT ENG 0.10 [0.004] 0.06 A B R0.35(X6)MAX 10.50 [0.414] A 0.08 A 8.10 [0.319] 7.20 [0.283] 0.25 [0.010] 3.30 [0.130] 0~0.10 1.22 [0.048] PIN 1 (CONTACTS) 2 R0.1 0.10 0.40 [0.016] 3.20 [0.126] 1 1.50 [0.059] XKB CONNECITITY C C 0.30 [0.012] PIN 19 0.10 A B 8.30 [0.327] 10.85 [0.427] 0.80 [0.031] 2.00 [0.079] A71-05H3-1X1N1 3 1.00 [0.039] 1.80 [0.071] 2.50 [0.098] DETAIL E SCALE 2:1 4.50 [0.177] 10.85 [0.427] 1.40 [0.055] 0.23 [0.009] 6.50 [0.256] 1.20 [0.047] 6.00 [0.236] 4.50 [0.177] 0.80 [0.032] Ø0.80 [Ø0.031] 1.15 [0.045] 0.40 [0.016] 0.65 [0.026] 4.00 [0.157] 0.03 X 2.00 [0.079] 1.80 [0.071] 7.50 [0.295] Ø0.99 [Ø0.039] 1.20 [0.047] 0.80 [0.031] 0.40 [0.016] 7.20 [0.283] 7.50 [0.295] HDMI RECEPTACLE, TYPE C 0.15 [0.006] 1:Au 1U" 5:Au 15U" 6:Au 30U" 7.20 [0.283] 1.25 [0.049] X P.C.B. EDGE COPPER ALLOY,GOLD PLATED OVER NICKEL ON CONTACT AREA AND 100u" MIN.TIN PLATED OVER NICKEL ON SOLDER TAILS 3 CONTACTS 19 2 HOUSING 1 THERMOPLASTIC UL94V-0 1 SHELL 1 COPPER ALLOY, NICKEL PLATED RECOMMENDED PCB LAYOUT XKB CONNECITITY X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
