UMW
R
15N10
15N10
General Description
The 15N10 uses advanced trench technology to provide
excellent RDS(ON), low gate charge and operation with gate
voltages as low as 4.5V. This device is suitable for use as a
wide variety of applications.
Features
VDS = 100V,ID =15A
RDS(ON),95 mΩ(Typ) @ VGS =10V
RDS(ON), 100mΩ(Typ) @ VGS =4.5V
Low Total Gate Charge
Low Reverse Transfer Capacitance
Improved dv/dt Capability
Fast Switching Speed
Application
Uninterruptible Power Supply(UPS)
Inverter System
Package Marking and Ordering Information
Device Marking
Device
15N10
Device Package
15N10

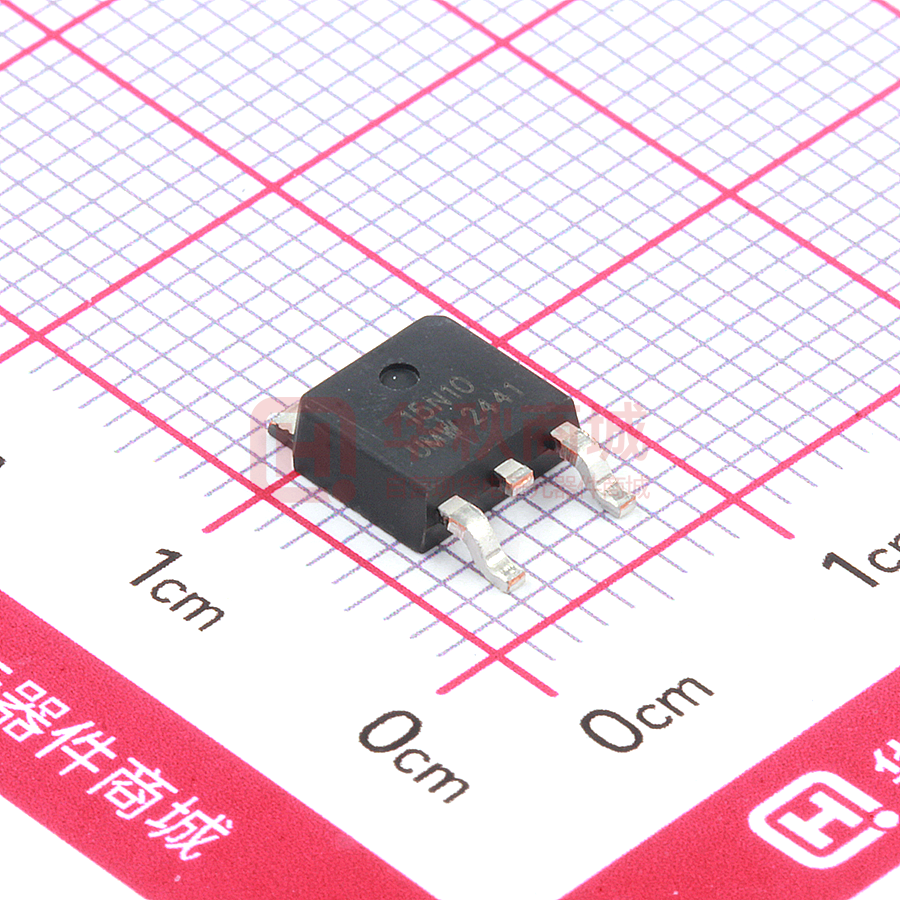

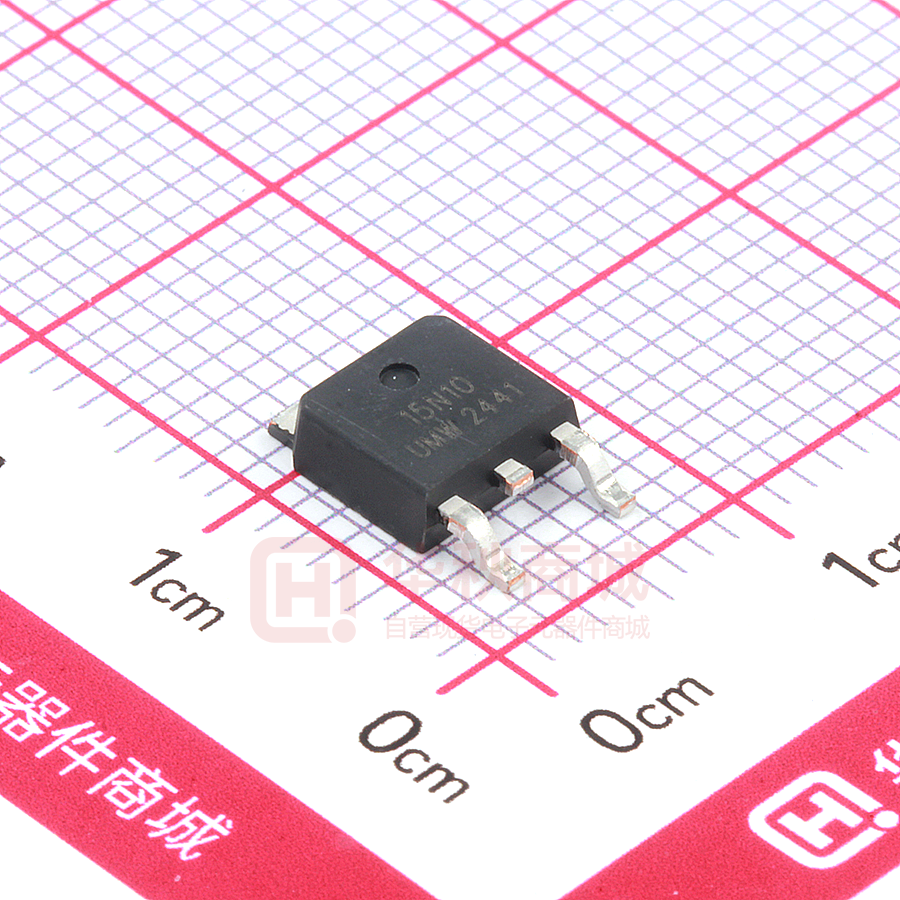

TO-252
Reel Size
Tape width
Quantity
325mm
16mm
2500
Absolute Maximum Ratings(TA=25℃ unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous
TC=25℃
Note1
TC=100℃
Drain Current-Pulsed
Note2
Maximum Power Dissipation
TC=25℃
Storage Temperature Range
Operating Junction Temperature Range
Value
Unit
VDS
100
V
VGS
±20
V
15
A
10
A
IDM
60
A
PD
55
W
TSTG
-55 to +175
℃
TJ
-55 to +175
℃
ID
Thermal Resistance
Parameter
Symbol
RθJC
Thermal Resistance,Junction-to-Case
www.umw-ic.com
1
Min.
Typ.
-
2.72
Max
Unit
-
℃/W
友台半导体有限公司
UMW
R
15N10
Electrical Characteristics(TJ=25℃ unless otherwise noted)
OFF CHARACTERISTICS
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Unit
Drain-Source Breakdown Voltage
BVDSS
VGS=0V,IDS=250uA
100
-
-
V
Zero Gate Voltage Drain Current
IDSS
VDS=100V,VGS=0V
-
-
1
uA
Gate-Body Leakage
IGSS
VGS=±20V,VDS=0V
-
-
±100
nA
Symbol
Conditions
Min.
Typ.
Max.
Unit
Gate Threshold Voltage
VGS(TH)
VDS=VGS,IDS=250uA
1.0
1.6
3.0
V
Drain-Source On-State Resistance
RDS(ON)
VGS=10V,IDS=10A
-
95
110
VGS=4.5V,IDS=5A
-
100
130
gFS
VGS=5V,IDS=4A
2
-
-
S
Symbol
Conditions
Min.
Typ.
Max.
Unit
-
632
-
-
37
-
-
21
-
Min.
Typ.
Max.
-
12.6
-
-
6
-
-
32.5
-
-
4.3
-
-
19.2
-
-
3.4
-
-
6.1
-
ON CHARACTERISTICS
Parameter
Forward Transconductance
mΩ
DYNAMIC CHARACTERISTICS
Parameter
Input Capacitance
CiSS
Output Capacitance
COSS
Reverse Transfer Capacitance
Crss
VDS =50V, VGS = 0V,
f=1MHz
pF
SWITCHING CHARACTERISTICS
Parameter
Turn-On Delay Time
Rise Time
Symbol
Td(on)
tr
Turn-Off Delay Time
Fall Time
Conditions
Td(off)
VGS=10V,VDs=50V,
RL=2.8Ω, RGEN=6Ω,
ID=10A
tf
Total Gate Charge at 10V
Qg
Gate to Source Gate Charge
Qgs
Gate to Drain“Miller”Charge
Qgd
VDS=80V,IDS=10A,
VGS=10V
Unit
ns
nC
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
Parameter
Drain-Source Diode Forward Voltage
Symbol
Conditions
Min.
Typ.
Max.
Unit
VSD
VGS=0V,IDS=10A
-
-
1.2
V
Notes 1.The maximum current rating is package limited.
Notes 2.Repetitive Rating: Pulse width limited by maximum junction temperature
Notes 3.EAS condition: TJ=25℃,VDD=50V,VG=10V, RG=25Ω
www.umw-ic.com
2
友台半导体有限公司
UMW
R
www.umw-ic.com
15N10
3
友台半导体有限公司
UMW
R
www.umw-ic.com
15N10
4
友台半导体有限公司
UMW
R
15N10
SCALE
4:1
SHEET
DWG NO: TO-252-01-A1
www.umw-ic.com
TITLE
TO-252
5
1 OF 1
友台半导体有限公司
