HSBB0012
N-Ch 100V Fast Switching MOSFETs
Description
Product Summary
The HSBB0012 is new generation MOSFET
features low on-resistance and fast switching.
Making it ideal for high efficiency power
management applications.
The HSBB0012 meet the RoHS and Green
Product requirement, 100% EAS guaranteed
with full function reliability approved.
⚫
⚫
⚫
⚫
VDS
100
V
RDS(ON),TYP
93
mΩ
ID
20
A

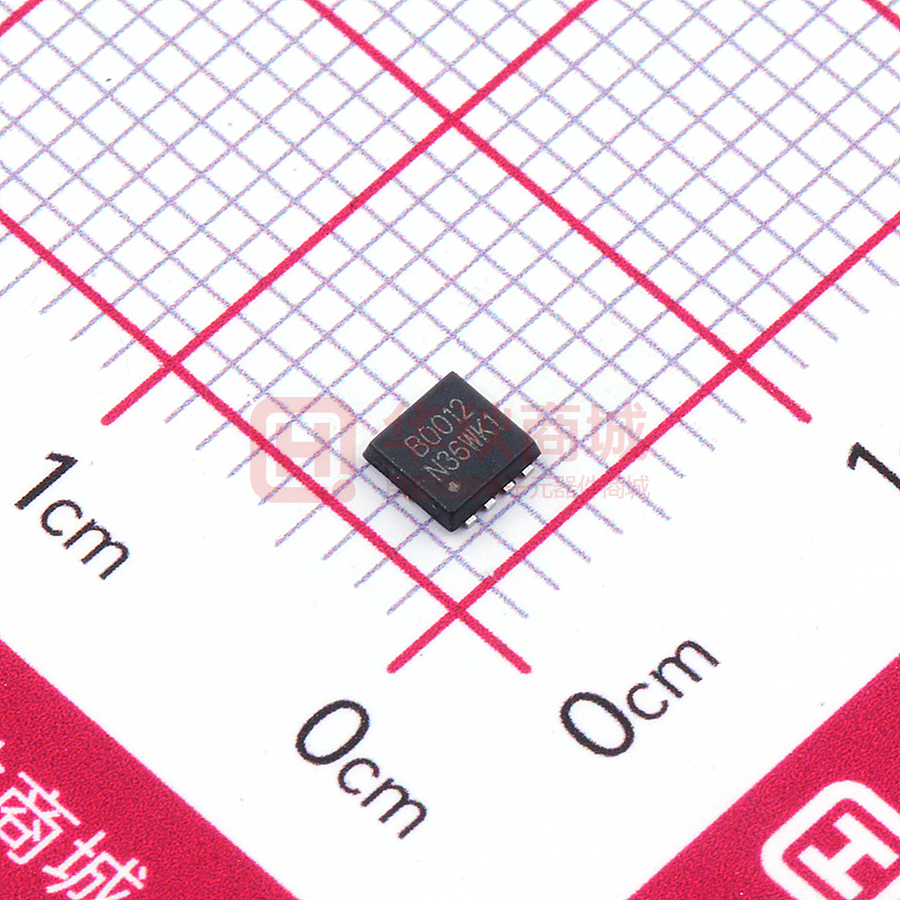

PRPAK3*3 Pin Configuration
Super Low Gate Charge
Green Device Available
Excellent Cdv/dt effect decline
Optimized for fast-switching application
Absolute Maximum Ratings
Symbol
Parameter
Rating
Units
VDS
Drain-Source Voltage
100
V
VGS
Gate-Source Voltage
±20
V
ID@TC=25℃
Continuous Drain Current, VGS @ 10V1
20
A
ID@TC=100℃
Continuous Drain Current, VGS @ 10V1
14
A
IDM
Pulsed Drain Current2
80
A
EAS
Single Pulse Avalanche Energy3
1.8
mJ
PD@TC=25℃
Total Power Dissipation3
21
W
PD@TA=25℃
Total Power Dissipation3
1.8
W
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Thermal Data
Symbol
Parameter
Max.
Unit
RθJA
Thermal Resistance Junction-ambient 1
---
65
℃/W
RθJC
Thermal Resistance Junction-Case1
---
6
℃/W
www.hs-semi.cn
Ver 2.0
Typ.
1
HSBB0012
N-Ch 100V Fast Switching MOSFETs
Electrical Characteristics (TJ=25 ℃, unless otherwise noted)
Symbol
BVDSS
Parameter
Drain-Source Breakdown Voltage
△BVDSS/△TJ BVDSS Temperature Coefficient
RDS(ON)
VGS(th)
Static Drain-Source On-Resistance2
Gate Threshold Voltage
Conditions
Min.
Typ.
Max.
Unit
100
---
---
V
Reference to 25℃ , ID=1mA
---
0.098
---
V/℃
VGS=10V , ID=5A
---
93
105
m
VGS=4.5V , ID=5A
---
118
145
m
1.0
1.8
2.5
V
---
-4.57
---
mV/℃
VDS=80V , VGS=0V , TJ=25℃
---
---
1
VDS=80V , VGS=0V , TJ=55℃
---
---
5
VGS=0V , ID=250uA
VGS=VDS , ID =250uA
△VGS(th)
VGS(th) Temperature Coefficient
IDSS
Drain-Source Leakage Current
IGSS
Gate-Source Leakage Current
VGS=±20V , VDS=0V
---
---
±100
nA
Rg
Gate Resistance
VDS=0V , VGS=0V , f=1MHz
---
4
---
Qg
Total Gate Charge (10V)
---
5.4
---
Qgs
Gate-Source Charge
---
3.1
---
Qgd
Gate-Drain Charge
---
0.9
---
Turn-On Delay Time
---
5
---
Td(on)
Tr
Td(off)
Tf
Ciss
VDS=50V , VGS=10V , ID=5A
uA
nC
Rise Time
VDD=50V , VGS=10V , RG=3
---
3
---
Turn-Off Delay Time
ID=10A
---
20
---
---
5
---
---
310
---
---
20
---
---
3.7
---
Min.
Typ.
Max.
Unit
---
---
20
A
---
---
80
A
---
---
1.2
V
---
18
---
nS
---
48
---
nC
Fall Time
Input Capacitance
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
VDS=50V , VGS=0V , f=1MHz
ns
pF
Diode Characteristics
Symbol
Parameter
IS
Continuous Source Current1,5
ISM
Pulsed Source Current2,5
VSD
Diode Forward Voltage2
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
Conditions
VG=VD=0V , Force Current
VGS=0V , IS=1A , TJ=25℃
IF=5A , dI/dt=100A/µs , TJ=25℃
Note :
1.The data tested by surface mounted on a 1 inch2 FR-4 board with 2OZ copper.
2.The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%
3.The EAS data shows Max. rating . The test condition is V DD=25V,VGS=10V,L=0.1mH
4.The power dissipation is limited by 150℃ junction temperature
5.The data is theoretically the same as I D and IDM , in real applications , should be limited by total power dissipation.
www.hs-semi.cn
Ver 2.0
2
HSBB0012
N-Ch 100V Fast Switching MOSFETs
Typical Characteristics
Fig.2 Transfer CharacteristicsVoltage
Fig.1 Typical Output Characteristics
10
IS Source Current(A)
8
6
TJ=150℃
4
TJ=25℃
2
0
0.00
0.25
0.50
0.75
1.00
VSD , Source-to-Drain Voltage (V)
Fig.4 Gate-Charge Characteristics
Fig.3 Forward Characteristics Of Reverse
diode
2.5
Normalized On Resistance
Normalized VGS(th) (V)
1.8
2.0
1.4
1.5
1
0.6
1.0
0.2
0.5
-50
0
50
100
150
-50
TJ ,Junction Temperature (℃ )
50
100
150
Fig.6 Normalized RDSON vs. TJ
Fig.5 Normalized VGS(th) vs. TJ
www.hs-semi.cn
0
TJ , Junction Temperature (℃)
Ver 2.0
3
HSBB0012
N-Ch 100V Fast Switching MOSFETs
10000
100.00
F=1.0MHz
10us
100us
10.00
1ms
1000
ID (A)
Capacitance (pF)
Ciss
10ms
100ms
1.00
100
DC
Coss
0.10
TC=25℃
Single Pulse
Crss
10
0.01
1
5
9
13
17
21
25
0.1
1
10
VDS , Drain to Source Voltage (V)
100
1000
VDS (V)
Fig.7 Capacitance
Fig.8 Safe Operating Area
Normalized Thermal Response (RθJC)
1
DUTY=0.5
0.2
0.1
0.1
0.05
0.02
0.01
P DM
0.01
T ON
T
SINGLE
D = TON/T
TJpeak = TC+P DMXRθJC
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
100
t , Pulse Width (s)
Fig.9 Normalized Maximum Transient Thermal Impedance
EAS=
VDS
90%
1
L x IAS2 x
2
BVDSS
BVDSS-VDD
BVDSS
VDD
IAS
10%
VGS
Td(on)
Tr
Ton
Td(off)
Tf
Toff
VGS
Fig.10 Switching Time Waveform
Fig.11 Unclamped Inductive Switching
Waveform
www.hs-semi.cn
Ver 2.0
4
HSBB0012
N-Ch 100V Fast Switching MOSFETs
Ordering Information
Part Number
HSBB0012
www.hs-semi.cn
Package code
PRPAK3*3
Ver 2.0
Packaging
3000/Tape&Reel
5
