HSL6107
P-Ch 60V Fast Switching MOSFETs
Description
Product Summary
The HSL6107 is the high cell density trenched P-ch
MOSFETs, which provide excellent RDSON and
gate charge for most of the synchronous buck
converter applications.
The HSL6107 meet the RoHS and Green Product
requirement,100% EAS guaranteed with full
function reliability approved.
⚫
⚫
⚫
⚫
⚫
VDS
-60
V
RDS(ON),max
180
mΩ
ID
-2.3
A

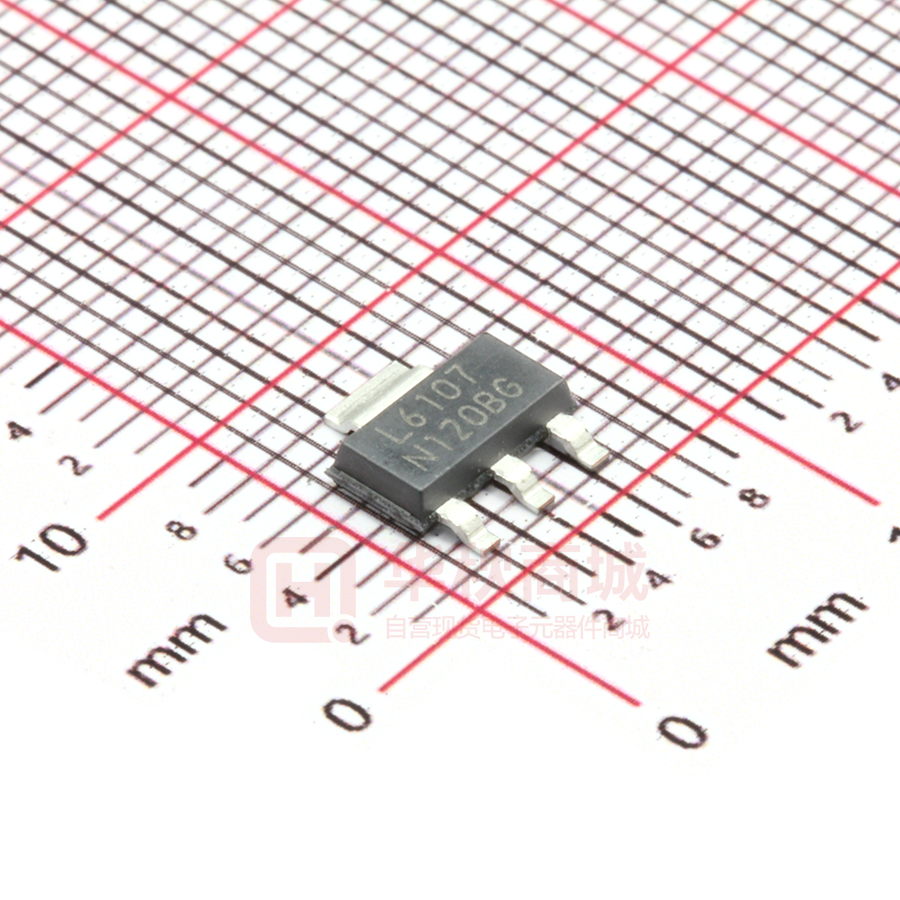

SOT223 Pin Configuration
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench
technology
Absolute Maximum Ratings
Symbol
Parameter
Rating
Units
VDS
Drain-Source Voltage
-60
V
VGS
Gate-Source Voltage
±20
V
ID@TA=25℃
Continuous Drain Current, VGS @ -10V1
-2.3
A
ID@TA=70℃
Continuous Drain Current, VGS @ -10V1
-1.9
A
IDM
Pulsed Drain Current2
-12
A
EAS
Single Pulse Avalanche Energy3
11.7
mJ
IAS
Avalanche Current
-15.3
A
PD@TA=25℃
Total Power Dissipation4
1.5
W
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Thermal Data
Symbol
Parameter
RθJA
Thermal Resistance Junction-Ambient 1
RθJC
Thermal Resistance Junction-Case1
www.hs-semi.cn
Ver 2.0
Typ.
Max.
Unit
---
85
℃/W
---
48
℃/W
1
HSL6107
P-Ch 60V Fast Switching MOSFETs
Electrical Characteristics (TJ=25 ℃, unless otherwise noted)
Symbol
BVDSS
Parameter
Drain-Source Breakdown Voltage
△BVDSS/△TJ BVDSS Temperature Coefficient
RDS(ON)
Static Drain-Source On-Resistance2
VGS(th)
Gate Threshold Voltage
△VGS(th)
VGS(th) Temperature Coefficient
IDSS
Drain-Source Leakage Current
Conditions
Min.
Typ.
Max.
Unit
VGS=0V , ID=-250uA
-60
---
---
V
Reference to 25℃ , ID=-1mA
---
-0.021
---
V/℃
VGS=-10V , ID=-2A
---
140
180
VGS=-4.5V , ID=-1.5A
---
200
260
-1.0
---
-2.5
V
---
4.08
---
mV/℃
VDS=-48V , VGS=0V , TJ=25℃
---
---
1
VDS=-48V , VGS=0V , TJ=55℃
---
---
5
VGS=VDS , ID =-250uA
m
uA
IGSS
Gate-Source Leakage Current
VGS=±20V , VDS=0V
---
---
±100
nA
gfs
Forward Transconductance
VDS=-10V , ID=-2A
---
6.3
---
S
Qg
Total Gate Charge (-4.5V)
---
4.6
---
Qgs
Gate-Source Charge
---
1.4
---
Qgd
Gate-Drain Charge
---
1.62
---
Td(on)
VDS=-20V , VGS=-4.5V , ID=-2A
---
17.4
---
Rise Time
VDS=-15V , VGS=-10V , RG=3.3,
---
5.4
---
Turn-Off Delay Time
ID=-1A
---
37.2
---
Fall Time
---
2.4
---
Ciss
Input Capacitance
---
531
---
Coss
Output Capacitance
---
59
---
Crss
Reverse Transfer Capacitance
---
38
---
Min.
Typ.
Max.
Unit
---
---
-2.3
A
---
---
-12
A
---
---
-1.2
V
Tr
Td(off)
Tf
Turn-On Delay Time
nC
VDS=-15V , VGS=0V , f=1MHz
ns
pF
Diode Characteristics
Symbol
Parameter
IS
Continuous Source Current1,5
ISM
Pulsed Source Current2,5
VSD
Diode Forward Voltage2
Conditions
VG=VD=0V , Force Current
VGS=0V , IS=-1A , TJ=25℃
Note :
1.The data tested by surface mounted on a 1 inch 2 FR-4 board with 2OZ copper.
2.The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%
3.The EAS data shows Max. rating . The test condition is V DD=-25V,VGS=-10V,L=0.1mH,IAS=-15.3A
4.The power dissipation is limited by 150℃ junction temperature
5.The data is theoretically the same as I D and IDM , in real applications , should be limited by total power dissipation.
www.hs-semi.cn
Ver 2.0
2
HSL6107
P-Ch 60V Fast Switching MOSFETs
Typical Characteristics
210
9
ID=-2A
8
VGS=-10V
-ID Drain Current (A)
7
190
RDSON (mΩ)
VGS=-7V
6
VGS=-5V
5
170
VGS=-4.5V
4
3
150
2
VGS=-3V
1
0
130
0
0.5
1
1.5
2
2.5
3
-VDS , Drain-to-Source Voltage (V)
3.5
4
2
4
Fig.1 Typical Output Characteristics
6
-VGS (V)
8
10
Fig.2 On-Resistance v.s Gate-Source
Voltage
6
10
-VGS Gate to Source Voltage (V)
IS Source Current(A)
VDS=-20V
4
TJ=150℃
TJ=25℃
2
0
0.0
0.4
0.8
ID=-2A
8
6
4
2
0
0
1.2
VSD , Source-to-Drain Voltage (V)
2.5
5
7.5
10
QG , Total Gate Charge (nC)
Fig.3 Forward characteristics of reverse
Fig.4 Gate-charge characteristics
diode
2.0
Normalized On Resistance
Normalized VGS(th)
1.5
1.5
1
1.0
0.5
0.5
0
-50
0
50
100
TJ ,Junction Temperature ( ℃)
-50
150
Fig.5 Normalized VGS(th) v.s TJ
www.hs-semi.cn
0
50
100
150
TJ , Junction Temperature (℃)
Fig.6 Normalized RDSON v.s TJ
Ver 2.0
3
HSL6107
P-Ch 60V Fast Switching MOSFETs
10000
10.00
F=1.0MHz
100us
Capacitance (pF)
1ms
1000
1.00
Ciss
-ID (A)
10ms
100
Coss
TA=25o C
Single Pulse
Crss
0.01
0.01
10
1
5
9
13
17
21
-VDS Drain to Source Voltage(V)
100ms
0.10
25
Fig.7 Capacitance
DC
0.1
1
-VDS (V)
10
100
1000
Fig.8 Safe Operating Area
Normalized Thermal Response (RθJA)
1
DUTY=0.5
0.2
0.1
0.1
0.05
0.01
P DM
0.01
T ON
T
D = TON/T
SINGLE
TJpeak = TA+P DMXRθJA
0.001
0.0001
0.001
0.01
0.1
1
10
100
1000
t , Pulse Width (s)
Fig.9 Normalized Maximum Transient Thermal Impedance
Fig.10 Switching Time Waveform
Fig.11 Unclamped Inductive Switching
Waveform
www.hs-semi.cn
Ver 2.0
4
HSL6107
P-Ch 60V Fast Switching MOSFETs
Ordering Information
Part Number
HSL6107
www.hs-semi.cn
Package code
SOT-223
Ver 2.0
Packaging
3000/Tape&Reel
