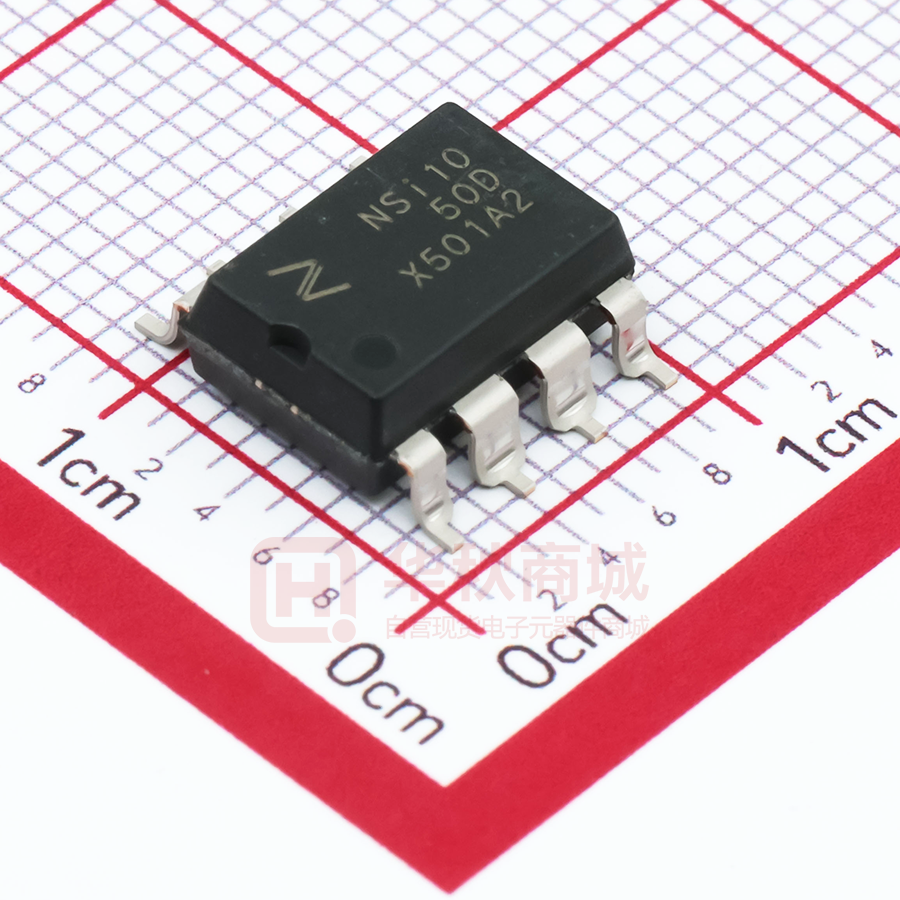

NSi1050 Isolated CAN Transceiver Datasheet (EN) 1.3 Product Overview The NSi1050 is a isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The NSi1050 integrated two channel digital isolators and a high reliability CAN transceiver. The digital isolator is silicon oxide isolation based on Novosense capacity isolation technology. The high integrated solution can help to simplify system design and improve reliability. The NSi1050 device is safety certified by UL1577 support 5kVrms insulation withstand voltages, while providing high electromagnetic immunity and low emissions. The data rate of the NSi1050 is up to 1Mbps, and it can support at least 110 CAN nodes. The NSi1050 provides thermal protection and transmit data dominant time out function. Key Features  Fully compatible with the ISO11898-2 standard  Up to 5000Vrms Insulation voltage  Power supply voltage VDD1: 2.5V to 5.5V VDD2: 4.5V to 5.5V  Bus fault protection of -40V to +40V  Transmit data (TXD) dominant time out function  Over current and over temperature protection  Date rate: up to 1Mbps  High CMTI: 100kV/us  Low loop delay: 400 >600 Ⅱ Ⅰ Page 11 NSi1050 Datasheet(EN)1.3 6.2. DIN VDE V 0884-11（VDE V 0884-11）:2017-01 INSULATION CHARATERISTICS Description Test Condition Symbol Value Unit DUB8 SOW16 For Rated Mains Voltage ≤ 150Vrms Ⅰto Ⅳ Ⅰto Ⅳ Ⅰto Ⅲ Ⅰto Ⅲ For Rated Mains Voltage ≤ 400Vrms Ⅰto Ⅲ Ⅰto Ⅲ 10/105/21 10/105/21 Pollution Degree per DIN VDE 0110, 2 2 400 1500 VRMS 565 2121 VDC VIORM 565 2121 Vpeak V pd (m) 847 / Vpeak / 3977 Vpeak Installation Classification per DIN VDE 0110 For Rated Mains Voltage ≤ 300Vrms Climatic Classification Table 1 Maximum Working Isolation Voltage AC voltage VIOWM DC voltage Maximum repetitive isolation voltage Input to Output Test Voltage, Method B1 V IORM × 1.5 = V pd (m) , 100% production test, t ini = t m = 1 sec, partial discharge < 5 pC V IORM × 1.875 = V pd (m) , 100% production test, t ini = t m = 1 sec, partial discharge < 5 pC Input to Output Test Voltage, Method A After Environmental Tests Subgroup 1 After Input and /or Safety Test Subgroup 2 and Subgroup 3 Maximum transient isolation voltage Maximum Surge Isolation Voltage Copyright © 2020, NOVOSENSE V IORM × 1.2= V pd (m) , t ini = 60 sec, t m = 10 sec, partial discharge < 5 pC V pd (m) 678 / Vpeak V IORM × 1.2= V pd (m) , t ini = 60 sec, t m = 10 sec, partial discharge < 5 pC V pd (m) / 3394 Vpeak V IORM × 1.2= V pd (m) , t ini = 60 sec, t m = 10 sec, partial discharge < 5 pC V pd (m) 678 2545 Vpeak t = 60 sec VIOTM 5300 8000 Vpeak Test method per IEC60065,1.2/50us waveform, VTEST=VIOSM×1.3 VIOSM 5384 / Vpeak Page 12 NSi1050 Datasheet(EN)1.3 Test method per IEC60065,1.2/50us waveform, VTEST=VIOSM×1.6 / 6250 Vpeak >109 >109 Ω >1011 >1011 Ω CIO 0.8 0.8 pF Input capacitance CI 2 2 pF Total Power Dissipation at 25℃ Ps 1.7 1.5 W Isolation resistance VIO =500V at Tamb=TS RIO VIO =500V at 100℃≤Tamb≤125℃ Isolation capacitance f = 1MHz Safety input, output, or supply current θJA = 72°C/W, V I = 5.5 V, T J = 150 °C, T A = 25 °C Is Safety input, output, or supply current θJA = 84 °C/W, V I = 5.5 V, T J = 150 °C, T A = 25 °C Is Case Temperature Ts 310 mA 299 150 150 mA ℃ Figure 3.1 NSi1050-DSWR Thermal Derating Curve, Dependence of Safety Limiting Values with Case Temperature per DIN VDE V 0884-11 Copyright © 2020, NOVOSENSE Page 13 NSi1050 Datasheet(EN)1.3 Figure 3.1 NSi1050-DDBR Thermal Derating Curve, Dependence of Safety Limiting Values with Case Temperature per DIN VDE V 0884-11 6.3. REGULATORY INFORMATION The NSi1050-DDBR is approved by the organizations listed in table. CUL UL 1577 Component Recognition Program1 VDE Approved under CSA Component Acceptance Notice 5A DIN VDE V 088411:2017-012 CQC Certified by CQC11471543-2012 GB4943.1-2011 Single Protection, 3750Vrms Isolation voltage Single Protection, 3750Vrms Isolation voltage File (E500602) File (E500602) Basic Insulation 565Vpeak, VIOSM=5384Vpeak File (40050121) Basic insulation at 400Vrms (565Vpeak) File (CQC20001263786) The NSi1050-DSWR is approved by the organizations listed in table. CUL UL 1577 Component Recognition Program1 VDE Approved under CSA Component Acceptance Notice 5A DIN VDE V 088411:2017-012 CQC Certified by CQC11471543-2012 GB4943.1-2011 7.0 Single Protection, 5000Vrms Isolation voltage Single Protection, 5000Vrms Isolation voltage Reinforced Insulation 2121Vpeak, VIOSM=6250peak Basic insulation at 1500Vrms (2121Vpeak) File (E500602) File (E500602) File (pending) File (CQC20001264939) FUNCTION DESCRIPTION The NSi1050 is a isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The NSi1050 integrated two channel digital isolators and a high reliability CAN transceiver. The digital isolator is silicon oxide isolation based on Novosense capacity isolation technology. The high integrated solution can help to simplify system design and improve reliability. The NSi1050-DSWR device is safety certified by UL1577 support 5kVrms insulation withstand voltages, while the NSi1050-DDBR device is safety certified by UL1577 support 3kVrms insulation withstand voltages. The NSi1050 is providing high electromagnetic immunity and low emissions. The data rate of the NSi1050 is up to 1Mbps, and it can support at least 110 CAN nodes. The NSi1050 provides thermal protection and transmit data dominant time out function. 7.1. DEVICE FUNCTIONAL MODES Table 4.1. Driver Function Table TXD CANH CANL BUS STATE L H L Dominant H Z Z Recessive Open Z Z Recessive Copyright © 2020, NOVOSENSE Page 14 NSi1050 1 Datasheet(EN)1.3 H= high level; L=low level; Z= common mode(recessive) bias to VCC/2 Table 4.2. Receiver Function Table 1 VID=CANH-CANL RXD BUS STATE VID ≥0.9V L Dominant 0.5< VID
