SY8263
High Efficiency Fast Response, 3A, 30V Input
Synchronous Step Down Regulator
General Description
Features
The SY8263 develops a high efficiency synchronous
step-down DC/DC converter capable of delivering 3A
load current. The SY8263 operates over a wide input
voltage range from 4.5V to 30V and integrates main
switch and synchronous switch with very low RDS(ON)
to minimize the conduction loss.
Low RDS(ON) for Internal Switches (Top/Bottom):
110/70 mΩ
4.5-30VInput Voltage Range
Internal Compensation
Internal 1ms Soft-start Limits the Inrush Current
Adjustable Switching Frequency Range: 500kHz to
2.5MHz
3A Output Current Capability
1.5% 0.6V Reference
Low Quiescent Current
Cycle-by-cycle Peak Current Limit
Short Circuit Protection
Thermal Shutdown and Auto Recovery
RoHS Compliant and Halogen Free

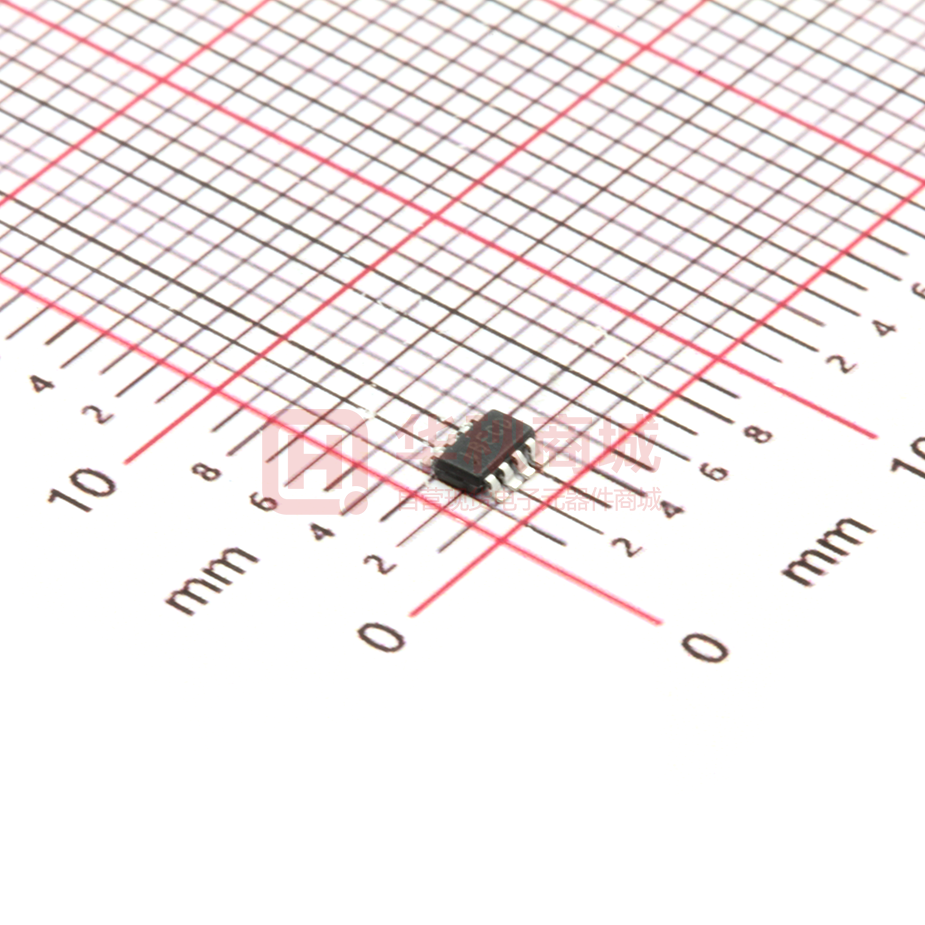

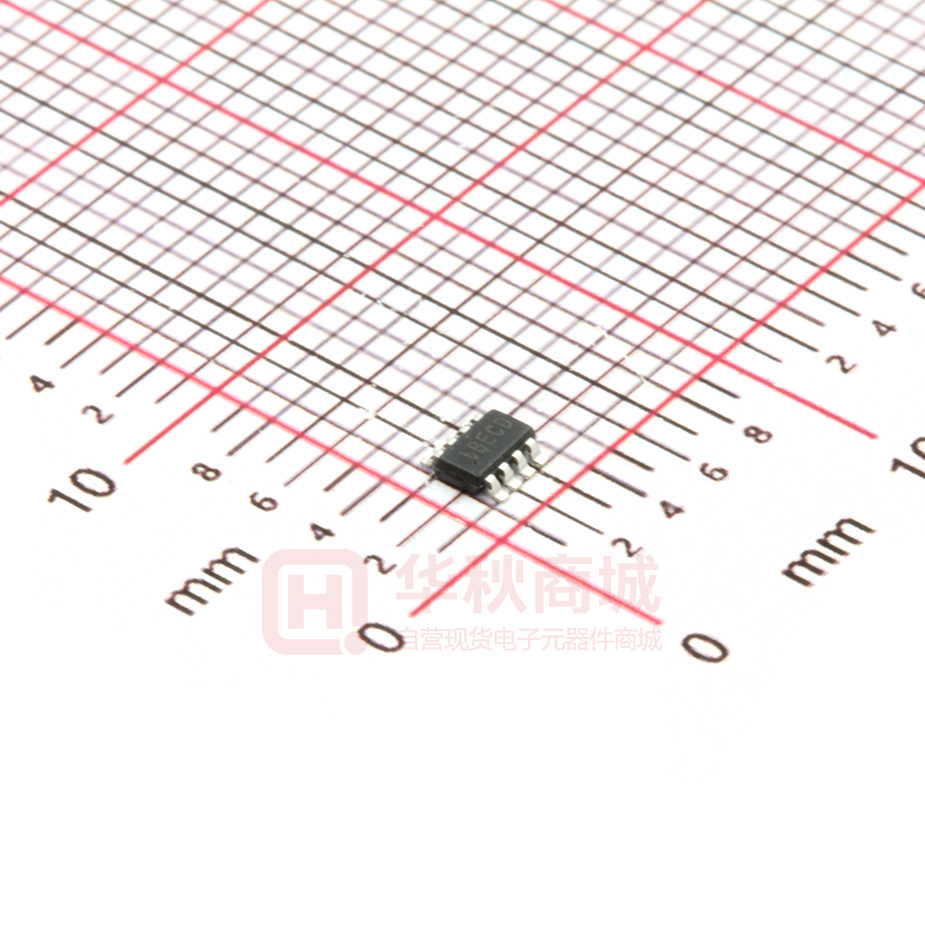

Compact Package: TSOT23-8
The SY8263 adopts peak current control scheme. The
switching frequency is adjustable from 500kHz to
2.5MHz using an external resistor. The device also
features ultra low quiescent operating to achieve high
efficiency under light load. And the internal soft-start
limits inrush current during power on.
芯
SY8263 is available in TSOT23-8 package.
导
小
Ordering Information
SY8263 □(□□)□
l-F
or
半
Temperature Code
Package Code
Optional Spec Code
Package type
TSOT23-8
Note
--
LCD-TV
SetTop Box
Notebook
Storage
High Power AP Router
Networking
en
tia
Ordering Number
SY8263AIC
Applications
fid
Typical Applications
ON/
OFF
CBS
BS
IN
CIN
R1
FB
R2
EN
80
VOUT
L
LX
C1(opt.)
COUT
Efficiency (%)
Sil
erg
VIN
yC
on
Efficiency vs. Load Current
100
60
40
VIN=9V, VOUT=5V
VIN=12V, VOUT=5V
VIN=24V, VOUT=5V
FS
GND
RFS
20
0
1
10
100
1000
10000
Load Current (mA)
Figure 1. Schematic Diagram
SY8263 Rev. 0.9
Figure 2. Efficiency vs. Load Current
Silergy Corp. Confidential- Prepared for Customer Use Only
1
SY8263
Pinout (top view)
Top Mark:
Pin Number
1
FS
2
EN
8
GND
3,4
IN
LX
BS
5
6
7
1
8
EN
FS
2
7
BS
GND
3
6
LX
GND
4
5
IN
bBxyz (Device code: bB, x=year code, y=week code, z= lot number code)
Pin Description
Output feedback pin. Connect this pin to the center point of the output resistor
divider (as shown in Figure 1) to program the output voltage: V OUT=0.6*(1+R1/R2)
Frequency programming pin. Connect a resistor to ground to program a switching
frequency between 500kHz to 2.5MHz. The switching frequency equals to:
Fsw=105/RFS kHz, where RFS is in kΩ.
Enable control. Pull high to turn on. Do not float.
Ground pin.
芯
Pin Name
FB
FB
Sil
erg
yC
on
fid
en
tia
l-F
or
半
导
小
Input pin. Decouple this pin to GND pin with at least 4.7uF ceramic cap.
Inductor pin. Connect this pin to the switching node of inductor.
Boot-strap pin. Supply high side gate driver. Decouple this pin to LX pin with 10nF
ceramic cap.
SY8263 Rev. 0.9
© 2018 Silergy Corp.
Silergy Corp. Confidential- Prepared for Customer Use Only
2
All Rights Reserved.
SY8263
Block Diagram
IN
HS Current Sense
Comp
Internal
Power
Input
UVLO
HS current Limitation
VCC
BS
HSFET
VCC
EN
LX
Enable
Threshold
PWM Control
&
Protect Logic
Internal
clock
FS
LS Current Sense
VCC
LSFET
HS Current
Sense
Slope
Compensation
GND
Internal
SST
Comp
Comp
VREF
Rc
Error
Amp
SCP
OTP
半
导
小
Cc
芯
LS current Limitation
FB
Absolute Maximum Ratings (Note 1)
Sil
erg
yC
on
fid
en
tia
l-F
or
IN to GND ---------------------------------------------------------------------------------- ------------- -0.3V to 33V
LX, FB, EN, FS to GND------------------------------------------------------------------------------------------ -0.3V to 33V
BS-LX ------------------------------------------------------------------------------ ------------- 4V
Power Dissipation, PD @ T A = 25°C TSOT23-8 ------------------------------------------------------------ 2W
Package Thermal Resistance (Note 2)
θ JA -------------------------------------------------------------------------------------------------------------- 60.2°C/W
θ JC --------------------------------------------------------------------------------------------------------------- 11.2°C/W
Junction Temperature Range ------------------------------------------------------------------------------------------------ 150°C
Ambient Temperature Range ------------------------------------------------------------------------------------- -40°C to 105°C
Lead Temperature (Soldering, 10 sec.) ------------------------------------------------------------------------------------ 260°C
Storage Temperature Range -------------------------------------------------------------------------------------- -65°C to 150°C
Recommended Operating Conditions (Note 3)
Supply Input Voltage -------------------------------------------------------------------------------------------------- 4.5V to 30V
SY8263 Rev. 0.9
© 2018 Silergy Corp.
Silergy Corp. Confidential- Prepared for Customer Use Only
3
All Rights Reserved.
SY8263
Electrical Characteristics
(VIN = 12V, VOUT = 5V, COUT = 47uF, TA = 25°C, IOUT = 1A unless otherwise specified)
Symbol
VIN
IQ
ISHDN
VREF
Test Conditions
IFB
RDS(ON)1
RDS(ON)2
ILIM,TOP
VENL
VENH
VUVLO
VHYS
FOSC
VFB=VCC
0.591
1
0.6
Max
30
19
2
0.609
Unit
V
µA
µA
V
50
nA
mΩ
mΩ
A
V
V
V
V
MHz
110
70
4
0.6
6.8
1.5
4.35
0.2
0.5
RFS=200k
-15
半
TSD
Typ
-50
导
小
TSS
Min
4.5
IOUT=0, VFB=VREF*105%
EN=0
芯
Parameter
Input Voltage Range
Quiescent Current
Shutdown Current
Feedback Reference
Voltage
FB Input Current
Top FET RON
Bottom FET RON
Top FET Current Limit
EN Low threshold
EN High Threshold
Input UVLO threshold
UVLO hysteresis
Oscillator Frequency
Program Range
Oscillator Frequency
Accuracy
Soft-start Time
Min ON Time
Min OFF Time
Thermal Shutdown
Temperature
Thermal Shutdown
Hysteresis
%FOSC
1
80
120
150
ms
ns
ns
°C
15
°C
tia
l-F
or
TSD,HYS
15
on
fid
en
Note 1: Stresses beyond the “Absolute Maximum Ratings” may cause permanent damage to the device. These are
stress ratings only. Functional operation of the device at these or any other conditions beyond those indicated in the
operational sections of the specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
Sil
erg
yC
Note 2: θ JA is measured in the natural convection at T A = 25°C on a low effective 4-layer thermal conductivity test
board of JEDEC 51-3 thermal measurement standard. Pin 2 of TSOT-23-8 packages is the case position for θ JC
measurement.
Note 3: The device is not guaranteed to function outside its operating conditions.
SY8263 Rev. 0.9
© 2018 Silergy Corp.
Silergy Corp. Confidential- Prepared for Customer Use Only
4
All Rights Reserved.
SY8263
TSOT23-8 Package Outline Drawing
Side view A
Sil
erg
yC
on
fid
en
tia
l-F
or
半
导
小
芯
Top view
Side view B
Notes:
Recommended PCB layout
(Reference only)
All dimension in millimeter and exclude mold flash & metal burr
SY8263 Rev. 0.9
© 2018 Silergy Corp.
Silergy Corp. Confidential- Prepared for Customer Use Only
5
All Rights Reserved.
SY8263
Taping & Reel Specification
1. Taping orientation
芯
TSOT23-8
导
小
Feeding direction
Sil
erg
yC
on
fid
Reel
Size
en
tia
l-F
or
半
2. Carrier Tape & Reel specification for packages
Tape width
Pocket
Reel size
Trailer *
Leader *
Qty per reel
(mm)
pitch(mm)
(Inch)
length(mm)
length (mm)
(pcs)
8
4
7
400
160
3000
Package types
TSOT23-8
3. Others: NA
SY8263 Rev. 0.9
© 2018 Silergy Corp.
Powered by TCPDF (www.tcpdf.org)
Silergy Corp. Confidential- Prepared for Customer Use Only
6
All Rights Reserved.
