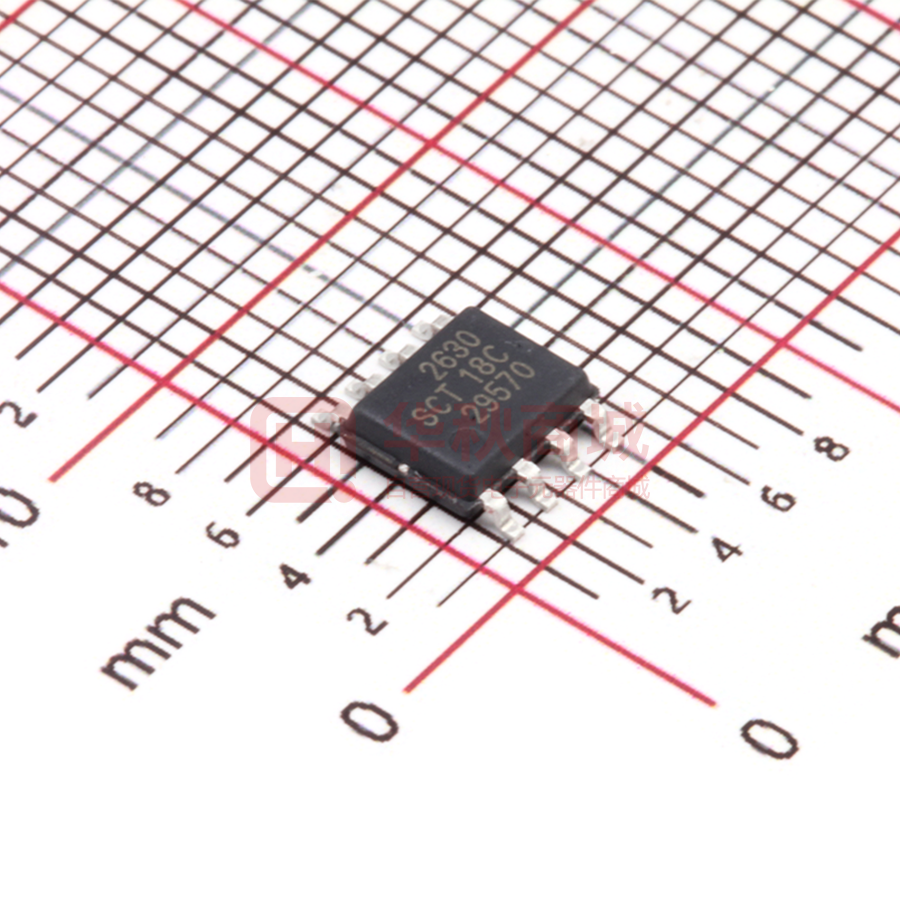

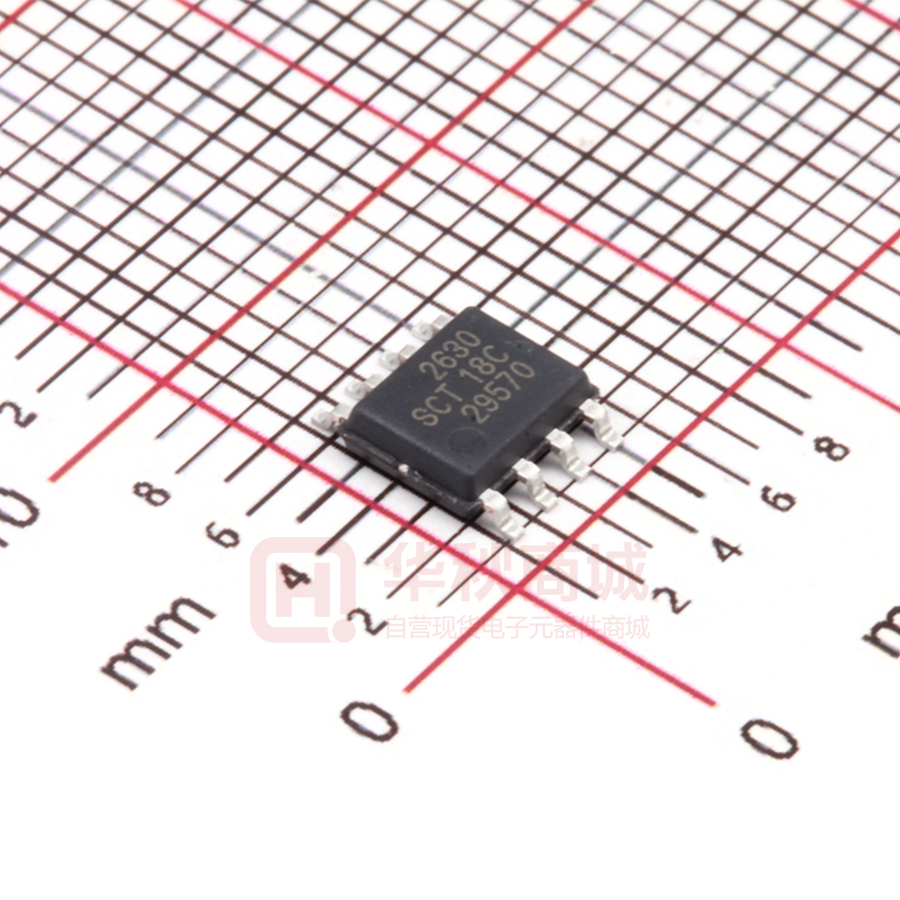

SCT2630STER

SCT2630STER

  • 厂商:

    SCT(芯洲科技)

  • 封装:

    ESOP8_150MIL_EP

  • 描述:

    4.2V-60V Vin, 3A,高效降压DCDC变换器 可编程频率

  • 详情介绍
  • 数据手册
  • 价格&库存
SCT2630STER 数据手册
芯 洲 科 SCT2630 技 Silicon Content Technology Rev.1.0 4.2V-60V Vin, 3A, High Efficiency Step-down DCDC Converter with Programmable Frequency FEATURES DESCRIPTION            The SCT2630 is 3A buck converter with wide input voltage, ranging from 4.2V to 60V, which integrates an 220mΩ high-side MOSFET. The SCT2630, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) which assists the converter on achieving high efficiency at light load or standby condition. Wide Input Range: 4.2V-60V 3A Continuous Output Current 0.8V ±1% Feedback Reference Voltage Integrated 220mΩ High-Side MOSFET Low Quiescent Current: 190uA Pulse Skipping Mode (PSM) in light load 100ns Minimum On-time 4ms Internal Soft-start Time Adjustable Frequency 100KHz to 1.2MHz External Clock Synchronization Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock Out Protection (UVLO) Threshold and Hysteresis  Low Dropout Mode Operation  Over-voltage and Over-Temperature Protection  Available in an ESOP-8 Package APPLICATIONS  12-V, 24-V, 48-V Industry and Telecom Power System  Industrial Automation and Motor Control  Vehicle Accessories The SCT2630 features programmable switching frequency from 100 kHz to 1.2 MHz with an external resistor, which provides the flexibility to optimize either efficiency or external component size. The converter supports external clock synchronization with a frequency band from 100kHz to 1.2MHz. The SCT2630 allows power conversion from high input voltage to low output voltage with a minimum 100ns on-time of highside MOSFET. The device offers fixed 4ms soft start to prevent inrush current during the startup of output voltage ramping. The SCT2630 features external loop compensation to provide the flexibility to optimize either loop stability or loop response. The SCT2630 provides cycle-by-cycle current limit and hiccup over current protection, thermal shutdown protection, output over-voltage protection and input voltage under-voltage protection. The device is available in an 8-pin ESOP-8 package. TYPICAL APPLICATION 100 90 BOOT VIN VIN EN C1 C2 D1 FB VOUT C5 R1 COMP RT/CLK R4 SW GND 80 L1 R3 C4 R2 Efficiency(%) C3 70 60 50 40 30 Vout=3.3V 20 Vout=5V 10 Vout=12V 0 0.001 0.01 0.1 1 Output Current(A) Efficiency, Vin=24V, Fsw=500KHz 4.2V-60V, Asyncronous Buck Converter For more information www.silicontent.com © 2020 Silicon Content Technology Co., Ltd. All Rights Reserved Product Folder Links: SCT2630 1 SCT2630 REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Revision 1.0: Production DEVICE ORDER INFORMATION PART NUMBER PACKAGE MARKING PACKAGE DISCRIPTION 2630 ESOP-8 SCT2630STE 1) For Tape & Reel, Add Suffix R (e.g. SCT2630STER) ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION Over operating free-air temperature unless otherwise DESCRIPTION MIN MAX UNIT VIN, EN -0.3 65 V BOOT 1 BOOT -0.3 72 V VIN 2 SW -1 65 V BOOT-SW -0.3 6 V EN 3 -0.3 6 V RT/CLK 4 -40 150 °C -65 150 °C COMP, FB, RT/CLK Operating junction temperature TJ(2) Storage temperature TSTG (1) (2) noted(1) Thermal Pad 8 SW 7 GND 6 COMP 5 FB Figure 1. 8-Lead Plastic ESOP Stresses beyond those listed under Absolute Maximum Rating may cause device permanent damage. The device is not guaranteed to function outside of its Recommended Operation Conditions. The IC includes over temperature protection to protect the device during overload conditions. Junction temperature will exceed 150°C when over temperature protection is active. Continuous operation above the specified maximum operating junction temperature will reduce lifetime. PIN FUNCTIONS NAME NO. PIN FUNCTION BOOT 1 VIN 2 EN 3 RT/CLK 4 FB 5 COMP 6 Power supply bias for high-side power MOSFET gate driver. Connect a 0.1uF capacitor from BOOT pin to SW pin. Bootstrap capacitor is charged when SW voltage is low. Input supply voltage. Connect a local bypass capacitor from VIN pin to GND pin. Path from VIN pin to high frequency bypass capacitor and GND must be as short as possible. Enable pin to the regulator with internal pull-up current source. Pull below 1.05V to disable the converter. Float or connect to VIN to enable the converter. The tap of resistor divider from VIN to GND connecting EN pin can adjust the input voltage lockout threshold. Set the internal oscillator clock frequency or synchronize to an external clock. Connect a resistor from this pin to ground to set switching frequency. An external clock can be input directly to the RT/CLK pin. The internal oscillator synchronizes to the external clock frequency with PLL. If detected clocking edges stops, the operation mode automatically returns to resistor programmed frequency. Inverting input of the trans-conductance error amplifier. The tap of external feedback resistor divider from the output to GND sets the output voltage. The device regulates FB voltage to the internal reference value of 0.8V typical. Error amplifier output. Connect to frequency loop compensation network. GND 7 Ground SW 8 Regulator switching output. Connect SW to an external power inductor 2 For more information www.silicontent.com © 2020 Silicon Content Technology Co., Ltd. All Rights Reserved Product Folder Links: SCT2630 SCT2630 Thermal Pad 9 Heat dissipation path of die. Electrically connection to GND pin. Must be connected to ground plane on PCB for proper operation and optimized thermal performance. RECOMMENDED OPERATING CONDITIONS Over operating free-air temperature range unless otherwise noted PARAMETER DEFINITION VIN VOUT TJ Input voltage range Output voltage range Operating junction temperature MIN MAX UNIT 4.5 0.8 -40 60 57 150 V V °C MIN MAX UNIT -2 +2 kV -0.5 +0.5 kV ESD RATINGS PARAMETER DEFINITION Human Body Model(HBM), per ANSI-JEDEC-JS-001-2014 specification, all pins(1) Charged Device Model(CDM), per ANSI-JEDEC-JS-0022014 specification, all pins(2) VESD (1) JEDEC document JEP155 states that 500V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250V CDM allows safe manufacturing with a standard ESD control process. THERMAL INFORMATION PARAMETER THERMAL METRIC ESOP-8L 𝜃𝑗𝑎 Junction-to-ambient thermal resistance (standard board) 42 𝜓𝑗𝑡 Junction-to-top characterization parameter 5.9 UNIT °C/W ELECTRICAL CHARACTERISTICS VIN=24V, TJ=-40°C~125°C, typical value is tested under 25°C. SYMBOL PARAMETER TEST CONDITION Power Supply VIN Operating input voltage ISHDN Input UVLO Threshold Hysteresis Shutdown current from VIN pin IQ Quiescent current from VIN pin VIN_UVLO MIN TYP 4.2 VIN rising 3.5 400 2 EN=0, no load EN floating, no load, nonswitching, BOOT-SW=5V, RRT=200 kΩ Power MOSFETs RDSON_H High-side MOSFET on-resistance VBOOT-VSW=5V Reference and Control Loop VREF Reference voltage of FB 0.792 MAX UNIT 60 V 5 V mV μA 190 μA 220 mΩ 0.8 0.808 V GEA Error amplifier trans-conductance -2μA
SCT2630STER
物料型号:SCT2630 器件简介:SCT2630 是一款输入电压范围为 4.2V 至 60V、输出电流为 3A 的降压型 DC-DC 转换器,具有可编程频率和多种效率优化特性。

引脚分配:共 8 个引脚,包括电源偏置 BOOT、输入电压 VIN、使能 EN、内部振荡器/外同步 RT/CLK、反馈 FB、补偿 COMP、地 GND 和开关输出 SW。

参数特性:宽输入电压范围、低静态电流、脉冲跳变模式、最小导通时间、内部软启动、可调频率、外部时钟同步、精确使能阈值、低功耗模式、过压和过温保护。

功能详解:SCT2630 采用峰值电流模式控制,支持脉冲跳变调制,可在轻载或待机状态下实现高效率。

具有可编程开关频率和外部时钟同步功能,提供外部环路补偿以优化环路稳定性或响应。

应用信息:适用于 12V、24V、48V 工业和电信电源系统、工业自动化和电机控制、车辆配件。

封装信息:SCT2630 可用 8 脚 ESOP-8 封装。


详细内容还包括了应用电路图、设计参数、开关频率与时钟同步、欠压锁定阈值、电感选择、二极管选择、输入电容选择、自举电容选择、输出电容选择和补偿元件选择等设计指南。
SCT2630STER 价格&库存
