芯
洲
科
SCT2620
技
Silicon Content Technology
Rev. 1.2
3.8V-60V Vin, 2.5A, High Efficiency Step-down DCDC Converter with
Programmable Frequency
FEATURES
DESCRIPTION
The SCT2620 is 2.5A buck converter with wide input
voltage, ranging from 3.8V to 60V, which integrates an
220mΩ high-side MOSFET. The SCT2620, adopting
the peak current mode control, supports the Pulse
Skipping Modulation (PSM) which assists the converter
on achieving high efficiency at light load or standby
condition.
Wide Input Range: 3.8V-60V
Up to 2.5A Continuous Output Current
0.8V ±1% Feedback Reference Voltage
Integrated 220mΩ High-Side MOSFET
Low Quiescent Current: 190uA
Pulse Skipping Mode (PSM) in light load
100ns Minimum On-time
Adjustable Soft-start Time
Adjustable Frequency 100KHz to 1.2MHz
UV and OV Power Good Output
External Clock Synchronization
Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
Low Dropout Mode Operation
Derivable Inverting Voltage Regulator
Over-voltage and Over-Temperature Protection

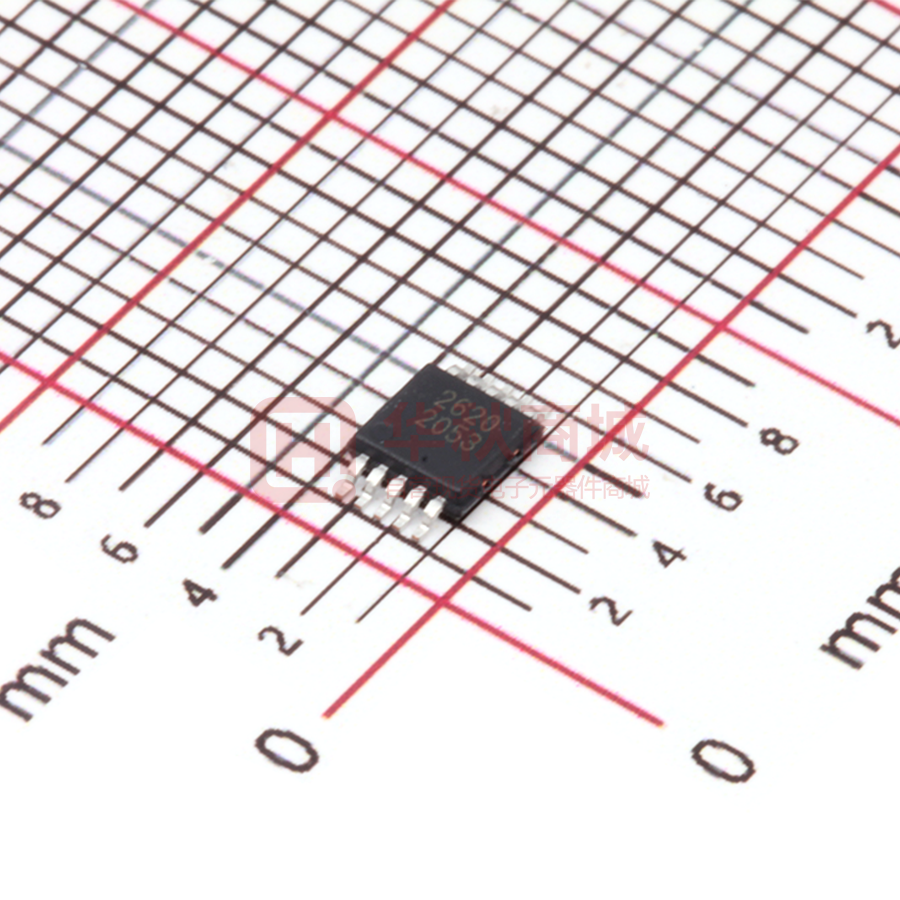

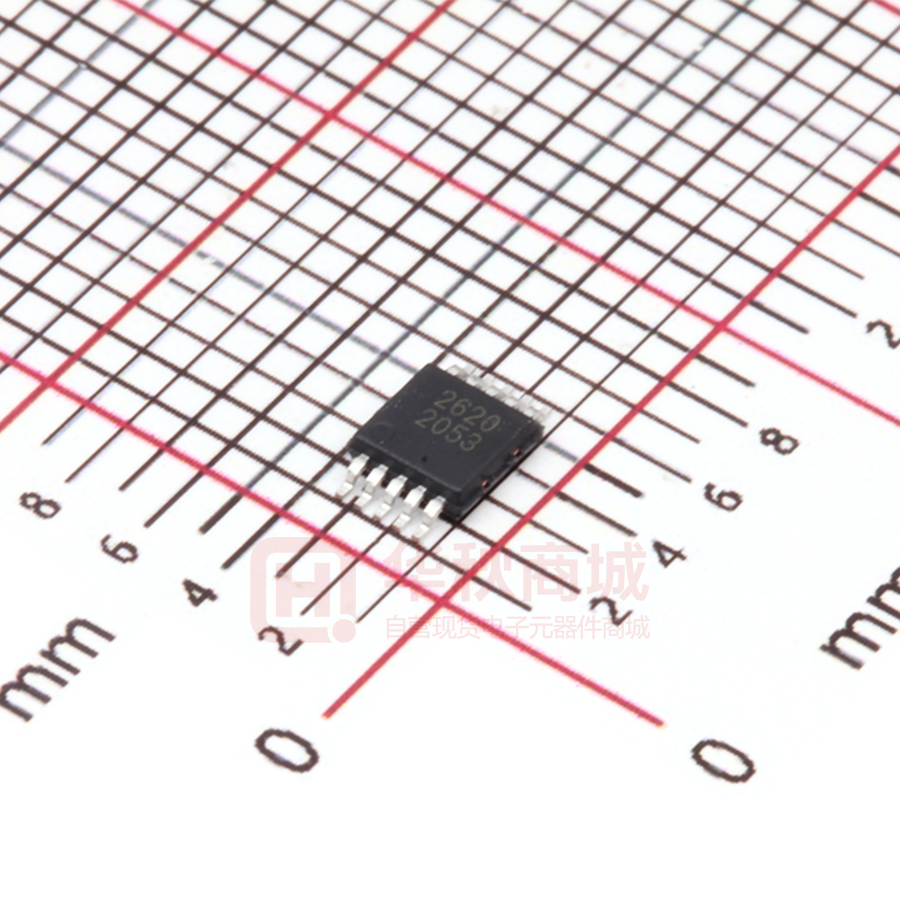

Available in an EMSOP-10 Package
APPLICATIONS
The SCT2620 features programmable switching
frequency from 100 kHz to 1.2 MHz with an external
resistor, which provides the flexibility to optimize either
efficiency or external component size. The converter
supports external clock synchronization with a
frequency band from 100kHz to 1.2MHz. The SCT2620
allows power conversion from high input voltage to low
output voltage with a minimum 100ns on-time of highside MOSFET.
The device offers programmable soft start to prevent
inrush current during the startup of output voltage
ramping. The SCT2620 features external loop
compensation to provide the flexibility to optimize either
loop stability or loop response.
The SCT2620 provides cycle-by-cycle current limit,
thermal shutdown protection, output over-voltage
protection and input voltage under-voltage protection.
The device is available in an 10-pin EMSOP package.
12-V, 24-V, 48-V Industry and Telecom Power
System
Industrial Automation and Motor Control
Vehicle Accessories
TYPICAL APPLICATION
100
BOOT
VIN
C1 C2
SW
VIN
GND
EN
COMP
90
D1
VOUT
C5
R1
R3
SS/TR
FB
RT/CLK PWRGD
C6
C4
R2
80
Efficiency(%)
C3
L1
70
60
50
40
30
Vout=3.3V
20
R4
Vout=5V
10
0
0.001
Vout=12V
0.01
0.1
1
Output Current(A)
Efficiency, Vin=24V, Fsw=500KHz
3.8V-60V, Asyncronous Buck Converter
For more information www.silicontent.com
© 2020 Silicon Content Technology Co., Ltd. All Rights Reserved
Product Folder Links: SCT2620
1
SCT2620
REVISION HISTORY
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Revision 1.0: Release to production
Revision 1.1: Update IEN_H in EC and system UVLO calculation formula by EN pin resistor divider
Revision 1.2: Add SW 10ns transient abs spec
DEVICE ORDER INFORMATION
PART NUMBER
PACKAGE MARKING
PACKAGE DISCRIPTION
SCT2620MRE
2620
EMSOP-10
1)
For Tape & Reel, Add Suffix R (e.g. SCT2620MRER)
ABSOLUTE MAXIMUM RATINGS
PIN CONFIGURATION
Over operating free-air temperature unless otherwise
noted(1)
BOOT
1
10
SW
VIN
2
9
GND
V
EN
3
8
COMP
65
V
SS/TR
4
7
FB
-5
65
V
RT/CLK
5
6
PWRGD
BOOT-SW
-0.3
6
V
COMP, FB, RT/CLK, SS, PWRGD
-0.3
6
V
Operating junction temperature TJ(2)
-40
150
°C
Storage temperature TSTG
-65
150
°C
DESCRIPTION
MIN
MAX
UNIT
VIN, EN
-0.3
65
V
BOOT
-0.3
72
SW
-1
SW, 10-ns transient
Figure 1. 10-Lead Plastic EMSOP
Stresses beyond those listed under Absolute Maximum Rating may cause device permanent damage. The device is not guaranteed to
function outside of its Recommended Operation Conditions.
The IC includes over temperature protection to protect the device during overload conditions. Junction temperature will exceed 150°C
when over temperature protection is active. Continuous operation above the specified maximum operating junction temperature will
reduce lifetime.
(1)
(2)
PIN FUNCTIONS
NAME
NO.
BOOT
1
VIN
2
EN
3
SS/TR
4
RT/CLK
5
2
PIN FUNCTION
Power supply bias for high-side power MOSFET gate driver. Connect a 0.1uF capacitor
from BOOT pin to SW pin. Bootstrap capacitor is charged when SW voltage is low.
Input supply voltage. Connect a local bypass capacitor from VIN pin to GND pin. Path
from VIN pin to high frequency bypass capacitor and GND must be as short as possible.
Enable pin to the regulator with internal pull-up current. Pull below 1.05V to disable the
converter. Float or connect to VIN to enable the converter. The tap of resistor divider
from VIN to GND connecting EN pin can adjust the input voltage lockout threshold.
Slow-start and Tracking. An external capacitor connected to this pin sets the output rise
time. Since the voltage on this pin overrides the internal reference, it can be used for
tracking and sequencing.
Set the internal oscillator clock frequency or synchronize to an external clock. Connect
a resistor from this pin to ground to set switching frequency. An external clock can be
input directly to the RT/CLK pin. The internal oscillator synchronizes to the external
clock frequency with PLL. If detected clocking edges stops, the operation mode
automatically returns to resistor programmed frequency.
For more information www.silicontent.com
© 2020 Silicon Content Technology Co., Ltd. All Rights Reserved
Product Folder Links: SCT2620
SCT2620
PWRGD
6
FB
7
COMP
8
GND
SW
Thermal
Pad
9
10
11
An open drain output, asserts low if output voltage is low due to thermal shutdown,
dropout, over-voltage or EN shut down.
Inverting input of the trans-conductance error amplifier. The tap of external feedback
resistor divider from the output to GND sets the output voltage. The device regulates
FB voltage to the internal reference value of 0.8V typical.
Error amplifier output. Connect to frequency loop compensation network.
Ground
Regulator switching output. Connect SW to an external power inductor
Heat dissipation path of die. Electrically connection to GND pin. Must be connected to
ground plane on PCB for proper operation and optimized thermal performance.
RECOMMENDED OPERATING CONDITIONS
Over operating free-air temperature range unless otherwise noted
PARAMETER
DEFINITION
VIN
VOUT
TJ
Input voltage range
Output voltage range
Operating junction temperature
MIN
MAX
UNIT
3.8
0.8
-40
60
57
150
V
V
°C
MIN
MAX
UNIT
-2
+2
kV
-0.5
+0.5
kV
ESD RATINGS
PARAMETER
DEFINITION
Human Body Model(HBM), per ANSI-JEDEC-JS-001-2014
specification, all pins(1)
Charged Device Model(CDM), per ANSI-JEDEC-JS-0022014 specification, all pins(2)
VESD
(1) JEDEC document JEP155 states that 500V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250V CDM allows safe manufacturing with a standard ESD control process.
THERMAL INFORMATION
PARAMETER
THERMAL METRIC
EMSOP-10L
𝜃𝑗𝑎
Junction-to-ambient thermal resistance (standard board)
𝜃𝑗𝑐𝑡𝑜𝑝
Junction-to-case (top) thermal resistance
83
𝜓𝑗𝑡
Junction-to-top characterization parameter
5.9
UNIT
62.5
°C/W
ELECTRICAL CHARACTERISTICS
VIN=24V, TJ=-40°C~125°C, typical value is tested under 25°C.
SYMBOL
PARAMETER
TEST CONDITION
Power Supply
VIN
Operating input voltage
ISHDN
Input UVLO Threshold
Hysteresis
Shutdown current from VIN pin
IQ
Quiescent current from VIN pin
VIN_UVLO
MIN
TYP
3.8
VIN rising
EN=0, no load
EN floating, no load, nonswitching, BOOT-SW=5V,
RRT=200 kΩ, FB=2V
3.5
400
2
MAX
UNIT
60
V
5
V
mV
μA
190
μA
Power MOSFETs
For more information www.silicontent.com
© 2020 Silicon Content Technology Co., Ltd. All Rights Reserved
Product Folder Links: SCT2620
3
SCT2620
SYMBOL
PARAMETER
TEST CONDITION
RDSON_H
High-side MOSFET on-resistance
VBOOT-VSW=5V
Reference and Control Loop
VREF
Reference voltage of FB
MIN
TYP
MAX
220
0.792
0.8
UNIT
mΩ
0.808
V
GEA
Error amplifier trans-conductance
-2μA
