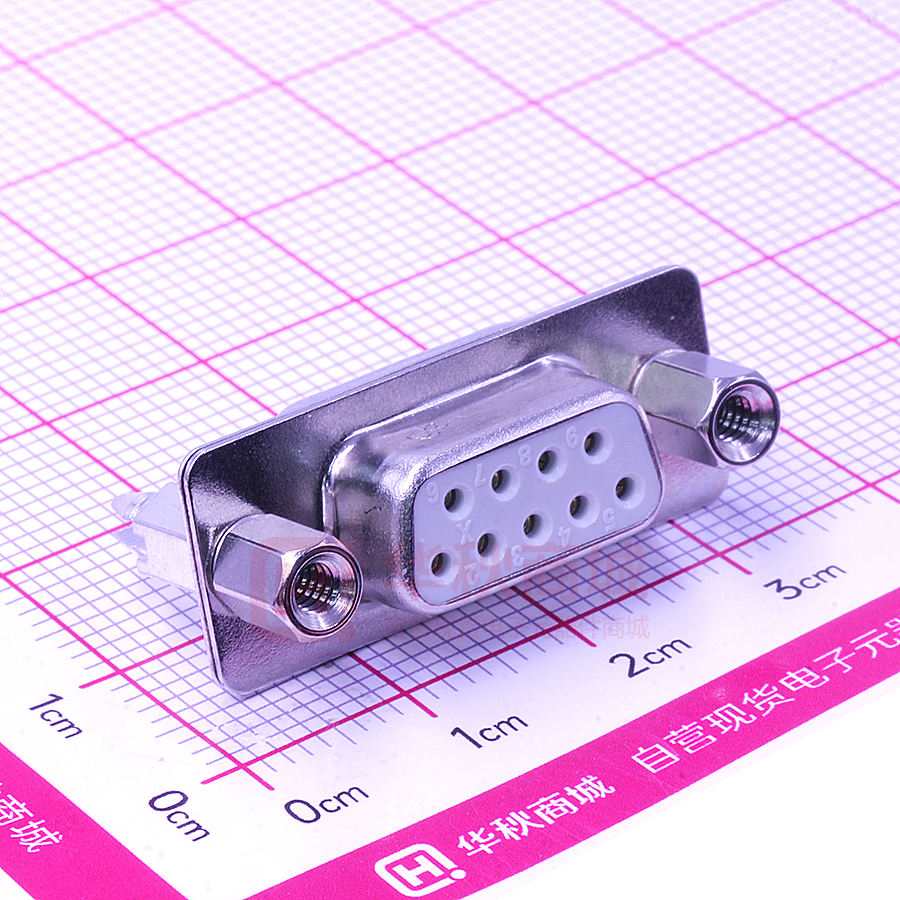

X0209FC2W5

Specifications: A 5.90 [0.231] B 2.84 [0.111] Materiai 3.20 [0.125] 0.60 [0.023] Contacts:Brass C2680 C2680 Insulaton:PBT+G.F PBT+G.F SHELL:SPCC 4.50 [0.176] 7.90 [0.310] 2.77 [0.108] 6.0 [0.235] C 10.55 [0.414] Current rating:5A AC/DC 5A AC/DC Withstanding voltage:500V AC/MAX 500V AC/ Temperature range:-25 -+85 -55 -+85 4.80 [0.188] D B X02 XX F X X X 5 1 2 3 4 5 6 7 10.90 [0.428] 1 Series N0. 1.3 [0.051] 2.84 [0.111] 2.77 [0.108] 17.00 [0.668] 6.96 [0.273] 2 Row No.Pin No.XX-09;15;25;37 3 Welding Board Angle :F-Fmale 4 T Tradutional C Car-pin 5 Planting Categotry: 1:1U 2:2U 3:3U 4:5U 5:15U 6:30U 7:AuSn 6 B:BLACK W:White BL:Blue Y:Yellow G:Green R:Red 7 5:Front lock screw after riveting 6.96 [0.273] NO.POS 9PIN 15PIN 25PIN 37PIN 10.80 [0.42] PCB LAYOUT units: mm tolerance: X X 30.80 39.20 53.10 69.40 24.99 33.32 47.04 63.50 19.28 27.65 41.20 57.44 SCALE: N/A MODEL TYPE: DSND DATE DWN DATE VIEW: CHKD DATE UNIT: mm/in APPD DATE PART NO.: DWG NO.: X MARK 16.33 24.66 38.35 54.80 DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED UNSPECIFIED TOLERANCES www.helloxkb.cn X02XXFXXX5 SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED WEIGHT 1.0g SHEET 1/1 REVISION A0
