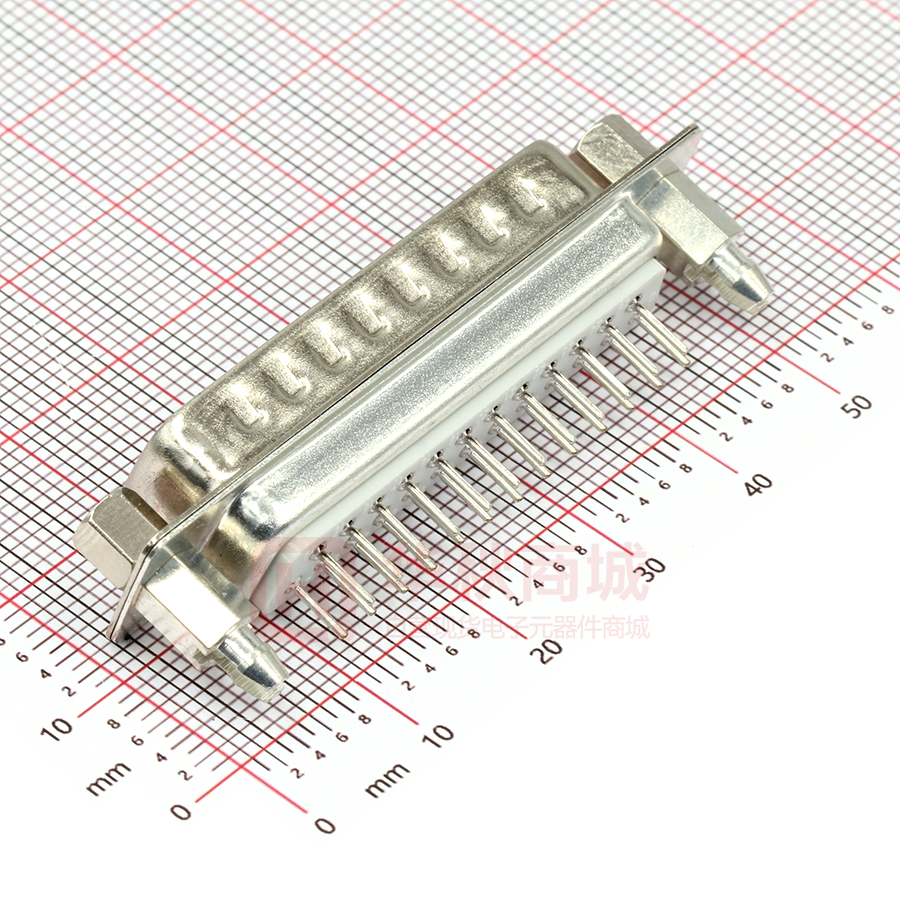

X0225WT7W5

A Specifications: B Current rating:3A AC/DC 3A AC/DC Withstanding voltage:1000 AC/minute 1000V AC/ Temperature range:-25 -+105 -55 -+105 B C 2.84 [0.111] 2.77 [0.108] Materiai .20 8.36 [0.328] Contacts:Brass Gold Plated 2.84 [0.110] 12.55 [0.486] 2.77 [0.108] Insulator:PBT+30 PBT+30 Shell(Frond)Steel NI Plated PCBLAYOUT Shell(Fead):Steel TIN Plated .10 MECHANIAL CHATACTERICS: X02 XX W X X X 5 4.8 [0.185] 5.80 [0.231] 17.20 [0.634] 10.90 [0.428] Contact lnsertion force:300gfMAX : 300gf Contact Separation Force:25gf MIN 25gf 1 2 3 4 5 7 1 Series N0. 5.0 [0.188] 0.60 [0.024] 4.5 [0.155] 6.0 [0.224] 2 Row No.Pin No.XX-09;15;25;37 3 Welding Board Angle :W-male 3.2 [0.141] 9-37P 4 T 2.84 [0.109] C Car-pin 6 B:BLACK W:White BL:Blue Y:Yellow G:Green R:Red 7 5:Front lock screw after riveting 10.8 [0.414] NO.POS + units: mm tolerance: X Tradutional 5 Planting Categotry: 1:1U 2:2U 3:3U 4:5U 5:15U 6:30U 7:AuSn 9PIN 15PIN 25PIN 37PIN D X 30.80 39.20 53.10 69.40 24.99 33.32 47.04 63.50 DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED UNSPECIFIED TOLERANCES www.helloxkb.cn 16.92 25.25 38.96 55.42 19.28 27.65 41.20 57.44 DSND DATE SCALE: N/A MODEL TYPE: DWN DATE VIEW: CHKD DATE UNIT: mm/in APPD DATE X MARK 6 SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED PART NO.: DWG NO.: X02XXWXXX5 WEIGHT 1.0g SHEET 1/1 REVISION A0
