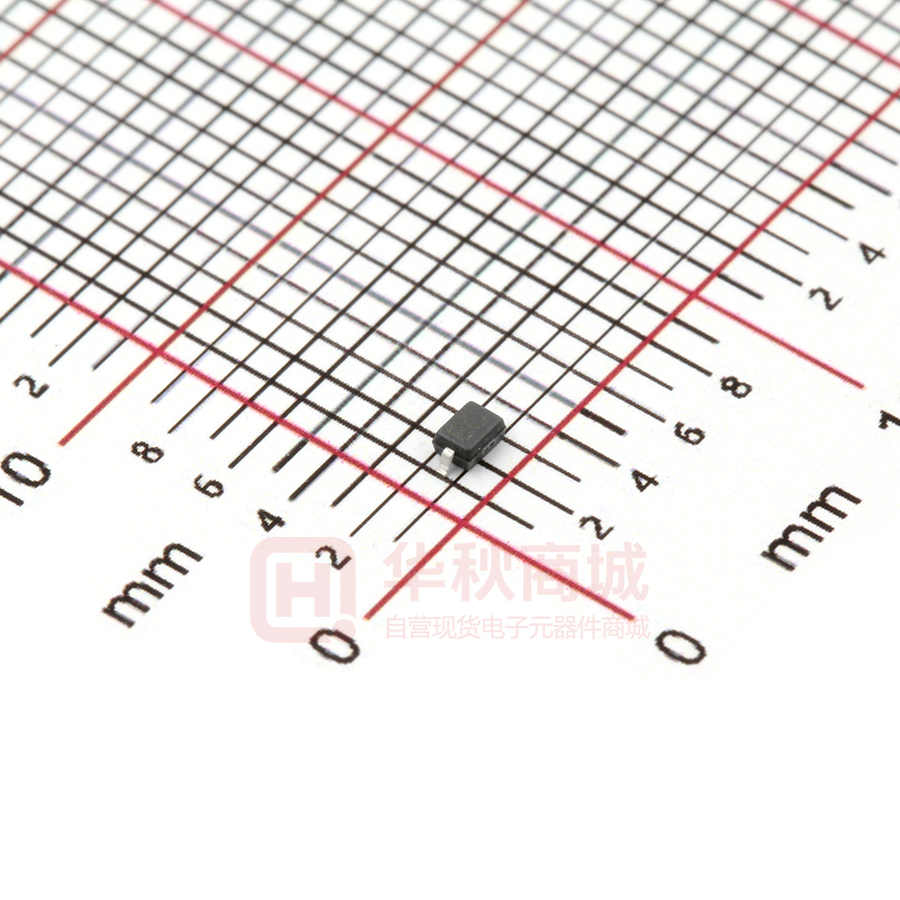

BV15C

BV15C Order Code:BV15C Version: A2 2016-08-15 Transient Voltage Suppressor Features Exterior IEC 61000-4-2(ESD)±15KV(air), ±8KV(contact) 150Watts peak pulse power (tp=8/20μS) Ultra low capacitance: 0.8pF typical Low clamping voltage Moisture sensitivity level：Level 1 Weight 5.0 mg Small package: SOD-323 SOD-323 Agency Approvals Application Information xDSL secondary Icon Description Compliance with 2011/65/EU Compliance withIEC61249-2-21:2003 Mean lead free Part Number and Electrical Parameter VBR①@IR IDRM@VDRM Part μA Number V MAX 1 BV15C V Vc@Ipp② mA MIN 15 16.7 V A MAX 1 24 CO③ Vc@Ipp② V A MAX 1 31.8 5 pF TYP MAX 0.8 1.5 Absolute maximum ratings measured at T= 25ºC RH = 45%-75% (unless otherwise noted). ① VBR is measured at IR=1mA ②Surge Waveform: 8/20μS. ③Off-state capacitance is measured in VDC=0V,VRMS=1V,f=1MHz Part Numbering System BV 15 C (1) (2) (3) (1) Bencent Transient Voltage Suppressor (2) Stand-state Voltage,e.g.15=15V (3) Polarity:Bi-direction 1/4 www.bencent.com.cn Mark B42LC B006U2G EC 0909 0909 EC: Part Number Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV15C Order Code:BV15C Version: A2 2016-08-15 Transient Voltage Suppressor V-I Curve Parameters Definition VC Clamping Voltage Ipp Surge Waveform 8/20μs VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test Current Ppp Peak Pulse Power Dissipation IPP VC VBR VDRM IR IDRM IDRM IR V VDRM VBR VC IPP Thermal Considerations symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to +150 ℃ TS Storage Temperature Range -55 to +150 ℃ Environmental Characteristics Testing items High Temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle Test High Temperature &High Humidity Test Pressure Cooker Test Resistance of Soldering Heat Technical standards Temperature: 150±3℃ Bias=80%VDRM Time:168H Temperature: 150℃ Time:168H Temperature: From -40℃ to125℃ Dwell time ：30min,10cycles Temperature: 85℃Humidity:85% Time:168H Temperature: 121℃，2atm. Humidity:100% Time:24H Temperature: 260±5℃ Time of dip soldering：10s，3times Note: The above testing items can be specified by customer’s special request 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV15C Order Code:BV15C Version: A2 2016-08-15 Transient Voltage Suppressor Product Dimensions REF mm inch A 1.17(max) 0.046(max) A1 0.10(max) 0.004(max) b 0.34±0.10 0.013±0.0039 c 0.17±0.08 0.007±0.0032 D 1.66±0.14 0.065±0.0055 E 1.28±0.17 0.050±0.0067 H 2.5±0.2 0.098±0.0079 L 0.28±0.18 0.011±0.0071 Q1 0.25±0.15 0.010±0.0059 REF mm inch A 3.20 0.126 B 1.08 0.043 C 1.06 0.042 D 0.54 0.021 Recommended Soldering Pad A D C B Reflow Profile Pre Heat Pb-Free Assembly Temperature Min. +150°C Temperature Max. +200°C Time(Min to Max) 60 – 180 secs. Average ramp up rate(Liquidus Temp(TL) to peak) TS(max) to TL - Ramp-up Rate - Temperature (TL) Reflow (Liquidus) - Temperature (TL) Peak Temp (TP) Time within 5°C of actual Peak Temp (TP) 3°C/sec. Max. +217°C 60 – 150 secs. TL TS(max) Ramp-down Preheat TS(min) +(260+0/-5 )°C TS TL 25 secs. 6°C/sec. Max. Time 25°C to peak Temp (TP) 8 min. Max. Do not exceed +260°C www.bencent.com.cn Critical Zone TL to TP Ramp-up TL 3°C/sec. Max. Ramp-down Rate 3/4 TP TP Temperature Reflow Condition 25 time to peak temperature Time Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV15C Order Code:BV15C Version: A2 2016-08-15 Transient Voltage Suppressor Package 4/4 Reel Information REF mm inch A 1.46+/-0.1 0.057+/-0.004 B 3.10+/-0.3 0.122+/-0.012 d 1.50+/-0.1 0.059+/-0.004 D 178+/-1.0 7.008+/-0.039 D1 55+/-3 2.165+/-0.118 D2 13+/-0.5 0.512+/-0.020 E 1.75+/-0.1 0.069+/-0.004 F 3.5+/-0.2 0.138+/-0.008 P 4.0+/-0.2 0.157+/-0.008 P0 4.0+/-0.2 0.157+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 8.0+/-0.2 0.315+/-0.008 W1 12.3+/-1.0 0.484+/-0.039 Outline Reel (pcs) Per Carton (pcs) Reel Diameters (mm) Taping 3,000 90,000 177 www.bencent.com.cn Carton Size(mm) L W H 390 370 220 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
