BDFN2C071V

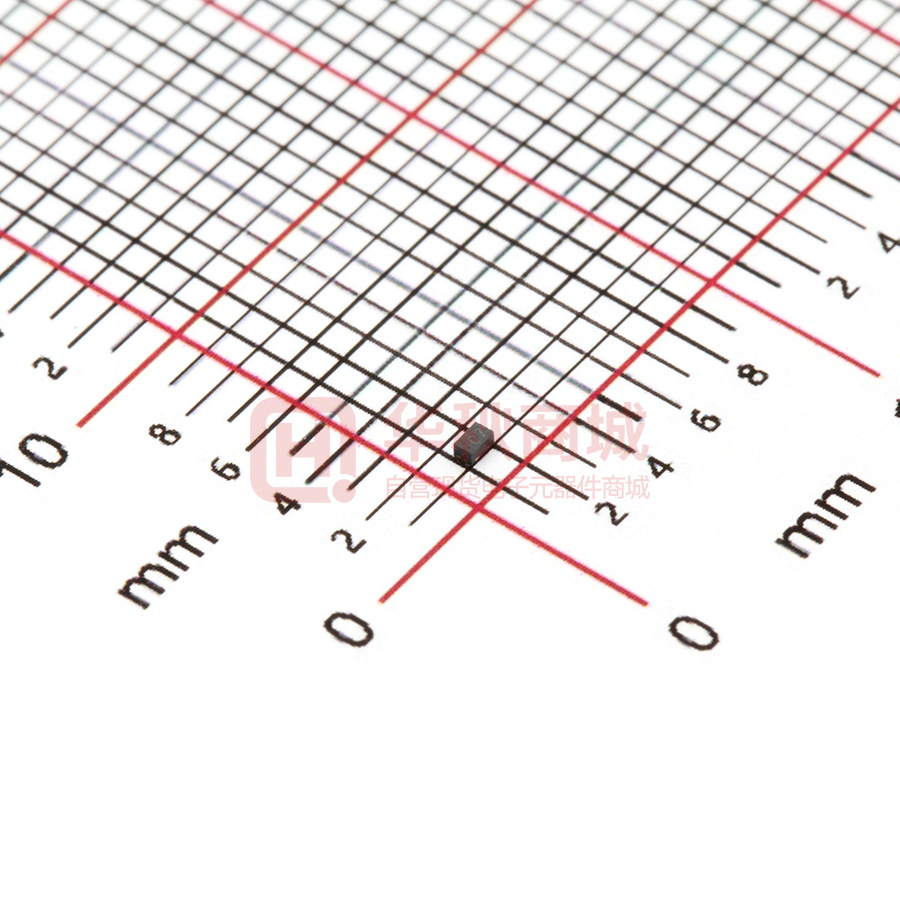

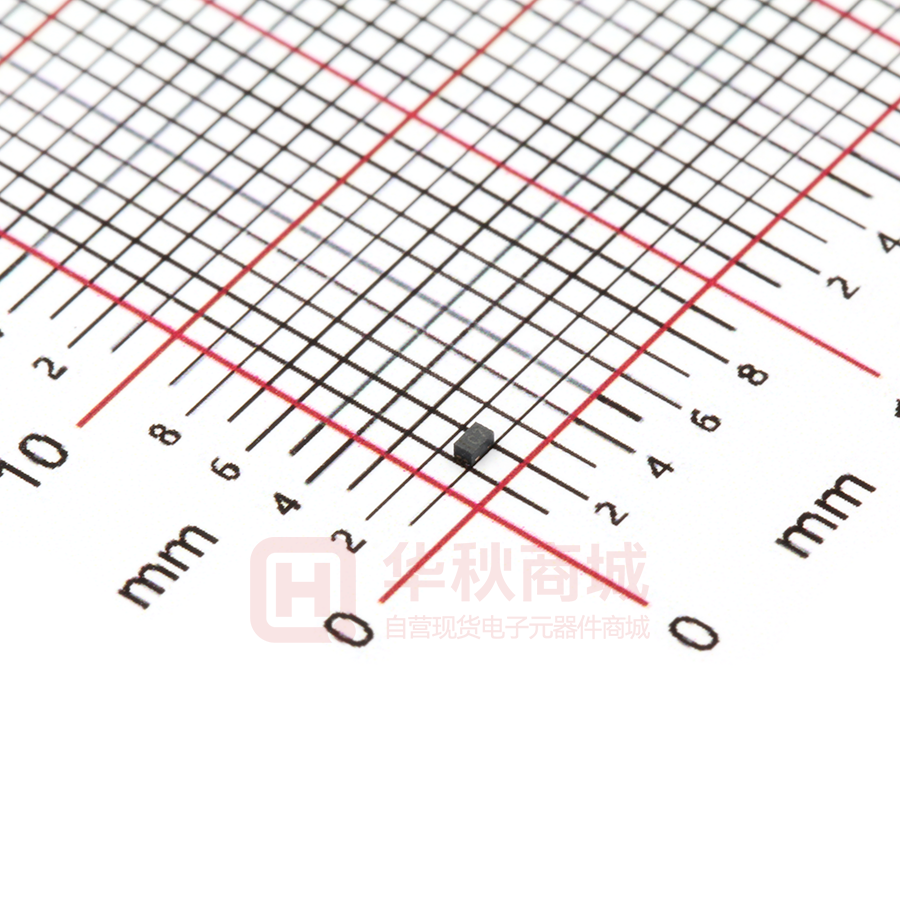

BDFN2C071V ESD Protection Diode »Features ■ 100Watts peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche t echnology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A ( 5/50ns) ■ IEC 61000-4-5 (Lightning) 8A (8/20μs) »Applications ■ Microprocessor based equipment ■ Personal Digital Assistants (PDA’s) ■ Notebooks, Desktops, and Servers ■ Portable Instrumentation ■ Pagers Peripherals »Mechanical Data ■ DFN1006 package ■ Molding compound flammability rating: UL 94V-0 ■ Packaging: Tape and Reel ■ RoHS/WEEE Compliant »Schematic & PIN Configuration DFN1006 Revision 2018 www.born-tw.com 1/4 BDFN2C071V »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 100 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 8 A VESD 30 30 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical VRWM 7.2 Max Units 7.0 V 7.5 VBR IT=1mA V Reverse Leakage Current IR VRWM=7V,T=25℃ Clamping Voltage VC IPP=8A,tp=8/20μs 12 V Junction Capacitance Cj VR = 0V, f = 1MHz 15 pF 1 uA »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRW M IR VBR IT I Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM V Breakdown Voltage @ IT Test Current Note:. 8/20μs pulse waveform. Revision 2018 www.born-tw.com 2/4 BDFN2C071V »Typical Characteristics Figure 2: Power Derating Curve 10 110 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 1 100w 8/20µs waveform 0.1 0.01 0.1 1 10 100 100 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Ipp 80 70 Percent -1 e 60 125 150 50 40 30 td=Ipp/2 20 18 Test Wavefor m Paramter s tr=8µs td=20µs 16 Clamping Voltage–VC (V) 90 100 Figure 4: Clamping Voltage vs.Ipp Waveform Paramters tr=8µs td=20µs 100 75 Ambient Temperature - TA (℃) Figure3: Pulse Waveform 110 50 14 12 10 8 6 4 2 10 0 0 0 5 10 15 30 20 25 0 2 3 4 5 6 7 Peak Pulse Current–IPP (A) Time (µs) Revision 2018 1 www.born-tw.com 3/4 8 BDFN2C071V »Outline Drawing – DFN1006 »Marking C7 »Ordering information Order code BDFN2C071V Revision 2018 Package DFN1006 Base qty 10K www.born-tw.com Delivery mode Tape and reel 4/4
