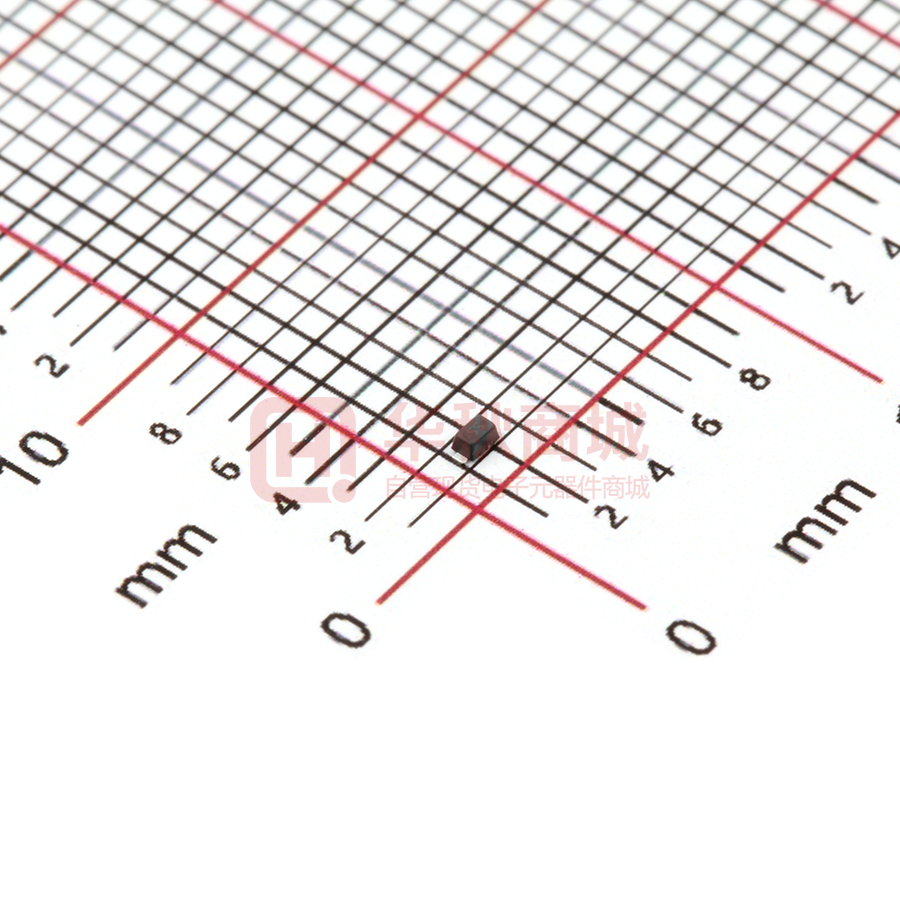

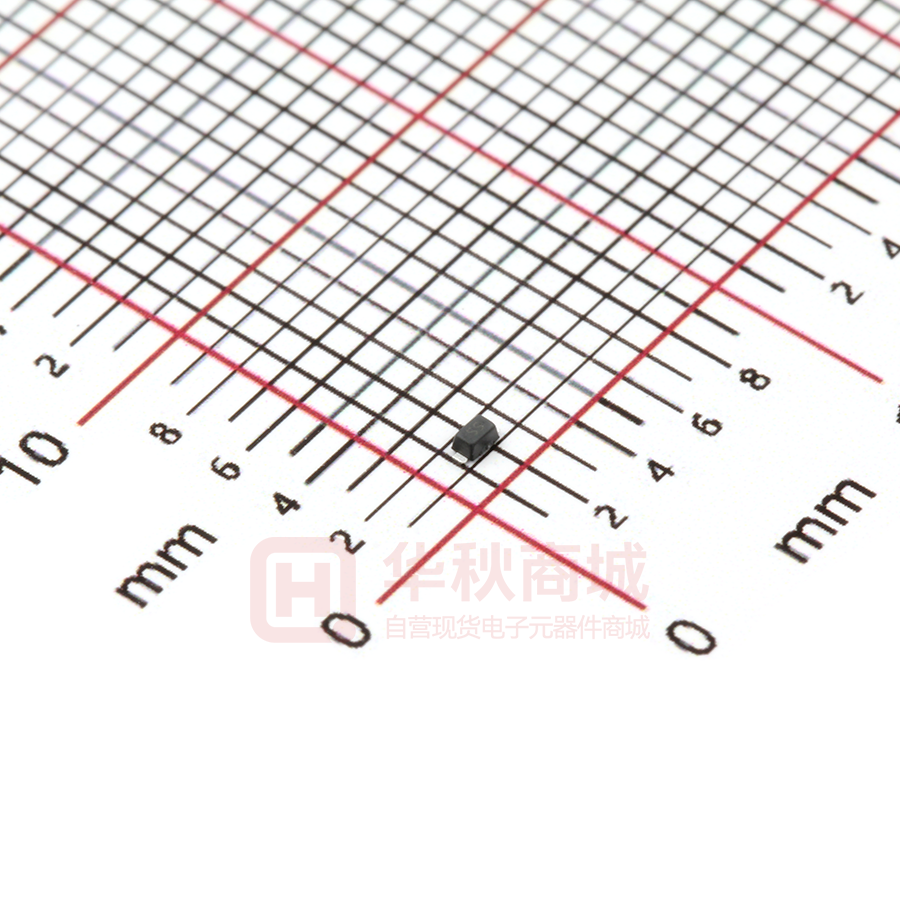

BSD5C051U

BSD5C051U ESD Protection Diode »Features ■ 60Watts peak pulse power (tp = 8/20μs) ■ SOD523 package ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ Low capacitance (Cj=0.5pF typ.) ■ Protection one data/power line ■ IEC 61000-4-2 ±15kV contact ±20kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 3A(8/20μs) »Applications »Mechanical Data ■ Cell Phone Handsets and Accessories ■ SOD523 package ■ Microprocessor based equipment ■ Molding compound flammability rating: UL 94V-0 ■ Personal Digital Assistants (PDA’s) ■ Packaging: Tape and Reel ■ Notebooks, Desktops, and Servers ■ RoHS/WEEE Compliant ■ Portable Instrumentation »Schematic & PIN Configuration SOD-523 Revision 2018 www.born-tw.com 1/4 BSD5C051U »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 60 Watts Peak Pulse Current ( tp =8/20μs )(note1) Ipp 3 A VESD 20 15 kV Lead SolderingTemperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 125 ℃ Storage Temperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2(Contact) »Electrical Characteristics Parameter Symbol Conditions Reverse Stand-Off Voltage VRWM Reverse BreakdownVoltage VBR IT=1mA Reverse LeakageCurrent IR VRWM=5V,T=25℃ Peak Pulse Current IPP tp =8/20μs Clamping Voltage VC IPP=3A,tp=8/20μs Junction Capacitance Cj VR = 0V, f = 1MHz Min 6.0 Typical Max Units 5.0 V 8.5 V 0.1 0.5 0.5 μA 3 A 20 V 0.9 pF »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RWM IR V BR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM V C V BR V RW M IT IR I IT R V RW M V BR V C V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 BSD5C051U »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 1 60w 8/20µswaveform 0.1 0.01 1 0.1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Figure3: Pulse Waveform 90 Percent Ipp 80 e-1 50 40 td=Ipp/2 20 125 150 18 Clamping Voltage–VC (V) 100 30 100 20 Waveform Paramters tr=8µs td=20µs 60 75 Figure 4: Clamping Voltage vs.Ipp 110 70 50 Ambient Temperature - TA (℃) 16 14 Test Waveform Paramters tr=8µs td=20µs 12 10 8 6 4 10 2 0 0 Revision 2018 5 10 15 Time (µs) 20 25 30 0 www.born-tw.com 1 2 3 4 5 6 Peak Pulse Current–IPP (A) 3/4 BSD5C051U »Outline Drawing – SOD523 D -X-YE DIMENSIONS 2 1 SYMBOL b 2x 0.08 (0.0032) X A b C D E HE L Y A C HE L MILLIMETER MIN 0.50 0.25 0.07 1.10 0.70 1.50 0.15 MAX 0.70 0.35 0.20 1.30 0.90 1.70 0.25 INCHES MIN 0.020 0.010 0.0028 0.043 0.028 0.059 0.006 MAX 0.028 0.014 0.0079 0.051 0.035 0.067 0.010 »Marking 1 5S 2 »Ordering information Order code BSD5C051U Revision 2018 Package SOD523 Base qty 5000 www.born-tw.com Delivery mode Tape and reel 4/4
