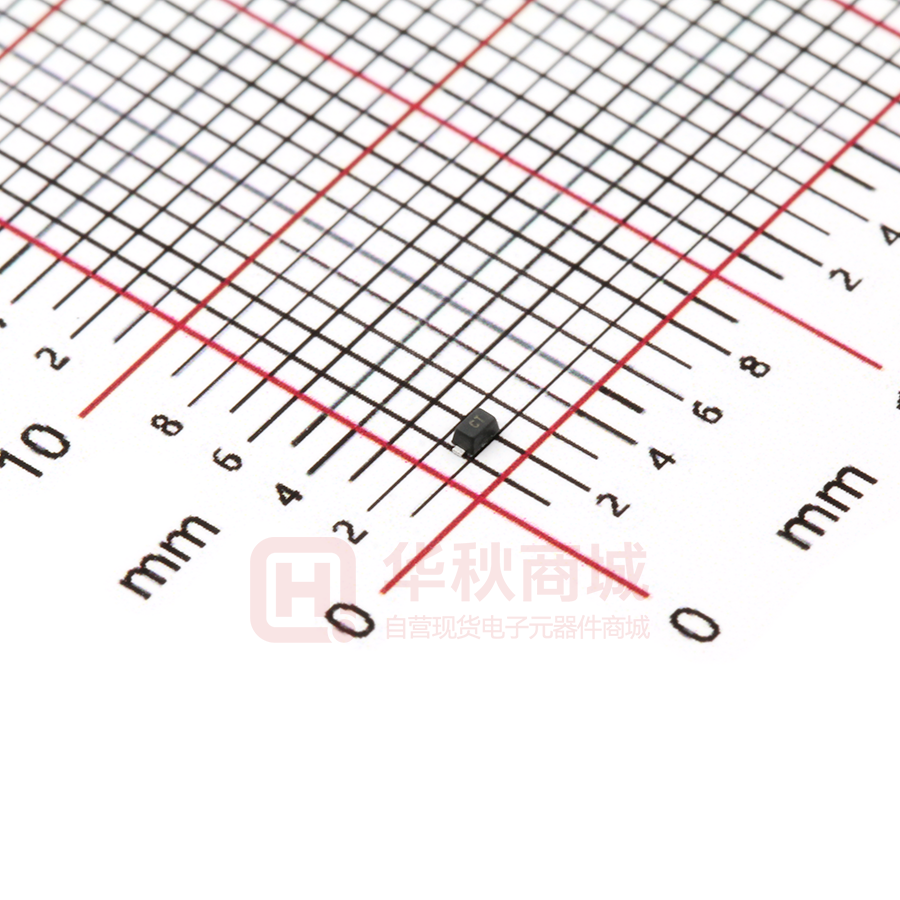

PESD3V3S1BA-N ESD Protection Diode »Features ■ 100Watts peak pulse power (tp =8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±25kV contact ±25kV air ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 10A(8/20μs) »Applications »Mechanical Data ■ Microprocessor based equipment ■ SOD523 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals »Schematic & PIN Configuration SOD-523 Revision 2018 www.born-tw.com 1/4 PESD3V3S1BA-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 100 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 10 A VESD 25 25 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2(Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-OffVoltage Conditions Min Typical VRWM Max Units 3.3 V VBR IT=1mA Reverse LeakageCurrent IR VRWM=5.0V,T=25℃ 500 uA Clamping Voltage VC IPP=10A,tp=8/20μs 10 V Junction Capacitance Cj VR = 0V, f =1MHz 15 pF Reverse BreakdownVoltage 4.0 V 13 »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRW M IR VBR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC V BR V RWM IT IR ITIR VRWM V BR V C V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD3V3S1BA-N »Typical Characteristics Figure 1: Peak Pulse Power vs. Pulse Time Figure 2: Power Derating Curve 10 110 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW ) 100 1 100w 8/20μs waveform 0.1 0.01 0.1 1 10 td – Pulse Duration - µs 100 Ipp 80 Percent 50 40 30 20 10 0 0 25 50 75 100 125 Ambient Temperature - TA (℃) 150 9 Clamping Voltage–VC (V) 90 e -1 50 40 td=Ipp/2 20 60 10 Waveform Paramters tr=8µs td=20µs 100 30 70 Figure 4: Clamping Voltage vs.Ipp 110 60 80 1,000 Figure3: Pulse Waveform 70 90 Test Waveform Paramters tr=8µs td=20µs 8 7 6 5 4 3 2 10 0 0 5 10 15 20 25 30 0 4 6 8 10 Peak Pulse Current–IPP (A) Time (µs) Revision 2018 2 www.born-tw.com 3/4 PESD3V3S1BA-N »Outline Drawing – SOD523 D -X-YE 1 DIMENSIONS 2 SYMBOL b 2x 0.08 (0.0032) X A b C D E HE L Y A C HE L MILLIMETER INCHES MIN MAX MIN MAX 0.50 0.25 0.07 1.10 0.70 1.50 0.15 0.70 0.35 0.20 1.30 0.90 1.70 0.25 0.020 0.010 0.0028 0.043 0.028 0.059 0.006 0.028 0.014 0.0079 0.051 0.035 0.067 0.010 »Marking 1 CT 2 »Ordering information Order code PESD3V3S1BA-N Revision 2018 Package Base qty Delivery mode SOD523 5000 Tape and reel www.born-tw.com 4/4
