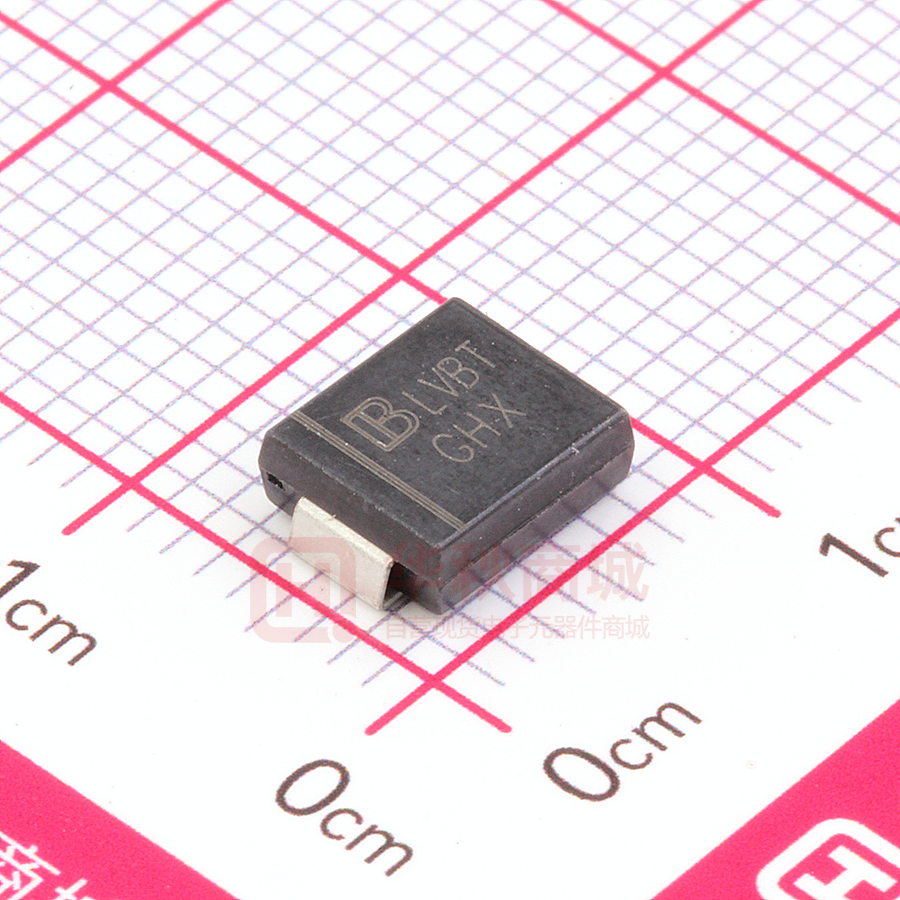

SMCJ220A

RoHS SMCJ SERIES  COMPLIANT   Surface Mount Transient Voltage Suppressor Diodes Uni-directional Features ● For surface mounted applications ● Low-profile package ● Ideal for automated placement ● Available in Unidirectional and Bidirectional ● 1500W peak pulse power capability with a 10/1000 μs waveform ● Low incremental surge resistance, excellent clamping capability ● Very fast response time ● High temperature soldering guaranteed: 260 °C/10 s at terminals ● Meets MSL level 1 Bi-directional ● Component in accordance to RoHS  Typical Applications Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication. Mechanical Data ● Package: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER Peak power dissipation, with a 10/1000us waveform Peak pulse current, with a 10/1000us waveform UNIT PPPM W 1500 IPPM A See Next Table PD W 6.5 IFSM A 200 TJ,TSTG ℃ -55 to +150 （1）（2） （1） Power dissipation, on infinite heat sink at TL=75℃ （2） （3） Peak forward surge current, 8.3 ms single half sine-wave unidirectional only Operating junction and storage temperature range Max SYMBOL ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage at 100A for unidirectional only(4) SYMBOL UNIT VALUE VFM V 3.5/5.0 1/6 S-S106 Rev. 2.8, 04-Jun-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMCJ SERIES    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Conditions VALUE RθJ-A(5) ℃/W junction to ambient 75 RθJ-L ℃/W junction to lead 15 Thermal Resistance(Typical) Notes: (1) (2) (3) (4) (5) Non-repetitive current pulse, per Fig. 3 and derated above TA= 25℃ per Fig.2. Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal Measured on 8.3ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum. VF=3.5V Max for devices of VBR≤220V，and VF=5.0V Max for devices of VBR＞220V. Mounted on minimum recommended pad layout. ■Electrical Characteristics (TA=25℃ unless otherwise noted) Maximum Clamping Voltage Vc @ IPP (V) Min(V) Max (V) IT(1)(mA) SMCJ5.0CA(4)  6.4  7.07  10  1000  5  163.04  9.2  SMCJ6.0A  SMCJ6.0CA  6.67  7.37  10  1000  6  145.63  10.3  SMCJ6.5A  SMCJ6.5CA  7.22  7.98  10  500  6.5  133.93  11.2  SMCJ7.0A  SMCJ7.0CA  7.78  8.6  10  200  7  125  12  SMCJ7.5A  SMCJ7.5CA  8.33  9.21  1  100  7.5  116.28  12.9  SMCJ8.0A  SMCJ8.0CA  8.89  9.83  1  50  8  110.29  13.6  SMCJ8.5A  SMCJ8.5CA  9.44  10.4  1  20  8.5  104.17  14.4  SMCJ9.0A  SMCJ9.0CA  10  11.1  1  10  9  97.4  15.4  SMCJ10A  SMCJ10CA  11.1  12.3  1  5  10  88.24  17  SMCJ11A  SMCJ11CA  12.2  13.5  1  5  11  82.42  18.2  SMCJ12A  SMCJ12CA  13.3  14.7  1  5  12  75.38  19.9  SMCJ13A  SMCJ13CA  14.4  15.9  1  5  13  69.77  21.5  SMCJ14A  SMCJ14CA  15.6  17.2  1  5  14  64.66  23.2  SMCJ15A  SMCJ15CA  16.7  18.5  1  5  15  61.48  24.4  SMCJ16A  SMCJ16CA  17.8  19.7  1  5  16  57.69  26  SMCJ17A  SMCJ17CA  18.9  20.9  1  5  17  54.35  27.6  SMCJ18A  SMCJ18CA  20  22.1  1  5  18  51.37  29.2  SMCJ19A  SMCJ19CA  21.1  23.3  1  5  19  48.73  30.8  SMCJ20A  SMCJ20CA  22.2  24.5  1  5  20  46.3  32.4  Part Number (Bi) SMCJ5.0A  Breakdown Voltage VBR@IT Working Peak Reverse Voltage VRWM (V) Maximum Reverse Surge Current IPP(2) (A) Maximum Reverse Leakage IR (3) @ VRWM (μA) Part Number (Uni) SMCJ22A  SMCJ22CA  24.4  26.9  1  1  22  42.25  35.5  SMCJ24A  SMCJ24CA  26.7  29.5  1  1  24  38.56  38.9  SMCJ26A  SMCJ26CA  28.9  31.9  1  1  26  35.63  42.1  SMCJ28A  SMCJ28CA  31.1  34.4  1  1  28  33.04  45.4  SMCJ30A  SMCJ30CA  33.3  36.8  1  1  30  30.99  48.4  SMCJ33A  SMCJ33CA  36.7  40.6  1  1  33  28.14  53.3  SMCJ36A  SMCJ36CA  40  44.2  1  1  36  25.82  58.1  SMCJ40A  SMCJ40CA  44.4  49.1  1  1  40  23.26  64.5  SMCJ43A  SMCJ43CA  47.8  52.8  1  1  43  21.61  69.4  SMCJ45A  SMCJ45CA  50  55.3  1  1  45  20.63  72.7  SMCJ48A  SMCJ48CA  53.3  58.9  1  1  48  19.38  77.4  SMCJ51A  SMCJ51CA  56.7  62.7  1  1  51  18.2  82.4  2/6 S-S106 Rev. 2.8, 04-Jun-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMCJ SERIES    ■Electrical Characteristics (TA=25℃ unless otherwise noted) Maximum Clamping Voltage Vc @ IPP (V) Min(V) Max (V) IT(1)(mA) SMCJ54CA  60  66.3  1  1  54  17.22  87.1  SMCJ58A  SMCJ58CA  64.4  71.2  1  1  58  16.03  93.6  SMCJ60A  SMCJ60CA  66.7  73.7  1  1  60  15.5  96.8  SMCJ64A  SMCJ64CA  71.1  78.6  1  1  64  14.56  103  Part Number (Bi) SMCJ54A  Breakdown Voltage VBR@IT Working Peak Reverse Voltage VRWM (V) Maximum Reverse Surge Current IPP(2) (A) Maximum Reverse Leakage IR (3) @ VRWM (μA) Part Number (Uni) SMCJ70A  SMCJ70CA  77.8  86  1  1  70  13.27  113  SMCJ75A  SMCJ75CA  83.3  92.1  1  1  75  12.4  121  SMCJ78A  SMCJ78CA  86.7  95.8  1  1  78  11.9  126  SMCJ80A  SMCJ80CA  88.8  97.6  1  1  80  11.57  129.6  SMCJ85A  SMCJ85CA  94.4  104  1  1  85  10.95  137  SMCJ90A  SMCJ90CA  100  111  1  1  90  10.27  146  SMCJ100A  SMCJ100CA  111  123  1  1  100  9.26  162  SMCJ110A  SMCJ110CA  122  135  1  1  110  8.47  177  SMCJ120A  SMCJ120CA  133  147  1  1  120  7.77  193  SMCJ130A  SMCJ130CA  144  159  1  1  130  7.18  209  SMCJ140A  SMCJ140CA  155  171  1  1  140  6.61  226.8  SMCJ150A  SMCJ150CA  167  185  1  1  150  6.17  243  SMCJ160A  SMCJ160CA  178  197  1  1  160  5.79  259  SMCJ170A  SMCJ170CA  189  209  1  1  170  5.45  275  SMCJ180A  SMCJ180CA  200  220  1  1  180  5.14  291.6  SMCJ190A  SMCJ190CA  211  232  1  1  190  4.87  307.8  SMCJ200A  SMCJ200CA  224  247  1  1  200  4.63  324  SMCJ220A  SMCJ220CA  246  272  1  1  220  4.2  356  SMCJ250A  SMCJ250CA  279  309  1  1  250  3.7  405  SMCJ300A  SMCJ300CA  335  371  1  1  300  3.1  486  SMCJ350A  SMCJ350CA  391  432  1  1  350  2.65  567  SMCJ400A  SMCJ400CA  447  494  1  1  400  2.31  648  SMCJ440A  SMCJ440CA  492  543  1  1  440  2.1  713    Notes: (1) (2) (3) (4) Pulse Test：tp≤50ms Pulse test: tp≤50ms. Surge current waveform per Fig. 3 and derated per Fig.2. For bi-directional types having VRWM of 10 V and less, the IR limit is doubled. For the bi-directional SMCJ5.0CA, the maximum VBR is 7.25 V. 3/6 S-S106 Rev. 2.8, 04-Jun-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMCJ SERIES    ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SMCJ SERIES F1 Approximate 0.257 3000 6000 42000 13” reel ■ Characteristics(Typical) FIG2: Pulse Power or Current vs. Initial Junction Temperature PPP or IPP(%) PPPM(KW) FIG1:Peak Pulse Power Rating Curve 100 Non-Repetitive Pulse Waveform shown in Fige.3 TA=25℃ 100 75 10 50 1.0 25 0.1 0.31×0.31"(8.0×8.0mm) Copper Pad Areas 0.1μs 1μs 0 10μs 100μs 1.0ms 10ms 0 25 50 75 100 125 150 175 td(μs) tr=10μs Peak Value IPPM 100 FIG4:Typical Transient Thermal Impedance Rth(℃/W) IPPM(%) FIG3: Pulse Waveform 150 200 TJ （℃） TJ=25℃ Pulse Width(td) is defined as the Point where the Peak Current Decays to 50% of IPPM 100 10 Half Value - IPP 2 IPPM 50 1 10/1000μs Waveform as Defined by R.E.A. td 0 0 1.0 2.0 3.0 0.1 0.001 4.0 0.01 0.1 1 100 10 t（ ms） tp(s) PD(W) IFSM(A) FIG5: Maximum Non-Repetitive Surge Current 200 1000 TJ=TJMax. 8.3ms Single Half Sine-Wave FIG6:Steady State Power Dissipation 7 6 100 5 4 50 3 2 1 10 0 0 0 10 25 50 75 100 Number of Cycles 100 125 150 175 200 TL(℃) 4/6 S-S106 Rev. 2.8, 04-Jun-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMCJ SERIES    ■ Outline Dimensions DO-214AB(SMC) DO-214AB (SMC) Dim Min Max A 6.60 7.11 B 2.85 3.27 C 5.59 6.22 D 7.75 8.13 E 1.99 2.61 F 0.15 0.31 G 0.76 1.52 H 0.05 0.20 Dimensions in millimeters ■ Suggested pad layout P2 Q1 Dim Typ P1 9.9 P2 3.84 Q1  3.03 Q2  3.82 Q2 P1 Dimensions in millimeters 5/6 S-S106 Rev. 2.8, 04-Jun-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMCJ SERIES    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 6/6 S-S106 Rev. 2.8, 04-Jun-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
