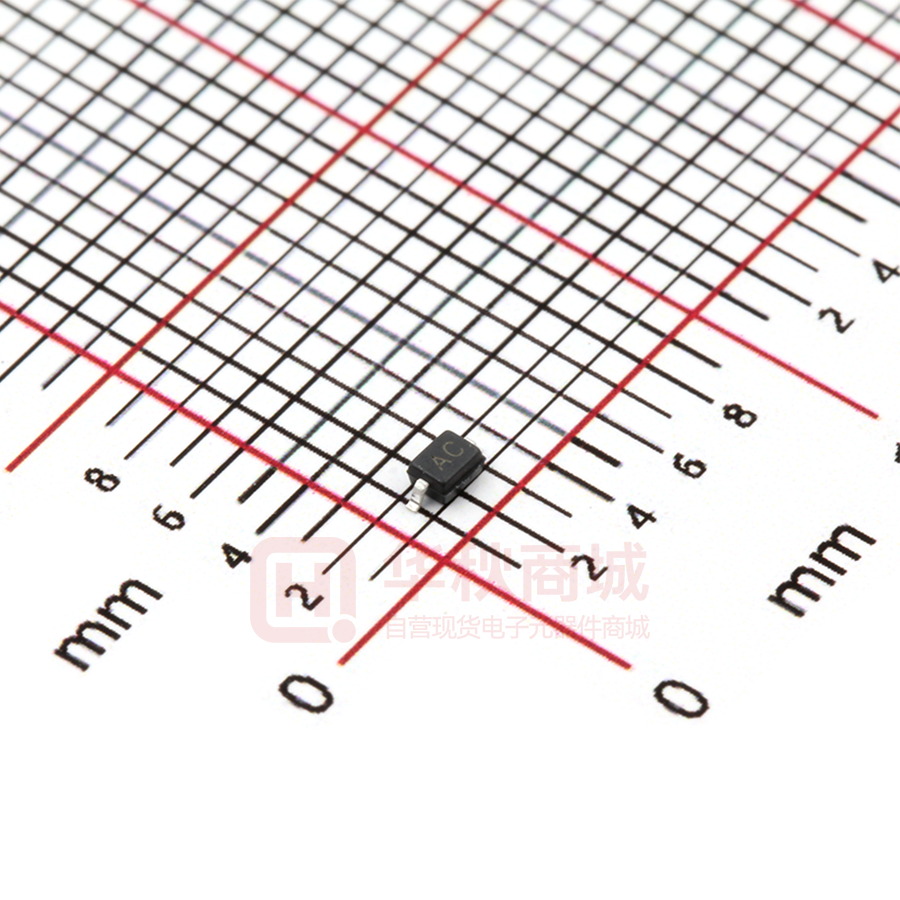

PESD5V0L1BA

PESD5V0L1BA Transient Voltage Suppressors for ESD protection DESCRIPTION PESD5V0L1BA is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients). FEATURES — IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) — IEC61000-4-4 (EFT) 40A (5/50ηs) — Peak power dissipation: 200W (8/20μs) — Protects one directional I/O line — Low clamping voltage — Working voltages : 5V — Low leakage current MACHANICAL DATA — SOD-323 package — Terminals: Gold plated, solderable per MIL-STD-750, method 2026 — Packaging: Tape and Reel — Reel size: 7 inch ORDERING INFORMATION APPLICATIONS — Device: PESD5V0L1BA — Package: SOD-323 — Material: Halogen free — Packing: Tape & Reel — Quantity per reel: 3,000pcs — High Speed Line :USB1.0/2.0, VGA, DVI, SDI, — Serial and Parallel Ports — Notebooks, Desktops, Servers — Projection TV — Cellular handsets and accessories — Portable instrumentation — Peripherals PIN CONFIGURATION PACKAGE OUTLINE www.cj-elec.com 1/3 PESD5V0L1BA Transient Voltage Suppressors for ESD protection ABSOLUTE MAXIMUM RATING Symbol Parameter Value Units VESD ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) ±15 ±8 kV PPP Peak Pulse Power (8/20μs) 100 W TOPT Operating Temperature -40~150 °C TSTG Storage Temperature -40~150 °C ELECTRICAL CHARACTERISTICS (Tamb=25°C) Symbol Parameter Test Condition VRWM Reverse Working Voltage VBR Reverse Breakdown Voltage IT = 1mA IR Reverse Leakage Current VC Max Units 5.0 V 7.8 V VRWM = 5V 1.0 μA Clamping Voltage IPP = 5A, tp = 8/20μs 11.6 V VC Clamping Voltage IPPmax = 8A , tp = 8/20μs 16.0 V CJ Junction Capacitance VR = 0V, f = 1MHz 15 pF ELECTRICAL CHARACTERISTICS CURVE www.cj-elec.com 2/3 Min Typ 5.6 10 PESD5V0L1BA Transient Voltage Suppressors for ESD protection SOD-323 PACKAGE OUTLINE DIMENSIONS www.cj-elec.com 3/3
