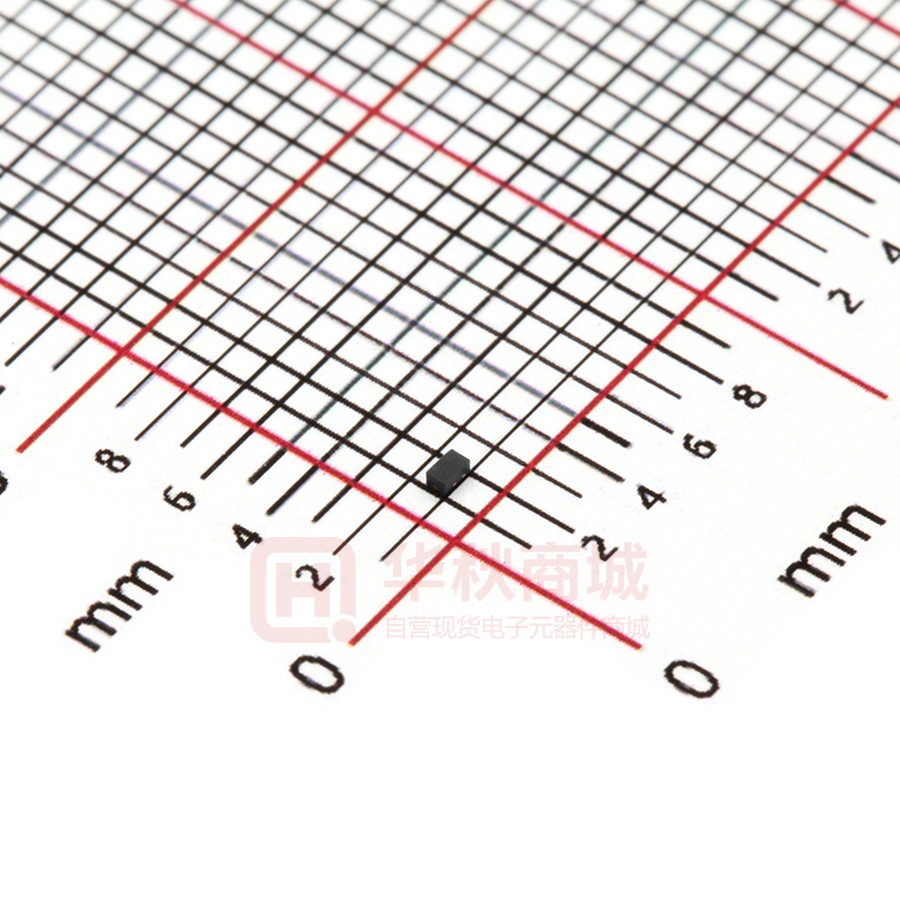

ESD5451N

厂商：
KUU(永裕泰)
封装：
DFN1006-2L_1X0.6MM
描述：
5V

数据手册：

下载ESD5451N.pdf

立即购买

详情介绍
数据手册
价格&库存

ESD5451N 数据手册

ESD5451N TVS/ESD Protection Diode DESCRIPTION ESD5451N is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With typical capacitance of 8pF only, ESD5451N is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. FEATURES Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±15kV (Air) ±8kV (Contact) IEC 61000-4-4 (EFT) 40A (5/50 ns) Cable Discharge Event (CDE) Package optimized for high-speed lines Ultra-small package (1.0mm×0.6mm×0.4mm) Protects one data, control or power line Low capacitance Low leakage current Low clamping voltage Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge MACHANICAL DATA DFN1006 package Flammability Rating: UL 94V-0 Packaging: Tape and Reel High temperature soldering guaranted:260℃/10s Reel size: 7 inch ORDERING INFORMATION APPLICATIONS Package: DFN1006 Material: RoHS compliant, Halogen free Packing: Tape & Reel Quantity per reel: 10,000pcs Portable Electronics Desktops, Servers and Notebooks Cellular Phones MP3 Ports Digital Ports Subscriber Identity Module (SIM) card CIRCUIT DIAGRAM PIN CONFIGURATION 1/4 ESD5451N TVS/ESD Protection Diode ABSOLUTE MAXIMUM RATING Symbol PPP Tj TSTG Parameter Value Units 100 W Operating Temperature -55/+125 °C Storage Temperature -55/+150 °C Peak Pulse Power (8/20μs) ELECTRICAL CHARACTERISTICS (Tamb=25°C) Symbol Parameter Test Condition VRWM Reverse Stand-Off Voltage VBR Reverse Breakdown voltage IT=1mA IR Reverse leakage current. VRWM=5V 1 µA IPP Peak Pulse Current tP=8/20us 5 A VC Clamping Voltage IPP=1A, tP=8/20us IPP=5A, tP=8/20us 13 9.5 15 V CJ Junction Capacitance VR=0V,f=1MHz 8 15 pF 2/4 Min Typ Max Units 5.0 V 6.0 V ESD5451N TVS/ESD Protection Diode ELECTRICAL CHARACTERISTICS CURVE 3/4 ESD5451N TVS/ESD Protection Diode DFN1006 PACKAGE OUTLINE DIMENSIONS Symbol Dimensions In Millimeters Minimum Maximum A 0.450 0.550 A1 0.000 0.050 b 0.45 0.55 C 0.12 0.18 D 0.950 1.050 e 0.65BSC E 0.550 0.650 L 0.200 0.300 L1 h 0.05REF 0.07 4/4 0.17

下载 PDF

ESD5451N

物料型号为ESD5451N，是一款由KUU SEMICONDUCTOR生产的TVS/ESD保护二极管。

器件简介为设计用于为数据线、控制线或电源线提供静电放电（ESD）保护的电压抑制器。

引脚分配为单向保护二极管，具有一个阳极和一个阴极。

参数特性包括低电容（8pF）、低漏电流、低钳位电压，并且每个I/O引脚能够承受超过1000次±8kV接触放电的ESD冲击。

功能详解为提供高速数据线的瞬态保护，符合IEC 61000-4-2（ESD）、IEC 61000-4-4（EFT）等标准。

应用信息包括便携电子设备、桌面电脑、服务器、笔记本电脑、手机、MP3端口、数字端口、SIM卡等。

封装信息为DFN1006，材料符合RoHS且无卤素，包装为卷带，每卷10000片。

绝对最大额定值为峰值脉冲功率100W（8/20μs），工作温度范围为-55℃至+125℃，存储温度范围为-55℃至+150℃。

电气特性包括反向工作电压、反向击穿电压、反向漏电流、峰值脉冲电流、钳位电压和结电容等。

封装尺寸为DFN1006，具体尺寸数据以毫米为单位给出。
