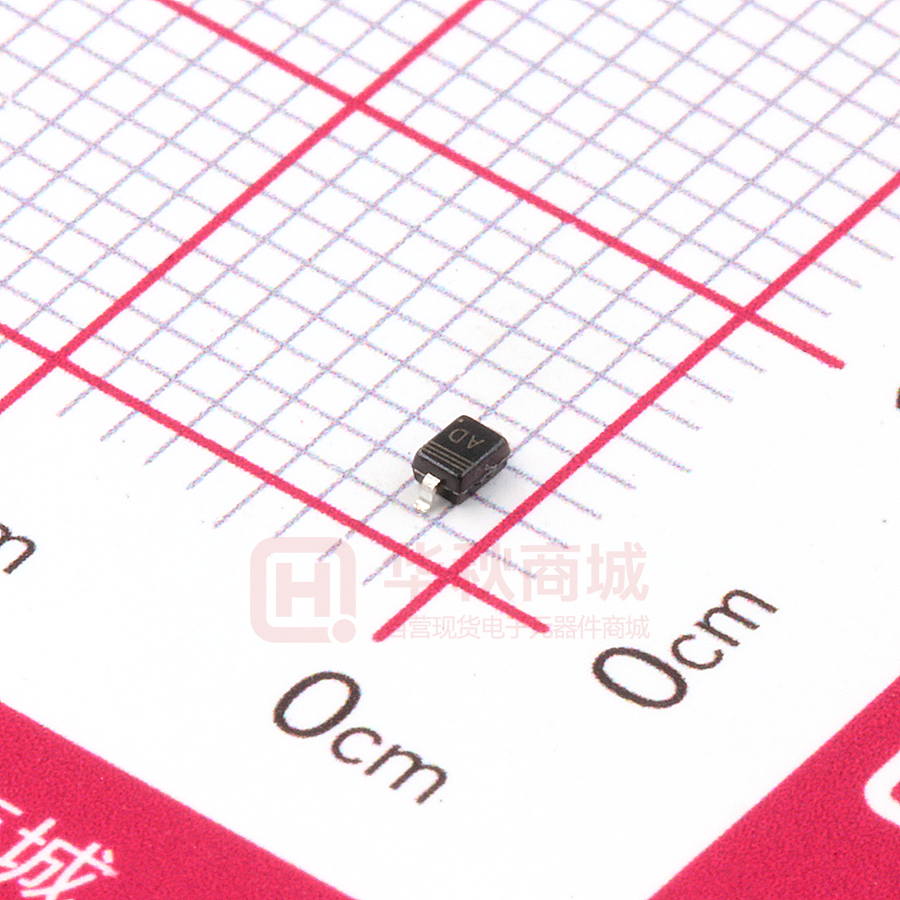

PESD12VL1BA

PESD12VL1BA Features ■ 260W peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 10A (8/20μs) SOD-323 Mechanical Data Applications ■ Microprocessor based equipment ■ SOD323 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 260 W Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 10 A VESD 30 30 kV Lead Soldering Temperature TL 260 ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) www.umw-ic.com 1 友台半导体有限公司 PESD12VL1BA Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical VRWM Max Units 12.0 V VBR IT=1mA 13.3 V Reverse Leakage Current IR VRWM=12V,T=25℃ 1 uA Clamping Voltage VC IPP10A,tp=8/20μs 26 V Junction Capacitance Cj VR = 0V, f = 1MHz 30 pF Electrical Parameters (TA = 25°C unless otherwise noted) Symbol IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I Parameter Working Peak Reverse Voltage V Maximum Reverse Leakage Current @ V RWM Breakdown Voltage @ IT Test Current Note:. 8/20μs pulsewaveform. www.umw-ic.com 2 . . 友台半导体有限公司 PESD12VL1BA Typical Characteristics Figure 2: Power Derating Curve 10k 110 1000 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(W) Figure 1: Peak Pulse Power vs. Pulse Time 260w 8/20μs waveform 100 10 0.1 1 10 100 100 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Figure3: Pulse Waveform 90 Percent Ipp 80 e-1 50 40 td=Ipp/2 20 125 150 Test Waveform Paramters tr=8µs td=20µs 40 Clamping Voltage–VC (V) 100 30 100 45 Waveform Paramters tr=8µs td=20µs 60 75 Figure 4: Clamping Voltage vs.Ipp 110 70 50 Ambient Temperature - TA (℃) 35 30 25 20 15 10 5 10 0 0 5 www.umw-ic.com 10 15 Time (µs) 20 25 0 30 2 4 6 8 10 Peak Pulse Current–IPP (A) 3 友台半导体有限公司 PESD12VL1BA Outline Drawing – SOD323 C A DIMENSIONS SYMBOL E B 1 2 MILLIMETER A MIN 1.600 MAX 1.800 MIN 0.063 MAX 0.071 B 0.250 0.350 0.010 0.014 C 2.500 2.700 0.098 0.106 D D H L L1 0.039 1.000 E 1.200 1.400 0.047 0.055 F 0.080 0.150 0.003 0.006 L F INCHES 0.475 REF 0.019REF L1 0.250 0.400 0.010 0.016 H 0.000 0.100 0.000 0.004 Marking 1 AD 2 Ordering information Order code UMW PESD12VL1BA www.umw-ic.com Package SOD323 Base qty 3000 4 Delivery mode Tape and reel 友台半导体有限公司
