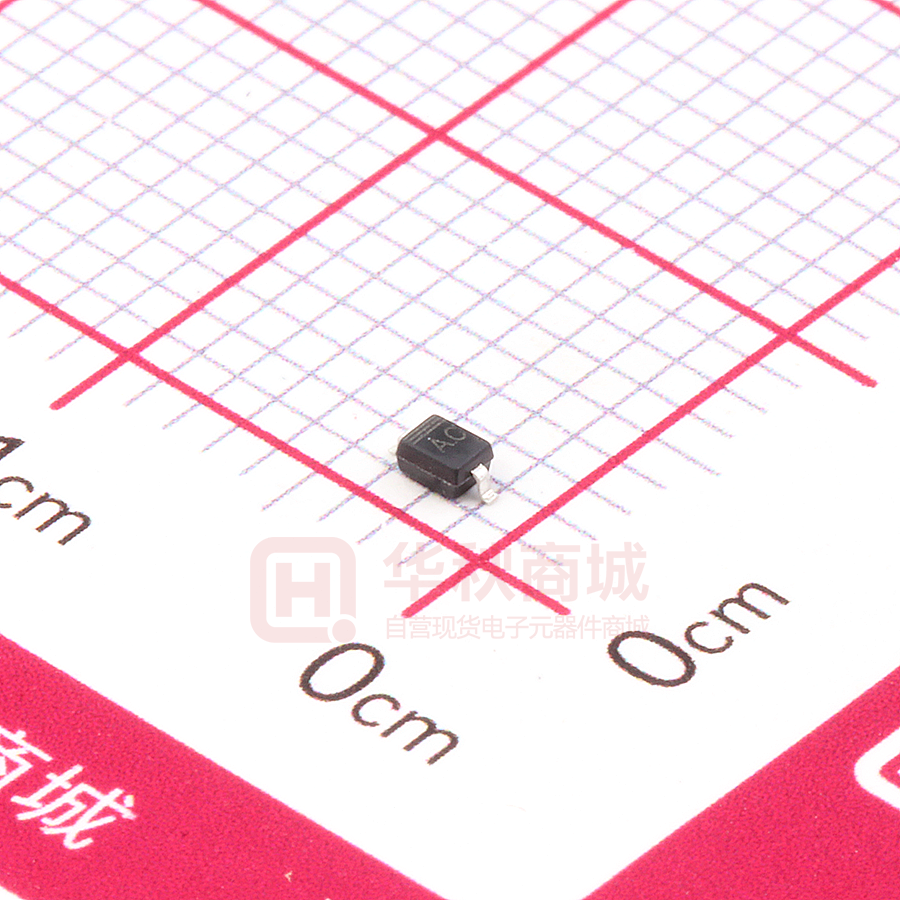

PESD5V0L1BA

PESD5V0L1BA Features ■ 550W peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 30A (8/20μs) SOD-323 Mechanical Data Applications ■ Microprocessor based equipment ■ SOD323 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals Absolute Maximum Rating Rating Symbol Value Units PPP 550 W Ipp 30 A VESD 30 30 kV Lead Soldering Temperature TL 260 ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ Peak Pulse Power ( tp =8/20μs) Peak Pulse Current ( tp =8/20μs ) (note1) ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) www.umw-ic.com 1 友台半导体有限公司 PESD5V0L1BA Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Conditions Min Typical Max Units 5.0 VRWM Reverse Breakdown Voltage VBR IT=1mA Reverse Leakage Current IR VRWM=5V,T=25℃ Clamping Voltage VC IPP=30A,tp=8/20μs Junction Capacitance Cj VR = 0V, f = 1MHz V 6.0 V 1 uA 15 V 140 pF Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I IPP Working Peak Reverse Voltage VC V BR Maximum Reverse Leakage Current @ V RWM V RWM IT IR ITIR VRWM V BR V C V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. www.umw-ic.com 2 友台半导体有限公司 PESD5V0L1BA Typical Characteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 500w 8/20µs waveform 1 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 25 0 td – Pulse Duration - µs Figure3: Pulse Waveform 110 125 150 Clamping Voltage–VC (V) 16 80 Ipp 100 18 Waveform Paramters tr=8µs td=20µs 90 Percent 75 Figure 4: Clamping Voltage vs.Ipp 100 70 e-1 60 50 Ambient Temperature - TA (℃) 50 40 30 td=Ipp/2 20 14 12 10 8 Test Waveform Paramters tr=8µs td=20µs 6 4 2 10 0 0 5 10 15 20 25 0 30 Time (µs) www.umw-ic.com 10 20 30 40 50 60 70 Peak Pulse Current–IPP (A) 3 友台半导体有限公司 PESD5V0L1BA Outline Drawing – SOD323 C A DIMENSIONS SYMBOL E B 1 2 MILLIMETER A MIN 1.600 MAX 1.800 MIN 0.063 MAX 0.071 B 0.250 0.350 0.010 0.014 C 2.500 2.700 0.098 0.106 D D H L L1 0.039 1.000 E 1.200 1.400 0.047 0.055 F 0.080 0.150 0.003 0.006 L F INCHES 0.475 REF 0.019REF L1 0.250 0.400 0.010 0.016 H 0.000 0.100 0.000 0.004 Marking 1 AC 2 Ordering information Order code Package Base qty UMW PESD5V0L1BA SOD323 3000 www.umw-ic.com 4 Delivery mode Tape and reel 友台半导体有限公司
