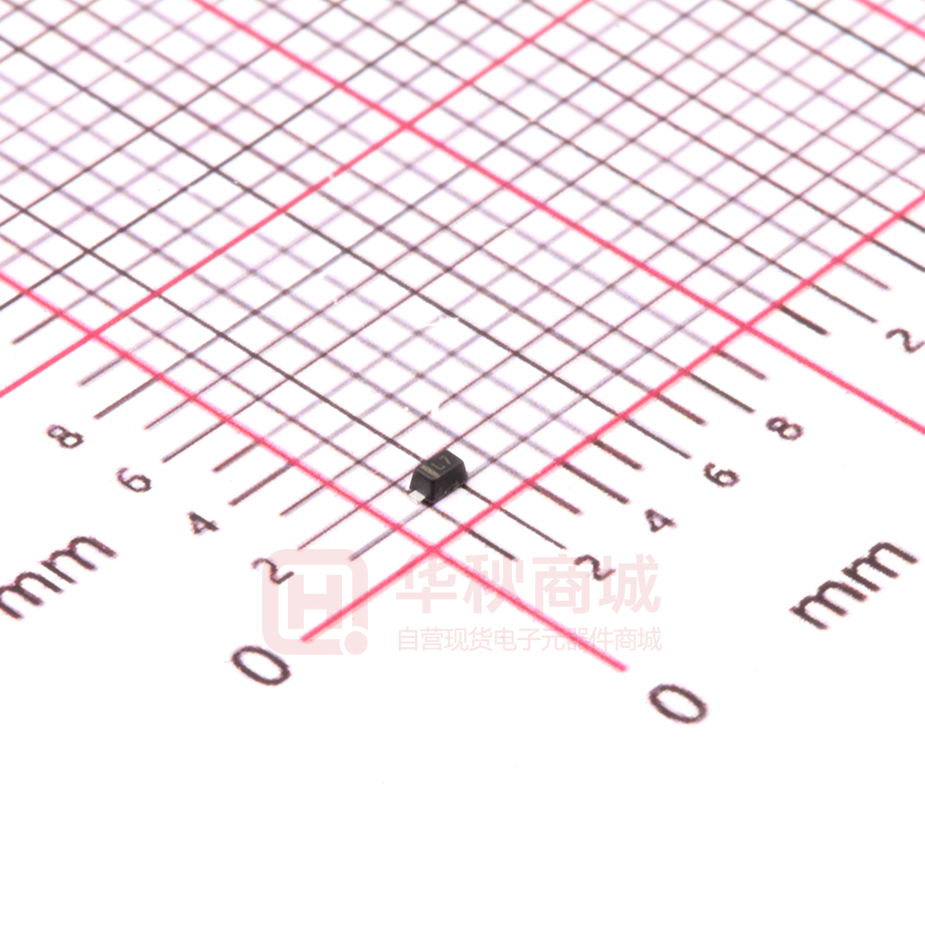

PESD5V0S1BB
Features
■
130W peak pulse power (tp = 8/20μs)
■
Bidirectional configurations
■
Solid-state silicon-avalanche technology
■
Low clamping voltage
■
Low leakage current
■
IEC 61000-4-2 ±30kV contact ±30kVair
■
IEC 61000-4-4 (EFT) 40A (5/50ns)
■
IEC 61000-4-5 (Lightning) 12A (8/20μs)
SOD-523
Mechanical Data
Applications
■
Microprocessor based equipment
■
SOD523 package
■
Personal Digital Assistants (PDA’s)
■
Molding compound flammability rating: UL 94V-0
■
Notebooks, Desktops, and Servers
■
Packaging: Tape and Reel
■
Portable Instrumentation
■
RoHS/WEEE Compliant
■
Pagers Peripherals
Absolute Maximum Rating
Rating
Symbol
Value
Units
PPP
130
W
Ipp
12
A
VESD
30
30
kV
Lead Soldering Temperature
TL
260
℃
Junction Temperature
TJ
-55 to + 150
℃
Storage Temperature
Tstg
-55 to + 150
℃
Peak Pulse Power ( tp =8/20μs)
Peak Pulse Current ( tp =8/20μs ) (note1)
ESD per IEC 61000-4-2 (Air)
ESD per IEC 61000-4-2 (Contact)
www.umw-ic.com
1
友台半导体有限公司
PESD5V0S1BB
Electrical Characteristics
Parameter
Symbol
Reverse Stand-OffVoltage
Reverse BreakdownVoltage
Conditions
Min
Typical
VRWM
VBR
IT=1mA
Reverse LeakageCurrent
IR
VRWM=5V,T=25℃
Clamping Voltage
VC
IPP=12A,t p=8/20μs
Junction Capacitance
Cj
VR = 0V, f =1MHz
Max
Units
5.0
V
6.0
V
5
nA
33
15
V
43
pF
Electrical Parameters (TA = 25°C unless otherwisenoted)
Symbol
Parameter
IPP
Maximum Reverse Peak Pulse Current
VC
Clamping Voltage @ IPP
VRW M
IR
VBR
IT
I
IPP
Working Peak Reverse Voltage
VC V BR
Maximum Reverse Leakage Current @ V RWM
V RWM
IT
IR
ITIR
VRWM
V BR V C
V
Breakdown Voltage @ IT
Test Current
IPP
Note:. 8/20μs pulsewaveform.
www.umw-ic.com
2
友台半导体有限公司
PESD5V0S1BB
Typical Characteristics
Figure 1: Peak Pulse Power vs. Pulse Time
Figure 2: Power Derating Curve
10
110
Percent of Rated Power for Ipp
Ppp – Peak Pulse Power - Ppp(KW)
100
1
130w 8/20μs waveform
0.1
0.01
0.1
1
10
100
td – Pulse Duration - µs
90
Ipp
80
Percent
50
40
30
20
10
0
40
Clamping Voltage–VC (V)
100
e-1
50
40
td=Ipp/
2
20
60
0
25
50
75
100
125
Ambient Temperature - TA (℃)
150
45
Waveform
Paramters
tr=8µs
td=20µs
30
70
Figure 4: Clamping Voltage vs.Ipp
110
60
80
1,000
Figure3: Pulse Waveform
70
90
10
35
30
Test
Waveform
Paramters
tr=8µs
td=20µs
25
20
15
10
5
0
0
5
www.umw-ic.com
10
15
Time (µs)
20
25
12
30
Peak Pulse Current–IPP (A)
3
友台半导体有限公司
PESD5V0S1BB
Outline Drawing – SOD523
D
-X-Y-
1
2
E
DIMENSIONS
SYMBOL
b 2x
0.08 (0.0032)
X
A
b
C
D
E
HE
L
Y
A
C
HE
L
MILLIMETER
INCHES
MIN
MAX
MIN
MAX
0.50
0.25
0.07
1.10
0.70
1.50
0.15
0.70
0.35
0.20
1.30
0.90
1.70
0.25
0.020
0.010
0.0028
0.043
0.028
0.059
0.006
0.028
0.014
0.0079
0.051
0.035
0.067
0.010
Marking
1
L7
2
Ordering information
Order code
Package
Base qty
Delivery mode
UMW PESD5V0S1BB
SOD523
5000
Tape and reel
www.umw-ic.com
