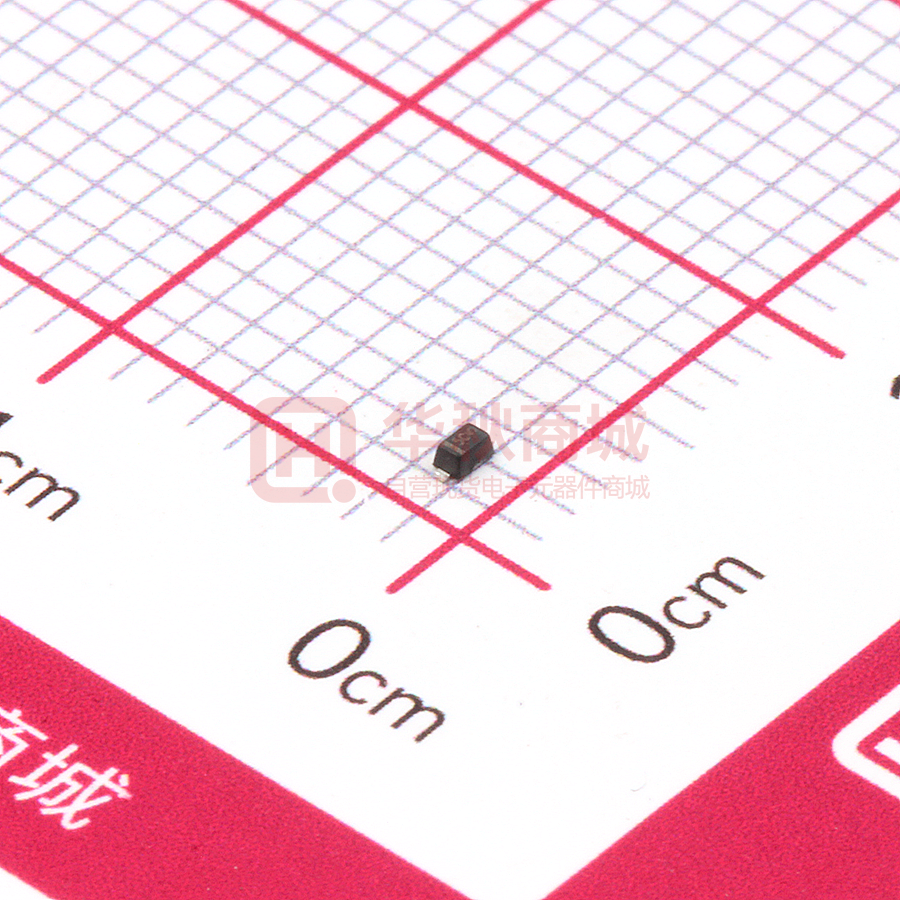

LESD5Z5.0CT1G
Transient Voltage Suppressors for ESD protection
DESCRIPTION
The LESD5Z5.0CT1G is designed to protect voltage
sensitive components from ESD and transient
voltage events. Excellent clamping capability, low
leakage, and fast response time, make these parts
ideal for ESD protection on designs where board
space is at a premium.
This device has been specifically designed to
protect sensitive components which are connected
to data and transmission lines from overvoltage
caused by ESD (electrostatic discharge), CDE
(Cable Discharge Events), and EFT (electrical fast
transients).
FEATURES
■
■
■
■
■
■
■
MACHANICAL DATA
APPLICATIONS
■
■
■
■
■
■
■
■
High Speed Line :USB1.0/2.0, VGA, DVI, SDI,
Serial and Parallel Ports
Notebooks, Desktops, Servers
Projection TV
Cellular handsets and accessories
Portable instrumentation
Peripherals
www.umw-ic.com
IEC61000-4-2 (ESD) ±30kV (Contact),
±30kV (Air)
IEC61000-4-4 (EFT) 40A (5/50ηs)
Peak power dissipation: 75W (8/20μs)
Protects one I/O line
Low clamping voltage
Working voltages : 5V
Low leakage current
■
■
■
■
1
SOD-523 package
Terminals: Tin plated, solderable per
MIL-STD-750, method 2026
Packaging: Tape and Reel
Reel size: 7 inch
MSL3
友台半导体有限公司
LESD5Z5.0CT1G
Transient Voltage Suppressors for ESD protection
ABSOLUTE MAXIMUM RATING
Symbol
Parameter
Value
Units
VESD
ESD per IEC 61000-4-2 (Contact)
ESD per IEC 61000-4-2 (Air)
±30
±30
kV
PPP
Peak Pulse Power (8/20μs)
75
W
TOPT
Operating Temperature
-40~150
C
TSTG
Storage Temperature
-40~150
C
ELECTRICAL CHARACTERISTICS (Tamb=25C)
Symbol
Parameter
Max
Units
VRWM
Reverse Working Voltage
5.0
V
VBR
Reverse Breakdown
Voltage
IT = 1mA
9.0
V
IR
Reverse Leakage Current
VRWM = 5V
1.0
μA
VC
Clamping Voltage
IPP = 1A, tp = 8/20μs
9.5
V
VC
Clamping Voltage
IPPmax = 5A , tp = 8/20μs
15.0
V
CJ
Junction Capacitance
VR = 0V, f = 1MHz
15
pF
www.umw-ic.com
Test Condition
2
Min
5.6
Typ
友台半导体有限公司
LESD5Z5.0CT1G
Transient Voltage Suppressors for ESD protection
ELECTRICAL CHARACTERISTICS CURVE
www.umw-ic.com
3
友台半导体有限公司
LESD5Z5.0CT1G
Transient Voltage Suppressors for ESD protection
SOD-523 PACKAGE OUTLINE DIMENSIONS
Marking
1
5C
2
Ordering information
Order code
UMW LESD5Z5.0C
www.umw-ic.com
Package
Base qty
3000
SOD-523
4
Delivery mode
Tape and reel
友台半导体有限公司
