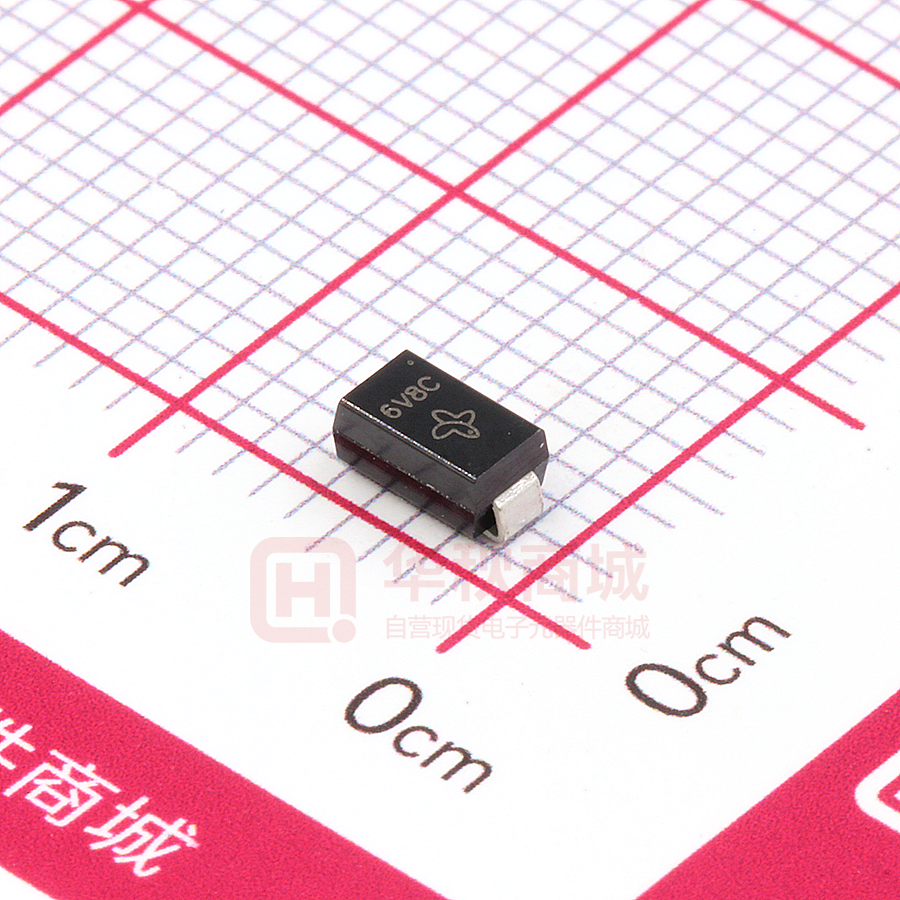

P4SMA6.8CA

P4SMA6.8CA

  • 厂商:

    UMW(友台)

  • 封装:

    SMA

  • 描述:

    TVS VRWM=5.8V VBR(Min)=6.45V VC=10.5V IPP=39A Ppp=400W SMA

  • 数据手册
  • 价格&库存
P4SMA6.8CA 数据手册
UMW R UMW P4SMA6.8A(CA) THRU P4SMA550A(CA) 6.8V-550V 400W FEATURES • For surface mounted applications in order to optimize board space • Glass passivated junction • Built-in strain relief • Excellent clamping capability • Low profile package • Low inductance • Excellent clamping capability • Fast response time: typically less than 1.0 ps from 0 volts to BV min • Typical IR less than 1µA above 10V • High temperature soldering guaranteed: 250°C/10 seconds at terminals MECHANICAL DATA Case: JEDEC DO-214AC Molded plastic Terminal: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denoted positive end (cathode) except Bipolar Standard Packaging: 12mm tape(EIA STD RS-481) Weight: 0.002 ounces, 0.061 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. RATING Peak Pulse Power Dissipation at TA = 25 °C, TP = 1ms (Note 1) Maximum Instantaneous Forward Voltage at 25.0A for Unidirectional Only Steady State Power Dissipation at TL = 75°C Lead lengths .375", 9.5mm (Note 2) Peak Forward Surge Current, 8.3ms Single Half Sine-wave Superimposed on Rated Load, (JEDEC Method)(Note 3) Operatings and Storage Temperature Range SYMBOL PPPM VALUE UNITS Minimum 400 Watts VF 3.5 Volts PM(AV) 1.0 Watts IFSM 40 Amps TJ, TSTG -55 +150 °C NOTES: 1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2. 2. Mounted on 5.0mm2 (0.03mm thick) Copper Pads to each termina 3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum. www.umw-ic.com 1 友台半导体有限公司 UMW R UMW P4SMA6.8A(CA) THRU P4SMA550A(CA) 6.8V-550V 400W REVERSE BREAKDOWN BREAKDOWN TEST MAXIMUM PEAK REVERSE STANDVOLTAGE VOLTAGE CURRENT CLAMPING PULSE LEAKAGE OFF VBR(V) VBR(V) IT (mA) VOLTAGE CURRENT @ VRWM BIVOLTAGE MIN.@I T MAX.@I T @Ipp Vc(V) Ipp (A) IR(µA) POLAR VRWM(V) MARKING CODE P4SMA PART NUMBER P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA P4SMA 6.8A 7.5A 8.2A 9.1A 10A 11A 12A 13A 15A 16A 18A 20A 22A 24A 27A 30A 33A 36A 39A 43A 47A 51A 56A 62A 68A 75A 82A 91A 100A 110A 120A 130A 150A 160A 170A 180A 200A 220A 250A 300A 350A 400A 440A 480A 510A 530A 540A 550A 6.8CA 7.5CA 8.2CA 9.1CA 10CA 11CA 12CA 13CA 15CA 16CA 18CA 20CA 22CA 24CA 27CA 30CA 33CA 36CA 39CA 43CA 47CA 51CA 56CA 62CA 68CA 75CA 82CA 91CA 100CA 110CA 120CA 130CA 150CA 160CA 170CA 180CA 200CA 220CA 250CA 300CA 350CA 400CA 440CA 480CA 510CA 530CA 540CA 550CA UNIPOLAR 6V8A 7V5A 8V2A 9V1A 10A 11A 12A 13A 15A 16A 18A 20A 22A 24A 27A 30A 33A 36A 39A 43A 47A 51A 56A 62A 68A 75A 82A 91A 100A 110A 120A 130A 150A 160A 170A 180A 200A 220A 250A 300A 350A 400A 440A 480A 510A 540A - 6V8C 7V5C 8V2C 9V1C 10C 11C 12C 13C 15C 16C 18C 20C 22C 24C 27C 30C 33C 36C 39C 43C 47C 51C 56C 62C 68C 75C 82C 91C 100C 110C 120C 130C 150C 160C 170C 180C 200C 220C 440C - 5.8 6.4 7.02 7.78 8.55 9.4 10.2 11.1 12.8 13.6 15.3 17.1 18.8 20.5 23.1 25.6 28.2 30.8 33.3 36.8 40.2 43.6 47.8 53 58.1 64.1 70.1 77.8 85.5 94 102 111 128 136 145 154 171 185 214 256 300 342 376 408 434 450 459 467 6.45 7.13 7.79 8.65 9.5 10.5 11.4 12.4 14.3 15.2 17.1 19 20.9 22.8 25.7 28.5 31.4 34.2 37.1 40.9 44.7 48.5 53.2 58.9 64.6 71.3 77.9 86.5 95 105 114 124 143 152 162 171 190 209 237 285 332 380 418 456 485 503.5 513 522.5 7.14 7.88 8.61 9.55 10.5 11.6 12.6 13.7 15.8 16.8 18.9 21 23.1 25.2 28.4 31.5 34.7 37.8 41 45.2 49.4 53.6 58.8 65.1 71.4 78.8 86.1 95.5 105 116 126 137 158 168 179 189 210 231 263 315 368 420 462 504 535 556.5 567 577.5 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 10.5 11.3 12.1 13.4 14.5 15.6 16.7 18.2 21.2 22.5 25.5 27.7 30.6 33.2 37.5 41.4 45.7 49.9 53.9 59.3 64.8 70.1 77 85 92 103 113 125 137 152 165 179 207 219 234 246 274 328 344 414 482 548 602 658 698 725 740 760 39 36.3 33.9 30.6 28.3 26.3 24.6 22.5 19.3 18.2 16.1 14.8 13.4 12.3 10.9 9.9 9 8.2 7.6 6.9 6.3 5.8 5.3 4.8 4.5 4 3.6 3.3 3 2.7 2.5 2.3 2 1.9 1.8 1.7 1.5 1.3 1.2 1 0.9 0.8 0.7 0.6 0.6 0.6 0.5 0.5 1000 500 200 50 10 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 For bidirectional type having Vrwm of 10 volts and less, the IR limit is double. The available parts are "A" type only, the parts without A (VBR is ± 10%) are not available. www.umw-ic.com 2 友台半导体有限公司 R UMW UMW P4SMA6.8A(CA) THRU P4SMA550A(CA) 6.8V-550V 400W Fig.2 - Pulse Derating Curve Fig. 1 - Peak Pulse Power Rating Curve 100 Peak Pulse Power (PPP) or Current (IPPM) Derating in Percentage,% PPPM-Peak Pulse Power (kW) 100 Non-repetitive Pulse Wavetorm shown in Fig.3 TA = 25°C 10 P4SMA6.8A – P4SMA91A 1 0.1 0.1µs 1.0µs 10µs 100µs 1.0ms 87.5 75 62.5 50 37.5 25 12.5 0 0 10ms 25 50 125 150 175 200 Fig.4 - Typical Junction Capacitance Fig.3 - Pulse Waveform 150 10000 TJ = 25°C f = 1.0MHZ Vsig = 50mVp-p TJ = 25°C tr = 10µsec. CJ - Junction Capacitance(pF) Pulse Width (t d) Peak Value IPPM is defined as the point where the peak current decays to 50% of I PPM 100 Half Value- IPPM 2 10/1000µsec.Waveform as defined by R.E.A. 50 0 d 0 Measured at Stand-Off Voltage, VWM 1000 Uni-Directional 100 Bi-Directional 1000 t 1.0 3.0 2.0 4.0 10 4.0 10 1 t - Time(ms) IFSM-Peak Forward Surge Current (A) 200 100 10 1 0.2 0.4 0.6 0.8 1 TJ = TJ max, 8.3ms Single Half Sine-Wave (JEDEC Method) 100 50 10 1.2 0 tp-Pulse Duration (sec) www.umw-ic.com 200 Fig.6 - Maximum Non-Repetitive Peak Forward Surge Current Uni-Directional Only Fig. 5 - Typ.Transient Thermal Impedance 0 100 VWM - Reverse Stand-Off Voltage (V) 1000 Transient Thermal Impedance (℃/W) 100 TA - Ambient Temperature (°C) td - Pulse Width (sec.) IPPM - Peak Pulse Current,% IRSM 75 0.2 0.45 0.6 0.8 1 1.2 Number of Cycles at 60 Hz 3 友台半导体有限公司 UMW R UMW P4SMA6.8A(CA) THRU P4SMA550A(CA) 6.8V-550V 400W ORDERING INFORMATION Order Code Package Baseqty Deliverymode UMW P4SMAxxA SMA 1800 Tape and reel UMW P4SMAxxCA SMA 1800 Tape and reel www.umw-ic.com 4 友台半导体有限公司
