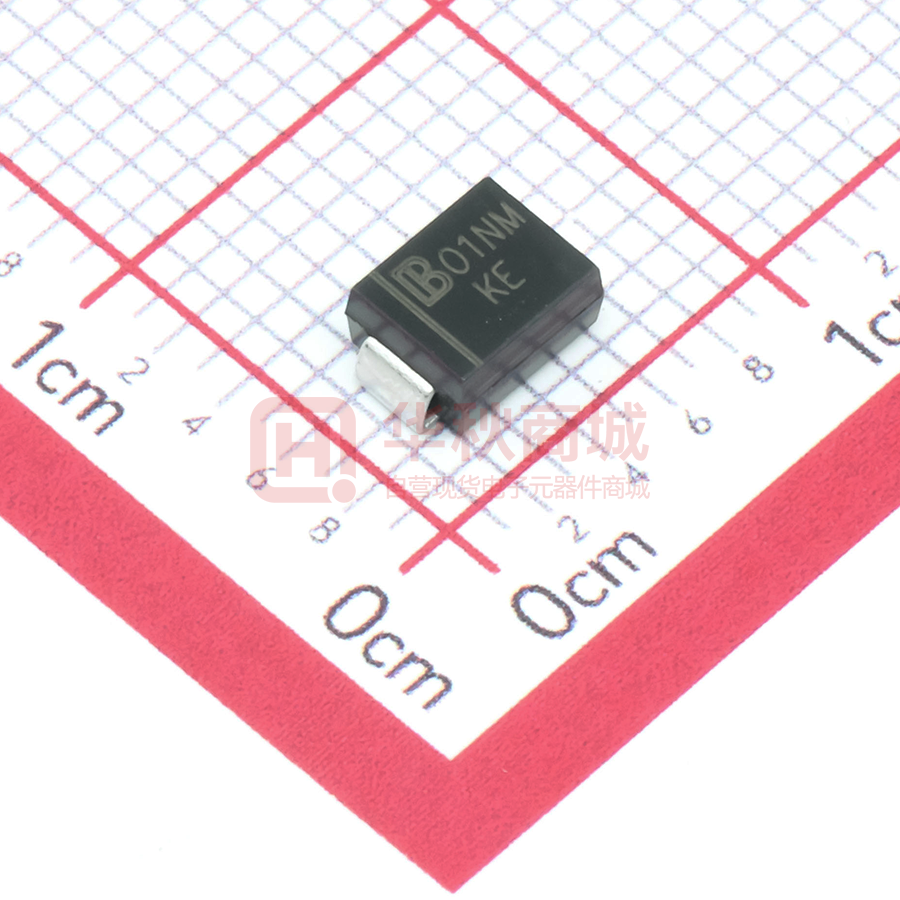

SMBJ5.0A

UMW R UMW SMBJ5.0A(CA) THRU SMBJ188A(CA) 5V-188V 600W FEATURES • • • • • • • • • • SMB(DO-214AA) Low profile package Ideal for automated placement Glass passivated chip junction Available in uni-directional and bi-directional 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % Excellent clamping capability Very fast response time Low incremental surge resistance Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3 Cathode Band 0.086(2.20) 0.155(3.94) 0.077(1.95) 0.130(3.30) 0.180(4.57) 0.160(4.06) 0.012(0.305) 0.006(0.152) 0.096(2.44) 0.084(2.13) 0.060(1.52) 0.030(0.76) 0.008(0.2) 0(0) 0.220(5.59) 0.205(5.21) MECHANICAL DATA Case: SMB (DO-214AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N-M3 - halogen-free, RoHS-compliant, commercial grade Base P/NHE3 - RoHS-compliant and AEC-Q101 qualified Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3, M3, HE3, and HM3 suffix meets JESD 201 class 2 whisker test Polarity: for uni-directional types the band denotes cathode end, no marking on bi-directional types Dimensions in inches and (millimeters) PRIMARY CHARACTERISTICS VBR (bi-directional) 6.4 V to 231 V VBR (uni-directional) 6.4 V to 231 V VWM 5.0 V to 188 V PPPM 600 W IFSM (uni-directional only) 100 A TJ max. 150 °C Polarity Uni-directional, bi-directional Package SMB (DO-214AA) DEVICES FOR BI-DIRECTION APPLICATIONS For bi-directional devices use CA suffix (e.g. SMBJ10CA). Electrical characteristics apply in both directions. MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Peak pulse power dissipation with a 10/1000 μs waveform (1)(2) (fig. 1) Peak pulse current with a 10/1000 μs waveform (1) Peak forward surge current 8.3 ms single half sine-wave uni-directional only (2) Operating junction and storage temperature range SYMBOL VALUE UNIT PPPM 600 W IPPM See next table A IFSM 100 A TJ, TSTG -55 to +150 °C Notes (1) Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2 A (2) Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads to each terminal www.umw-ic.com 1 友台半导体有限公司 UMW R UMW SMBJ5.0A(CA) THRU SMBJ188A(CA) 5V-188V 600W ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) DEVICE TYPE MODIFIED “J” BEND LEAD DEVICE MARKING CODE UNI SMBJ5.0A(CA) SMBJ6.0A(CA) SMBJ6.5A(CA) SMBJ6.8A(CA) SMBJ7.0A(CA) SMBJ7.5A(CA) SMBJ8.0A(CA) SMBJ8.5A(CA) SMBJ9.0A(CA) SMBJ10A(CA) SMBJ11A(CA) SMBJ12A(CA) SMBJ13A(CA) SMBJ14A(CA) SMBJ15A(CA) SMBJ16A(CA) SMBJ17A(CA) SMBJ18A(CA) SMBJ20A(CA) SMBJ22A(CA) SMBJ24A(CA) SMBJ26A(CA) SMBJ28A(CA) SMBJ30A(CA) SMBJ33A(CA) SMBJ36A(CA) SMBJ40A(CA) SMBJ43A(CA) SMBJ45A(CA) SMBJ48A(CA) SMBJ51A(CA) SMBJ54A(CA) SMBJ58A(CA) SMBJ60A(CA) SMBJ64A(CA) SMBJ70A(CA) SMBJ75A(CA) SMBJ78A(CA) SMBJ85A(CA) SMBJ90A(CA) SMBJ100A(CA) SMBJ110A(CA) SMBJ120A(CA) SMBJ130A(CA) SMBJ150A(CA) SMBJ160A(CA) SMBJ170A(CA) SMBJ188A(CA) KE KG KK 8A KM KP KR KT KV KX KZ LE LG LK LM LP LR LT LV LX LZ ME MG MK MM MP MR MT MV MX MZ NE NG NK NM NP NR NT NV NX NZ PE PG PK PM PP PR PS BREAKDOWN VOLTAGE VBR AT IT (1) (V) BI MIN. MAX. KE KG AK 8C KM AP AR AT AV AX KZ BE LG BK BM LM LR BT LV BX BZ CE MG CK CM CP CR CT MV MX MZ NE NG NK NM NP NR NT NV NX NZ PE PG PK PM PP PR PS 6.40 6.67 7.22 6.45 7.78 8.33 8.89 9.44 10.0 11.1 12.2 13.3 14.4 15.6 16.7 17.8 18.9 20.0 22.2 24.4 26.7 28.9 31.1 33.3 36.7 40.0 44.4 47.8 50.0 53.3 56.7 60.0 64.4 66.7 71.1 77.8 83.3 86.7 94.4 100 111 122 133 144 167 178 189 209 7.07 7.37 7.98 7.14 8.60 9.21 9.83 10.4 11.1 12.3 13.5 14.7 15.9 17.2 18.5 19.7 20.9 22.1 24.5 26.9 29.5 31.9 34.4 36.8 40.6 44.2 49.1 52.8 55.3 58.9 62.7 66.3 71.2 73.7 78.6 86.0 92.1 95.8 104 111 123 135 147 159 185 197 209 231 TEST CURRENT IT (mA) STAND-OFF VOLTAGE VWM (V) 10 10 10 10 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 6.0 6.5 5.80 7.0 7.5 8.0 8.5 9.0 10 11 12 13 14 15 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 54 58 60 64 70 75 78 85 90 100 110 120 130 150 160 170 188 MAXIMUM REVERSE LEAKAGE AT VWM ID (μA) (3) 800 800 500 1000 200 100 50 20 10 5.0 5.0 5.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 MAXIMUM PEAK PULSE SURGE CURRENT IPPM (A) (2) 65.2 58.3 53.6 57.1 50.0 46.5 44.1 41.7 39.0 35.3 33.0 30.2 27.9 25.9 24.6 23.1 21.7 20.5 18.5 16.9 15.4 14.3 13.2 12.4 11.3 10.3 9.3 8.6 8.3 7.8 7.3 6.9 6.4 6.2 5.8 5.3 5.0 4.8 4.4 4.1 3.7 3.4 3.1 2.9 2.5 2.3 2.2 2.0 MAXIMUM CLAMPING VOLTAGE AT IPPM C (V) 9.2 10.3 11.2 10.5 12.0 12.9 13.6 14.4 15.4 17.0 18.2 19.9 21.5 23.2 24.4 26.0 27.6 29.2 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 96.8 103 113 121 126 137 146 162 177 193 209 243 259 275 328 Notes (1) Pulse test: t ≤ 50 ms p (2) Surge current waveform per fig. 3 and derate per fig. 2 (3) For bi-directional types having V WM of 10 V and less, the ID limit is doubled (4) All terms and symbols are consistent with ANSI/IEEE C62.35 (5) For the bi-directional SMBJ5.0CA, the maximum V BR is 7.25 V (6) V = 3.5 V max. at I = 50 A (uni-directional only) F F (+) Underwriters laboratory recognition for the classification of protectors (QVGQ2) under the UL standard for safety 497B and file number E136766 for both uni-directional and bi-directional devices www.umw-ic.com 2 友台半导体有限公司 UMW R UMW SMBJ5.0A(CA) THRU SMBJ188A(CA) 5V-188V 600W 150 IPPM - Peak Pulse Current, % IRSM PPPM - Peak Pulse Power (kW) 100 10 1 Peak Value IPPM 100 Half Value - IPP IPPM 2 50 10/1000 µs Waveform as defined by R.E.A. td 0 1.0 µs 10 µs 100 µs 1.0 ms 10 ms 0 1.0 2.0 3.0 td - Pulse Width (s) t - Time (ms) Fig. 1 - Peak Pulse Power Rating Curve Fig. 3 - Pulse Waveform 100 4.0 6000 CJ - Junction Capacitance (pF) Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage, % 0.1 0.1 µs TJ = 25 °C Pulse Width (td) is defined as the Point where the Peak Current decays to 50 % of IPPM tr = 10 µs 75 50 25 0 Measured at Zero Bias 1000 VR, Measured at Stand-Off Voltage VWM 100 Uni-Directional Bi-Directional TJ = 25 °C f = 1.0 MHz Vsig = 50 mVP-P 10 0 25 50 75 100 125 150 175 1 200 10 100 TJ - Initial Temperature (°C) VWM - Reverse Stand-Off Voltage (V) Fig. 2 - Pulse Power or Current vs. Initial Junction Temperature Fig. 4 - Typical Junction Capacitance 200 Peak Forward Surge Current (A) Transient Thermal Impedance (°C/W) 100 200 10 1.0 0.1 0.001 0.001 8.3 ms Single Half Sine-Wave Uni-Directional Only 100 10 0.1 1.0 1.0 100 1000 1 10 100 tp - Pulse Duration (s) Number of Cycles at 60 Hz Fig. 5 - Typical Transient Thermal Impedance Fig. 6 - Maximum Non-Repetitive Peak Forward Surge Current www.umw-ic.com 3 友台半导体有限公司 UMW R UMW SMBJ5.0A(CA) THRU SMBJ188A(CA) 5V-188V 600W ORDERING INFORMATION Order Code Package Baseqty Deliverymode UMW SMBJxxA SMB 750 Tape and reel UMW SMBJxxCA SMB 750 Tape and reel www.umw-ic.com 4 友台半导体有限公司
