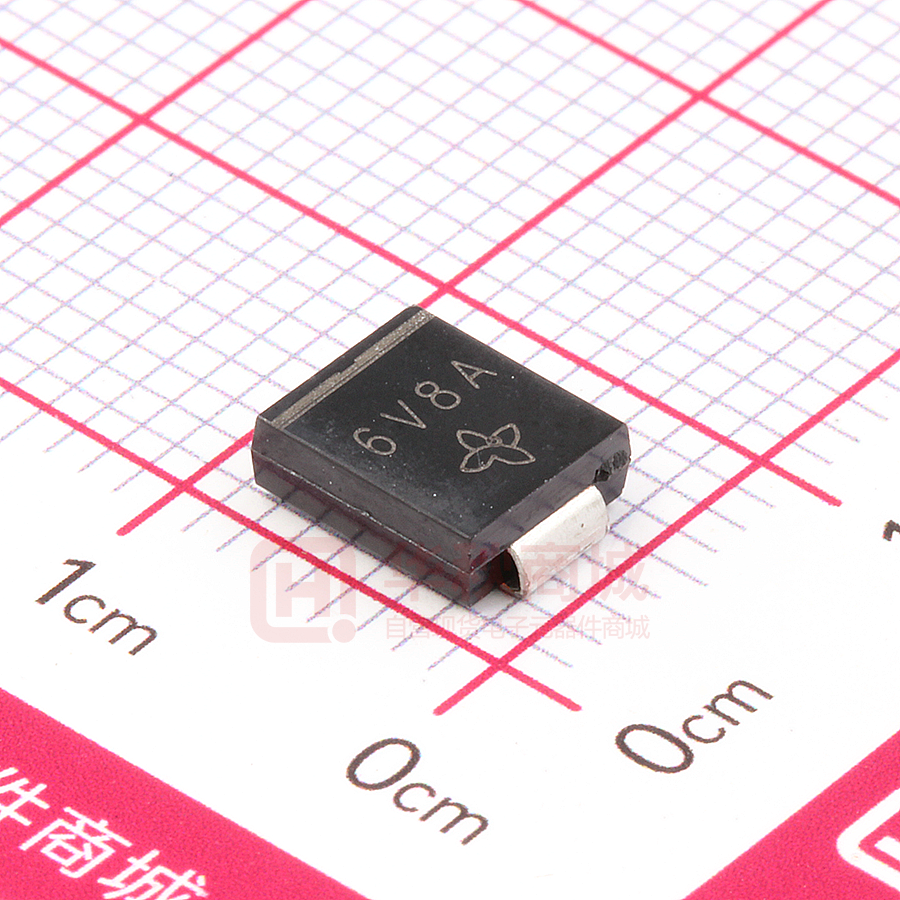

1.5SMC6.8A

UMW R 1.5SMC6.8A(CA) THRU 1.5SMC540A(CA) 6.8V-540V 1500W FEATURES • Low profile package with built-in strain relief for surface mounted applications • Glass passivated junction • Low incremental surge resistance • Low inductance • Excellent clamping capability • 1500W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01% • Very fast response time • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 SMC(DO-214AB) Cathode Band 0.155(3.94) 0.246(6.22) 0.130(3.30) 0.220(5.59) 0.280(7.11) 0.260(6.60) 0.012(0.305) 0.006(0.152) 0.103(2.62) 0.079(2.06) 0.060(1.52) 0.030(0.76) MECHANICAL DATA 0.008(0.2) 0(0) Case: JEDEC DO-214AB (SMC) molded plastic over passivated junction Terminals: Solder plated, solderable per MIL-STD-750, Method 2026. High temperature soldering: 250°C/10 seconds at terminals. Polarity: For uni-directional types the band denotes the cathode, which is positive with respect to the anode under normal TVS operation. Standard Packaging: 16mm tape (EIA STD RS-481) Weight: 0.007 oz., 0.21 g Packaging Codes – Options (Antistatic): 51 – 1K per Bulk box, 10K/carton 57 – 850 per 7" plastic Reel (16mm tape), 8.5K/carton 9A – 3.5K per 13" plastic Reel (16mm tape), 35K/carton 0.320(8.13) 0.305(7.75) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Parameter Symbol Value Unit Peak power dissipation with a 10/1000µs waveform PPPM 1500 W Maximum Instantaneous Forward Voltage at 50.0A for Unidirectional Only VF 3.5 Volts Power dissipation on infinite heatsink, TA = 50°C PM(AV) 6.5 W Peak forward surge current 8.3ms single half sine-wave uni-directional only (2) IFSM 200 A Thermal resistance junction to ambient air (3) RθJA 75 °C/W Thermal resistance junction to leads RθJL 15 °C/W TJ, TSTG –65 to +150 °C Operating junction and storage temperature range Notes: (1) Non-repetitive current pulse, per Fig.3 and derated above TA = 25°C per Fig. 2 (2) Mounted on 0.31 x 0.31” (8.0 x 8.0mm) copper pads to each terminal (3) Mounted on minimum recommended pad layout www.umw-ic.com 1 友台半导体有限公司 UMW R 1.5SMC6.8A(CA) THRU 1.5SMC540A(CA) 6.8V-540V 1500W Electrical Characteristics UNI BI Breakdown Voltage Test Stand-off Current Voltage V(BR) at IT(1) IT VWM (V) (V) (mA) MIN MAX 1.5SMC6.8A(CA) 6V8A 6V8C 6.45 7.14 10 5.8 1000 143 10.5 0.057 1.5SMC7.5A(CA) 7V5A 7V5C 7.13 7.88 10 6.4 500 133 11.3 0.061 1.5SMC8.2A(CA) 8V2A 8V2C 7.79 8.61 10 7.02 200 124 12.1 0.065 1.5SMC9.1A(CA) 9V1A 9V1C 8.65 9.55 1 7.78 50 112 13.4 0.068 1.5SMC10A(CA) 10A 10C 9.5 10.5 1 8.55 10 103 14.5 0.073 1.5SMC11A(CA) 11A 11C 10.5 11.6 1 9.4 5 96.2 15.6 0.075 1.5SMC12A(CA) 12A 12C 11.4 12.6 1 10.2 5 89.8 16.7 0.078 1.5SMC13A(CA) 13A 13C 12.4 13.7 1 11.1 5 82.4 18.2 0.081 1.5SMC15A(CA) 15A 15C 14.3 15.8 1 12.8 1 70.8 21.2 0.084 1.5SMC16A(CA) 16A 16C 15.2 16.8 1 13.6 1 66.7 22.5 0.086 1.5SMC18A(CA) 18A 18C 17.1 18.9 1 15.3 1 59.5 25.2 0.089 1.5SMC20A(CA) 20A 20C 19 21 1 17.1 1 54.2 27.7 0.09 1.5SMC22A(CA) 22A 22C 20.9 23.1 1 18.8 1 49 30.6 0.092 1.5SMC24A(CA) 24A 24C 22.8 25.2 1 20.5 1 45.2 33.2 0.09 1.5SMC27A(CA) 27A 27C 25.7 28.4 1 23.1 1 40 37.5 0.096 1.5SMC30A(CA) 30A 30C 28.5 31.5 1 25.6 1 36.2 41.4 0.097 1.5SMC33A(CA) 33A 33C 31.4 34.7 1 28.2 1 32.8 45.7 0.098 1.5SMC36A(CA) 36A 36C 34.2 37.8 1 30.8 1 30.1 49.9 0.099 1.5SMC39A(CA) 39A 39C 37.1 41 1 33.3 1 27.8 53.9 0.1 1.5SMC43A(CA) 43A 43C 40.9 45.2 1 36.8 1 25.3 59.3 0.101 1.5SMC47A(CA) 47A 47C 44.7 49.4 1 40.2 1 23.1 64.8 0.101 1.5SMC51A(CA) 51A 51C 48.5 53.6 1 43.6 1 21.4 70.1 0.102 1.5SMC56A(CA) 56A 56C 53.2 58.8 1 47.8 1 19.5 77 0.103 1.5SMC62A(CA) 62A 62C 58.9 65.1 1 53 1 17.6 85 0.104 1.5SMC68A(CA) 68A 68C 64.6 71.4 1 58.1 1 16.3 92 0.104 1.5SMC75A(CA) 75A 75C 71.3 78.8 1 64.1 1 14.6 104 0.105 1.5SMC82A(CA) 82A 82C 77.9 86.1 1 70.1 1 13.3 113 0.105 1.5SMC91A(CA) 91A 91C 86.5 95.5 1 77.8 1 12 125 0.106 1.5SMC100A(CA) 100A 100C 95 105 1 85.5 1 10.9 137 0.106 1.5SMC110A(CA) 110A 110C 105 116 1 94 1 9.9 152 0.107 1.5SMC120A(CA) 120A 120C 114 126 1 102 1 9.1 165 0.107 1.5SMC130A(CA) 130A 130C 124 137 1 111 1 8.4 179 0.107 1.5SMC150A(CA) 150A 150C 143 158 1 128 1 7.2 207 0.106 1.5SMC160A(CA) 160A 160C 152 168 1 136 1 6.8 219 0.108 1.5SMC170A(CA) 170A 170C 162 179 1 145 1 6.4 234 0.108 1.5SMC180A(CA) 180A 180C 171 189 1 154 1 6.1 246 0.108 1.5SMC200A(CA) 200A 200C 190 210 1 171 1 5.5 274 0.108 1.5SMC220A(CA) 220A 220C 209 231 1 185 1 4.6 328 0.108 1.5SMC250A(CA) 250A — 237 263 1 214 1 4.4 344 0.11 1.5SMC300A(CA) 300A — 285 315 1 256 1 3.6 414 0.11 1.5SMC350A(CA) 350A — 333 368 1 300 1 3.1 482 0.11 1.5SMC400A(CA) 400A — 380 420 1 342 1 2.7 548 0.11 1.5SMC440A(CA) 440A — 418 462 1 376 1 2.5 602 0.11 1.5SMC480A(CA) 480A — 456 504 1 408 1 2.28 658 0.11 1.5SMC510A(CA) 510A — 485 535 1 434 1 2.15 698 0.11 1.5SMC540A(CA) 540A — 513 567 1 459 1 2.03 740 0.11 General Semiconductor Part Number Device Marking Code Maximum Reverse Leakage at (4) VWM ID (µA) Maximum Peak Maximum Maximum Pulse Current Clamping Temp. (2) Voltage at IPPM Coefficient of IPPM (A) VC (V) V(BR) (% / °C) Notes: (1) Pulse test: tp ≤ 50ms (2) Surge current waveform per Fig. 3 and derate per Fig. 2 (3) All terms and symbols are consistent with ANSI/IEEE CA62.35 (4) For bidirectional types with VR 10 volts and less, the ID limit is doubled www.umw-ic.com 2 友台半导体有限公司 UMW R 1.5SMC6.8A(CA) THRU 1.5SMC540A(CA) 6.8V-540V 1500W Fig. 2 – Pulse Derating Curve Fig. 1 – Peak Pulse Power Rating Curve 100 Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage, % PPPM — Peak Pulse Power (kW) 100 10 50 25 0 0.1 0.1µs 1.0µs 10µs 100µs 1.0ms 10ms 0 50 75 100 150 175 Fig. 3 – Pulse Waveform Fig. 4 – Typical Junction Capacitance Uni-Directional 20,000 TJ = 25°C Pulse Width (td) is defined as the point where the peak current decays to 50% of IPPM Half Value — IPP 2 IPPM 50 10/1000µsec. Waveform as defined by R.E.A. 1,000 VR, Measured at Stand-Off Voltage, VWM 100 Uni-Directional Bi-Directional TJ = 25°C f = 1.0MHz Vsig = 50mVp-p td 1.0 0 3.0 2.0 200 Measured at Zero Bias 10,000 CJ — Junction Capacitance (pF) Peak Value IPPM 100 125 TA — Ambient Temperature (°C) tr = 10µsec. 0 10 4.0 1 10 100 400 VWM — Reverse Stand-Off Voltage (V) t — Time (ms) Fig. 6 - Maximum Non-Repetitive Forward Surge Current Uni-Directional Use Only Fig. 5 – Typical Transient Thermal Impedance 100 200 Peak Forward Surge Current, Amperes Transient Thermal Impedance (°C/W) 25 td — Pulse Width (sec.) 150 IPPM — Peak Pulse Current, % IRSM 75 100 10 1.0 0.1 0.001 8.3ms Single Half Sine-Wave (JEDEC Method) TJ = TJ max. 10 0.01 0.1 1 10 100 1000 1 www.umw-ic.com 10 100 Number of Cycles at 60Hz tp — Pulse Duration (sec) 3 友台半导体有限公司 UMW R 1.5SMC6.8A(CA) THRU 1.5SMC540A(CA) 6.8V-540V 1500W ORDERING INFORMATION Order Code Package Baseqty Deliverymode UMW 1.5SMCxxA SMC 850 Tape and reel UMW 1.5SMCxxCA SMC 850 Tape and reel www.umw-ic.com 4 友台半导体有限公司
