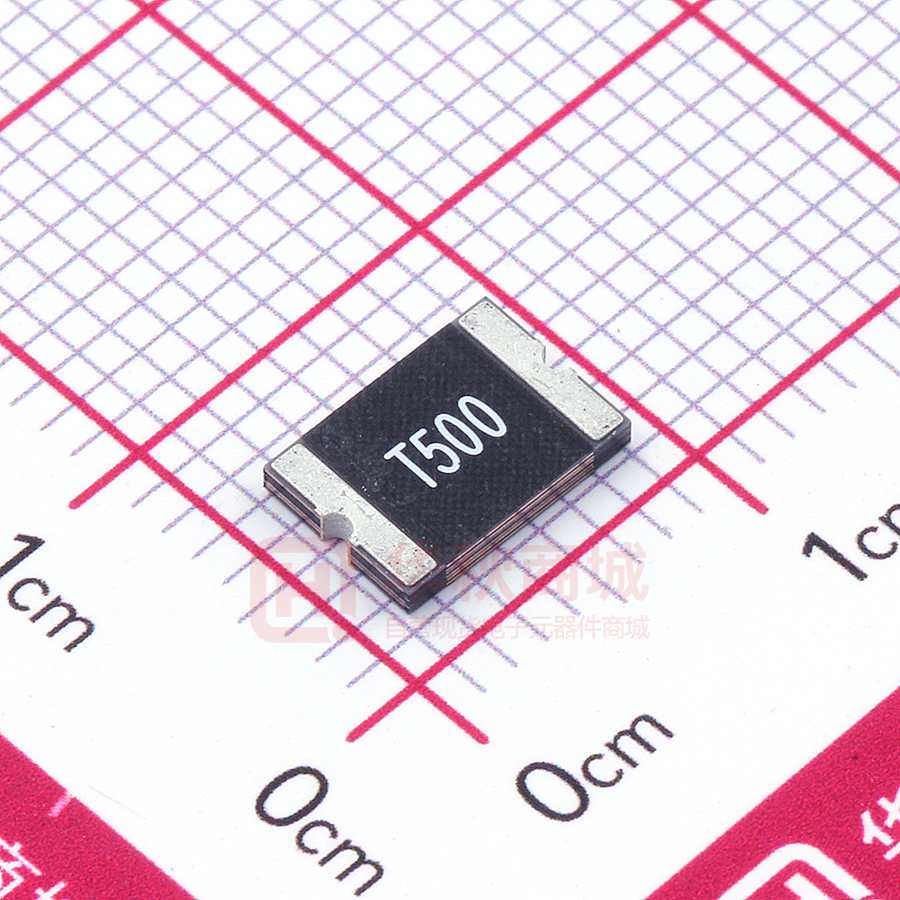

TLC-LSMD500

TLC-LSMD500

  • 厂商:

    TLC(竞沃)

  • 封装:

    2920

  • 描述:

    PTC自恢复保险丝 2920 Vmax=16V Ih=5A

  • 数据手册
  • 价格&库存
TLC-LSMD500 数据手册
POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 SMD Surface Mount 2920 Series Revision: A POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Applications • Over current and over temperature protection of automotive electronics • PC motherboards, Hard disk driver, and PC peripherals • POS Equipment • LCD / LED HDTV • USB port protection • HDMI source protection Features • • • • Agency Approvals AGENCY Surface Mount Devices Standard 2920mils footprint Surface Mount packaging for automated assembly Compatible with Pb and Pb-free solder reflow profiles Regulation/Standard AGENCY FILE NUMBER E352136 / Electrical Characteristics P/N Ihold (A) TLC-LSMD030 Itrip (A) Vmax, (V) Imax (A) 0.30 0.60 60 TLC-LSMD030/50 0.30 0.60 TLC-LSMD050 0.50 TLC-LSMD050/50 Time To Trip Current (A) Time (Sec.) 10 1.50 3.0 50 10 1.50 1.00 60 10 0.50 1.00 50 TLC-LSMD075 0.75 1.50 TLC-LSMD075/60 0.75 TLC-LSMD100 1.00 TLC-LSMD125 Pd typ (W) Resistance Agency Approvals Rmin (Ω) R1max (Ω) UL/CSA TUV 1.50 0.600 4.300 × × 3.0 1.50 0.600 4.300 × × 2.50 3.0 1.50 0.180 1.400 × × 10 2.50 3.0 1.50 0.180 1.400 × × 33 40 8.00 0.30 1.50 0.100 1.000 × × 1.50 60 40 8.00 0.30 1.50 0.100 1.000 × × 2.00 33 40 8.00 0.50 1.50 0.065 0.410 × × 1.25 2.50 33 40 8.00 2.0 1.50 0.050 0.250 × × TLC-LSMD150 1.50 3.00 33 40 8.00 2.0 1.50 0.035 0.230 × × TLC-LSMD185 1.85 3.70 33 100 8.00 2.0 1.50 0.030 0.150 √ × TLC-LSMD200 2.00 4.00 16 40 8.00 4.50 1.50 0.020 0.120 × × TLC-LSMD250 2.50 5.00 16 40 8.00 16.0 1.50 0.018 0.085 × × TLC-LSMD260 2.60 5.20 16 40 8.00 20.0 1.50 0.014 0.075 × × TLC-LSMD260D 2.60 5.20 24 100 8.00 18.0 1.50 0.014 0.075 √ × TLC-LSMD300 3.00 6.00 12 40 8.00 25.0 1.50 0.010 0.055 × × TLC-LSMD300D 3.00 6.00 24 100 8.00 20.0 1.50 0.010 0.055 √ × TLC-LSMD300D/16 3.00 6.00 16 40 8.00 25.0 1.50 0.010 0.055 × × TLC-LSMD400 4.00 8.00 16 40 20.0 5.00 1.50 0.007 0.035 × × Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 TLC-LSMD450 4.50 9.00 16 40 22.5 5.00 1.50 0.005 0.020 × × TLC-LSMD500 5.00 10.00 16 40 25.0 5.00 1.50 0.005 0.022 × × TLC-LSMD500/8 5.00 10.00 8 40 25.0 5.00 1.50 0.005 0.018 × × Ihold: Holding Current: maximum current at which the device will not trip in 25℃ still air. Itrip:Tripping Current minimum current at which the device will trip in 25℃ still air. Vmax: Maximum voltage device can withstand without damage at rated current. I max: Maximum fault current device can withstand without damage at rated voltage. Time To Trip: Maximum time to trip(s) at assigned current. Pd typ: Rated working power. R min: Minimum resistance of device prior to trip at 25℃. R1 max: Maximum resistance of device is measured one hours post reflow at 25℃. Noted: All electrical function test is conducted after PCB mounted. Thermal Derating Chart – I hold/Itrip (Amps) P/N TLC-LSMD030 TLC-LSMD030/50 TLC-LSMD050 TLC-LSMD050/50 TLC-LSMD075 TLC-LSMD075/60 TLC-LSMD100 TLC-LSMD125 TLC-LSMD150 TLC-LSMD185 TLC-LSMD200 TLC-LSMD250 TLC-LSMD260 TLC-LSMD260D Test item Ambient Operating Temperature -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ I-hold 0.45 0.40 0.35 0.30 0.25 0.23 0.20 0.17 0.14 I-trip 0.90 0.80 0.70 0.60 0.50 0.46 0.40 0.34 0.28 I-hold 0.45 0.40 0.35 0.30 0.25 0.23 0.20 0.17 0.14 I-trip 0.90 0.80 0.70 0.60 0.50 0.46 0.40 0.34 0.28 I-hold 0.76 0.67 0.59 0.50 0.42 0.38 0.33 0.29 0.23 I-trip 1.52 1.34 1.18 1.00 0.84 0.76 0.66 0.58 0.46 I-hold 0.76 0.67 0.59 0.50 0.42 0.38 0.33 0.29 0.23 I-trip 1.52 1.34 1.18 1.00 0.84 0.76 0.66 0.58 0.46 I-hold 1.13 1.01 0.88 0.75 0.62 0.56 0.50 0.44 0.34 I-trip 2.26 2.02 1.76 1.50 1.24 1.12 1.00 0.88 0.68 I-hold 1.13 1.01 0.88 0.75 0.62 0.56 0.50 0.44 0.34 I-trip 2.26 2.02 1.76 1.50 1.24 1.12 1.00 0.88 0.68 I-hold 1.66 1.47 1.29 1.00 0.91 0.83 0.73 0.64 0.50 I-trip 3.32 2.94 2.58 2.00 1.82 1.66 1.46 1.28 1.00 I-hold 1.89 1.68 1.46 1.25 1.04 0.94 0.83 0.73 0.56 I-trip 3.78 3.36 2.92 2.50 2.08 1.88 1.66 1.46 1.12 I-hold 2.27 2.01 1.76 1.50 1.25 1.13 1.00 0.87 0.74 I-trip 4.54 4.02 3.52 3.00 2.50 2.26 2.00 1.74 1.48 I-hold 2.80 2.47 2.17 1.85 1.54 1.39 1.22 1.07 0.85 I-trip 5.60 4.94 4.34 3.70 3.08 2.78 2.44 2.14 1.70 I-hold 3.02 2.68 2.34 2.00 1.80 1.70 1.54 1.40 1.30 I-trip 6.04 5.36 4.68 4.00 3.60 3.40 3.08 2.80 2.60 I-hold 3.78 3.35 2.93 2.50 2.25 2.13 1.93 1.75 1.63 I-trip 7.56 6.70 5.86 5.00 4.50 4.26 3.86 3.50 3.26 I-hold 3.93 3.48 3.04 2.60 2.34 2.21 2.00 1.82 1.69 I-trip 7.86 6.96 6.08 5.20 4.68 4.42 4.00 3.64 3.38 I-hold 3.93 3.48 3.04 2.60 2.34 2.21 2.00 1.82 1.69 I-trip 7.86 6.96 6.08 5.20 4.68 4.42 4.00 3.64 3.38 Revision: A POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 I-hold 4.53 4.02 3.51 3.00 2.52 2.26 1.99 1.75 1.34 I-trip 9.06 8.04 7.02 6.00 5.04 4.52 3.98 3.50 2.68 I-hold 4.53 4.02 3.51 3.00 2.52 2.26 1.99 1.75 1.34 I-trip 9.06 8.04 7.02 6.00 5.04 4.52 3.98 3.50 2.68 I-hold 4.53 4.02 3.51 3.00 2.52 2.26 1.99 1.75 1.34 I-trip 9.06 8.04 7.02 6.00 5.04 4.52 3.98 3.50 2.68 I-hold 6.04 5.36 4.68 4.00 3.60 3.40 3.08 2.80 2.60 I-trip 12.08 10.72 9.36 8.00 7.20 6.80 6.16 5.60 5.20 I-hold 6.80 6.03 5.27 4.5 4.05 3.83 3.47 3.15 2.93 I-trip 13.60 12.06 10.54 9.00 8.10 7.66 6.94 6.30 5.86 I-hold 7.56 6.70 5.86 5.00 4.50 4.26 3.86 3.50 3.26 I-trip 15.12 13.40 11.72 10.00 9.00 8.52 7.72 7.00 6.52 I-hold 7.56 6.70 5.86 5.00 4.50 4.26 3.86 3.50 3.26 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-LSMD300 TLC-LSMD300D TLC-LSMD300D/16 TLC-LSMD400 TLC-LSMD450 TLC-LSMD500 TLC-LSMD500/8 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 15.12 13.40 11.72 10.00 9.00 8.52 7.72 7.00 6.52 I-trip Notes: The temperature rerating data is for reference only. Please contact TLC technical support for detail temperature rerating information. Typical time to trip at 25℃ Note: TLC-LSMD030(/50) is represented for TLC-LSMD030 and TLC-LSMD030/50, and so on. Reliability Requirement Humidity Aging Passive Aging Thermal Shock Resistance to Solvents Vibration Solderability +85°C, 85% R.H.,1000 hours ±5%Typical Resistance Change +85°C, 1000 hours ±5%Typical Resistance Change 30min@-40℃~30min@85℃, ,20cycles -33%Typical Resistance Change MIL-STD-202, Method 215 Marking Still legible MIL-STD-833C,Method 2007.1,Condition A R min. < R i 95% coverage Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Environmental Characteristics Operating/Storage Temperature ...................... -40 °C to +85 °C Maximum Device Surface Temperature in Tripped State ............................................ 125 °C Storage Conditions ………………+40 °C Max. 70% RH Max. Packed in original packaging. Solder Reflow Conditions Reflow Profile Lead free Heating rate from Tsmax to Tp Max.3℃/second Pre-heat: Tsmin 150℃ Tsmax 200℃ Tsmin to Tsmax 60~180seconds >217℃ Temperature(TL) Time(tL) 60~150seconds Peak temperature(Tp) 260℃ Time at Peak temperature ±5℃(tp) 20~40seconds Cooling rate Max.6℃/second Time from 25℃ to Peak Temperature 8 minutes max Critlcal Zone TL to TP Rampup TL Temperature Soldering time: tp TP Tsma tL x Tsmi n Ramp-down ts Preheat 25 t 25℃ to Peak Time Warning for Reflow: 1、The printed solder thickness is not over 0.25mm,Excess solder may cause a short circuit, especially during hand soldering 2、If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements 3 、 Device can not be wave soldered. Please contact TLC for hand soldering and dip soldering recommendations. 4、Device can’t contact solvent Note:All temperature in top chart is measured on the surface of devices Product Dimensions & Marking (Unit: mm) Top andBottomView Side View C Recommended Pad Layout(mm) F F T T030 H Manufacturer's Trademark G P/N 030 Part Identification Recommended Pad Device Dimension Marking A B Layout(mm) C D F G H Min. Max. Min. Max. Min. Max. Min. Nor. Nor. Nor. TLC-LSMD030 T030 6.73 7.98 4.80 5.44 0.75 1.25 0.30 2.00 4.60 5.30 TLC-LSMD030/50 T030 6.73 7.98 4.80 5.44 0.75 1.25 0.30 2.00 4.60 5.30 TLC-LSMD050 T050 6.73 7.98 4.80 5.44 0.75 1.25 0.30 2.00 4.60 5.30 TLC-LSMD050/50 T050 6.73 7.98 4.80 5.44 0.75 1.25 0.30 2.00 4.60 5.30 TLC-LSMD075 T075 6.73 7.98 4.80 5.44 0.65 1.05 0.30 2.00 4.60 5.30 TLC-LSMD075/60 T075 6.73 7.98 4.80 5.44 1.00 1.50 0.30 2.00 4.60 5.30 Revision: A POLYMER PTC RESETTABLE FUSE E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-LSMD100 T100 6.73 7.98 4.80 5.44 0.65 1.05 0.30 2.00 4.60 5.30 TLC-LSMD125 T125 6.73 7.98 4.80 5.44 0.65 1.05 0.30 2.00 4.60 5.30 TLC-LSMD150 T150 6.73 7.98 4.80 5.44 0.90 1.30 0.30 2.00 4.60 5.30 TLC-LSMD185 T185 6.73 7.98 4.80 5.44 0.90 1.30 0.30 2.00 4.60 5.30 TLC-LSMD200 T200 6.73 7.98 4.80 5.44 0.45 0.85 0.30 2.00 4.60 5.30 TLC-LSMD250 T250 6.73 7.98 4.80 5.44 0.45 0.85 0.30 2.00 4.60 5.30 TLC-LSMD260 T260 6.73 7.98 4.80 5.44 0.45 0.85 0.30 2.00 4.60 5.30 TLC-LSMD260D T260 6.73 7.98 4.80 5.44 1.10 1.60 0.30 2.00 4.60 5.30 TLC-LSMD300 T300 6.73 7.98 4.80 5.44 0.45 0.85 0.30 2.00 4.60 5.30 TLC-LSMD300D T300 6.73 7.98 4.80 5.44 1.10 1.50 0.30 2.00 4.60 5.30 TLC-LSMD300D/16 T300 6.73 7.98 4.80 5.44 1.10 1.50 0.30 2.00 4.60 5.30 TLC-LSMD400 T400 6.73 7.98 4.80 5.44 1.10 1.50 0.30 2.00 4.60 5.30 TLC-LSMD450 T450 6.73 7.98 4.80 5.44 1.10 1.40 0.30 2.00 4.60 5.30 TLC-LSMD500 T500 6.73 7.98 4.80 5.44 1.00 1.40 0.30 2.00 4.60 5.30 TLC-LSMD500/8 T500 6.73 7.98 4.80 5.44 0.80 1.20 0.30 2.00 4.60 5.30 Packaging P/N Product size TLC-LSMD030 2920 Packaging Option Tape&Reel Quantity 1500 TLC-LSMD030/50 2920 Tape&Reel 1500 TLC-LSMD050 2920 Tape&Reel 1500 TLC-LSMD050/50 2920 Tape&Reel 1500 TLC-LSMD075 2920 Tape&Reel 1500 TLC-LSMD075/60 2920 Tape&Reel 1000 TLC-LSMD100 2920 Tape&Reel 1500 TLC-LSMD125 2920 Tape&Reel 1500 TLC-LSMD150 2920 Tape&Reel 1000 TLC-LSMD185 2920 Tape&Reel 1000 TLC-LSMD200 2920 Tape&Reel 1500 TLC-LSMD250 2920 Tape&Reel 2000 TLC-LSMD260 2920 Tape&Reel 2000 TLC-LSMD260D 2920 Tape&Reel 1000 2000 TLC-LSMD300 2920 Tape&Reel TLC-LSMD300D 2920 Tape&Reel 1000 TLC-LSMD300D/16 2920 Tape&Reel 1000 TLC-LSMD400 2920 Tape&Reel 1000 TLC-LSMD450 2920 Tape&Reel 1000 TLC-LSMD500 2920 Tape&Reel 1000 TLC-LSMD500/8 2920 Tape&Reel 1000 Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Product Ordering Number System TLC- X SMD XXX Ihold current Surface mount Product size: “L”--2920 Manufacturer Tape and Reel Specifications Dimensions for 2920 size product (see table below) TLC-LSMD030 TLC-LSMD075/60 TLC-LSMD200 TLC-LSMD030/50 TLC-LSMD150 TLC-LSMD250 TLC-LSMD050 TLC-LSMD185 TLC-LSMD260 TLC-LSMD050/50 TLC-LSMD260D TLC-LSMD300 TLC-LSMD075 TLC-LSMD300D TLC-LSMD100 TLC-LSMD300D/16 TLC-LSMD125 TLC-LSMD400 TLC-LSMD450 TLC-LSMD500 TLC-LSMD500/8 TAPE DIMENSIONS: EIA-481-2(mm) W 16.0±0.10 16.0±0.10 16.0±0.10 P0 4.00±0.10 4.00±0.10 4.00±0.10 P1 8.00±0.10 8.00±0.10 8.00±0.10 P2 2.00±0.10 2.00±0.10 2.00±0.10 A0 5.70±0.10 5.70±0.10 5.70±0.10 B0 8.00±0.10 8.00±0.10 8.00±0.10 B1max 9.50 9.50 9.50 D0 1.50+0.10/-0.00 1.50+0.10/-0.00 1.50+0.10/-0.00 F 7.50±0.10 7.50±0.10 7.50±0.10 E1 1.75±0.10 1.75±0.10 1.75±0.10 E2min 14.25 14.25 14.25 T max 0.35 0.35 0.35 T1min 0.10 K0 1.10±0.10 0.10 1.50±0.10 Leader min 390 Trailer min 160 0.10 0.90±0.10 Reel Dimensions: EIA-481-2(mm) A max 185 N min 50 W1 17.0±0.30 W2 max 20.1 Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn 1. 2. 3. 4. 5. 6. 7. 8. E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Cautions for SMD PPTC Use Operation beyond the rated maximum voltage or current may result in device damage and possible electrical arcing or flame. Hold current at all temperatures specified in the SPEC is the conventional performance of PTC obtained by one time reflow welding. PTC can hold 1 hour under current conditions at a given temperature. This current is not the condition of long-term charging or discharging current for this type of PTC. The above parameters are concluded from one time of reflow soldering processing the PTC. If there is any further heat generated process like injection or dispensing at the customer's premise, the aforementioned parameters will decrease at certain degree. Therefore the verification test to be conducted is necessary. The PTC is thermal sensitive device. It is recommended not to design any heat source devices around it to reduce the outside heat source impact. SMD PTC is designed for SMT processing which applies reflow soldering. Please refer to the recommended solder reflow curve. If the reflow soldering temperature exceeds the recommended value, the PTC might be damaged. Hand welding PTC is prohibited. Heat gun is not allowed to use during the circuit board components or terminals rework . Please do not smash, clamp, pull, dent or twist by tool during assembling process otherwise it might be a cause of the performance degradation. PTC is resettable protection device which shall not be taken for use as switch. Multiple times tripping shall lower the PTC hold current. In the process of PTC processing, if there is soldering iron welding process, it is suggested that the welding position should be more than 1.5mm away from PTC, the welding tool temperature should be lower than 350 ℃, and the contact time between soldering iron and solder joint should not exceed 3sec. Revision: A
