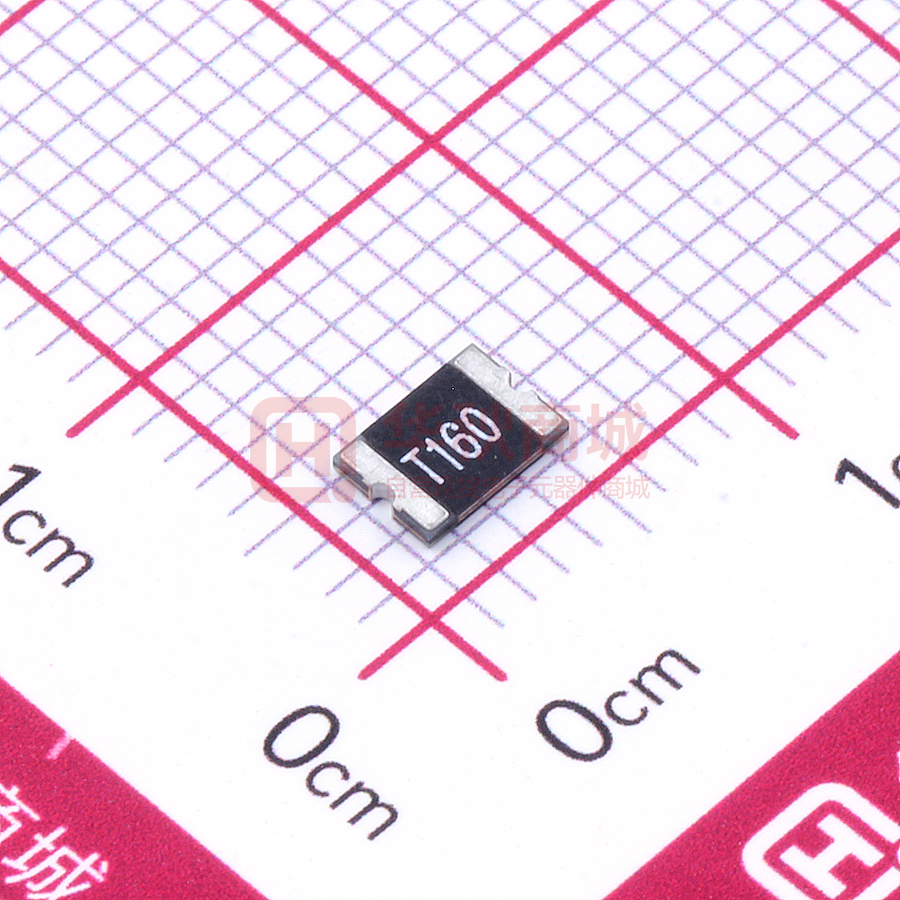

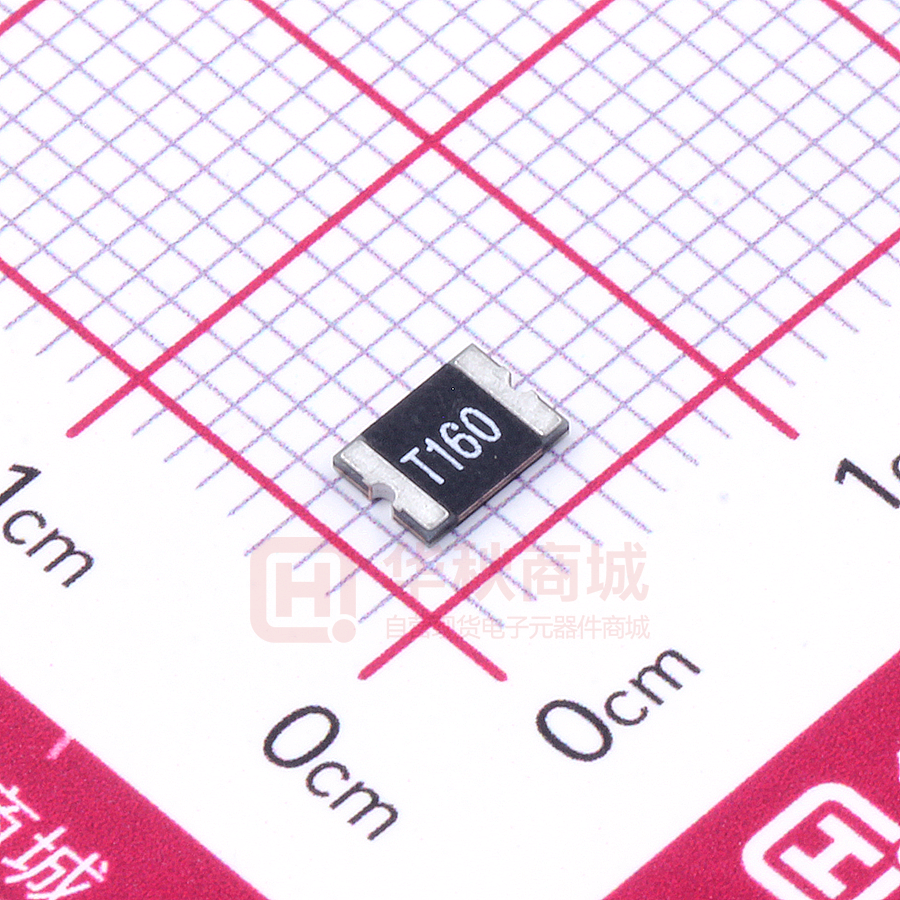

TLC-MSMD160/16

POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 SMD Surface Mount 1812 Series Revision: B POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Applications • Over current and over temperature protection of automotive electronics • PC motherboards, Hard disk driver, and PC peripherals • POS Equipment • LCD / LED HDTV • USB port protection • HDMI source protection Features • • • • Agency Approvals AGENCY Surface Mount Devices Standard 4532mm(1812mils) footprint Surface Mount packaging for automated assembly Compatible with Pb and Pb-free solder reflow profiles Regulation/Standard AGENCY FILE NUMBER E352136 R50322001 Electrical Characteristics P/N Ihold (A) TLC-MSMD010 Itrip (A) Vmax, (V) Imax (A) 0.10 0.30 60 TLC-MSMD010/30 0.10 0.30 TLC-MSMD010/50 0.10 TLC-MSMD014 Time To Trip Current (A) Time (Sec.) 10 0.5 1.50 30 10 0.5 0.30 50 10 0.14 0.34 60 TLC-MSMD020 0.20 0.40 TLC-MSMD020/60 0.20 TLC-MSMD030 0.30 TLC-MSMD035 Pd typ (W) Resistance Agency Approvals Rmin (Ω) R1max (Ω) UL/CSA TUV 0.8 0.70 15.0 √ √ 1.50 0.8 0.70 15.0 × × 0.5 1.50 0.8 0.70 15.0 × × 10 1.5 0.15 0.8 0.40 6.50 √ √ 30 10 8.0 0.20 0.8 0.75 5.00 √ √ 0.40 60 10 1.5 0.15 0.8 0.40 6.00 √ √ 0.60 30 10 8.0 0.10 0.8 0.30 3.00 √ √ 0.35 0.70 16 40 8.0 0.10 0.8 0.20 1.80 √ √ TLC-MSMD035/30 0.35 0.70 30 40 8.0 0.10 0.8 0.20 1.80 × × TLC-MSMD050 0.50 1.00 15 40 8.0 0.15 0.8 0.15 1.00 √ √ TLC-MSMD050/16 0.50 1.00 16 40 8.0 0.15 0.8 0.15 1.00 × × TLC-MSMD050/24 0.50 1.00 24 40 8.0 0.15 0.8 0.15 1.00 × × TLC-MSMD050/30 0.50 1.00 30 100 8.0 0.15 0.8 0.15 1.00 √ × TLC-MSMD050/33 0.50 1.00 33 40 8.0 0.15 0.8 0.15 1.00 × × TLC-MSMD050/60 0.50 1.00 60 100 8.0 0.15 0.8 0.15 1.00 √ × TLC-MSMD075 0.75 1.50 16 40 8.0 0.20 0.8 0.11 0.45 √ √ TLC-MSMD075/24 0.75 1.50 24 40 8.0 0.20 0.8 0.11 0.45 √ √ TLC-MSMD075/33 0.75 1.50 33 40 8.0 0.20 0.8 0.11 0.40 √ √ Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 TLC-MSMD110 1.10 2.20 6 100 8.0 0.30 0.8 0.040 0.210 √ √ TLC-MSMD110/8 1.10 2.20 8 100 8.0 0.30 0.8 0.040 0.225 × × TLC-MSMD110/12 1.10 2.20 12 100 8.0 0.30 0.8 0.040 0.225 × × TLC-MSMD110/16 1.10 2.20 16 100 8.0 0.50 0.8 0.040 0.225 √ √ TLC-MSMD110/24 1.10 2.20 24 100 8.0 0.50 1.2 0.060 0.200 √ √ TLC-MSMD110/33 1.10 2.20 33 100 8.0 0.50 1.2 0.055 0.220 × × TLC-MSMD125 1.25 2.50 6 40 8.0 0.40 0.8 0.035 0.140 √ √ TLC-MSMD125/8 1.25 2.50 8 100 8.0 0.40 0.8 0.035 0.140 × × TLC-MSMD125/12 1.25 2.50 12 100 8.0 0.40 0.8 0.035 0.140 × × TLC-MSMD125/16 1.25 2.50 16 100 8.0 0.40 0.8 0.035 0.140 × × TLC-MSMD125/30 1.25 2.50 30 100 8.0 0.40 0.8 0.035 0.210 × × TLC-MSMD150 1.50 3.00 6 100 8.0 0.50 0.8 0.030 0.120 √ √ TLC-MSMD150/8 1.50 3.00 8 100 8.0 0.50 0.8 0.030 0.120 × × TLC-MSMD150/12 1.50 3.00 12 100 8.0 0.50 1.0 0.030 0.120 √ √ TLC-MSMD150/16 1.50 3.00 16 100 8.0 0.50 1.0 0.030 0.120 × √ TLC-MSMD150/24 1.50 3.00 24 100 8.0 1.50 1.2 0.030 0.140 √ √ TLC-MSMD160/6 1.60 3.20 6 100 8.0 1.00 1.0 0.025 0.120 × × TLC-MSMD160 1.60 3.20 8 100 8.0 1.00 1.0 0.025 0.120 √ √ TLC-MSMD160/12 1.60 3.20 12 100 8.0 1.00 1.0 0.025 0.120 √ √ TLC-MSMD160/16 1.60 3.20 16 100 8.0 1.00 1.0 0.025 0.120 √ √ TLC-MSMD160/24 1.60 3.20 24 100 8.0 1.00 1.0 0.025 0.140 × × TLC-MSMD200 2.00 4.00 8 100 8.0 3.00 1.2 0.020 0.080 √ √ TLC-MSMD200/12 2.00 4.00 12 100 8.0 3.00 1.2 0.020 0.080 × × TLC-MSMD200/16 2.00 4.00 16 100 8.0 3.00 1.2 0.020 0.080 × × TLC-MSMD200/20 2.00 4.00 20 100 8.0 3.00 1.2 0.020 0.080 × × TLC-MSMD200/24 2.00 4.00 24 40 8.0 3.00 1.2 0.020 0.100 × × TLC-MSMD250/16 2.50 5.00 16 100 8.0 5.00 1.2 0.015 0.100 √ √ TLC-MSMD250/12 2.50 5.00 12 100 8.0 5.00 1.2 0.015 0.100 × × TLC-MSMD250/8 2.50 5.00 8 100 8.0 5.00 1.2 0.015 0.100 × × TLC-MSMD260 2.60 5.20 6 100 8.0 5.00 1.2 0.015 0.080 √ √ TLC-MSMD260/8 2.60 5.20 8 100 8.0 5.00 1.2 0.015 0.080 × × TLC-MSMD260/12 2.60 5.20 12 100 8.0 5.00 1.2 0.015 0.080 √ × TLC-MSMD260/16 2.60 5.20 16 100 8.0 5.00 1.2 0.015 0.080 × × TLC-MSMD300 3.00 6.00 6 100 8.0 5.00 1.2 0.012 0.060 √ √ TLC-MSMD300/8 3.00 6.00 8 100 8.0 5.00 1.2 0.012 0.060 × × TLC-MSMD300/12 3.00 6.00 12 100 8.0 5.00 1.2 0.012 0.060 × × TLC-MSMD300/16 3.00 6.00 16 100 8.0 5.00 1.2 0.012 0.060 × × Ihold: Holding Current: maximum current at which the device will not trip in 25℃ still air. Itrip: Tripping Current minimum current at which the device will trip in 25℃ still air. Vmax: Maximum voltage device can withstand without damage at rated current. I max: Maximum fault current device can withstand without damage at rated voltage. Time To Trip: Maximum time to trip(s) at assigned current. Pd typ: Rated working power. R min: Minimum resistance of device prior to trip at 25℃. R1 max: Maximum resistance of device is measured one hours post reflow at 25℃. Noted: All electrical function test is conducted after PCB mounted. Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Thermal Derating Chart – I hold/Itrip (Amps) P/N TLC-MSMD010 TLC-MSMD010/30 TLC-MSMD010/50 TLC-MSMD014 TLC-MSMD020 TLC-MSMD020/60 TLC-MSMD030 TLC-MSMD035 TLC-MSMD035/30 TLC-MSMD050 TLC-MSMD050/16 TLC-MSMD050/24 TLC-MSMD050/30 TLC-MSMD050/33 TLC-MSMD050/60 TLC-MSMD075 TLC-MSMD075/24 TLC-MSMD075/33 TLC-MSMD110 TLC-MSMD110/8 Test item Ambient Operating Temperature -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ I-hold 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.03 I-trip 0.48 0.42 0.36 0.30 0.24 0.21 0.18 0.15 0.09 I-hold 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.03 I-trip 0.48 0.42 0.36 0.30 0.24 0.21 0.18 0.15 0.09 I-hold 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.03 I-trip 0.48 0.42 0.36 0.30 0.24 0.21 0.18 0.15 0.09 I-hold 0.23 0.19 0.17 0.14 0.12 0.10 0.09 0.08 0.06 I-trip 0.56 0.46 0.41 0.34 0.29 0.24 0.22 0.19 0.15 I-hold 0.29 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.10 I-trip 0.58 0.52 0.46 0.40 0.34 0.30 0.28 0.24 0.20 I-hold 0.29 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.10 I-trip 0.58 0.52 0.46 0.40 0.34 0.30 0.28 0.24 0.20 I-hold 0.44 0.39 0.35 0.30 0.26 0.23 0.21 0.18 0.15 I-trip 0.88 0.78 0.70 0.60 0.52 0.46 0.42 0.36 0.30 I-hold 0.51 0.46 0.41 0.35 0.30 0.27 0.25 0.21 0.18 I-trip 1.02 0.92 0.82 0.70 0.60 0.54 0.50 0.42 0.36 I-hold 0.51 0.46 0.41 0.35 0.30 0.27 0.25 0.21 0.18 I-trip 1.02 0.92 0.82 0.70 0.60 0.54 0.50 0.42 0.36 I-hold 0.77 0.68 0.59 0.50 0.44 0.40 0.37 0.33 0.29 I-trip 1.54 1.36 1.18 1.00 0.88 0.80 0.74 0.66 0.58 I-hold 0.77 0.68 0.59 0.50 0.44 0.40 0.37 0.33 0.29 I-trip 1.54 1.36 1.18 1.00 0.88 0.80 0.74 0.66 0.58 I-hold 0.77 0.68 0.59 0.50 0.44 0.40 0.37 0.33 0.29 I-trip 1.54 1.36 1.18 1.00 0.88 0.80 0.74 0.66 0.58 I-hold 0.77 0.68 0.59 0.50 0.44 0.40 0.37 0.33 0.29 I-trip 1.54 1.36 1.18 1.00 0.88 0.80 0.74 0.66 0.58 I-hold 0.77 0.68 0.59 0.50 0.44 0.40 0.37 0.33 0.29 I-trip 1.54 1.36 1.18 1.00 0.88 0.80 0.74 0.66 0.58 I-hold 0.77 0.68 0.59 0.50 0.44 0.40 0.37 0.33 0.29 I-trip 1.54 1.36 1.18 1.00 0.88 0.80 0.74 0.66 0.58 I-hold 1.15 1.01 0.88 0.75 0.65 0.60 0.55 0.49 0.43 I-trip 2.30 2.02 1.76 1.50 1.30 1.20 1.10 0.98 0.86 I-hold 1.15 1.01 0.88 0.75 0.65 0.60 0.55 0.49 0.43 I-trip 2.30 2.02 1.76 1.50 1.30 1.20 1.10 0.98 0.86 I-hold 1.15 1.01 0.88 0.75 0.65 0.60 0.55 0.49 0.43 I-trip 2.30 2.02 1.76 1.50 1.30 1.20 1.10 0.98 0.86 I-hold 1.59 1.43 1.26 1.10 0.95 0.87 0.80 0.71 0.60 I-trip 3.18 2.86 2.52 2.20 1.90 1.74 1.60 1.42 1.20 I-hold 1.59 1.43 1.26 1.10 0.95 0.87 0.80 0.71 0.60 I-trip 3.18 2.86 2.52 2.20 1.90 1.74 1.60 1.42 1.20 Revision: B POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 I-hold 1.59 1.43 1.26 1.10 0.95 0.87 0.80 0.71 0.60 I-trip 3.18 2.86 2.52 2.20 1.90 1.74 1.60 1.42 1.20 I-hold 1.59 1.43 1.26 1.10 0.95 0.87 0.80 0.71 0.60 I-trip 3.18 2.86 2.52 2.20 1.90 1.74 1.60 1.42 1.20 I-hold 1.59 1.43 1.26 1.10 0.95 0.87 0.80 0.71 0.60 I-trip 3.18 2.86 2.52 2.20 1.90 1.74 1.60 1.42 1.20 I-hold 1.59 1.43 1.26 1.10 0.95 0.87 0.80 0.71 0.60 I-trip 3.18 2.86 2.52 2.20 1.90 1.74 1.60 1.42 1.20 I-hold 1.80 1.63 1.43 1.25 1.08 0.99 0.91 0.81 0.68 I-trip 3.60 3.26 2.86 2.50 2.16 1.98 1.82 1.62 1.36 I-hold 1.80 1.63 1.43 1.25 1.08 0.99 0.91 0.81 0.68 I-trip 3.60 3.26 2.86 2.50 2.16 1.98 1.82 1.62 1.36 I-hold 1.80 1.63 1.43 1.25 1.08 0.99 0.91 0.81 0.68 I-trip 3.60 3.26 2.86 2.50 2.16 1.98 1.82 1.62 1.36 I-hold 1.80 1.63 1.43 1.25 1.08 0.99 0.91 0.81 0.68 I-trip 3.60 3.26 2.86 2.50 2.16 1.98 1.82 1.62 1.36 I-hold 1.80 1.63 1.43 1.25 1.08 0.99 0.91 0.81 0.68 I-trip 3.60 3.26 2.86 2.50 2.16 1.98 1.82 1.62 1.36 I-hold 2.17 1.95 1.72 1.50 1.30 1.18 1.09 0.97 0.82 I-trip 4.34 3.90 3.44 3.00 2.60 2.36 2.18 1.94 1.64 I-hold 2.17 1.95 1.72 1.50 1.30 1.18 1.09 0.97 0.82 I-trip 4.34 3.90 3.44 3.00 2.60 2.36 2.18 1.94 1.64 I-hold 2.17 1.95 1.72 1.50 1.30 1.18 1.09 0.97 0.82 I-trip 4.34 3.90 3.44 3.00 2.60 2.36 2.18 1.94 1.64 I-hold 2.17 1.95 1.72 1.50 1.30 1.18 1.09 0.97 0.82 I-trip 4.34 3.90 3.44 3.00 2.60 2.36 2.18 1.94 1.64 I-hold 2.17 1.95 1.72 1.50 1.30 1.18 1.09 0.97 0.82 I-trip 4.34 3.90 3.44 3.00 2.60 2.36 2.18 1.94 1.64 I-hold 2.30 2.20 1.90 1.60 1.45 1.30 1.15 1.03 0.91 I-trip 4.60 4.40 3.80 3.20 2.90 2.60 2.30 2.06 1.82 I-hold 2.30 2.20 1.90 1.60 1.45 1.30 1.15 1.03 0.91 I-trip 4.60 4.40 3.80 3.20 2.90 2.60 2.30 2.06 1.82 I-hold 2.30 2.20 1.90 1.60 1.45 1.30 1.15 1.03 0.91 I-trip 4.60 4.40 3.80 3.20 2.90 2.60 2.30 2.06 1.82 I-hold 2.30 2.20 1.90 1.60 1.45 1.30 1.15 1.03 0.91 I-trip 4.60 4.40 3.80 3.20 2.90 2.60 2.30 2.06 1.82 I-hold 2.30 2.20 1.90 1.60 1.45 1.30 1.15 1.03 0.91 I-trip 4.60 4.40 3.80 3.20 2.90 2.60 2.30 2.06 1.82 I-hold 3.08 2.71 2.35 2.00 1.80 1.60 1.50 1.40 1.25 I-trip 6.16 5.42 4.70 4.00 3.60 3.20 3.00 2.80 2.50 I-hold 3.08 2.71 2.35 2.00 1.80 1.60 1.50 1.40 1.25 I-trip 6.16 5.42 4.70 4.00 3.60 3.20 3.00 2.80 2.50 I-hold 3.08 2.71 2.35 2.00 1.80 1.60 1.50 1.40 1.25 I-trip 6.16 5.42 4.70 4.00 3.60 3.20 3.00 2.80 2.50 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-MSMD110/12 TLC-MSMD110/16 TLC-MSMD110/24 TLC-MSMD110/33 TLC-MSMD125 TLC-MSMD125/8 TLC-MSMD125/12 TLC-MSMD125/16 TLC-MSMD125/30 TLC-MSMD150 TLC-MSMD150/8 TLC-MSMD150/12 TLC-MSMD150/16 TLC-MSMD150/24 TLC-MSMD160/6 TLC-MSMD160 TLC-MSMD160/12 TLC-MSMD160/16 TLC-MSMD160/24 TLC-MSMD200 TLC-MSMD200/12 TLC-MSMD200/16 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-MSMD200/20 TLC-MSMD200/24 TLC-MSMD250/16 TLC-MSMD250/12 TLC-MSMD250/8 TLC-MSMD260 TLC-MSMD260/8 TLC-MSMD260/12 TLC-MSMD260/16 TLC-MSMD300 TLC-MSMD300/8 TLC-MSMD300/12 TLC-MSMD300/16 TEL: 86-0769-3892 0554 E-mail:sales@tlcet.com.cn FAX: 86-0769-8793 2077 Town,DongGuan,GuangDong,P.R China 523710 Address:No.18,5th GaoLi Road,TangXia I-hold 3.08 2.71 2.35 2.00 1.80 1.60 1.50 1.40 1.25 I-trip 6.16 5.42 4.70 4.00 3.60 3.20 3.00 2.80 2.50 I-hold 3.08 2.71 2.35 2.00 1.80 1.60 1.50 1.40 1.25 I-trip 6.16 5.42 4.70 4.00 3.60 3.20 3.00 2.80 2.50 I-hold 3.85 3.45 3.00 2.50 2.05 1.85 1.75 1.30 1.10 I-trip 7.70 6.90 6.00 5.00 4.10 3.70 3.50 2.60 2.20 I-hold 3.85 3.45 3.00 2.50 2.05 1.85 1.75 1.30 1.10 I-trip 7.70 6.90 6.00 5.00 4.10 3.70 3.50 2.60 2.20 I-hold 3.85 3.45 3.00 2.50 2.05 1.85 1.75 1.30 1.10 I-trip 7.70 6.90 6.00 5.00 4.10 3.70 3.50 2.60 2.20 I-hold 4.00 3.52 3.06 2.60 2.34 2.08 1.95 1.39 1.04 I-trip 8.00 7.04 6.12 5.20 4.68 4.16 3.90 2.78 2.08 I-hold 4.00 3.52 3.06 2.60 2.34 2.08 1.95 1.39 1.04 I-trip 8.00 7.04 6.12 5.20 4.68 4.16 3.90 2.78 2.08 I-hold 4.00 3.52 3.06 2.60 2.34 2.08 1.95 1.39 1.04 I-trip 8.00 7.04 6.12 5.20 4.68 4.16 3.90 2.78 2.08 I-hold 4.00 3.52 3.06 2.60 2.34 2.08 1.95 1.39 1.04 I-trip 8.00 7.04 6.12 5.20 4.68 4.16 3.90 2.78 2.08 I-hold 4.40 3.90 3.50 3.00 2.60 2.30 2.10 1.80 1.50 I-trip 8.80 7.80 7.00 6.00 5.20 4.60 4.20 3.60 3.00 I-hold 4.40 3.90 3.50 3.00 2.60 2.30 2.10 1.80 1.50 I-trip 8.80 7.80 7.00 6.00 5.20 4.60 4.20 3.60 3.00 I-hold 4.40 3.90 3.50 3.00 2.60 2.30 2.10 1.80 1.50 I-trip 8.80 7.80 7.00 6.00 5.20 4.60 4.20 3.60 3.00 I-hold 4.40 3.90 3.50 3.00 2.60 2.30 2.10 1.80 1.50 I-trip 8.80 7.80 7.00 6.00 5.20 4.60 4.20 3.60 3.00 Notes: The temperature rerating data is for reference only. Please contact TLC technical support for detail temperature rerating information. Typical time to trip at 25℃ Note: TLC-MSMD010(/30/50) is represented for TLC-MSMD010 and TLC-MSMD010/30 and TLC-MSMD010/50, and so on. Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 E-mail:sales@tlcet.com.cn FAX: 86-0769-8793 2077 Town,DongGuan,GuangDong,P.R China 523710 Address:No.18,5th GaoLi Road,TangXia Reliability Requirement +85°C, 85% R.H.,1000 hours ±5％Typical Resistance Change +85°C, 1000 hours ±5％Typical Resistance Change 30min@-40℃～30min@85℃, ,20cycles -33％Typical Resistance Change MIL-STD-202, Method 215 Marking Still legible MIL-STD-833C,Method 2007.1,Condition A R min. < R i 95% coverage Humidity Aging Passive Aging Thermal Shock Resistance to Solvents Vibration Solderability Environmental Characteristics Operating/Storage Temperature ...................... -40 °C to +85 °C Maximum Device Surface Temperature in Tripped State ............................................ 125 °C Storage Conditions ………………+40 °C Max. 70% RH Max. Packed in original packaging. Solder Reflow Conditions Reflow Profile Lead free Heating rate from Tsmax to Tp Max.3℃/second Pre-heat： Critlcal Zone TL to TP 150℃ Tsmax 200℃ Tsmin to Tsmax 60~180seconds Temperature Ramp-up Tsmin Soldering time： tp TP >217℃ Temperature（TL） Time（tL） 60~150seconds Peak temperature（Tp） 260℃ Time at Peak temperature ±5℃（tp） 20~40seconds Cooling rate Max.6℃/second Time from 25℃ to Peak Temperature 8 minutes max TL Tsmax tL Tsmin Ramp-down ts Preheat 25 t 25℃ to Peak Time Warning for Reflow： 1、The printed solder thickness is not over 0.25mm，Excess solder may cause a short circuit, especially during hand soldering 2、If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements 3 、Device can’t be wave soldered. Please contact TLC for hand soldering and dip soldering recommendations. 4、Device can’t contact solvent Note: The temperature in top chart is measured on the surface of devices Product Dimensions & Marking (Unit: mm) Top andBottom View Side View C Recommended Pad Layout(mm) F F T T010 010 H G Manufacturer's Trademark Revision: B Part Identification POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 电路保护元器件专业制造商 P/N E-mail:sales@tlcet.com.cn FAX: 86-0769-8793 2077 Town,DongGuan,GuangDong,P.R China 523710 Address:No.18,5th GaoLi Road,TangXia Web: http://www.tlcet.com.cn Recommended Pad Device Dimension Marking A B Layout(mm) C Min. Max. Min. Max. Min. D F G H Nor. Nor. Nor. Max. Min. TLC-MSMD010 T010 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD010/30 T010 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD010/50 T010 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD014 T014 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD020 T020 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD020/60 T020 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD030 T030 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD035 T035 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD035/30 T035 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD050 T050 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD050/16 T050 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD050/24 T050 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD050/30 T050 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD050/33 T050 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD050/60 T050 4.37 4.73 3.07 3.41 1.10 1.50 0.30 1.50 2.70 3.20 TLC-MSMD075 T075 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD075/24 T075 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD075/33 T075 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD110 T110 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD110/8 T110 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD110/12 T110 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD110/16 T110 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD110/24 T110 4.37 4.73 3.07 3.41 0.80 1.20 0.30 1.50 2.70 3.20 TLC-MSMD110/33 T110 4.37 4.73 3.07 3.41 1.10 1.50 0.30 1.50 2.70 3.20 TLC-MSMD125 T125 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD125/8 T125 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD125/12 T125 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD125/16 T125 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD125/30 T125 4.37 4.73 3.07 3.41 1.10 1.50 0.30 1.50 2.70 3.20 TLC-MSMD150 T150 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD150/8 T150 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD150/12 T150 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD150/16 T150 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD150/24 T150 4.37 4.73 3.07 3.41 1.20 1.70 0.30 1.50 2.70 3.20 TLC-MSMD160/6 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD160 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD160/12 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD160/16 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30 1.50 2.70 3.20 TLC-MSMD160/24 T160 4.37 4.73 3.07 3.41 1.00 1.60 0.30 1.50 2.70 3.20 TLC-MSMD200 T200 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 Revision: B POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-MSMD200/12 T200 TLC-MSMD200/16 E-mail:sales@tlcet.com.cn FAX: 86-0769-8793 2077 Town,DongGuan,GuangDong,P.R China 523710 Address:No.18,5th GaoLi Road,TangXia 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 T200 4.37 4.73 3.07 3.41 0.90 1.30 0.30 1.50 2.70 3.20 TLC-MSMD200/20 T200 4.37 4.73 3.07 3.41 0.90 1.30 0.30 1.50 2.70 3.20 TLC-MSMD200/24 T200 4.37 4.73 3.07 3.41 1.30 1.70 0.30 1.50 2.70 3.20 TLC-MSMD250/16 T250 4.37 4.73 3.07 3.41 0.90 1.30 0.30 1.50 2.70 3.20 TLC-MSMD250/12 T250 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD250/8 T250 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD260 T260 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD260/8 T260 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD260/12 T260 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD260/16 T260 4.37 4.73 3.07 3.41 0.90 1.30 0.30 1.50 2.70 3.20 TLC-MSMD300 T300 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD300/8 T300 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD300/12 T300 4.37 4.73 3.07 3.41 0.60 1.00 0.30 1.50 2.70 3.20 TLC-MSMD300/16 T300 4.37 4.73 3.07 3.41 1.00 1.60 0.30 1.50 2.70 3.20 Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 Packaging P/N TLC-MSMD010 Product size Packaging Option Quantity 1812 Tape&Reel 1500 TLC-MSMD010/30 1812 Tape&Reel 1500 TLC-MSMD010/50 1812 Tape&Reel 1500 TLC-MSMD014 1812 Tape&Reel 1500 TLC-MSMD020 1812 Tape&Reel 1500 TLC-MSMD020/60 1812 Tape&Reel 1500 TLC-MSMD030 1812 Tape&Reel 1500 TLC-MSMD035 1812 Tape&Reel 1500 TLC-MSMD035/30 1812 Tape&Reel 1500 TLC-MSMD050 1812 Tape&Reel 2000 TLC-MSMD050/16 1812 Tape&Reel 2000 TLC-MSMD050/24 1812 Tape&Reel 2000 TLC-MSMD050/30 1812 Tape&Reel 2000 TLC-MSMD050/33 1812 Tape&Reel 2000 TLC-MSMD050/60 1812 Tape&Reel 1500 TLC-MSMD075 1812 Tape&Reel 2000 TLC-MSMD075/24 1812 Tape&Reel 2000 TLC-MSMD075/33 1812 Tape&Reel 2000 TLC-MSMD110 1812 Tape&Reel 2000 TLC-MSMD110/8 1812 Tape&Reel 2000 TLC-MSMD110/12 1812 Tape&Reel 2000 TLC-MSMD110/16 1812 Tape&Reel 2000 TLC-MSMD110/24 1812 Tape&Reel 1500 TLC-MSMD110/33 1812 Tape&Reel 1000 TLC-MSMD125 1812 Tape&Reel 2000 TLC-MSMD125/8 1812 Tape&Reel 2000 TLC-MSMD125/12 1812 Tape&Reel 2000 TLC-MSMD125/16 1812 Tape&Reel 2000 TLC-MSMD125/30 1812 Tape&Reel 1000 TLC-MSMD150 1812 Tape&Reel 2000 TLC-MSMD150 1812 Tape&Reel 2000 TLC-MSMD150/8 1812 Tape&Reel 2000 TLC-MSMD150/12 1812 Tape&Reel 2000 TLC-MSMD150/16 1812 Tape&Reel 2000 TLC-MSMD150/24 1812 Tape&Reel 1000 TLC-MSMD160/6 1812 Tape&Reel 2000 TLC-MSMD160 1812 Tape&Reel 2000 TLC-MSMD160/12 1812 Tape&Reel 2000 TLC-MSMD160/16 1812 Tape&Reel 2000 1812 Tape&Reel 1500 TLC-MSMD160/24 E-mail:sales@tlcet.com.cn 2077 Town,DongGuan,GuangDong,P.R China 523710 Address:No.18,5th GaoLi Road,TangXia Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 TLC-MSMD200 1812 Tape&Reel 1500 TLC-MSMD200/12 1812 Tape&Reel 1500 TLC-MSMD200/16 1812 Tape&Reel 1500 1812 Tape&Reel 1500 TLC-MSMD200/24 1812 Tape&Reel 1000 TLC-MSMD250/16 1812 Tape&Reel 1500 TLC-MSMD250/12 TLC-MSMD200/20 1812 Tape&Reel 1500 TLC-MSMD250/8 1812 Tape&Reel 1500 TLC-MSMD260 1812 Tape&Reel 1500 TLC-MSMD260/8 1812 Tape&Reel 1500 TLC-MSMD260/12 1812 Tape&Reel 1500 TLC-MSMD260/16 1812 Tape&Reel 1500 TLC-MSMD300 1812 Tape&Reel 1500 TLC-MSMD300/8 1812 Tape&Reel 1500 TLC-MSMD300/12 1812 Tape&Reel 1500 1812 Tape&Reel 1500 TLC-MSMD300/16 Product Ordering Number System TLC- X SMD XXX IHold current Surface mount Product size: “M”--1812 Manufacturer Tape and Reel Specifications Dimensions for 1812 size product (see table below) Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 TLC-MSMD010 TLC-MSMD200 TLC-MSMD260/12 TLC-MSMD035 TLC-MSMD110/12 TLC-MSMD160/12 TLC-MSMD150/24 TLC-MSMD010/30 TLC-MSMD200/12 TLC-MSMD260/16 TLC-MSMD035/30 TLC-MSMD110/16 TLC-MSMD160/16 TLC-MSMD200/24 TLC-MSMD010/50 TLC-MSMD200/16 TLC-MSMD300 TLC-MSMD050 TLC-MSMD125 TLC-MSMD014 TLC-MSMD200/20 TLC-MSMD300/8 TLC-MSMD050/16 TLC-MSMD125/8 TLC-MSMD020 TLC-MSMD250/8 TLC-MSMD300/12 TLC-MSMD050/24 TLC-MSMD125/12 TLC-MSMD020/60 TLC-MSMD250/12 TLC-MSMD300/16 TLC-MSMD050/30 TLC-MSMD125/16 TLC-MSMD030 TLC-MSMD250/16 TLC-MSMD050/33 TLC-MSMD150 TLC-MSMD050/60 TLC-MSMD260 TLC-MSMD075 TLC-MSMD150/8 TLC-MSMD110/24 TLC-MSMD260/8 TLC-MSMD075/24 TLC-MSMD150/12 TLC-MSMD110/33 TLC-MSMD075/33 TLC-MSMD150/16 TLC-MSMD125/30 TLC-MSMD110 TLC-MSMD160/6 TLC-MSMD160/24 TLC-MSMD110/8 TLC-MSMD160 TAPE DIMENSIONS: EIA-481-1(mm) W 12.3±0.30 12.3±0.30 12.3±0.30 12.3±0.30 12.3±0.30 12.3±0.30 12.3±0.30 P0 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 P1 8.00±0.10 8.00±0.10 8.00±0.10 8.00±0.10 8.00±0.10 8.00±0.10 8.00±0.10 P2 2.00±0.05 2.00±0.05 2.00±0.05 2.00±0.05 2.00±0.05 2.00±0.05 2.00±0.05 A0 3.66±0.10 3.66±0.10 3.66±0.10 3.66±0.10 3.66±0.10 3.66±0.10 3.66±0.10 B0 4.98±0.10 4.98±0.10 4.98±0.10 4.98±0.10 4.98±0.10 4.98±0.10 4.98±0.10 8.20 8.20 B1max 8.20 8.20 8.20 8.20 8.20 1.50+0.10/-0.00 1.50+0.10/-0.00 D0 1.50+0.10/-0.00 1.50+0.10/-0.00 1.50+0.10/-0.00 1.50+0.10/-0.00 1.50+0.10/-0.00 F 5.50±0.05 5.50±0.05 5.50±0.05 5.50±0.05 5.50±0.05 5.50±0.05 5.50±0.05 E1 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 E2min 10.25 10.25 10.25 10.25 10.25 10.25 10.25 T max 0.60 0.60 0.60 0.60 0.60 0.60 0.60 T1min 0.10 0.10 0.10 0.10 0.10 0.10 1.50±0.10 0.95±0.10 0.95±0.10 K0 1.50±0.10 Leader min 390 Trailer min 160 1.50±0.10 0.95±0.10 0.10 1.75±0.10 Reel Dimensions: EIA-481-1(mm) A max 185 N min 50 W1 12.4+1.5/0.0 W2 max 18.4 Cautions for SMD PPTC Use 1. Operation beyond the rated maximum voltage or current may result in device damage and possible electrical arcing or flame. 2. Hold current at all temperatures specified in the SPEC is the conventional performance of PTC obtained by one time Revision: B POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn 3. 4. 5. 6. 7. 8. E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 reflow welding. PTC can hold 1 hour under current conditions at a given temperature. This current is not the condition of long-term charging or discharging current for this type of PTC. The above parameters are concluded from one time of reflow soldering processing the PTC. If there is any further heat generated process like injection or dispensing at the customer's premise, the aforementioned parameters will decrease at certain degree. Therefore the verification test to be conducted is necessary. The PTC is thermal sensitive device. It is recommended not to design any heat source devices around it to reduce the outside heat source impact. SMD PTC is designed for SMT processing which applies reflow soldering. Please refer to the recommended solder reflow curve. If the reflow soldering temperature exceeds the recommended value, the PTC might be damaged. Hand welding PTC is prohibited. Heat gun is not allowed to use during the circuit board components or terminals rework . Please do not smash, clamp, pull, dent or twist by tool during assembling process otherwise it might be a cause of the performance degradation. PTC is resettable protection device which shall not be taken for use as switch. Multiple times tripping shall lower the PTC hold current. In the process of PTC processing, if there is soldering iron welding process, it is suggested that the welding position should be more than 1.5mm away from PTC, the welding tool temperature should be lower than 350 ℃, and the contact time between soldering iron and solder joint should not exceed 3sec. Revision: B
