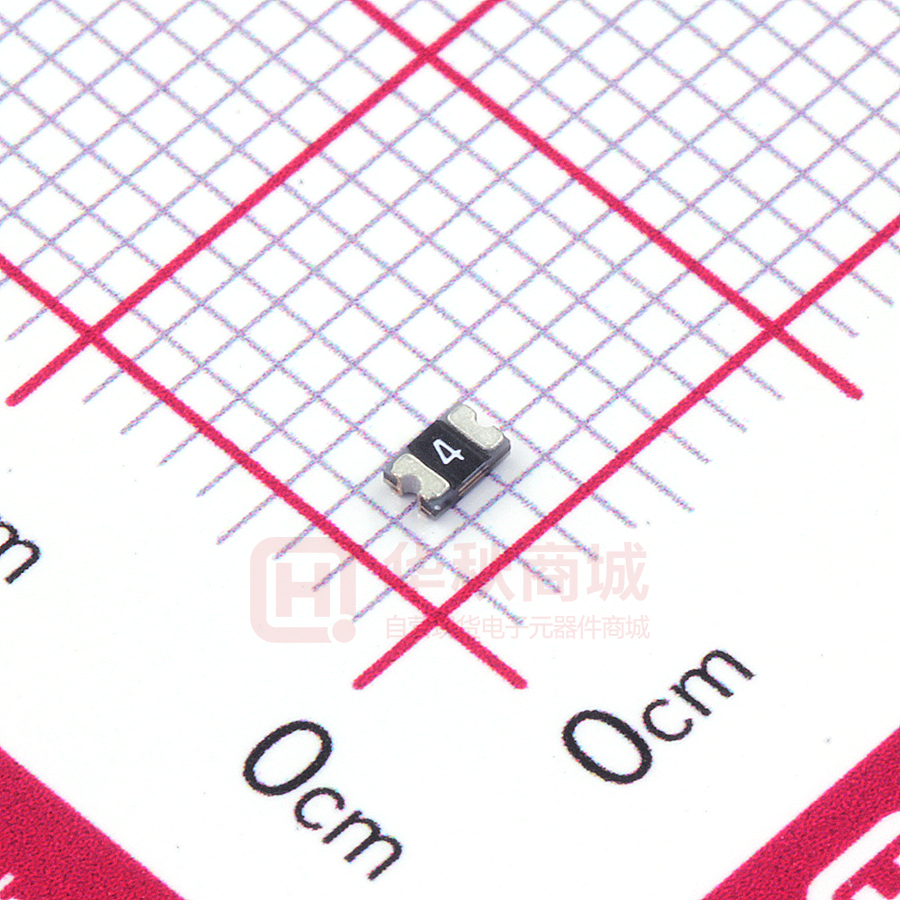

TLC-PSMD050

POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 SMD Surface Mount 0805 Series Revision: A POLYMER PTC RESETTABLE FUSE TEL: 86-0769-3892 0554 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Applications • Over current and over temperature protection of automotive electronics • PC motherboards, Hard disk driver, and PC peripherals • POS Equipment • LCD / LED HDTV • USB port protection • HDMI source protection Features • • • • Agency Approvals AGENCY Surface Mount Devices Standard 0805mils footprint Surface Mount packaging for automated assembly Compatible with Pb and Pb-free solder reflow profiles Regulation/Standard AGENCY FILE NUMBER E352136 R50306074 Electrical Characteristic P/N Ihold (A) TLC-PSMD005 Itrip (A) Vmax, (V) Imax (A) 0.05 0.15 30 TLC-PSMD005/60 0.05 0.15 TLC-PSMD010 0.10 TLC-PSMD010/24 TLC-PSMD020 Time To Trip Current (A) Time (Sec.) 100 0.25 1.50 60 40 0.25 0.30 15 100 0.10 0.30 24 0.20 0.50 9 TLC-PSMD020/12 0.20 0.50 TLC-PSMD030 0.30 TLC-PSMD035 Pd typ (W) Resistance Rmin (Ω) R1max (Ω) 0.50 3.60 50.0 1.50 0.50 3.60 0.50 1.50 0.50 100 0.50 1.50 100 8.0 0.02 12 100 8.0 0.75 6 100 0.35 0.75 6 TLC-PSMD035/9 0.35 0.75 TLC-PSMD035/12 0.35 TLC-PSMD050 Agency Approvals UL/CSA TUV 50.0 × × × × 1.00 7.50 √ √ 0.50 1.00 7.50 √ √ 0.50 0.65 3.50 √ √ 0.02 0.50 0.65 3.50 8.0 0.10 0.50 0.25 1.20 × × × × 100 8.0 0.10 0.50 0.25 1.20 √ √ 9 100 8.0 0.10 0.50 0.25 1.20 0.75 12 100 8.0 0.10 0.50 0.25 1.20 × × × × 0.50 1.00 6 100 8.0 0.10 0.50 0.15 0.90 √ √ TLC-PSMD050/9 0.50 1.00 9 100 8.0 0.10 0.50 0.15 0.90 × × TLC-PSMD075 0.75 1.50 6 100 8.0 0.20 0.60 0.09 0.35 √ √ TLC-PSMD075/8 0.75 1.50 8 100 8.0 0.20 0.60 0.09 0.35 × × TLC-PSMD100 1.00 2.00 6 100 8.0 0.30 0.60 0.06 0.25 √ √ TLC-PSMD100/13.2 TLC-PSMD110 1.00 1.10 2.00 2.20 13.2 6 50 100 8.0 8.0 0.30 0.30 0.60 0.60 0.070 0.06 0.325 0.21 × × √ √ TLC-PSMD110/13.2 TLC-PSMD150 1.10 1.50 2.20 3.00 13.2 6 50 100 8.0 8.0 0.30 0.50 0.60 0.60 0.070 0.04 0.325 0.16 × × × × Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Ihold: Holding Current: maximum current at which the device will not trip in 25℃ still air. Itrip:Tripping Current minimum current at which the device will trip in 25℃ still air. Vmax: Maximum voltage device can withstand without damage at rated current. I max: Maximum fault current device can withstand without damage at rated voltage. Time To Trip: Maximum time to trip(s) at assigned current. Pd typ: Rated working power. R min: Minimum resistance of device prior to trip at 25℃. R1 max: Maximum resistance of device is measured one hours post reflow at 25℃. Noted: All electrical function test is conducted after PCB mounted. Thermal Derating Chart – I hold/Itrip (Amps) P/N TLC-PSMD005 TLC-PSMD005/60 TLC-PSMD010 TLC-PSMD010/24 TLC-PSMD020 TLC-PSMD020/12 TLC-PSMD030 TLC-PSMD035 TLC-PSMD035/9 TLC-PSMD035/12 TLC-PSMD050 TLC-PSMD050/9 TLC-PSMD075 TLC-PSMD075/8 TLC-PSMD100 TLC-PSMD100/13.2 Test item Ambient Operating Temperature -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ I-hold 0.080 0.070 0.060 0.050 0.045 0.040 0.035 0.030 0.025 I-trip 0.240 0.210 0.180 0.150 0.135 0.120 0.105 0.090 0.075 I-hold 0.080 0.070 0.060 0.050 0.045 0.040 0.035 0.030 0.025 I-trip 0.240 0.210 0.180 0.150 0.135 0.120 0.105 0.090 0.075 I-hold 0.15 0.13 0.12 0.10 0.09 0.08 0.07 0.06 0.05 I-trip 0.45 0.39 0.36 0.30 0.27 0.24 0.21 0.18 0.15 I-hold 0.15 0.13 0.12 0.10 0.09 0.08 0.07 0.06 0.05 I-trip 0.45 0.39 0.36 0.30 0.27 0.24 0.21 0.18 0.15 I-hold 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 I-trip 0.70 0.63 0.58 0.50 0.43 0.35 0.30 0.25 0.18 I-hold 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 I-trip 0.70 0.63 0.58 0.50 0.43 0.35 0.30 0.25 0.18 I-hold 0.47 0.44 0.39 0.30 0.27 0.24 0.20 0.14 0.10 I-trip 1.01 0.94 0.84 0.75 0.64 0.58 0.51 0.43 0.30 I-hold 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14 I-trip 1.01 0.94 0.84 0.75 0.64 0.58 0.51 0.43 0.30 I-hold 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14 I-trip 1.01 0.94 0.84 0.75 0.64 0.58 0.51 0.43 0.30 I-hold 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14 I-trip 1.01 0.94 0.84 0.75 0.64 0.58 0.51 0.43 0.30 I-hold 0.68 0.62 0.55 0.50 0.40 0.37 0.33 0.29 0.23 I-trip 1.36 1.24 1.10 1.00 0.80 0.74 0.66 0.58 0.46 I-hold 0.68 0.62 0.55 0.50 0.40 0.37 0.33 0.29 0.23 I-trip 1.36 1.24 1.10 1.00 0.80 0.74 0.66 0.58 0.46 I-hold 1.00 0.90 0.79 0.75 0.63 0.57 0.53 0.42 0.35 I-trip 2.00 1.80 1.58 1.50 1.26 1.14 1.06 0.84 0.70 I-hold 1.00 0.90 0.79 0.75 0.63 0.57 0.53 0.42 0.35 I-trip 2.00 1.80 1.58 1.50 1.26 1.14 1.06 0.84 0.70 I-hold 1.45 1.35 1.20 1.00 0.92 0.84 0.75 0.65 0.52 I-trip 2.90 2.70 2.40 2.00 1.84 1.68 1.50 1.30 1.04 I-hold 1.25 1.20 1.10 1.00 0.88 0.70 0.60 0.55 0.50 I-trip 2.50 2.40 2.20 2.00 1.76 1.40 1.20 1.10 1.00 Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-PSMD110 TLC-PSMD110/13.2 TLC-PSMD150 E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 I-hold 1.45 1.35 1.20 1.10 0.92 0.84 0.75 0.65 0.52 I-trip 2.90 2.70 2.40 2.20 1.84 1.68 1.50 1.30 1.04 I-hold 1.30 1.25 1.15 1.10 0.90 0.72 0.63 0.58 0.50 I-trip 2.60 2.50 2.30 2.20 1.80 1.44 1.26 1.16 1.00 I-hold 1.98 1.84 1.64 1.50 1.25 1.15 1.02 0.89 0.71 I-trip 3.96 3.68 3.28 3.00 2.50 2.30 2.02 1.78 1.42 Notes: The temperature rerating data is for reference only. Please contact TLC technical support for detail temperature rerating information. Typical time to trip at 25℃ Note: TLC-PSMD005(/60) is represented for TLC-PSMD005 and TLC-PSMD005/60, and so on. Reliability Requirement Humidity Aging Passive Aging Thermal Shock Resistance to Solvents Vibration Solderability +85°C, 85% R.H.,1000 hours ±5％Typical Resistance Change +85°C, 1000 hours ±5％Typical Resistance Change 30min@-40℃～30min@85℃, ,20cycles -33％Typical Resistance Change MIL-STD-202, Method 215 Marking Still legible MIL-STD-833C,Method 2007.1,Condition A R min. < R i 95% coverage Environmental Characteristics Operating/Storage Temperature ...................... -40 °C to +85 °C Maximum Device Surface Temperature in Tripped State ............................................ 125 °C Storage Conditions ………………+40 °C Max. 70% RH Max. Packed in original packaging. Revision: A POLYMER PTC RESETTABLE FUSE E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn Solder Reflow Conditions Reflow Profile Lead free Heating rate from Tsmax to Tp Max.3℃/second tp TP Pre-heat： Tsmin 150℃ Tsmax 200℃ Tsmin to Tsmax 60~180seconds TL Temperature Soldering time： >217℃ Temperature（TL） Time（tL） 60~150seconds Peak temperature（Tp） 260℃ Time at Peak temperature ±5℃（tp） 20~40seconds Cooling rate Max.6℃/second Time from 25℃ to Peak Temperature 8 minutes max Critlcal Zone TL to TP Rampup Tsma tL x Tsmi n Rampdown ts Preheat 25 t 25℃ to Peak Time Warning for Reflow： 1、The printed solder thickness is not over 0.25mm，Excess solder may cause a short circuit, especially during hand soldering 2、If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements 3 、 Device can’t be wave soldered. Please contact TLC for hand soldering and dip soldering recommendations. 4、Device can’t contact solvent Note: All temperature in top chart is measured on the surface of devices Product Dimensions & Marking (Unit: mm) Top andBottom View Side View C Recommended Pad Layout(mm) F F 1 1 H Part Identification G P/N Recommended Pad Device Dimension Marking A B Layout(mm) C D F G H Min. Max. Min. Max. Min. Max. Min. Nor. Nor. Nor. TLC-PSMD005 ∣ 2.00 2.30 1.20 1.50 0.55 0.95 0.20 1.00 1.20 1.50 TLC-PSMD005/60 ∣ 2.00 2.30 1.20 1.50 0.55 0.95 0.20 1.00 1.20 1.50 TLC-PSMD010 1 2.00 2.30 1.20 1.50 0.55 0.95 0.20 1.00 1.20 1.50 TLC-PSMD010/24 1 2.00 2.30 1.20 1.50 0.55 0.95 0.20 1.00 1.20 1.50 TLC-PSMD020 2 2.00 2.30 1.20 1.50 0.55 0.95 0.20 1.00 1.20 1.50 TLC-PSMD020/12 2 2.00 2.30 1.20 1.50 0.55 0.95 0.20 1.00 1.20 1.50 TLC-PSMD030 3 2.00 2.30 1.20 1.50 0.40 0.80 0.20 1.00 1.20 1.50 TLC-PSMD035 3 2.00 2.30 1.20 1.50 0.40 0.80 0.20 1.00 1.20 1.50 TLC-PSMD035/9 3 2.00 2.30 1.20 1.50 0.40 0.80 0.20 1.00 1.20 1.50 TLC-PSMD035/12 3 2.00 2.30 1.20 1.50 0.40 0.80 0.20 1.00 1.20 1.50 Revision: A POLYMER PTC RESETTABLE FUSE E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn TLC-PSMD050 4 2.00 2.30 1.20 1.50 0.40 0.80 0.20 1.00 1.20 1.50 TLC-PSMD050/9 4 2.00 2.30 1.20 1.50 0.40 0.80 0.20 1.00 1.20 1.50 TLC-PSMD075 5 2.00 2.30 1.20 1.50 0.60 1.00 0.20 1.00 1.20 1.50 TLC-PSMD075/8 5 2.00 2.30 1.20 1.50 0.60 1.00 0.20 1.00 1.20 1.50 TLC-PSMD100 6 2.00 2.30 1.20 1.50 0.60 1.00 0.20 1.00 1.20 1.50 TLC-PSMD100/13.2 6 2.00 2.30 1.20 1.50 0.60 1.00 0.20 1.00 1.20 1.50 TLC-PSMD110 6 2.00 2.30 1.20 1.50 0.60 1.00 0.20 1.00 1.20 1.50 TLC-PSMD110/13.2 6 2.00 2.30 1.20 1.50 0.60 1.00 0.20 1.00 1.20 1.50 TLC-PSMD150 6 2.00 2.30 1.20 1.50 0.75 1.25 0.20 1.00 1.20 1.50 Packaging P/N Product size TLC-PSMD005 0805 Tape&Reel 3500 TLC-PSMD005/60 0805 Tape&Reel 3500 TLC-PSMD010 0805 Tape&Reel 3500 TLC-PSMD010/24 0805 Tape&Reel 3500 TLC-PSMD020 0805 Tape&Reel 3500 0805 Tape&Reel 3500 4500 TLC-PSMD020/12 TLC-PSMD030 Packaging Option Quantity 0805 Tape&Reel TLC-PSMD035 0805 Tape&Reel 4500 TLC-PSMD035/9 0805 Tape&Reel 4500 TLC-PSMD035/12 0805 Tape&Reel 4500 TLC-PSMD050 0805 Tape&Reel 4500 TLC-PSMD050/9 0805 Tape&Reel 4500 TLC-PSMD075 0805 Tape&Reel 3500 0805 Tape&Reel 3500 3500 TLC-PSMD075/8 0805 Tape&Reel TLC-PSMD100/13.2 0805 Tape&Reel 3500 TLC-PSMD110 0805 Tape&Reel 3500 TLC-PSMD110/13.2 0805 Tape&Reel 3500 TLC-PSMD150 0805 Tape&Reel 3500 TLC-PSMD100 Product Ordering Number System TLC- X SMD XXX Ihold current Surface mount Product size: “P”--0805 Manufacturer Revision: A POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Tape and Reel Specifications Dimensions for 0805 size product (see table below) TLC-PSMD030 TLC-PSM005/60 TLC-PSMD100 TLC-PSMD035 TLC-PSMD010 TLC-PSMD100/13.2 TLC-PSMD035/9 TLC-PSMD010/24 TLC-PSMD110 TLC-PSMD035/12 TLC-PSMD020 TLC-PSMD110/13.2 TLC-PSMD050 TLC-PSMD020/12 TLC-PSMD150 TLC-PSMD050/9 TLC-PSMD075 TLC-PSMD005 TLC-PSMD075/8 TAPE DIMENSIONS: EIA-481-1(mm) W 8.00±0.30 8.00±0.30 8.00±0.30 P0 4.00±0.10 4.00±0.10 4.00±0.10 P1 4.00±0.10 4.00±0.10 4.00±0.10 P2 2.00±0.05 2.00±0.05 2.00±0.05 A0 1.70±0.10 1.70±0.10 1.70±0.10 B0 2.45±0.10 2.45±0.10 2.45±0.10 B1max 4.35 4.35 4.35 D0 1.50+0.10/-0.00 1.50+0.10/-0.00 1.50+0.10/-0.00 F 3.50±0.05 3.50±0.05 3.50±0.05 E1 1.75±0.10 1.75±0.10 1.75±0.10 E2min 6.25 6.25 6.25 T max 0.60 0.60 0.60 T1min 0.10 0.10 0.10 K0 0.85±0.10 1.05±0.10 Leader min 390 Trailer min 160 Reel Dimensions: EIA-481-1(mm) A max 185 N min 50 W1 8.4+1.5/-0 W2 max 14.4 Revision: A 1.25±0.10 POLYMER PTC RESETTABLE FUSE 电路保护元器件专业制造商 Web: http://www.tlcet.com.cn 1. 2. 3. 4. 5. 6. 7. 8. E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 FAX: 86-0769-8793 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Cautions for SMD PPTC Use Operation beyond the rated maximum voltage or current may result in device damage and possible electrical arcing or flame. Hold current at all temperatures specified in the SPEC is the conventional performance of PTC obtained by one time reflow welding. PTC can hold 1 hour under current conditions at a given temperature. This current is not the condition of long-term charging or discharging current for this type of PTC. The above parameters are concluded from one time of reflow soldering processing the PTC. If there is any further heat generated process like injection or dispensing at the customer's premise, the aforementioned parameters will decrease at certain degree. Therefore the verification test to be conducted is necessary. The PTC is thermal sensitive device. It is recommended not to design any heat source devices around it to reduce the outside heat source impact. SMD PTC is designed for SMT processing which applies reflow soldering. Please refer to the recommended solder reflow curve. If the reflow soldering temperature exceeds the recommended value, the PTC might be damaged. Hand welding PTC is prohibited. Heat gun is not allowed to use during the circuit board components or terminals rework . Please do not smash, clamp, pull, dent or twist by tool during assembling process otherwise it might be a cause of the performance degradation. PTC is resettable protection device which shall not be taken for use as switch. Multiple times tripping shall lower the PTC hold current. In the process of PTC processing, if there is soldering iron welding process, it is suggested that the welding position should be more than 1.5mm away from PTC, the welding tool temperature should be lower than 350 ℃, and the contact time between soldering iron and solder joint should not exceed 3sec. Revision: A
