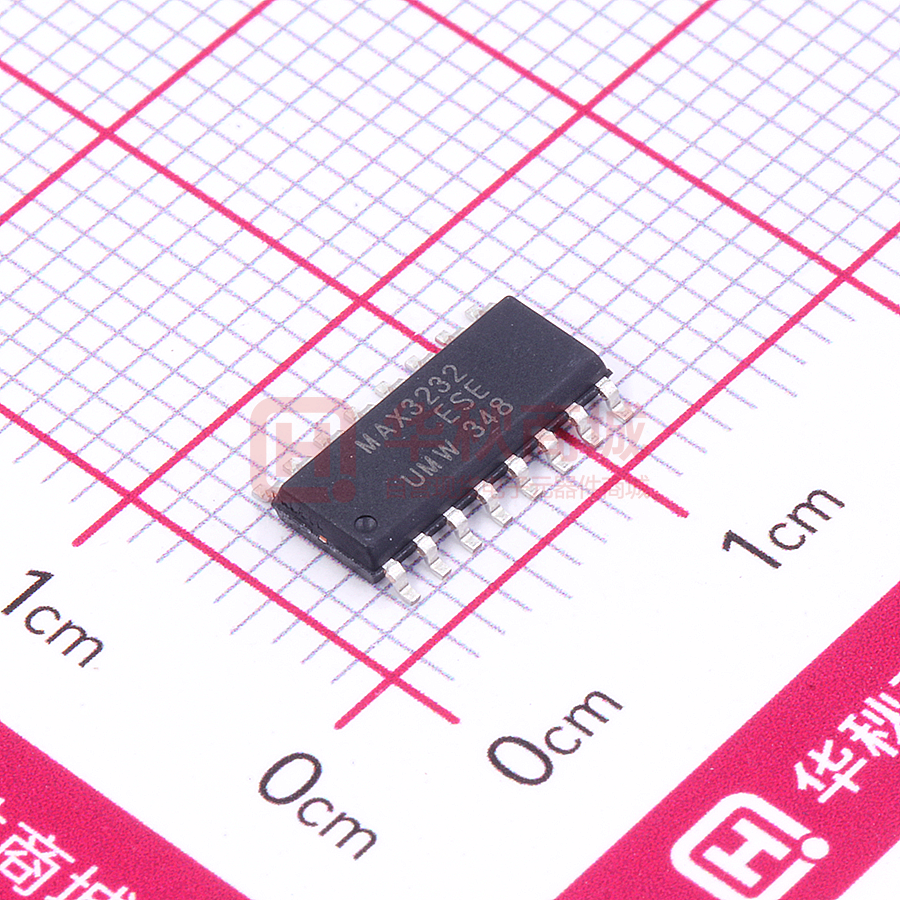

MAX3232ESE

UMW R MAX3232 3.0V TO 5.5V LOW POWER MULTICHANNEL RS-232 LINE TRANSCEIVERS USING FOR 0.1 μF EXTERNAL CAPACITORS SOP-16 DESCRIPTION The UMW MAX3232ESE has two receivers and two drivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3.0V to 5.5V supply. The device operates at data signaling rates up to 250kbit/s and a maximum of 35V/μs driver output slew rate. FEATURES * Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins * Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards * Operates With 3.0V to 5.5V VCC Supply * Operates Up To 250kbit/s Data Rate * Two Drivers and Two Receivers * External Capacitors 4×0.1μF * Accepts 5.0V Logic Input With 3.3V Supply www.umw-ic.com 1 友台半导体有限公司 UMW R MAX3232 PIN CONFIGURATION U MW MAX3232 PIN DESCRIPTION PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 www.umw-ic.com PIN NAME C1+ V+ C1C2+ C2VDOUT2 RIN2 ROUT2 DIN2 DIN1 ROUT1 RIN1 DOUT1 GND VCC DESCRIPTION Positive Terminal of Voltage-Doubler Charge-Pump Capacitor +5.5V Generated by the Charge Pump Negative Terminal of Voltage-Doubler Charge-Pump Capacitor Positive Terminal of Inverting Charge-Pump Capacitor Negative Terminal of Inverting Charge-Pump Capacitor -5.5V Generated by the Charge Pump RS-232 Driver Outputs RS-232 Receiver Inputs TTL/CMOS Receiver Outputs TTL/CMOS Driver Inputs TTL/CMOS Driver Inputs TTL/CMOS Receiver Outputs RS-232 Receiver Inputs RS-232 Driver Outputs Ground +3.0V to +5.5V Supply Voltage 2 友台半导体有限公司 UMW R MAX3232 BLOCK DIAGRAM DIN1 11 14 DOUT1 DIN2 10 7 DOUT2 UMW MAX3232 13 RIN1 ROUT1 12 5kΩ ROUT2 9 8 RIN2 5kΩ www.umw-ic.com 3 友台半导体有限公司 UMW R MAX3232 ABSOLUTE MAXIMUM RATING [Over operating free-air temperature range (unless otherwise noted)] PARAMETER SYMBOL RATINGS UNIT Supply Voltage Range VCC -0.3 ~ +6.0 V Positive Output Supply Voltage Range (Note 2) V+ -0.3 ~ +7.0 V Negative Output Supply Voltage Range (Note 2) V+0.3 ~ -7.0 V Supply Voltage Difference (Note 2) V+ - V+13 V Drivers -0.3 ~ +6.0 V Input Voltage VIN Receivers -25 ~ +25 V Drivers -13.2 ~ +13.2 V Output Voltage VOUT Receivers -0.3 ~ VCC+0.3 V Operating Virtual Junction Temperature TJ +150 °C Storage Temperature TSTG -65 ~ + 150 °C Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. 2. All voltages are with respect to network GND. THERMAL DATA PARAMETER Junction to Ambient SOP-16 SYMBOL RATING UNIT θJA 105 °C/W RECOMMENDED OPERATING CONDITIONS (See Note & Table 1) PARAMETER SYMBOL Supply Voltage VCC Driver and Control High-level Input Voltage VIH TEST CONDITIONS VCC=3.3V VCC=5.0V VCC=3.3V DIN VCC=5.5V MIN 3.0 4.5 2.0 2.4 TYP 3.3 5.0 MAX 3.6 5.5 V Driver and Control Low-level Input VIL DIN 0.8 Voltage Driver and Control Input Voltage VIN DIN 5.5 Receiver Input Voltage VRIN -25 25 0 70 Operating Free-Air Temperature TA Notes: Test conditions are C1~C4=0.1μF at VCC=3.3V±0.3V; C1=0.047μF, C2~C4=0.33μF at VCC=5.0V±0.5V. www.umw-ic.com 4 UNIT V V V V V °C 友台半导体有限公司 UMW R MAX3232 ELECTRICAL CHARACTERISTICS [(over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 3 & Table 1)] PARAMETER Supply Current DRIVER SECTION High-Level Output Voltage Low-Level Output Voltage High-Level Input Current Low-Level Input Current Short-Circuit Output Current (Note 2) Output Resistance RECEIVER SECTION High-Level Output Voltage Low-Level Output Voltage Positive-Going Input Threshold Voltage SYMBOL TEST CONDITIONS ICC No load VOH VOL IOH IOL DOUT at RL=3kΩ to GND, DIN=GND DOUT at RL=3kΩ to GND, DIN=VCC VI=VCC VI at GND VCC=3.6V, VOUT=0V VCC=5.5V, VOUT=0V VCC, V+ and V- =0V, VOUT=±2.0V IOS rO MIN +5.0 -5.0 300 TYP (Note 1) 0.3 +5.4 -5.4 ±0.01 ±0.01 ±35 ±35 10M MAX UNIT 1.0 mA V V μA μA mA mA Ω ±1 ±1 ±60 ±60 VOH VOL IOH=-1.0mA V VCC-0.6V VCC- 0.1V IOL=1.6mA 0.4 V VCC=3.3V 1.5 2.4 V VIT+ VCC=5.0V 1.8 2.4 V Negative-Going Input VCC=3.3V 0.6 1.2 V VITThreshold Voltage VCC=5.0V 0.8 1.5 V Input Hysteresis VHYS VIT+~VIT0.3 V Input Resistance RI VI=±3.0V~±25V 3 5 7 kΩ Notes: 1. All typical values are at VCC=3.3V or VCC=5.0V, and TA=25°C. 2. Short-circuit durations should be controlled to prevent exceeding the device absolute power-dissipation ratings, and not more than one output should be shorted at a time. 3. Test conditions are C1~C4=0.1μF at VCC=3.3V±0.3V; C1=0.047μF, C2~C4=0.33μF at VCC=5.0V±0.5V. 4. Pulse skew is defined as |tPLH−tPHL| of each channel of the same device. SWITCHING CHARACTERISTICS [over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 3 and Table 1)] PARAMETER SYMBOL TEST CONDITIONS tSK(p) CL=1000pF, RL=3kΩ, One Driver Switching CL=220pF~2500pF, RL =3kΩ~7kΩ RL =3kΩ~7kΩ, CL=220pF~1000pF VCC=3.3V CL=220pF~2500pF MIN TYP (Note 1) MAX UNIT 250 Kbit/s DRIVER SECTION Maximum Data Rate Pulse Skew (Note 4) Slew Rate, Transition Region SR(tr) 120 300 5 3 ns 35 35 V/μs RECEIVER SECTION Propagation Delay Time, LowtPLH CL=150pF 300 ns to High-Level Output Propagation Delay Time, HightPHL CL=150pF 300 ns to Low-Level Output Output Enable Time tEN CL=150pF, RL=3kΩ 200 ns Output Disable Time tDIS CL=150pF, RL=3kΩ 200 ns Pulse Skew (Note 4) tSK(P) |tPLH−tPHL| 300 ns Notes: 1. All typical values are at VCC=3.3V or VCC=5.0V, and TA=25°C. 2. Short-circuit durations should be controlled to prevent exceeding the device absolute power-dissipation ratings, and not more than one output should be shorted at a time. 3. Test conditions are C1~C4=0.1μF at VCC=3.3V±0.3V; C1=0.047μF, C2~C4=0.33μF at VCC=5.0V±0.5V. 4. Pulse skew is defined as |tPLH−tPHL| of each channel of the same device. www.umw-ic.com 5 友台半导体有限公司 UMW R MAX3232 TYPICAL APPLICATION CIRCUIT UMW MAX3232 Table1. Typical Operating Circuit and Capacitor Values VCC (V) 3.0~3.6 3.15~3.6 4.5~5.5 3.0~5.5 www.umw-ic.com C1 (µF) 0.22 0.1 0.047 0.22 C2, C3, C4 (µF) 0.22 0.1 0.33 1.0 6 CBYPASS (µF) 0.22 0.1 0.047 0.22 友台半导体有限公司 UMW R MAX3232 PACKAGE: SOP-16 UNIT: mm L SYMBOL MILLIMETER MIN NOM MAX A E E1 b e c 1.80 A1 0.10 0.15 0.25 A2 1.25 1.45 1.65 b 0.33 0.51 c 0.17 0.25 D 9.50 E 5.80 E1 3.70 e L 10.20 6.00 6.20 4.10 1.27BSC 0.45 0.60 0.80 D A2 A A1 ORDERING INFORMATION Ordering Number Package UMW MAX3232ESE SOP-16 www.umw-ic.com 7 Baseqty Packing 2500 Tape and reel 友台半导体有限公司
