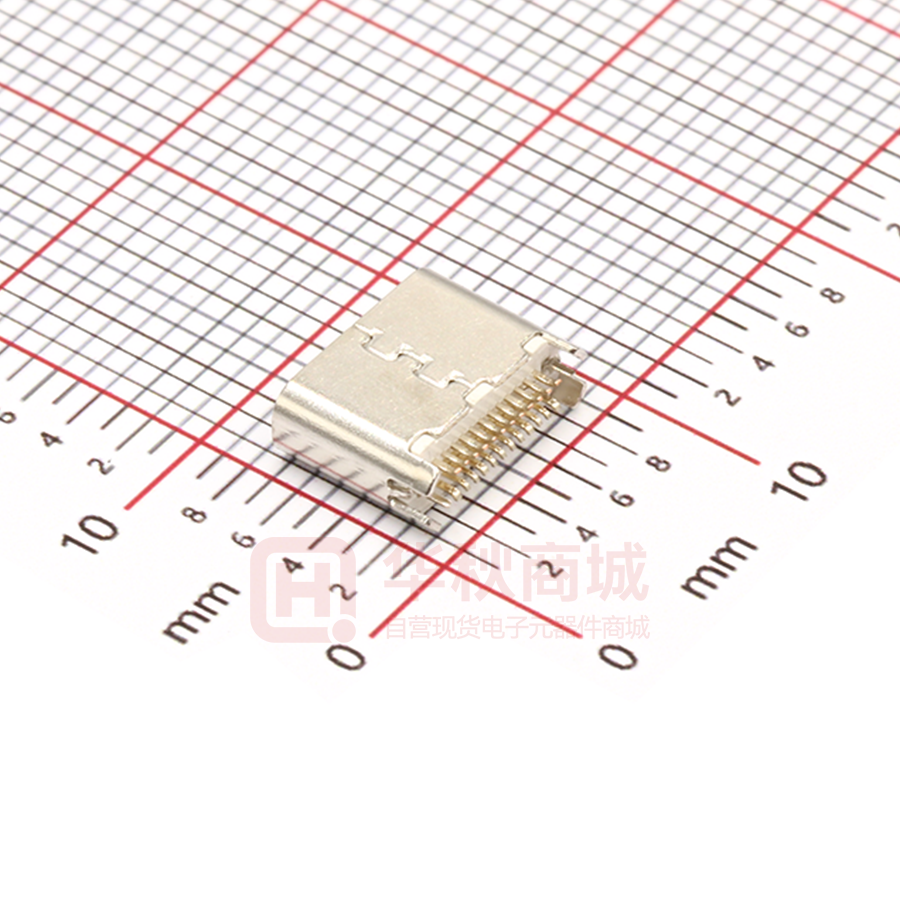

U263-241N-4BQC14

A1 A12 B1 B12 2.56 [0.101] 1.20 [0.047] 1.37 [0.054] 8.94 [0.352] 5.75 [0.226] 6.80 [0.268] R1.33 6.59 [0.259] 1.62 [0.064] 0.70 [0.028] 0.60 [0.024] 3.16 [0.124] 0.85 [0.033] 8.94 [0.352] 3.65 [0.144] 截面 1-1 A12 PCB EDGE 9.10 [0.358] 4.34 [0.171] 1.60 [0.063] 0.50 [0.020] 1.50 [0.059] 2.50 [0.098] 3.50 [0.138] A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 GND SSTXP1 SSTXN1 VBUS CC1 DP1 DN1 SBU1 VBUS SSRXN2 SSRXP2 GND PIN SIGNAL NAME B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 GND SSRXP1 SSRXN1 VBUS SBU2 DN2 DP2 CC2 VBUS SSTXN2 SSTXP2 GND PIN SIGNAL NAME 1.39 [0.055] 0.40 [0.016] U262-24XN-4BQC14 0.20 [0.008] 0.28 [0.011] Material Housing Material: High temperature thermoplastic Contact Terminal: High Grade Copper Alloy Metallic Shell: Stainless Steel Inner Ground Cover Shell: Stainless Steel Mid Plate: Stainless Steel Plating Data Contact Underplating: 50µ" Min. Nickel Contact Plating: 1µ" Gold Solder Area: 80µ" Matte Tin Shell Metallic Shell: 50µ" Min. Nickel Cover Shell Metallic Shell: 80µ" Min. Nickel Inner Ground Cover Shell Metallic Shell: 50µ" Min. Nickel Electrical Voltage Rating: 20V DC Current Rating: Vbus pins collectively 5.00A, GND pins collectively 6.25A, B5 pin 1.25A, Other pins 0.25A per pin. Contact Resistance: 40mΩ Max. Insulation resistance: 100 MΩ MIN. Dielectric withstanding voltage: 100V AC/Minute Mechanical Durability: 10,000 cycles Mating Force: 5 to 20N Unmating Force: 8 to 20N (post test) 0.80 [0.031] 4*0.40 [0.016] GED A1 1.26 [0.050] 1.75 [0.069] 8*0.25 [0.010] 0.25 [0.010] 0.75 [0.030] 2.25 [0.089] 2.75 [0.108] 4.50 [0.177] 5.50 [0.216] 3.92 [0.154] 1:AU 1U'' 2:AU 3U'' 5:AU 15U'' 6:AU 30U'' 6.90 [0.272] X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
